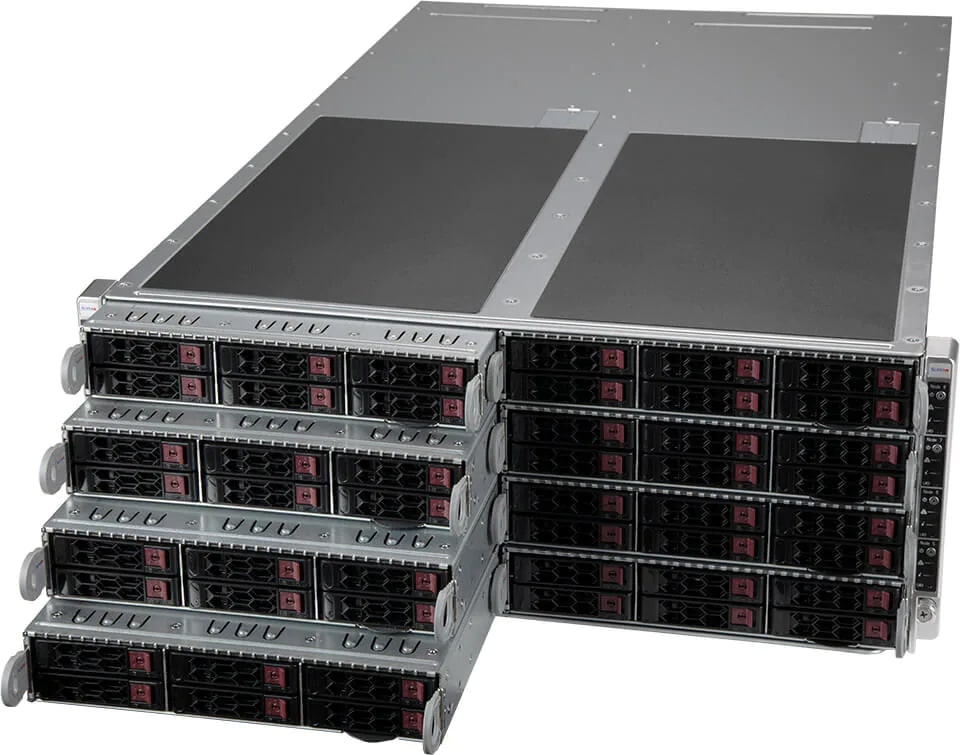

Supermicro FatTwin SuperServer F610P2-RT N

SYS-F610P2-RTN

Call our Solutions Specialists - 01283 576162

Great news, this product is available for special order. Please call us for availability.

To learn more about this product complete the form below and one of our team will get right back to you.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs
SuperServer SYS-F610P2-RTN (Black)

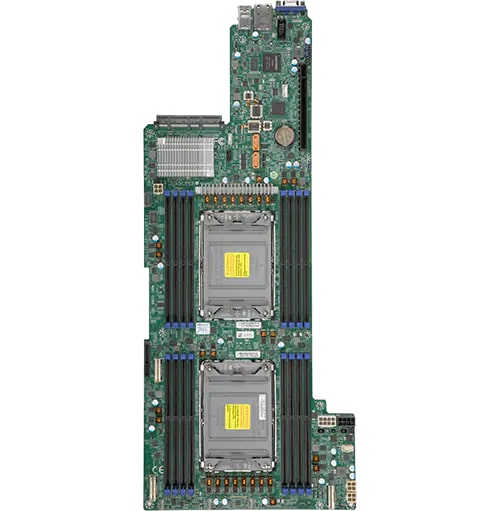

Motherboard
Super X12DPFR-AN6

Processor (per Node)
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 36C/72T; Up to 54MB Cache per CPU
Note	Supports up to 185W TDP CPUs (Air Cooled)

System Memory (per Node)
Memory	Memory Capacity: 16 DIMM slots Up to 4TB: 8x 512 GB PMem and 16x 128 GB DRAM Up to 2TB: 16x 128 GB DRAM Up to : 16x 128 GB Intel® Optane™ persistent memory 200 series
Memory Voltage	1.2 V

On-Board Devices (per Node)
Chipset	Intel® C621A
Network Connectivity	1x 1GbE RJ45 (BMC)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output (per Node)
SATA	14 SATA (6Gbps) port(s)
NVMe	6 NVMe U.2 options
LAN	1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 port(s) (2 rear)
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 32MB SPI FLASH ROM

Management
Software	IPMI 2.0 KVM with dedicated LAN Super Diagnostics Offline SuperDoctor® 5 Supermicro Update Manager (SUM) Supermicro Power Manager (SPM) Supermicro Server Manager (SSM) Redfish API
Power Configurations	ACPI / APM Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory.
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment

Chassis
Form Factor	4U
Model	CSE-F418BC3-R2K20BP

Dimensions and Weight
Height	6.96" (177mm)
Width	17.63" (448mm)
Depth	29" (737mm)
Package	15" (H) x 28.3" (W) x 42.4" (D)
Weight	Net Weight: 150 lbs (68.04 kg) Gross Weight: 200 lbs (90.71 kg)
Available Color	Black

Front Panel
Buttons	Power On/Off button UID button
LEDs	HDD activity LED Network activity LEDs Power status LED Universal Information (UID) LED

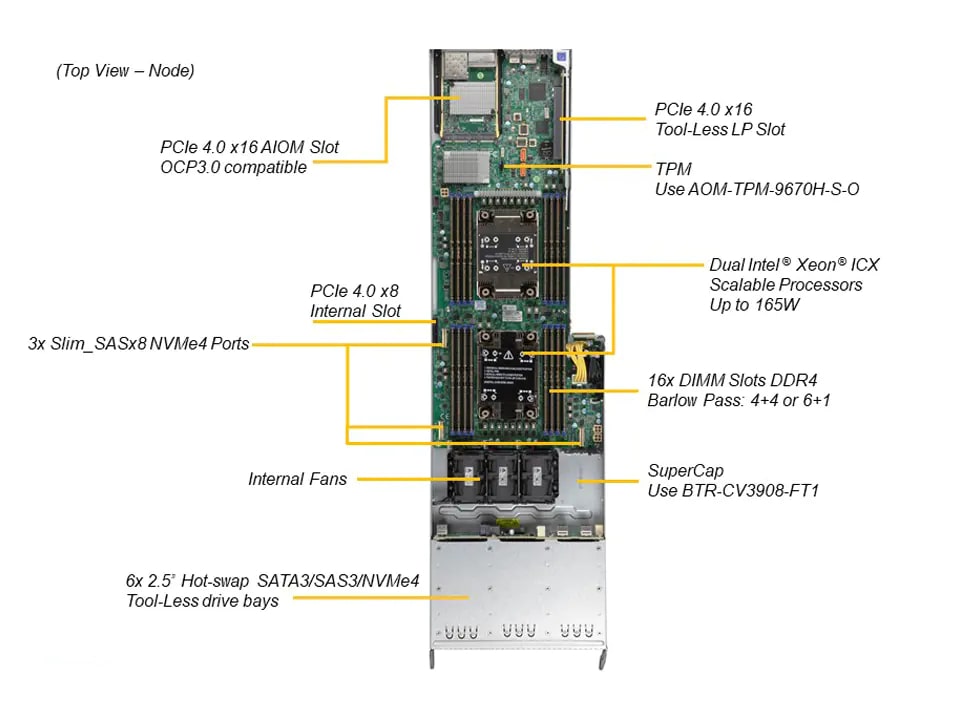

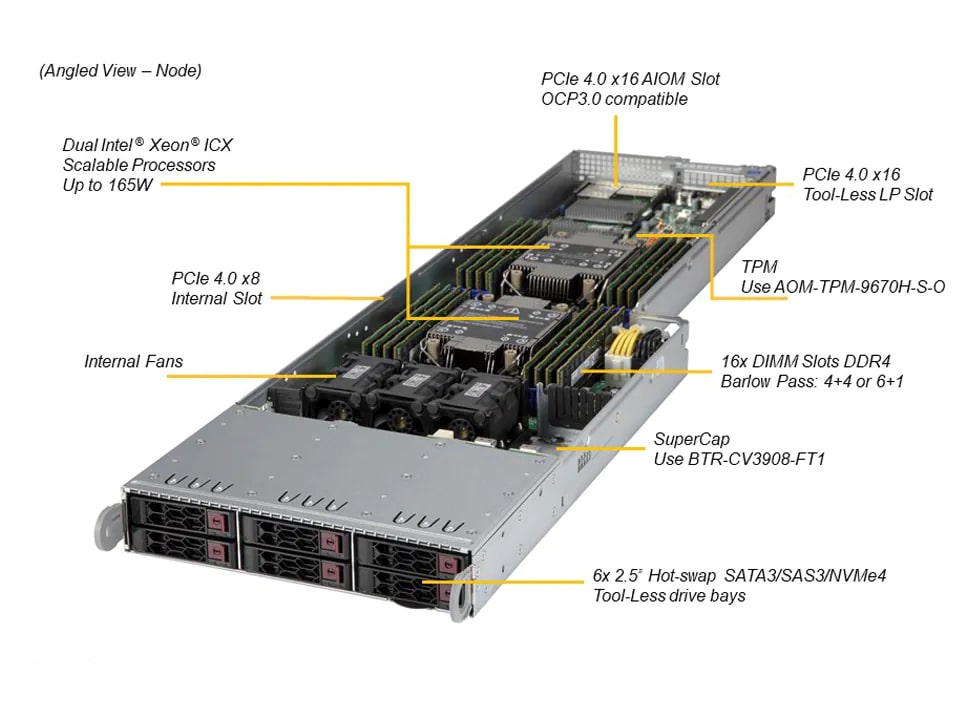

Expansion Slots (per Node)
PCI-Express (PCIe)	1 PCIe 4.0 x8 LP slot(s)

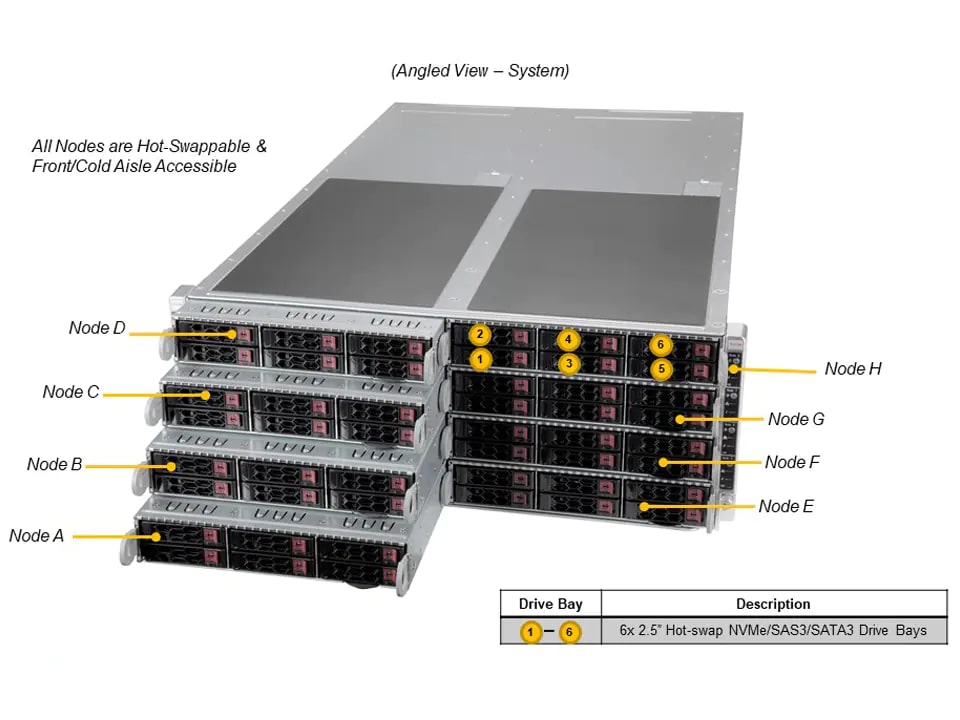

Drive Bays / Storage (per Node)
Hot-swap	6x 2.5" hot-swap NVMe/SATA/SAS drive bays (6x 2.5" NVMe hybrid) 6x 2.5" 7mm drive bays

System Cooling
Fans	3x 4cm Fan(s)

Power Supply
8800W Redundant Titanium Level power supplies
Dimension (W x H x L)	76 x 40 x 336 mm
AC Input	1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only) 1980W: 220-230Vac / 50-60Hz 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 100A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only) Max: 174.17A / Min: 0A (230Vac-240Vac) Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only) Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)
5V SB	Max: 1A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]

Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 5% to 95% (8) Non-operating Relative Humidity: 90% to 5% (95)
