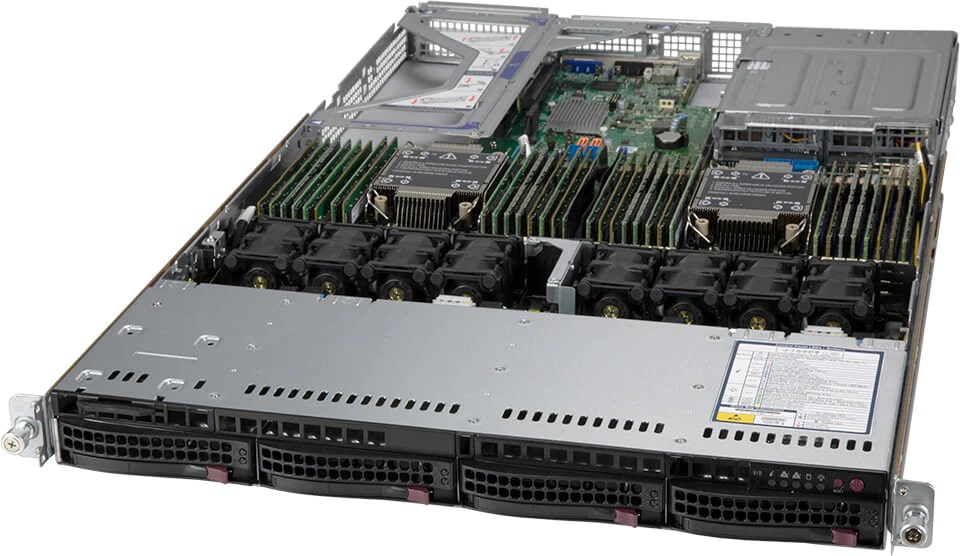

Supermicro Super Server -610U-TNR

SYS-610U-TNR

Call our Solutions Specialists - 01283 576162

Great news, this product is available for special order. Please call us for availability.

To learn more about this product complete the form below and one of our team will get right back to you.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs
SuperServer SYS-610U-TNR (Black Front & Silver Body)

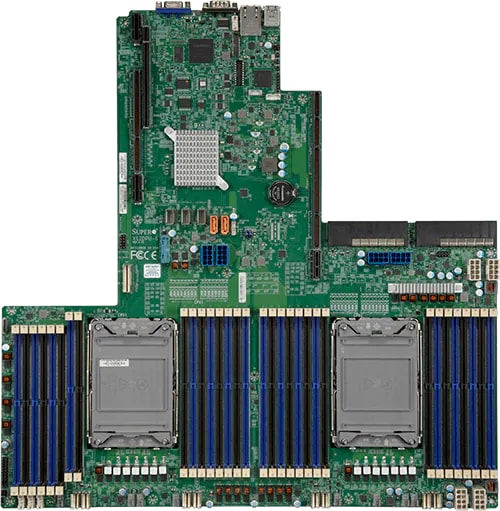

Motherboard
Super X12DPU-6

Processor
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 40C/80T; Up to 60MB Cache per CPU
Note	Supports up to 270W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 2 double-width or 2 single-width GPU(s)
Supported GPU	NVIDIA PCIe: A100, A16, RTX A4000, A2, A30, T4 View Complete List

System Memory

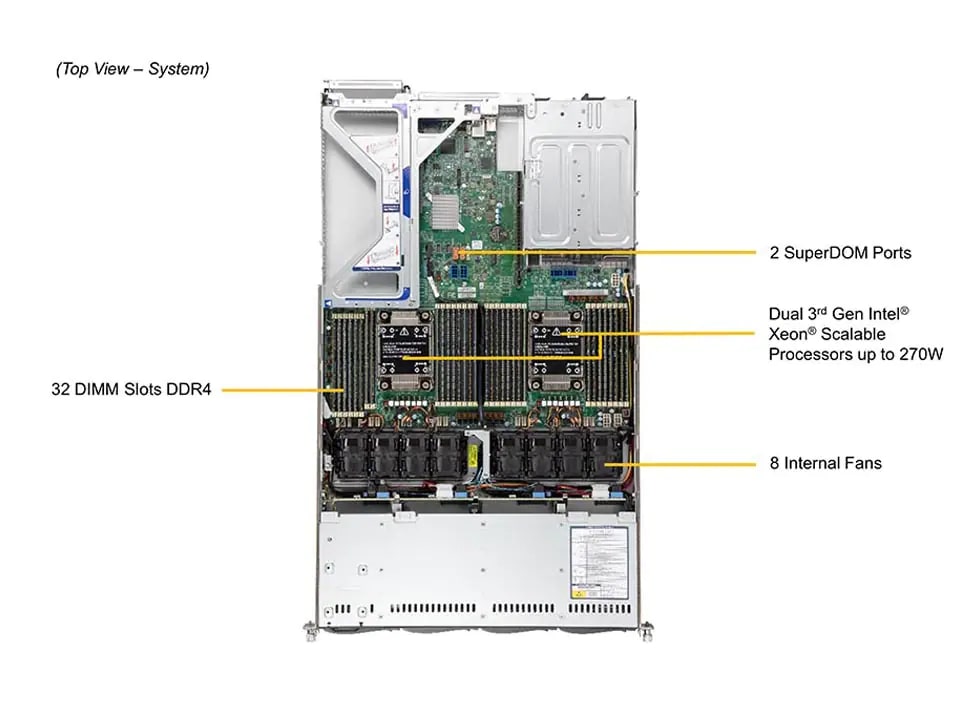

Memory	Memory Capacity: 32 DIMM slots Up to 8TB: 32x 256 GB DRAM Up to 12TB: 16x 512 GB PMem and 16x 256 GB DRAM Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM Intel® Optane™ persistent memory 200 series
Memory Voltage	1.2 V
Error Detection	ECC

On-Board Devices
SATA	SATA3 (6Gbps); RAID 0/1/5/10 support
NVMe	NVMe (16GT/s); RAID 0/1/5/10 support
Chipset	Intel® C621A
Network Connectivity	2x 10GbE BaseT with Intel® X710-AT2 (optional) OR 2x 10GbE BaseT and 2x 10GbE SFP+ with Intel® X710-TM4 (optional) No NIC option supported
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

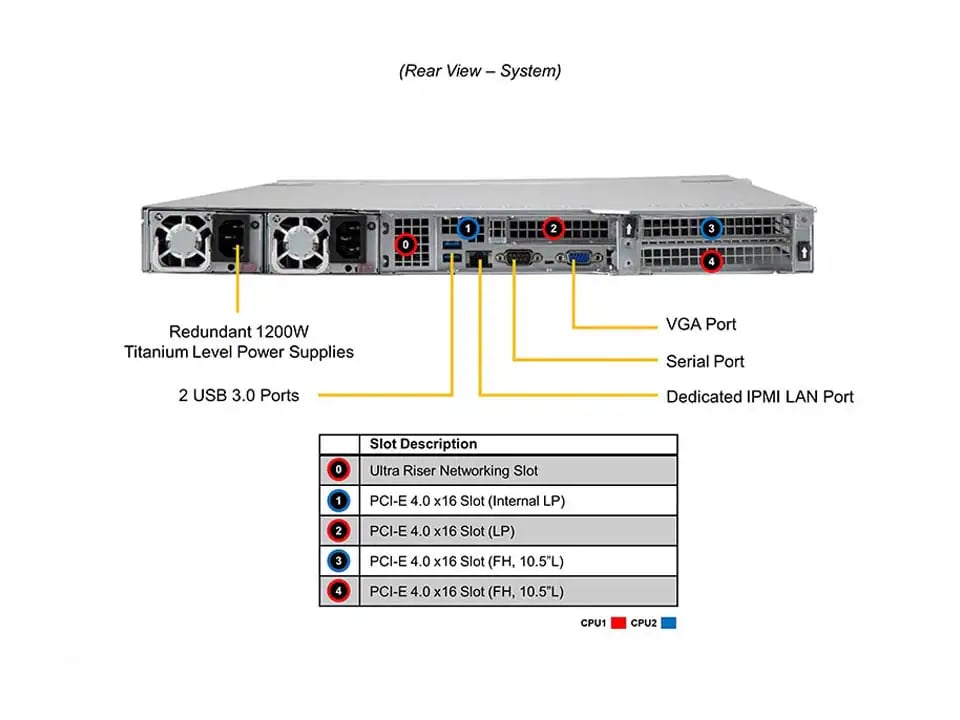

Input / Output
LAN	1 RJ45 Dedicated BMC LAN port
USB	2 USB 3.0 port(s) (2 rear)
Video	1 VGA port(s)
Serial Port	1 COM Port(s) (1 rear)
DOM	2 SuperDOM (Disk on Module) port

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Software	IPMI 2.0 KVM with dedicated LAN Super Diagnostics Offline SuperDoctor® 5 Supermicro Update Manager (SUM) Supermicro Power Manager (SPM) Supermicro Server Manager (SSM) Redfish API
Power Configurations	ACPI Power Management Power-on mode for AC power recovery

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	7 +1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	1U Rackmount
Model	CSE-819U3TS-R1K22P-T

Dimensions and Weight
Height	1.7" (43mm)
Width	17.2" (437mm)
Depth	29.7" (754mm)
Package	7.99" (H) x 23.81" (W) x 37.4" (D)
Weight	Net Weight: 29.5 lbs (13.4 kg) Gross Weight: 44.5 lbs (20.2 kg)
Available Color	Black Front & Silver Body

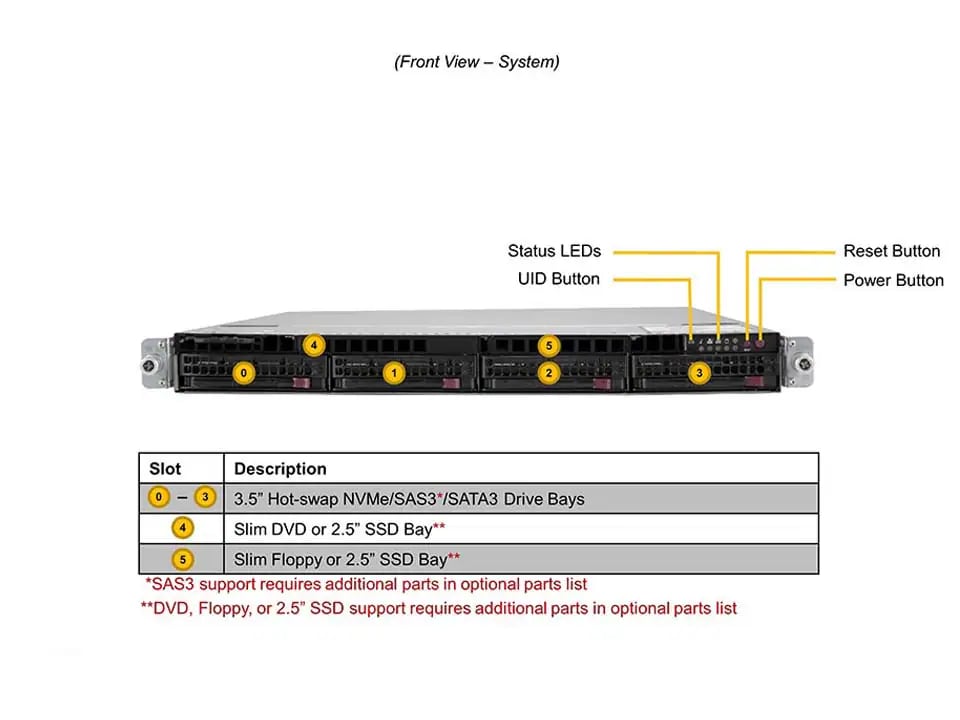

Front Panel
Buttons	Power On/Off UID button
LEDs	HDD activity LAN1 activity LAN2 acticity Power status System information (overheat/UID)

Expansion Slots
PCI-Express (PCIe)	1 PCIe 4.0 x16 Internal LP slot(s) 1 PCIe 4.0 x16 LP slot(s) 2 PCIe 4.0 x16 FH, 10.5"L slot(s)

Drive Bays / Storage

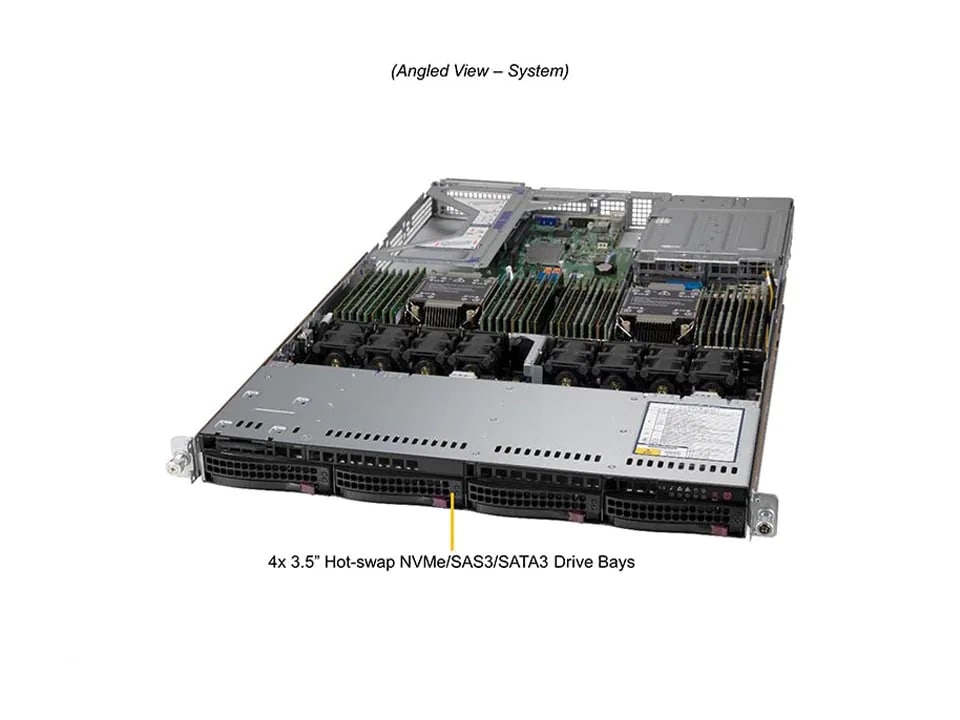

Hot-swap	4x 3.5" hot-swap NVMe/SATA/SAS drive bays (4x 2.5" NVMe hybrid) (SAS/NVMe support requires additional parts. Please see the Optional Parts list.)

System Cooling
Fans	8x 4cm heavy duty fans with optimal fan speed control
Air Shroud	2 Air Shroud(s)

Power Supply
1200W Redundant Titanium Level power supplies
Dimension (W x H x L)	73.5 x 40 x 203 mm
AC Input	800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 66.7A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vdc-240Vdc) Max: 100A / Min: 0A (200Vac-240Vac)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]

Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
