Supermicro SuperServer 530MT-H12TRF

SYS-530MT-H12TRF

Call our Solutions Specialists - 01283 576162

Great news, this product is available for special order. Please call us for availability.

To learn more about this product complete the form below and one of our team will get right back to you.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs
SuperServer SYS-530MT-H12TRF (Black)

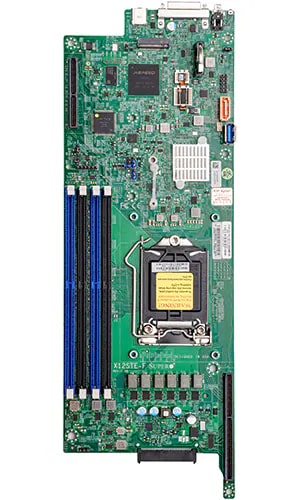

Motherboard
Super X12STE-F

Processor (per Node)
CPU	Single Socket H5 (LGA-1200) Intel® Xeon® processor E-2300 series and 10th Gen. Pentium® Processors
Core Count	Up to 8C/16T; Up to 16MB Cache per CPU
Note	Supports 80W - 95W TDP CPUs (Air Cooled)

System Memory (per Node)
Memory	Memory Capacity: 4 DIMM slots Up to 128: 4x 32 GB DRAM Memory Type: 3200MHz ECC DDR4 UDIMM

On-Board Devices (per Node)
SATA	SATA (6Gbps) via Intel® C256; RAID 0, 1, 5, 10 support
Chipset	Intel® C256
Network Connectivity	No NIC option supported
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output (per Node)
SATA	2 SATA3 port(s)
LAN	2
Video	1 VGA port(s)
Serial Port	1 COM Port(s) (1 KVM)
DOM	1 SATA DOM (Disk on Module) port

System BIOS
BIOS Type	AMI 128MB SPI Flash EEPROM

Management
Software	IPMI 2.0 KVM with dedicated LAN Super Diagnostics Offline SuperDoctor® 5 Supermicro Update Manager (SUM) Supermicro Server Manager (SSM) Redfish API
Power Configurations	ACPI 6.0 Power Management Power-on mode for AC power recovery

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
FAN	Cooling zone
Temperature	Monitoring for CPU and chassis environment

Chassis

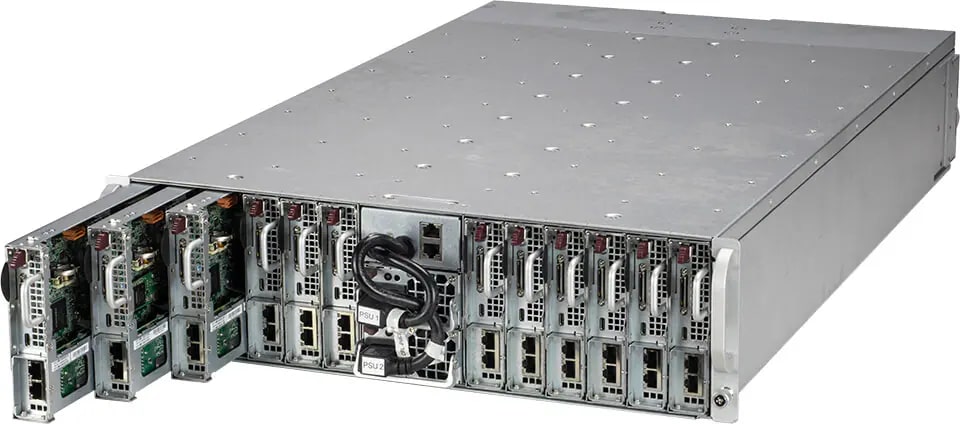

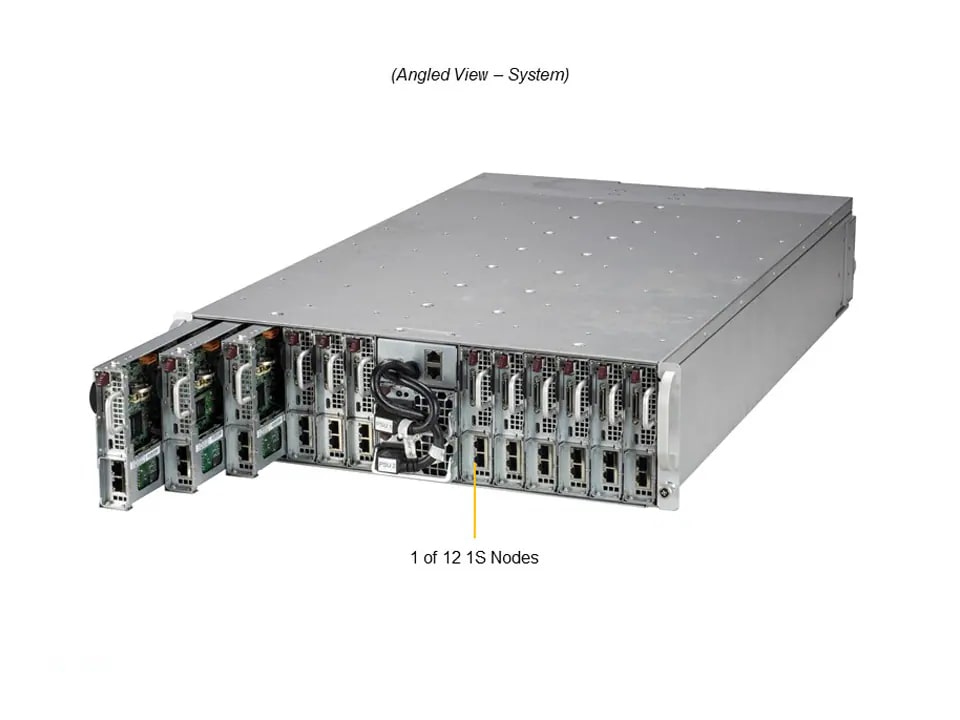

Form Factor	3U Rackmount
Model	CSE-939HN-R2K20BP

Dimensions and Weight
Height	5.21" (132.5mm)
Width	17.5" (444.5mm)
Depth	29.5" (749.3mm)
Package	16.1" (H) x 28.35" (W) x 42.36" (D)
Weight	Net Weight: 95 lbs (43.09 kg) Gross Weight: 125 lbs (56.7 kg)
Available Color	Black

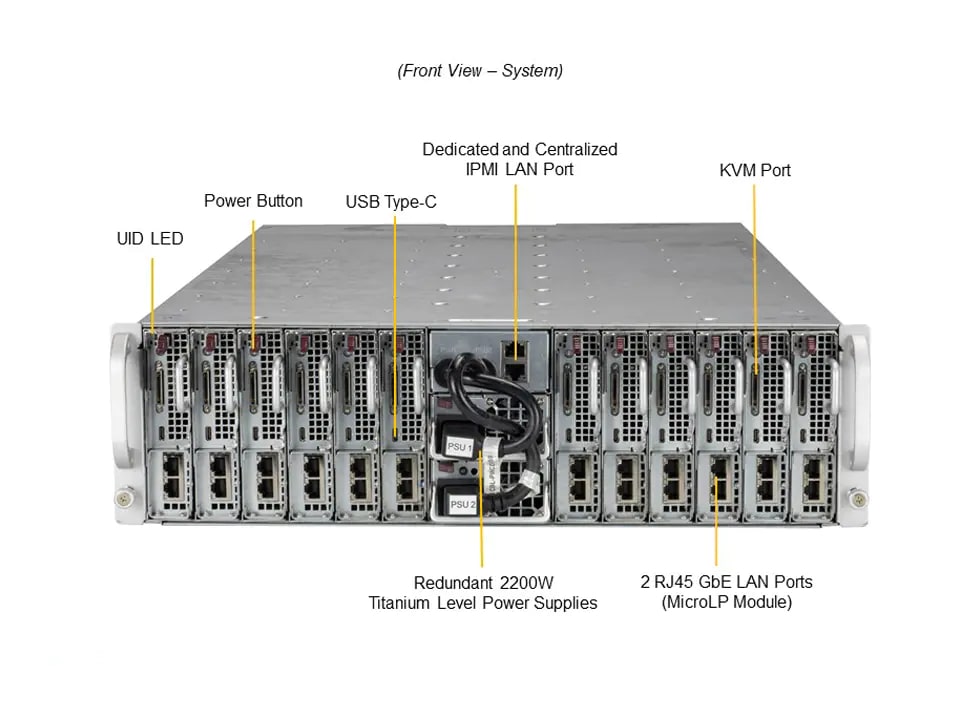

Front Panel
Buttons	Power On/Off
LEDs	UID LED

Expansion Slots (per Node)
PCI-Express (PCIe)	1 PCIe 4.0 x8 MLP slot(s)

Drive Bays / Storage (per Node)

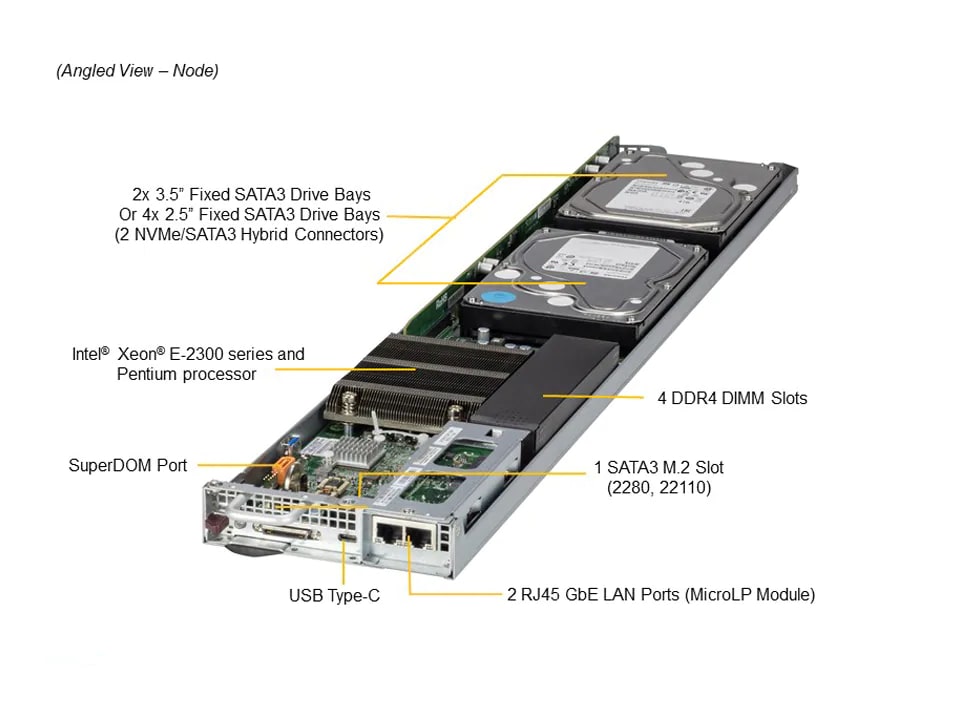

Drive Bays	2x 3.5" NVMe/SATA drive bays (or 4x 2.5" drives, with 2 NVMe/SATA3 hybrid connectors available)
M.2	1 M.2 NVMe OR 1 M.2 SATA3

System Cooling

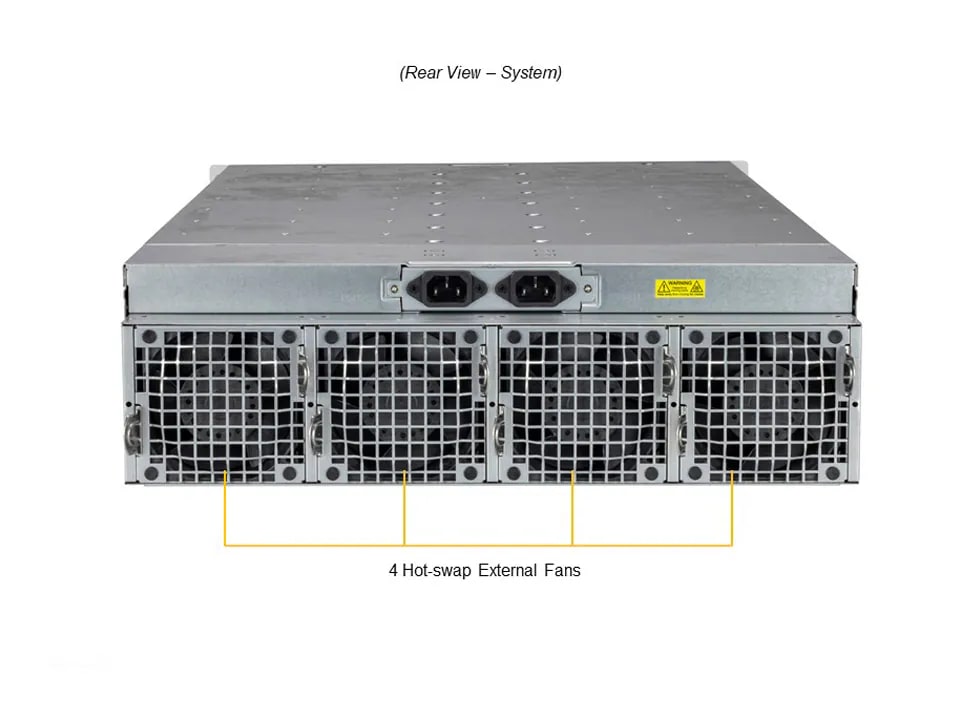

Fans	4x 9cm heavy duty fans with optimal fan speed control
Air Shroud	12 Air Shroud(s)

Power Supply
2200W Redundant Titanium Level power supplies
Dimension (W x H x L)	76 x 40 x 336 mm
AC Input	1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only) 1980W: 220-230Vac / 50-60Hz 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 100A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only) Max: 174.17A / Min: 0A (230Vac-240Vac) Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only) Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)
5V SB	Max: 1A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]

Operating Environment
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
