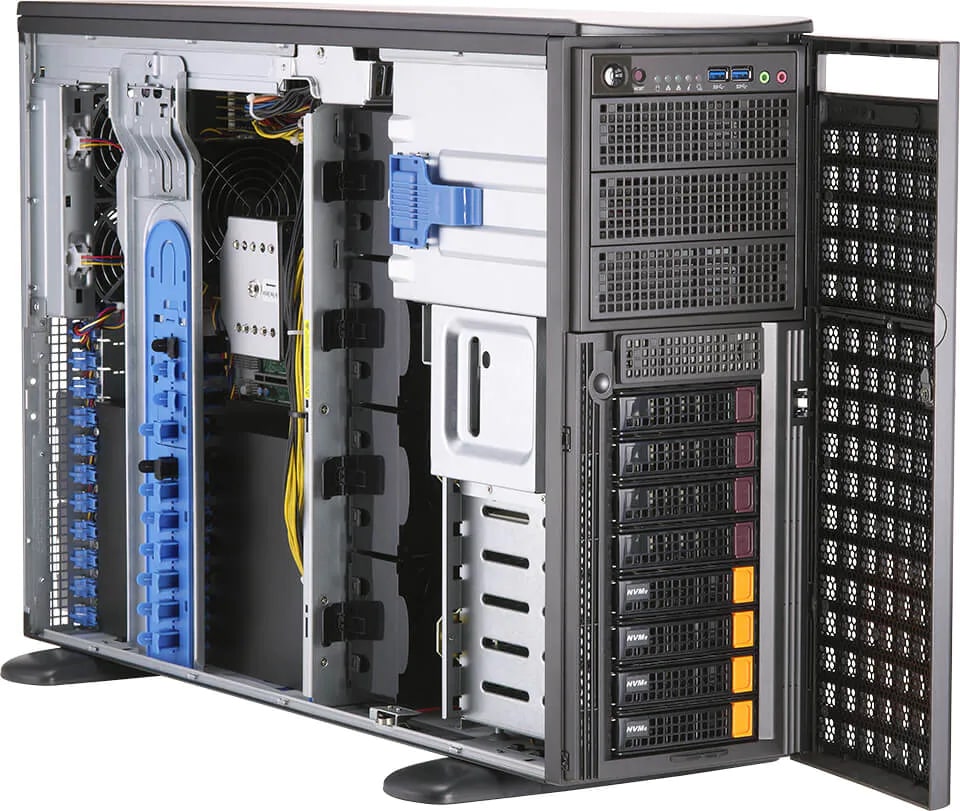

Supermicro SuperServer -740GP-TNRT

SYS-740GP-TNRT

Call our Solutions Specialists - 01283 576162

Great news, this product is available for special order. Please call us for availability.

To learn more about this product complete the form below and one of our team will get right back to you.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs
SuperServer SYS-740GP-TNRT (black)

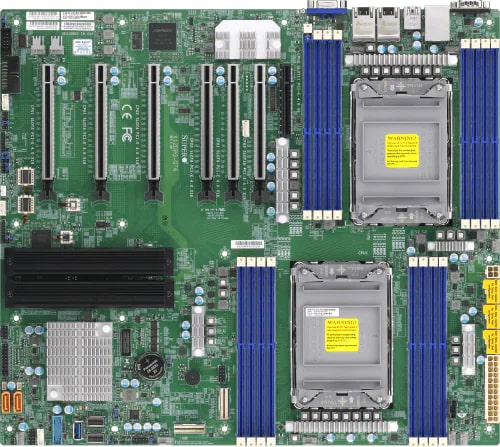

Motherboard
Super X12DPG-QT6

Processor
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 40C/80T; Up to 60MB Cache per CPU
Note	Supports up to 270W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 4 double-width or 6 single-width GPU(s)
Supported GPU	NVIDIA PCIe: A100, A30, RTX A4000, RTX A5000, A40, A10, A16, A40, RTX A4500, RTX A6000 View Complete List
CPU-GPU Interconnect	PCIe 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	PCIe

System Memory
Memory	Memory Capacity: 16 DIMM slots Up to 4TB: 16x 256 GB DRAM Up to 6TB: 8x 512 GB PMem Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM Intel® Optane™ persistent memory 200 series
Memory Voltage	1.2 V
Error Detection	ECC

On-Board Devices
SATA	SATA3 (6Gbps); RAID 0/1/5/10 support
Chipset	Intel® C621A
Network Connectivity	2x 10GbE BaseT with Intel® X550-AT2
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Software	IPMI 2.0 KVM with dedicated LAN Super Diagnostics Offline SuperDoctor® 5 Supermicro Update Manager (SUM) Supermicro Power Manager (SPM) Supermicro Server Manager (SSM) Redfish API
Power Configurations	ACPI Power Management Power-on mode for AC power recovery

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	7 +1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	Full-Tower
Model	CSE-747BTS-R2K20BP

Dimensions and Weight
Height	18.1" (460mm)
Width	7" (178mm)
Depth	26.5" (673mm)
Package	12.7" (H) x 27" (W) x 37.5" (D)
Weight	Net Weight: 52.9 lbs (24 kg) Gross Weight: 57 lbs (25.85 kg)
Available Color	black

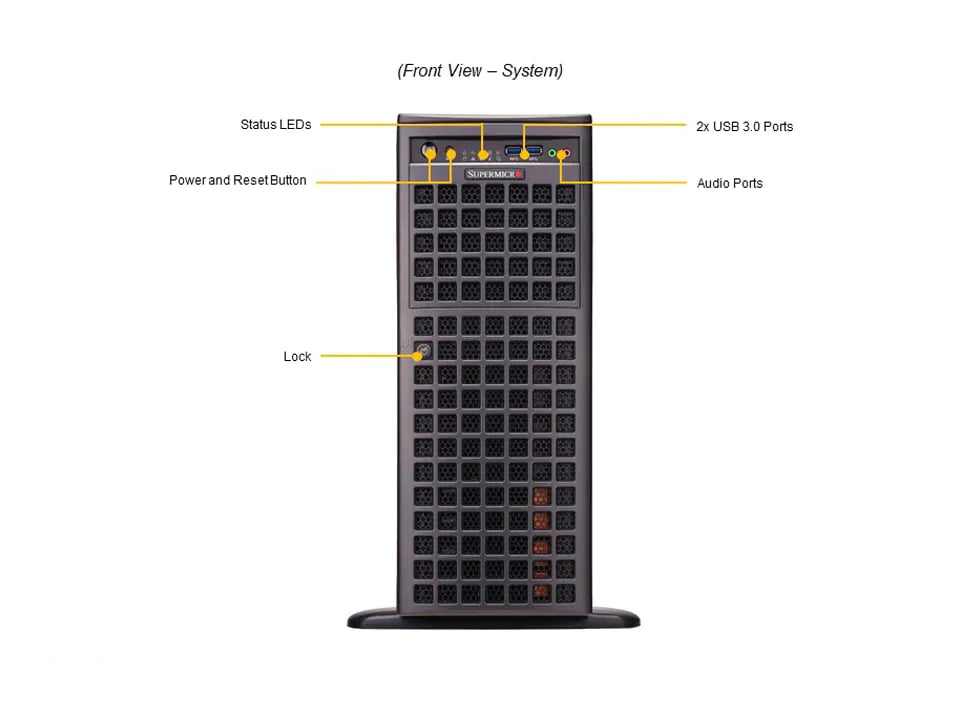

Front Panel
Buttons	Power On/Off System Reset
LEDs	HDD activity Network activity Power On System Overheat / Fan Fail LED

Expansion Slots
PCI-Express (PCIe)	4 PCIe 4.0 x16 FHFL slot(s) 2 PCIe 4.0 x16 LP slot(s) 1 PCIe 4.0 x8 LP slot(s)

Drive Bays / Storage
Hot-swap	8x 3.5" hot-swap NVMe/SATA/SAS Support drive bays (10x 2.5" NVMe dedicated)
M.2	2 M.2 NVMe OR 2 M.2 SATA3

System Cooling
Fans	4 heavy duty fans with optimal fan speed control

Power Supply
2200W Redundant Titanium Level power supplies
Dimension (W x H x L)	76 x 40 x 336 mm
AC Input	1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only) 1980W: 220-230Vac / 50-60Hz 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 100A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only) Max: 174.17A / Min: 0A (230Vac-240Vac) Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only) Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)
5V SB	Max: 1A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]

Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
