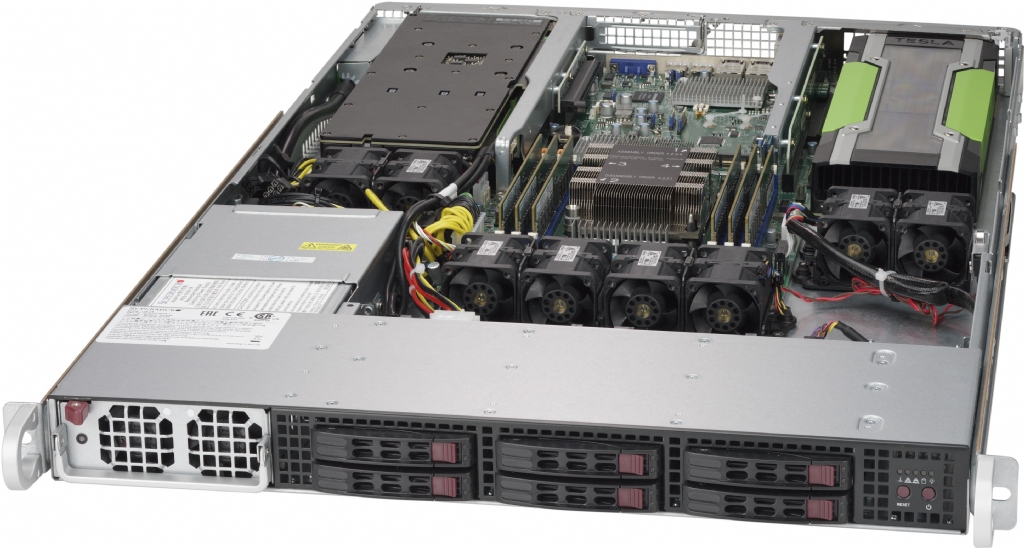

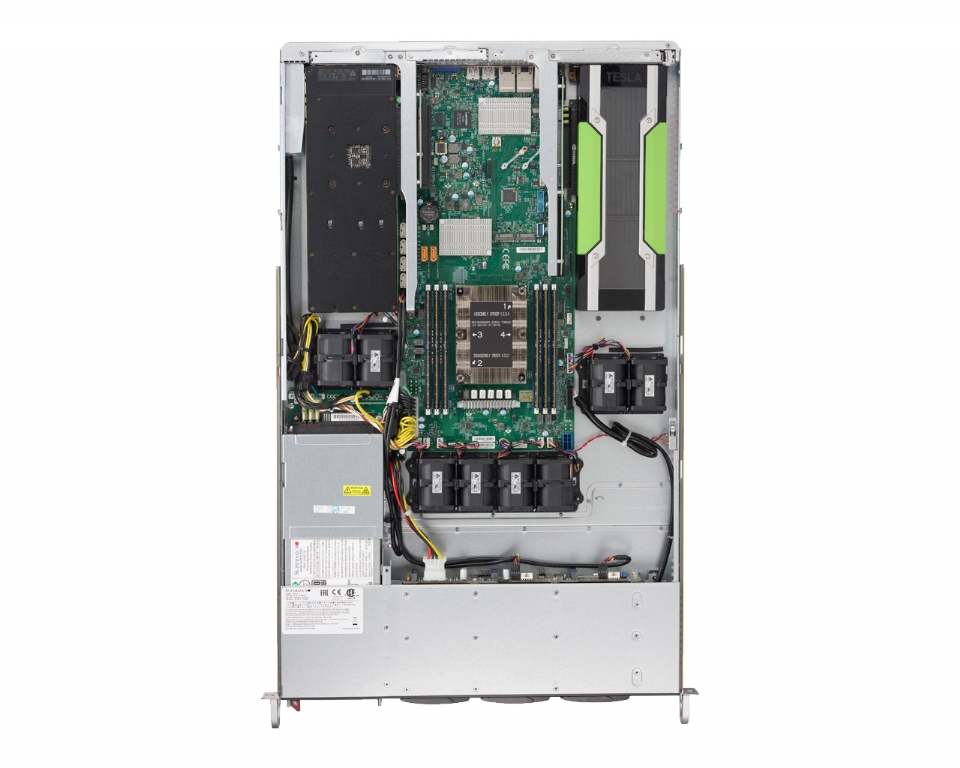

Supermicro SuperServer 1019GP-TT (Black)

SYS-1019GP-TT
Supermicro SuperServer 1019GP-TT (Black)
£1,159.53
ex. VAT
(£1,391.44
inc. VAT)
This product is currently out of stock. We are expecting stock in Ordered On Request
Quantity


Email me when in stock
Looking for Compatible Products?
Product SKUs
SYS-1019GP-TT
  • SuperServer 1019GP-TT (Black)

Motherboard

Super X11SPG-TF

Processor/Cache
CPU
  • Single Socket P (LGA 3647)
  • Intel® Xeon® Scalable Processors
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores with Intel® HT Technology
GPU Support
  • NVIDIA® Tesla® P100/P40/P4/M60

System Memory
Memory Capacity
  • 6 DIMM slots
  • Up to 768GB ECC 3DS LRDIMM, 192GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type
  • 2666/2400/2133MHz ECC DDR4 SDRAM

On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Connectivity
  • Intel® X550 Dual Port 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500

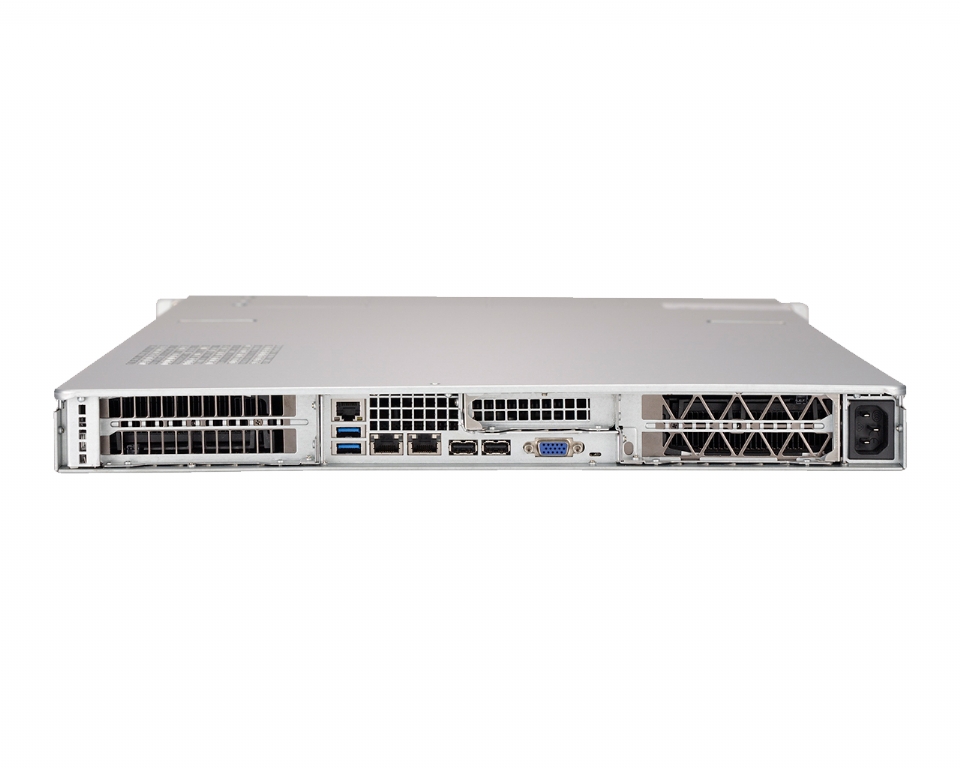

Input / Output
SATA
  • 6 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
  • 2 USB 2.0 ports (rear)
Video
  • 1 VGA port
Serial Port
  • 1 COM Port header
DOM
  • 2 DOM (Disk on Module) power connectors

System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM

Management
Software
Power Configurations
  • ACPI / APM Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-118GTS-1K43BP2

Dimensions
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 28.5" (724mm)
Weight
  • Net Weight: 28 lbs (12.70 kg)
  • Gross Weight: 36 lbs (16.33 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED

Expansion Slots
PCI-Express
  • 1 PCI-E 3.0 x16 slot (center right)
  • 1 PCI-E 3.0 x16 slot (right riser)
  • 1 PCI-E 3.0 x16 slot (left riser)

Drive Bays / Storage
Hot-swap
  • 6 Hot-swap 2.5" SAS/SATA drive bays
M.2
  • Supports 2 M.2 form factor 2280
  • Supports both M.2 NVMe and SATA SSD

System Cooling
Fans
  • 8 heavy duty counter-rotating 4cm fans with air shroud and optimal fan speed control

Power Supply
1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2
AC Voltage
  • 1200W: 100-140 V, 14.7-10.5A, 50-60 Hz
  • 1400W: 180-240 V, 10.5-8.0A, 50-60 Hz
+5V standby
  • 6 Amp
+12V
  • 100 Amp/115 Vac
  • 117 Amp/230 Vac
With Power Distributor
  • +5V: 14 Amp
Certification Platinum Certified
  Platinum Certified

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11SPG-TF

CSE-118GTS-1K43BP2
1

1
Super X11SPG-TF Motherboard

1U SC118G Chassis
Backplane BPN-SAS-118TQ 1 6-port 1U TQ (W/ AMI 9072) backplane, support up to 6x 2.5-inch SAS/SATA HDD/SSD
Cable 1 CBL-0484L 4 SATA,INT,ROUND,ST-ST,55CM,30AWG
Cable 2 CBL-CDAT-0662 2 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG
Cable 3 CBL-PWEX-0663 1 PCIe 8 pin male(black) to CPU 8 pin female(white) power adapter, 5cm, 18AWG, 9A/pin, 0~80C, RoHS/REACH
Cable 4 CBL-PWEX-1028 1 GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C
Cable 5 CBL-SAST-0624 2 SATA,INT,ROUND,ST-ST,70CM,30AWG
Riser Card RSC-R1U-E16R 1 RSC-R1U-E16R
Riser Card RSC-R1UG-E16-UP 1 1U LHS Riser Card with one PCI-E x16 for UP GPU MBs
Riser Card RSC-R1UG-E16R-UP 1 1U RHS Riser Card with 1 PCI-E x16 for UP GPU MB
Heatsink / Retention SNK-P0067PS 1 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Power Supply PWS-1K43F-1R 1 1400W redundant digital power supply
Optional Parts List
  Part Number Qty Description
Other GPUs Cables CBL-PWEX-1061 2 GPU, 2x4F/RA/CPU to two (2x3F+2x1F)/PCIe, P4.2, 34CM, 17/20AWG
AOC-S3008L-L8i (SAS3) CBL-SAST-0699 2 Mini SAS HD-4 SATA, 12G
AOC-S3108L-H8IR-16DD (SAS3) CBL-SAST-0699 2 Mini SAS HD-4 SATA, 12G
AOC-S3108L-H8IR (SAS3) CBL-SAST-0699 2 Mini SAS HD-4 SATA, 12G
Super Cap for LSI 3108 BKT-BBU-BRACKET-05

BTR-TFM8G-LSICVM02
1

1
Mounting Bracket for LSI BBUs

LSI Super Cap
Global Services & Support OS4HR3/2/1

OSNBD3/2/1
-

-
3/2/1-year onsite 24x7x4 service

3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
