| SYS-1028R-WTR |

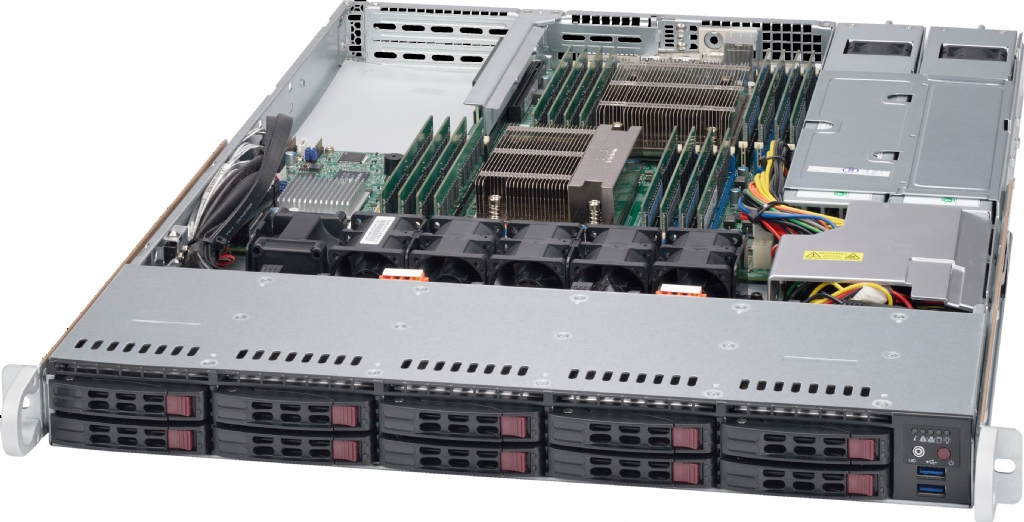

- SuperServer 1028R-WTR (Black)
|
| |
|
| CPU |
- Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
- Dual Socket R3 (LGA 2011)
|
| Cores / Cache |
- Up to 22 Cores† / Up to 55MB† Cache
|
| System Bus |
|
| Note |
† BIOS version 2.0 or above is required |
| Note |
* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
| |
|
| Memory Capacity |
- 16x 288-pin DDR4 DIMM slots
- Up to 2TB† ECC 3DS LRDIMM/RDIMM
|
| Memory Type |
- 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
|
| DIMM Sizes |
- RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
- LRDIMM: 64GB, 32GB
- 3DS LRDIMM: 128GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
|
| |
|
| Chipset |
|
| SATA |
- SATA3 (6Gbps); RAID 0, 1, 5, 10
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
|
| Network Controllers |
- Intel® i350 Dual Port Gigabit Ethernet Controller
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
- 1x Realtek RTL8211E PHY (dedicated IPMI)
|
| Video |
|
| |
|
| Serial ATA |
|
| LAN |
- 2x RJ45 Gigabit Ethernet LAN ports
- 1x RJ45 Dedicated IPMI LAN port
|
| USB |
- 6x USB 3.0 ports (4 rear + 2 via header)
|
| Video |
|
| Serial Port / Header |
- 1x Fast UART 16550 header
|
| DOM |
- 2x SuperDOM (Disk on Module) ports
|
| |
|
| Voltage |
- Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
- 5+1 Phase-switching voltage regulator
|
| FAN |
- 6x 4-pin fan headers (up to 6 fans)
- 6x fans with tachometer monitoring
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
|
| Temperature |
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- Thermal Control for 8x Fan Connectors
- Thermal Monitor 2 (TM2) support
- PECI
|
| LED |
- CPU / System Overheat LED
- Suspend static indicator LED
- UID/Remote UID
|
| Other Features |
- Chassis intrusion detection
- Chassis intrusion header
- SDDC Support
- RoHS
|
|
 |
|
|
| Form Factor |
|
| Model |
|
| |
|
| Width |
|
| Height |
|
| Depth |
|
| Weight |
- Net Weight: 25.5 lbs (11.6 kg)
- Gross Weight: 39 lbs (17.7 kg)
|
| Available Colors |
|
| |
|
| Buttons |
- Power On/Off button
- UID button
|
| LEDs |
- Power status LED
- HDD activity LED
- 2x Network activity LEDs
- Universal Information (UID) LED
|
| |
|
| PCI-Express |
- 2x PCI-E 3.0 x16 full-height, Half-length slots
|
| |
|
| Hot-swap |
- 10x Hot-swap 2.5" SAS / SATA HDD trays (default 10 SATA connected to onboard storage controller)
|
| |
|
| SAS/SATA HDD Backplane |
| |
|
| Fans |
- 5x 4cm heavy-duty counter-rotating fans w/ air shroud and optimal fan speed control
|
| |
|
| 700W/750W Redundant Power Supplies with PMBus |
| Total Output Power |
|
Dimension
(W x H x L) |
|
| Input |
- 100 - 140Vac / 8 - 6A / 50-60Hz
- 200 - 240Vac / 4.5 - 3.8A / 50-60Hz
- 200 - 240Vdc / 4.5 - 3.8A (CCC Only)
|
| +12V |
- Max: 58A / Min: 0.5A (100 - 140Vac)
- Max: 62A / Min: 0.5A (200 - 240Vac)
- Max: 62A / Min: 0.5A (200 - 240Vdc)
(CB/CCC Only)
|
| +5V sb |
|
| Output Type |
- Gold Finger Connector Mating with Molex 45984-4343
|
| Certification |
UL/cUL/CB/BSMI/CE/CCC
Platinum Certified
[ Test Report ] |
| |
|
| BIOS Type |
- 128Mb SPI Flash EEPROM with AMI BIOS
|
| BIOS Features |
- Plug and Play (PnP)
- APM 1.2
- PCI 2.3
- ACPI 1.0 / 2.0 / 3.0 / 4.0
- USB Keyboard support
- SMBIOS 2.7.1
- UEFI 2.3.1
|
| |
|
| Software |
|
| Power Configurations |
- ACPI / APM Power Management
- Power-on mode for AC power recovery
|
| |
|
| RoHS |
|
| Environmental Spec. |
- Operating Temperature:
10°C to 35°C (50°F to 95°F)
- Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
|
|
|
 |
|
See Parts List
|
|
|
|
|
Part Number
|
Qty
|
Description
|
| Motherboard / Chassis |
MBD-X10DRW-i
CSE-116TQ-R706WB |
1
1 |
Super X10DRW-i Motherboard
1U Chassis |
| Backplane |
BPN-SAS-116TQ |
1 |
10-port 1U TQ (W/ AMI 9072) backplane, support up to 10x 2.5-inch SAS/SATA HDD/SSD |
| Cable 1 |
CBL-CDAT-0660 |
1 |
CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,27CM,28AWG |
| Cable 2 |
CBL-0483L |
2 |
SATA,INT,ROUND,ST-ST,29CM,30AWG |
| Cable 3 |
CBL-CDAT-0661 |
1 |
CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG |
| Cable 4 |
CBL-CDAT-0662 |
1 |
CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG |
| Cable 5 |
CBL-SAST-0639 |
2 |
SATA,INT,ROUND,ST-RA,31CM,30AWG |
| Cable 6 |
CBL-SAST-0641 |
2 |
SATA,INT,ROUND,ST-RA,45CM,30AWG |
| Cable 7 |
CBL-SAST-0640 |
2 |
SATA,INT,ROUND,ST-RA,38CM,30AWG |
| Cable 8 |
CBL-0488L |
2 |
SATA,INT,ROUND,ST-RA,55CM,30AWG |
| Label |
LBL-0108 |
1 |
CAUTION LABEL FOR REDUNDANT PWR SYSTEMS |
| Manual |
MNL-1634-QRG |
1 |
1028R-WTR(T) QRG,HF |
| Riser Card |
RSC-R1UW-2E16 |
1 |
1U LHS WIO Riser card with two PCI-E x16 slots |
| Heatsink / Retention |
SNK-P0047PSC |
1 |
1U Passive Front CPU Heat Sink w/ a Side Air Channel for X9, X10 Systems Equipped with a Narrow ILM MB |
| Heatsink / Retention |
SNK-P0057PS |
1 |
1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB |
| Power Supply |
PWS-706P-1R |
2 |
1U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF |
| Fan |
FAN-0101L4 |
5 |
40x56, 4 Pin PWM |
| Rail Set |
MCP-290-00063-0N |
1 set |
Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH |
|
|
|
|
|
| |
Part Number |
Qty |
Description |
| CachVault(s) |
BTR-CV3108-1U1
BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05
BTR-TFM8G-LSICVM02 & MCP-240-00127-0N |
1
-
- |
CacheVault for Broadcom 3108 with SuperCap mounting in 1U 40x56 fan tray
CacheVault for Broadcom 3108; SuperCap mounting bracket for PCI-E location
CacheVault for Broadcom 3108; SuperCap mounting bracket for 2.5" HDD location |
SuperCap for
AOC-S2208L-H8IR |
BTR-0024LH-LSI00297 & BKT-BBU-BRACKET-05
BTR-0024LH-LSI00297 & MCP-240-00127-0N |
-
- |
SuperCap TFM to be used w/ Supermicro AOC-S2208L-H8IR; SuperCap mounting bracket for PCI-E location
SuperCap TFM to be used w/ Supermicro AOC-S2208L-H8IR; SuperCap mounting bracket for 2.5" HDD location |
Storage Controller
Card(s) & Cables(s) |
AOM-S3108M-H8 &
2x CBL-SAST-0616
AOC-S3108L-H8IR-16DD
& 2x CBL-SAST-0556
AOC-S3008L-L8i &
2x CBL-SAST-0556
AOC-S3008L-L8e &
2x CBL-SAST-0556
AOC-S2308L-L8e &
2x CBL-SAST-0388L-02
AOC-S2308L-L8i &
2x CBL-SAST-0388L-02
AOC-S2208L-H8iR &
2x CBL-SAST-0388L-02 |
- |
Supermicro Low Profile 12Gb/s Eight-Port SAS Internal Mezzanine RAID Adapter; RAID 0, 1, 5, 6, 10, 50, 60
Standard LP, 8 internal ports (12Gb/s) Gen-3, 16HDD;
RAID 0, 1, 5, 6, 10, 50, 60
Standard LP, 8 internal ports (12Gb/s) Gen-3, 63HDD;
RAID 0, 1, 10
Standard LP, 8 internal ports (12Gb/s) Gen-3, 122HDD;
HBA
Standard LP, 8 internal ports (6Gb/s) Gen-3, 122HDD;
HBA
Standard LP, 8 internal ports (6Gb/s) Gen-3, 63HDD;
RAID 0, 1, 10
Standard LP, 8 internal ports (6Gb/s) Gen-3, 240HDD;
RAID 0, 1, 5, 6, 10, 50, 60 |
| Network Card(s) |
AOC-SGP-i2
AOC-SGP-i4
AOC-SG-i2
AOC-SG-i4
AOC-STG-b4S
AOC-STGN-i2S
AOC-STG-i2T
AOC-STG-i2 |
- |
Standard LP, 2x GbE RJ45, PCI-E x4, Intel® i350AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel® i350
Standard LP, 2x GbE RJ45, PCI-E x4, Intel® 82575EB
Standard LP, 4x GbE RJ45, PCI-E x8, Intel® 82576EB
Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom® BCM57840S
Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel® 82599ES
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel® X540
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel® 82598EB |
| Front Bezel |
MCP-210-11601-0B |
1 |
Black Front Bezel for SC113, SC113M, SC116, SC119, SC119U, SC514 (No LED indicator support) |
| Global Services & Support |
OS4HR3/2/1
OSNBD3/2/1 |
-
- |
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service |
| Software |
SFT-OOB-LIC |
1 |
OOB Management Package (per node license) |
| Software |
SFT-DCMS-Single |
1 |
DataCenter Management Package (per node license) |
|
|
|
