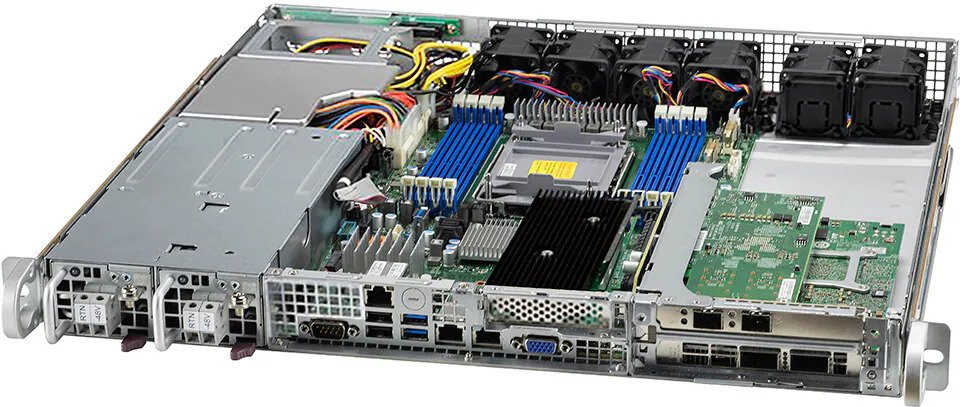

Supermicro SuperServer 110P-FDWTR

SYS-110P-FDWTR

Call our Solutions Specialists - 01283 576162

Great news, this product is available for special order. Please call us for availability.

To learn more about this product complete the form below and one of our team will get right back to you.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs
SuperServer SYS-110P-FDWTR (Silver)

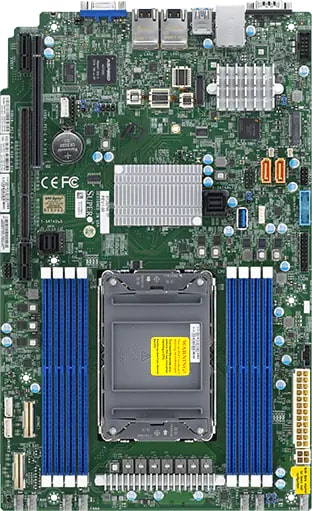

Motherboard
Super X12SPW-TF

Processor
CPU	Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 32C/64T; Up to 48MB Cache per CPU
Note	Supports 85W - 205W TDP CPUs (Air Cooled)

System Memory
Memory	Memory Capacity: 8 DIMM slots Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM
Memory Voltage	1.2 V
Error Detection	ECC

On-Board Devices
SATA	SATA3 (6Gbps); RAID 0/1 support
Chipset	Intel® C621A
Network Connectivity	2x 10GbE BaseT with Intel® X550
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
LAN	1 RJ45 Dedicated IPMI LAN port 2 RJ45 10GbE (Intel® X550-AT2)
USB	2 USB 2.0 port(s) (2 Type A) 2 USB 3.2 port(s) (2 Type A)
Video	1 VGA port(s)
Serial Port	1 COM Port(s) (1 front)

Management
Software	IPMI 2.0 KVM with dedicated LAN Super Diagnostics Offline SuperDoctor® 5 Supermicro Update Manager (SUM) Supermicro Power Manager (SPM) Supermicro Server Manager (SSM) Redfish API
Power Configurations	ACPI Power Management Power-on mode for AC power recovery

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	CPU thermal trip support, PEPI Monitoring for CPU and chassis environment

Chassis
Form Factor	1U Rackmount
Model	CSE-515B-R601W

Dimensions and Weight
Height	1.7" (44.5mm)
Width	17.2" (436.88mm)
Depth	16.9" (429.3mm)
Package	8" (H) x 27" (W) x 24" (D)
Weight	Net Weight: 10 lbs (4.54 kg) Gross Weight: 15 lbs (6.8 kg)
Available Color	Silver

Front Panel
Buttons	Power On/Off
LEDs	LAN1 activity LAN2 activity Power status

Expansion Slots
PCI-Express (PCIe)	1 PCIe 4.0 x16LP slot(s) 2 PCIe 4.0 x16 FHFL slot(s)

Drive Bays / Storage
Drive Bays	2x 2.5" SATA drive bays
M.2	1 M.2 NVMe OR 1 M.2 SATA3 M-Key, 2280/22110

System Cooling
Fans	6 heavy duty fans with optimal fan speed control
Air Shroud	1 Air Shroud(s)

Power Supply
600W Redundant Typical 90%+ Level power supplies
Dimension (W x H x L)	54.5 x 40 x 220 mm
5V SB	Max: 3A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Typical 90%+ Level [ Test Report ]

Operating Environment
Environmental Spec.	Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
