Supermicro SuperServer 120H-TNR

SYS-120H-TNR

Call our Solutions Specialists - 01283 576162

Great news, this product is available for special order. Please call us for availability.

To learn more about this product complete the form below and one of our team will get right back to you.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs
SuperServer SYS-120H-TNR

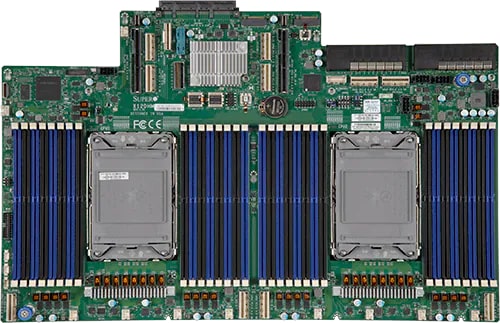

Motherboard
Super X12DHM-6

Processor
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 40C/80T; Up to 60MB Cache per CPU
Note	Supports up to 270W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 2 double-width GPU(s)

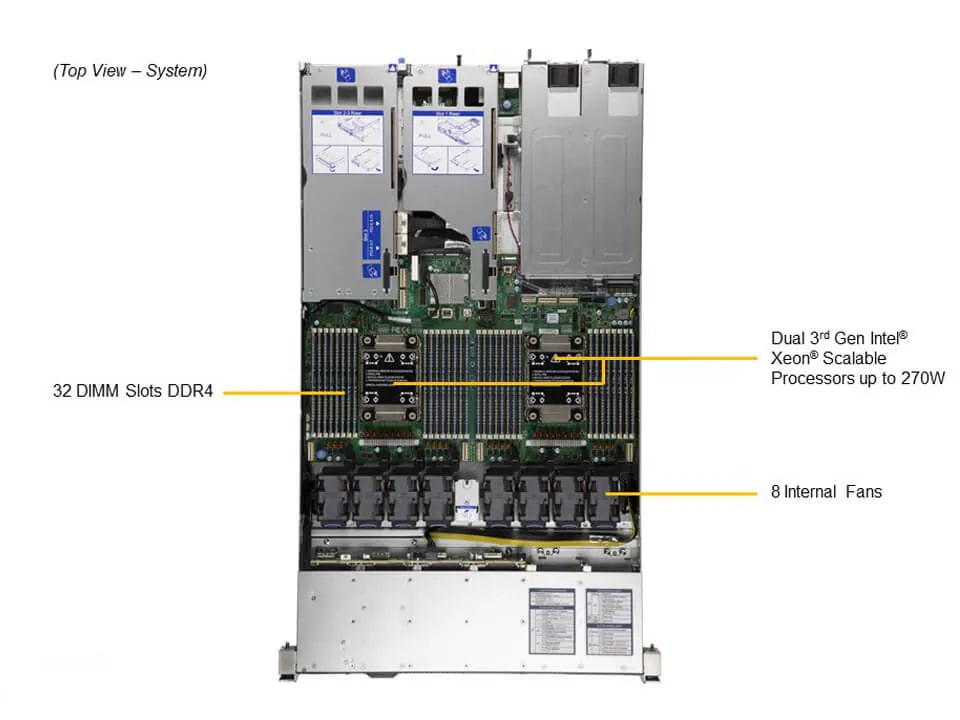

System Memory
Memory	Memory Capacity: 32 DIMM slots Up to 8TB: 32x 256 GB DRAM Up to 12TB: 16x 512 GB PMem and 16x 256 GB DRAM Memory Type: 3200MHz ECC DDR4 Intel® Optane™ persistent memory 200 series
Memory Voltage	1.2 V
Error Detection	ECC

On-Board Devices
SATA	SATA3 (6Gbps); RAID 0/1/5/10 support
NVMe	NVMe; RAID 0/1/5/10 support (Intel® VROC RAID key required)
Chipset	Intel® C621A
Network Connectivity	2x 1GbE BaseT with Intel® i350-AM2 (optional) 4x 1GbE BaseT or 4x 1GbE SFP with Intel® i350-AM4 (optional) 2x 10GbE BaseT with Intel® X550-AT2 (optional) 2x 10GbE SFP+ with Intel® X710-BM2 (optional) 4x 10GbE SFP+ with Intel® XL710-BM1 (optional) 4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional) 2x 25GbE SFP28 with Broadcom® BCM57414 (optional) 4x 25GbE RJ45/SFP28 with Mellanox® CX-4 Lx EN Intel® X550-AT2 (optional) 2x 100GbE QSFP28 with Broadcom® BCM57508 (optional)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

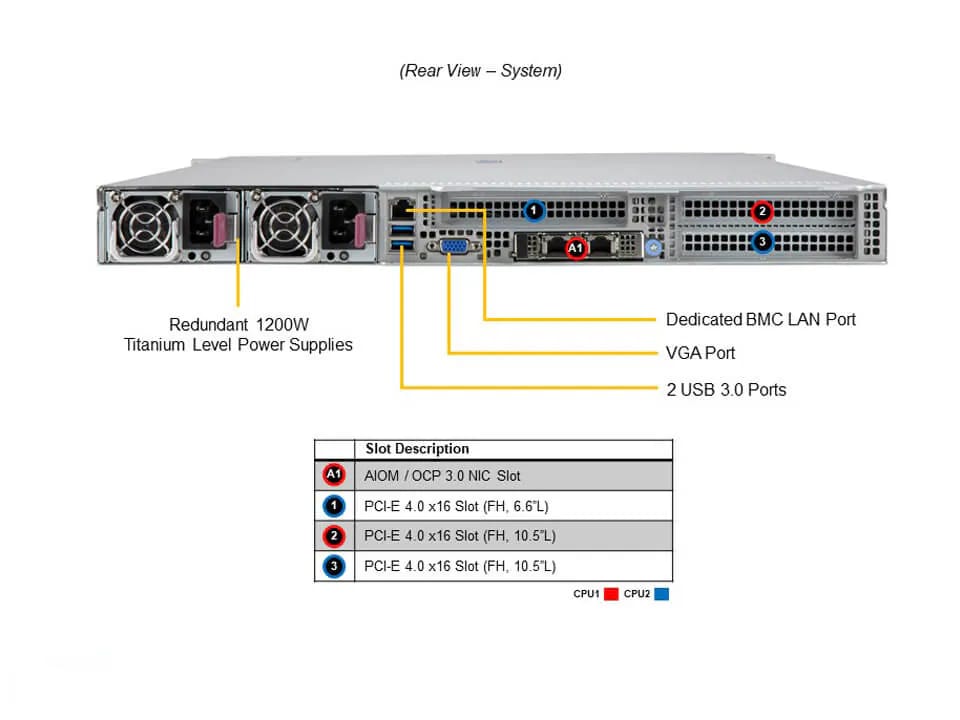

Input / Output
LAN	1 RJ45 Dedicated BMC LAN port
USB	3 USB 3.0 port(s) (1 front; 2 rear)
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 256MB SPI Flash

Management
Software	IPMI 2.0 KVM with dedicated LAN Super Diagnostics Offline SuperDoctor® 5 Supermicro Update Manager (SUM) Supermicro Power Manager (SPM) Supermicro Server Manager (SSM) Redfish API
Power Configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

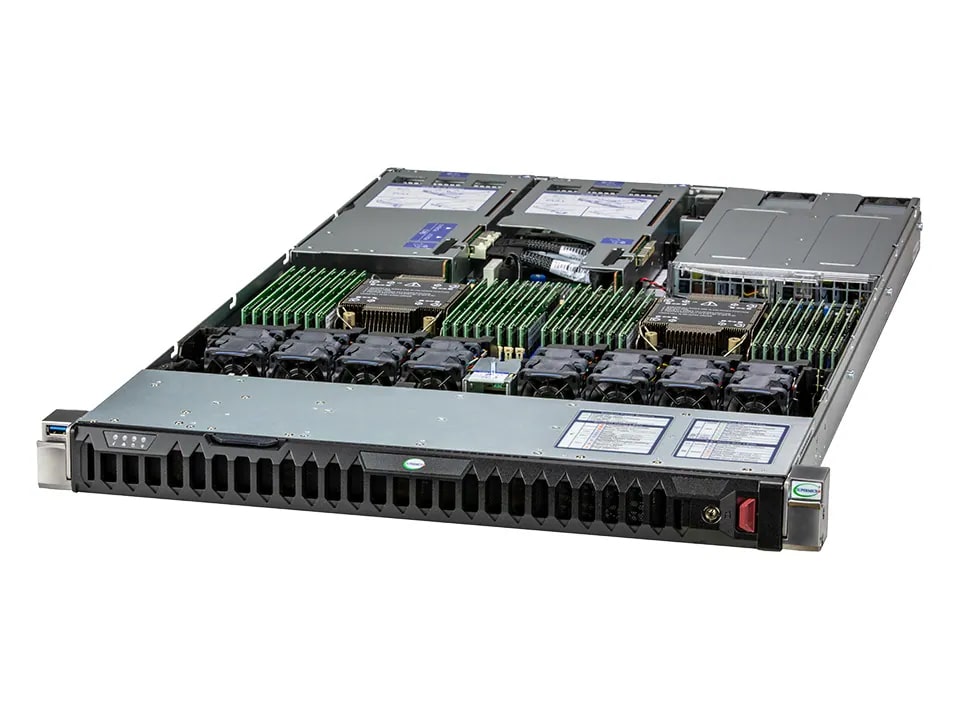

Chassis
Form Factor	1U Rackmount
Model	CSE-HS119-R1K24P

Dimensions and Weight
Height	1.7" (43mm)
Width	17.2" (437mm)
Depth	29.4" (747mm)
Package	8.1" (H) x 23.8" (W) x 40.6" (D)
Weight	Net Weight: 34 lbs (15.4 kg) Gross Weight: 49 lbs (22.2 kg)
Available Color	N/A

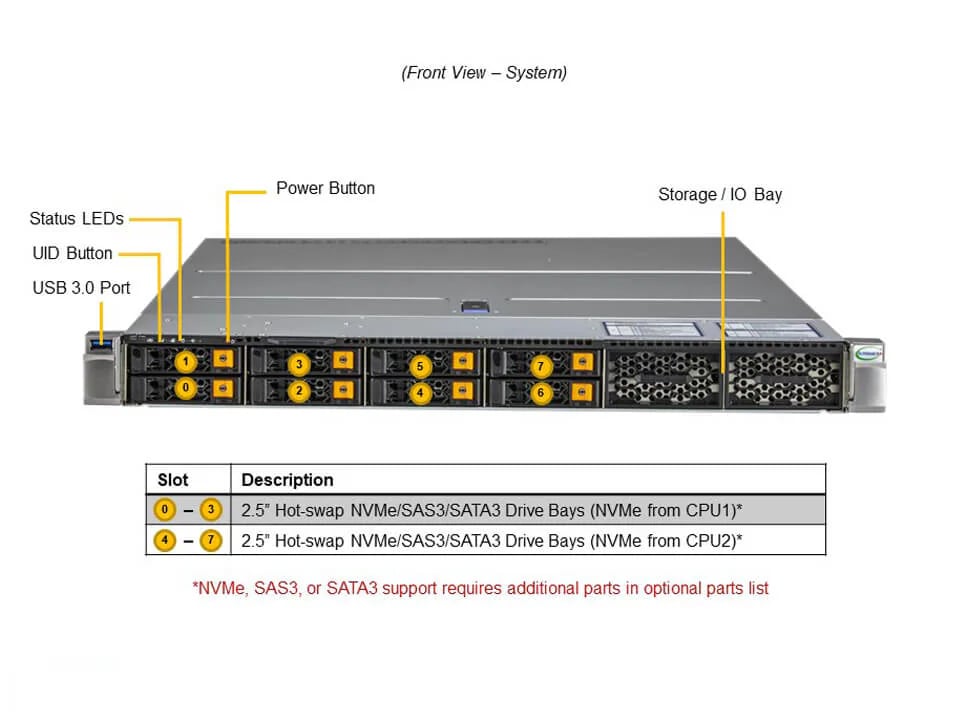

Front Panel
Buttons	Power On/Off UID button
LEDs	HDD activity LAN1 activity Power System information

Expansion Slots
PCI-Express (PCIe)	1 PCIe 4.0 x16 FH, 6.6"L slot(s) 2 PCIe 4.0 x16 FH, 10.5"L slot(s)

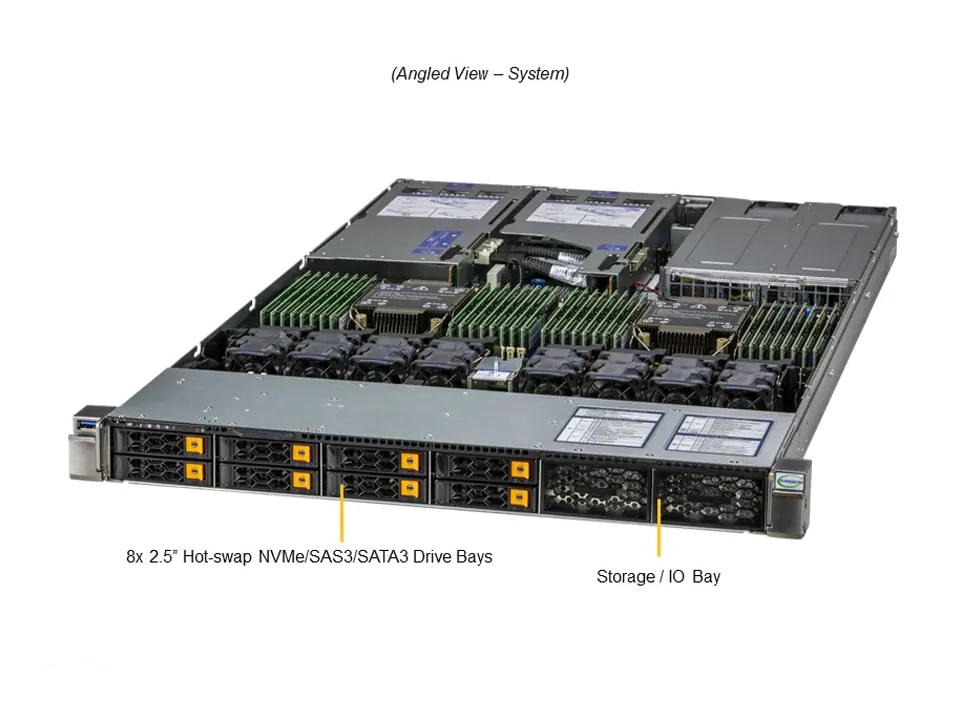

Drive Bays / Storage
Hot-swap	8x 2.5" hot-swap NVMe/SATA/SAS drive bays (8x 2.5" NVMe hybrid) (Configurable option for 12x 2.5" hot-swap NVMe/SAS/SATA drive bays. NVMe, SATA, or SAS support requires additional parts. Please see the Optional Parts list.)
M.2	2 M.2 NVMe OR 2 M.2 SATA3 M-Key, 2280/2210

System Cooling
Fans	8x 4cm heavy duty fans with optimal fan speed control
Air Shroud	2 Air Shroud(s)

Power Supply
2x 1200W Redundant Titanium Level power supplies
Dimension (W x H x L)	73.5 x 40 x 265 mm
AC Input	800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 66.7A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vac-240Vac) Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]

Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
