Supermicro SuperServer 210P-FRDN6T

SYS-210P-FRDN6T

Call our Solutions Specialists - 01283 576162

Great news, this product is available for special order. Please call us for availability.

To learn more about this product complete the form below and one of our team will get right back to you.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs
SuperServer SYS-210P-FRDN6T (Silver/Black)

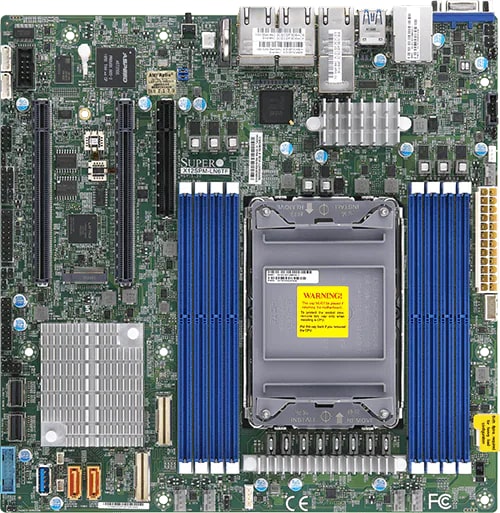

Motherboard
Super X12SPM-LN6TF

Processor
CPU	Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 36C/72T; Up to 60MB Cache per CPU
Note	Supports 85W - 270W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 2 double-width GPU(s)

System Memory
Memory	Memory Capacity: 8 DIMM slots Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM
Memory Voltage	1.2 V
Error Detection	ECC

On-Board Devices
SATA	SATA3 (6Gbps); RAID 0/1 support
Chipset	Intel® C621A
Network Connectivity	4x 1GbE port(s); 2x 10GbE port(s)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
USB	2 USB 2.0 port(s) (2 front) 2 USB 3.0 port(s) (2 front)
Video	1 VGA port(s)
Serial Port	1 COM Port(s) (1 rear)

Management
Software	IPMI 2.0 KVM with dedicated LAN Super Diagnostics Offline SuperDoctor® 5 Supermicro Update Manager (SUM) Supermicro Power Manager (SPM) Supermicro Server Manager (SSM) Redfish API
Power Configurations	ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	CPU thermal trip support, PEPI Monitoring for CPU and chassis environment

Chassis
Form Factor	2U Rackmount
Model	CSE-211M

Dimensions and Weight
Height	3.5" (88.9mm)
Width	17.2" (436.88mm)
Depth	11.8" (298.8mm)
Package	7.4" (H) x 19.3" (W) x 23.3" (D)
Weight	Net Weight: 17 lbs (7.7 kg) Gross Weight: 22 lbs (10 kg)
Available Color	Silver/Black

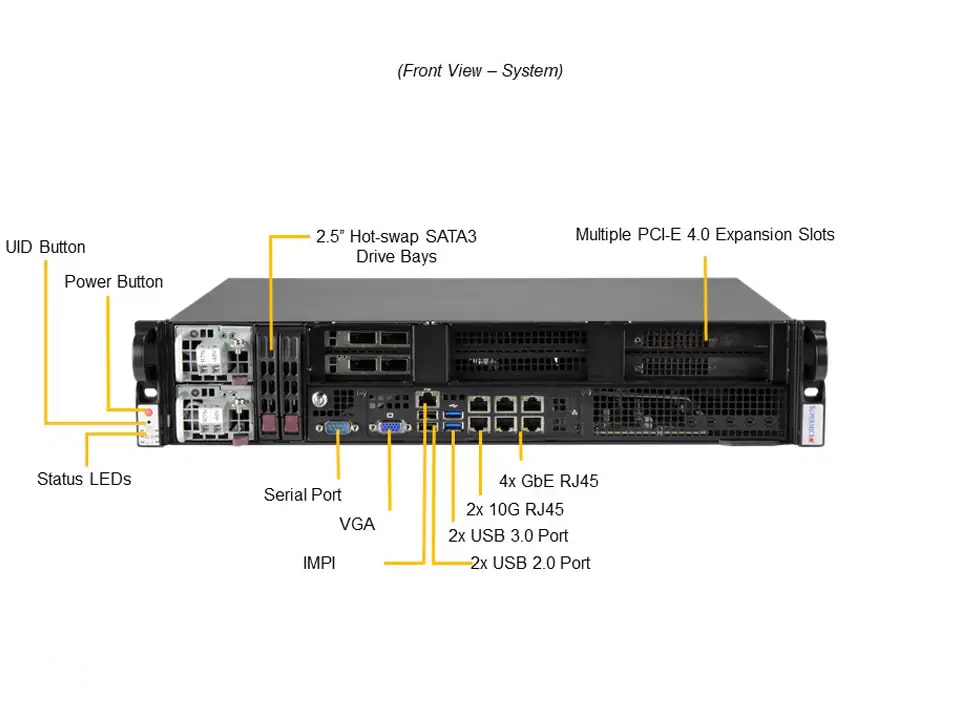

Front Panel
Buttons	Power On/Off UID button
LEDs	HDD activity LAN1 activity LAN2 activity Power status System information

Expansion Slots
PCI-Express (PCIe)	1 PCIe 3.0 x16 HHHL slot(s) 2 PCIe 3.0 x16 FHHL slot(s)

Drive Bays / Storage
Hot-swap	2x 2.5" hot-swap SATA drive bays
M.2	1 M.2 NVMe OR 1 M.2 SATA3 M-Key, 2280/22110

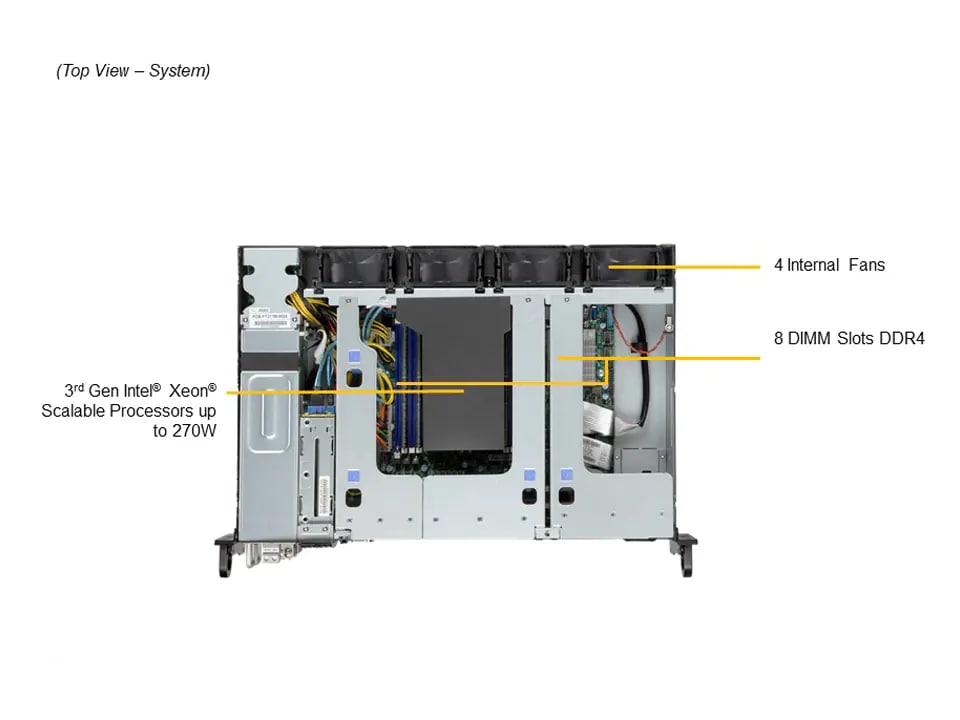

System Cooling

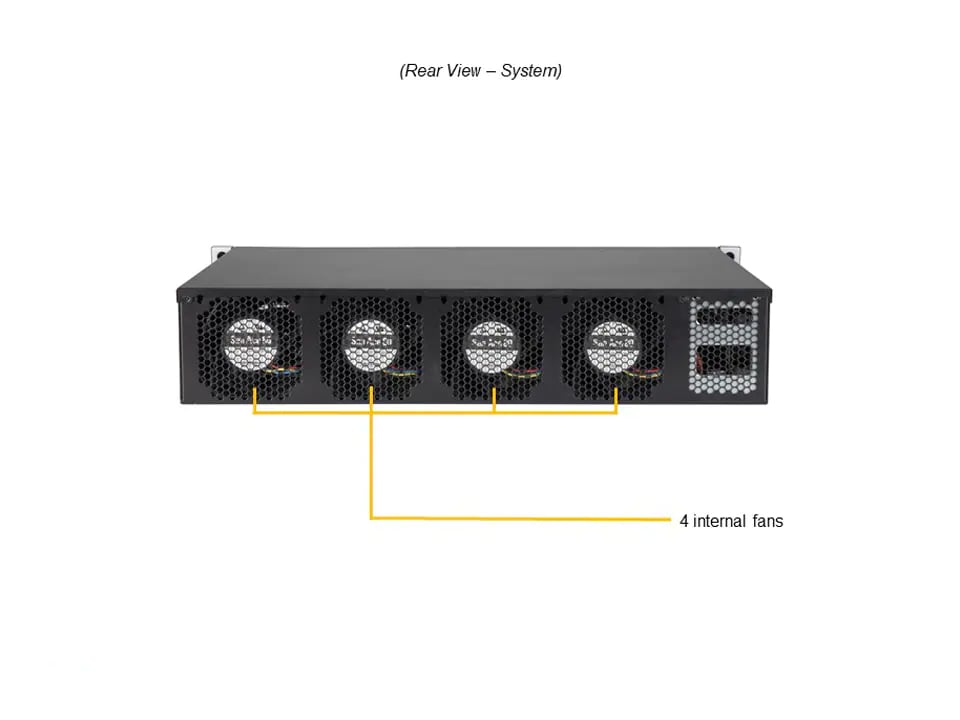

Fans	4 heavy duty fans with optimal fan speed control

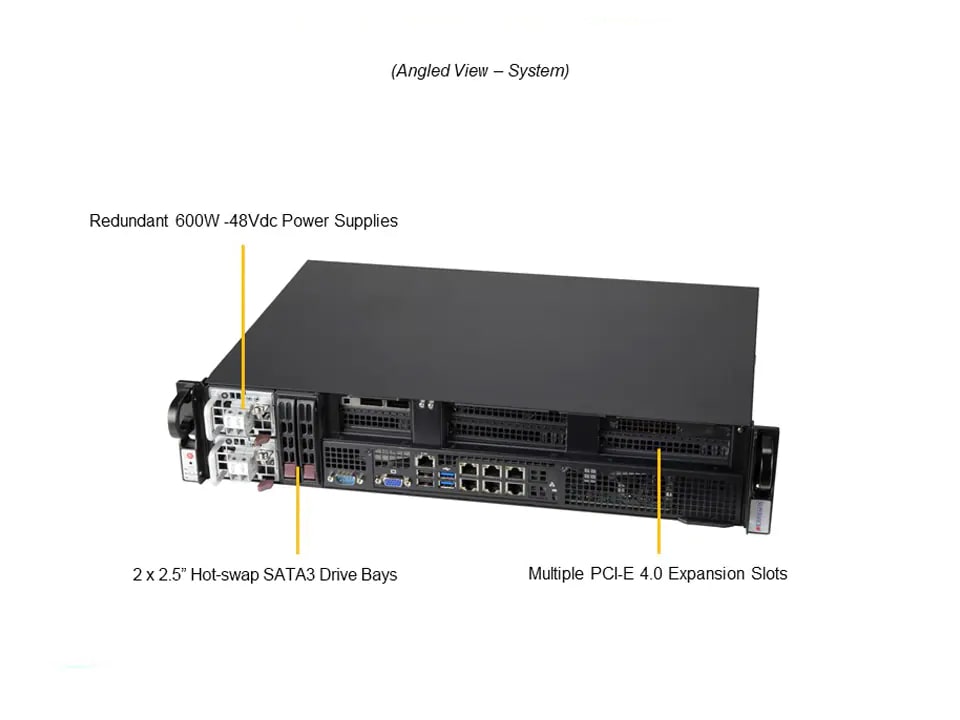

Power Supply
600W Redundant Typical 90%+ Level power supplies
Dimension (W x H x L)	54.5 x 40 x 220 mm
5V SB	Max: 3A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Typical 90%+ Level [ Test Report ]

Operating Environment
Environmental Spec.	Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
