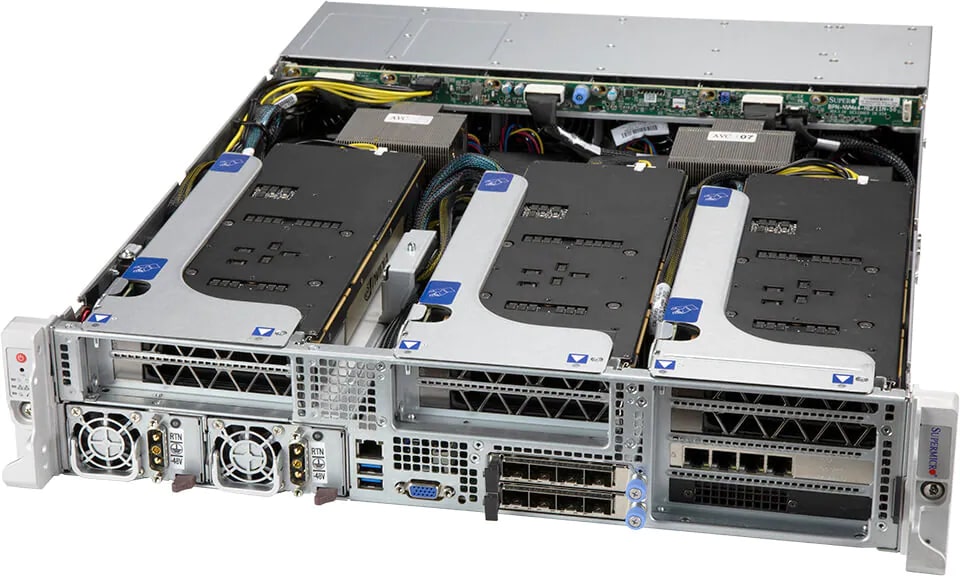

Supermicro SuperServer 220HE-FTNRD

SYS-220HE-FTNRD

Call our Solutions Specialists - 01283 576162

Great news, this product is available for special order. Please call us for availability.

To learn more about this product complete the form below and one of our team will get right back to you.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs
SuperServer SYS-220HE-FTNRD (Silver)

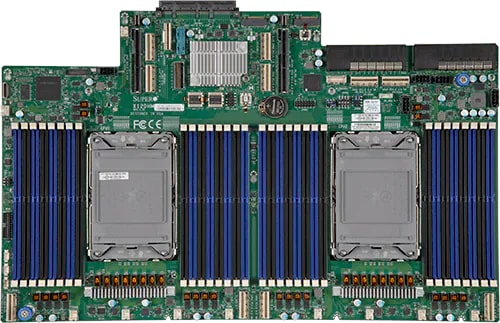

Motherboard
Super X12DHM-6

Processor
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Note	Supports up to 270W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 3 double-width GPU(s)

System Memory
Memory	Memory Capacity: 32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM
Memory Voltage	1.2 V
Error Detection	ECC

On-Board Devices
SATA	SATA3 (6Gbps); RAID 0/1/5/10 support
NVMe	NVMe; RAID 0/1/5/10 support (Intel® VROC RAID Key required)
Chipset	Intel® C621A
Network Connectivity	2x 1GbE BaseT with Intel® i350-AM2 (optional) 4x 1GbE SFP or 2x 10GbE BaseT with Intel® X550-AT2 (optional) 2x 10GbE SFP+ with Intel® X710-BM2 (optional) 4x 10GbE SFP+ with Intel® XL710-BM1 (optional) 4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional) 2x 25GbE SFP28 with Broadcom® BCM57414 (optional) 4x 25GbE RJ45/SFP28 with Mellanox® CX-4 Lx EN Intel® X550-AT2 (optional) 2x 100GbE QSFP28 with Broadcom® BCM57508 (optional) 4x 1GbE BaseT with Intel® i350-AM4 (optional)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
LAN	1 RJ45 Dedicated BMC LAN port
USB	2 USB 2.0 port(s) (2 front)
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 256MB SPI Flash

Management
Software	IPMI 2.0 KVM with dedicated LAN Super Diagnostics Offline SuperDoctor® 5 Supermicro Update Manager (SUM) Supermicro Power Manager (SPM) Supermicro Server Manager (SSM) Redfish API
Power Configurations	ACPI Power Management Power-on mode for AC power recovery

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	2U Rackmount
Model	CSE-HE211-R000NFP
Note	Standard sliding rail kit: Post to Post 19.1" ~ 26.4“

Dimensions and Weight
Height	3.5" (88.9mm)
Width	17.2" (436.88mm)
Depth	22.6" (574mm)
Package	9.7" (H) x 23.5" (W) x 36.9" (D)
Weight	Net Weight: 34.4 lbs (15.6 kg) Gross Weight: 47.4 lbs (21.5 kg)
Available Color	Silver

Front Panel
Buttons	Power On/Off
LEDs	LAN1 activity LAN2 activity System information

Expansion Slots
PCI-Express (PCIe)	3 PCIe 4.0 x16 or x8 FHFL slot(s) 1 PCIe 4.0 x8 FHFL slot(s) 2 PCIe 4.0 x8FHFL slot(s) 1 PCIe 4.0 x8 or (Optional) x16 FHHL slot(s) 1 PCIe 4.0 x8 FHHL or slot(s)
Note	If Slot 1 is configured as PCIe x16, Slot 2 will be disabled; If Slot 3 is configured as PCIe x16, Slot 4 will be disabled; If Slot 5 is configured as PCIe x16, Slot 6 will be disabled; (Optional) If Slot 7 is configured as PCIe x16, Slot 8 will be disabled.

Drive Bays / Storage

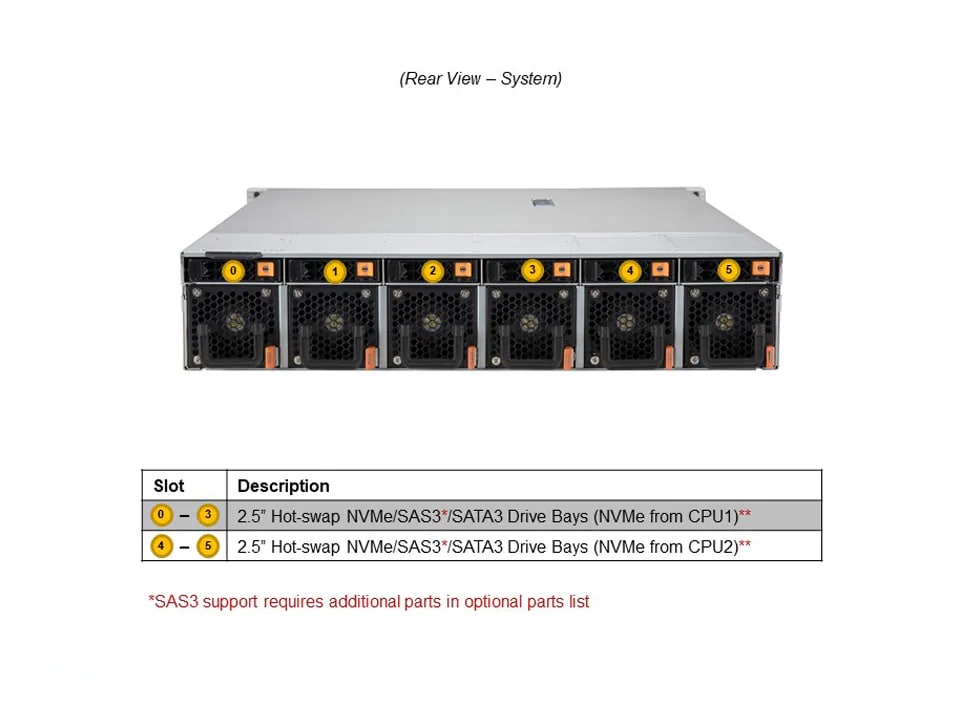

Hot-swap	6x 2.5" hot-swap NVMe/SATA drive bays (6x 2.5" NVMe hybrid)
M.2	2 M.2 NVMe OR 2 M.2 SATA3 M-Key, 2280/22110

System Cooling
Fans	6 Counter-rotating, Hot-swappable 60x60x56mm Fan(s)

Power Supply
1300W Redundant Level power supplies
Dimension (W x H x L)	73.5 x 40 x 203 mm
DC Output	108.3A Max
Certification	[ Test Report ]

Operating Environment
Environmental Spec.	Operating Temperature: 5°C ~ 35°C (41°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
