Supermicro SuperServer 3015MR-H8TNR

AS-3015MR-H8TNR

Call our Solutions Specialists - 01283 576162

Great news, this product is available for special order. Please call us for availability.

To learn more about this product complete the form below and one of our team will get right back to you.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs
A+ Server AS -3015MR-H8TNR

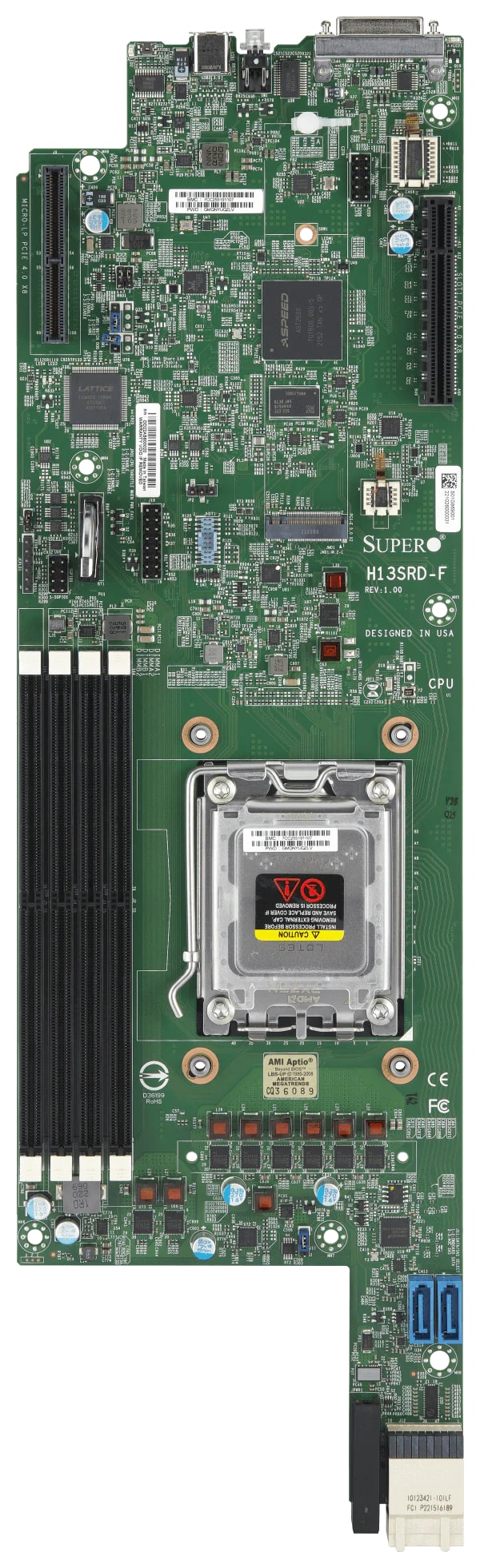

Motherboard
Super H13SRD-F

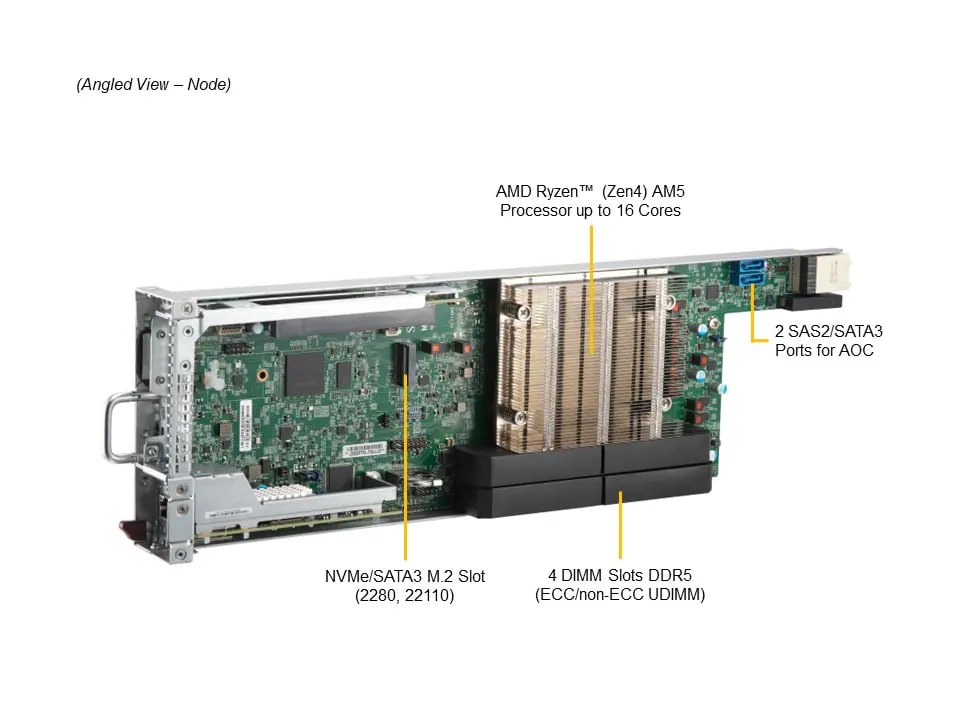

Processor (per Node)
CPU	Single Socket AM5 (LGA-1718) AMD Ryzen™ Zen4 7000 series Processors
Core Count	Up to 16C/32T; Up to 16MB Cache per CPU
Note	Supports 65W - 170W TDP CPUs (Air Cooled)* *Air Cooled CPUs with TDP over 120W only supported under specific conditions. Contact a Supermicro representative for details.

GPU (per Node)
Max GPU Count	Up to 1 single-width GPU(s)
Supported GPU	NVIDIA PCIe: A2, T4, L4 View Complete List

System Memory (per Node)
Memory	Memory Capacity: 4 DIMM slots Up to 128: 4x 32 GB DRAM Memory Type: 5200MHz DDR5 UDIMM

On-Board Devices (per Node)
NVMe	U.2 NVMe (Native)
SAS	SAS3 via SAS 3908 controller (requires add-on card)
SATA	N/A (unless configured via a controller)
Chipset	AMD Knoll - Integrated I/O Controller Hub
Network Connectivity	No NIC option supported

Input / Output (per Node)
NVMe	2 U.2 NVMe
LAN	2
Video	1 VGA port(s)
Serial Port	1 COM Port(s) (1 KVM)

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Power Configurations	ACPI 6.0 Power Management Power-on mode for AC power recovery

Security
Hardware	Trusted Platform Module (TPM) 2.0

PC Health Monitoring
CPU	3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
FAN	Cooling zone
Temperature	Monitoring for CPU and chassis environment

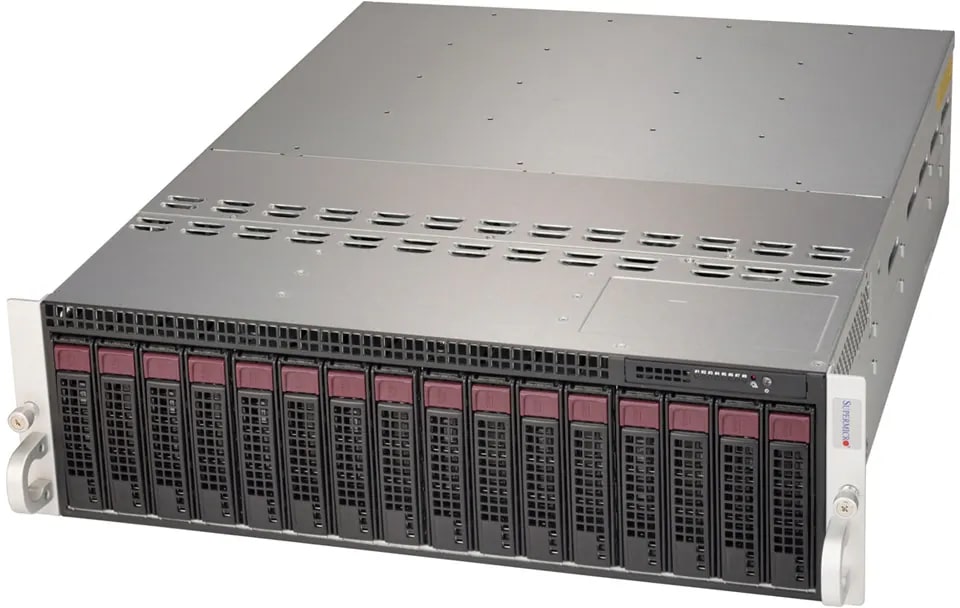

Chassis
Form Factor	3U Rackmount
Model	CSE-938NH-R2K20BP2

Dimensions and Weight
Height	5.21" (132mm)
Width	17.26" (438mm)
Depth	23.2" (589mm)
Package	11.65" (H) x 26.26" (W) x 34" (D)
Weight	Net Weight: 62.2 lbs (28.21 kg) Gross Weight: 88 lbs (39.92 kg)
Available Color	N/A

Front Panel
Buttons	Power On/Off
LEDs	8 Individual Node Status Indicators Power Failure

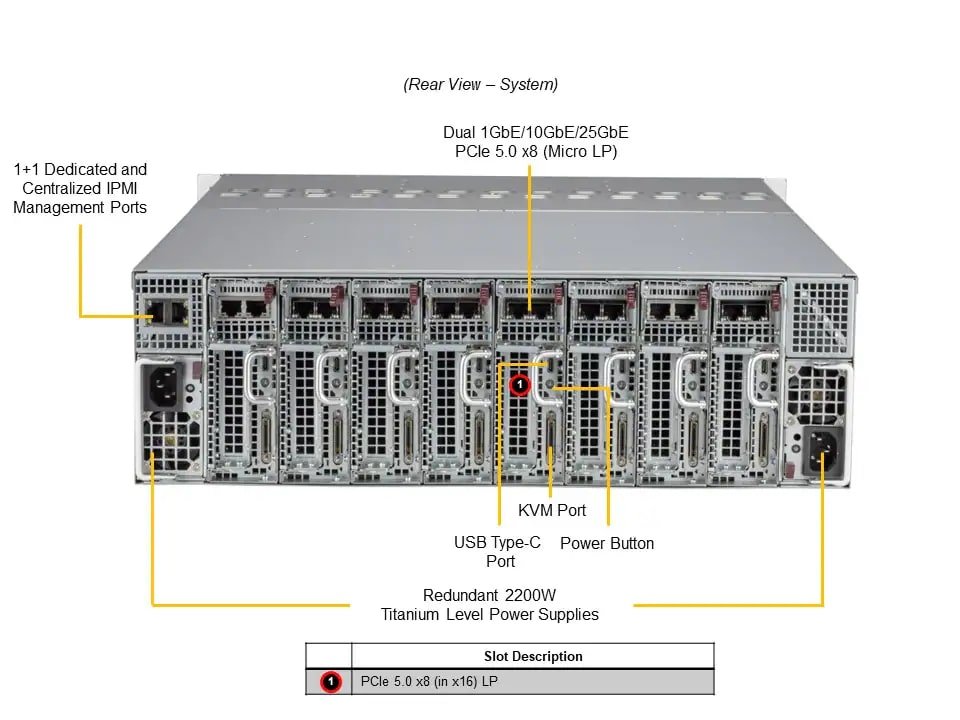

Expansion Slots (per Node)
PCI-Express (PCIe)	1 PCIe 5.0 x16 LP slot(s) 1 PCIe 5.0 x8 MLP slot(s)

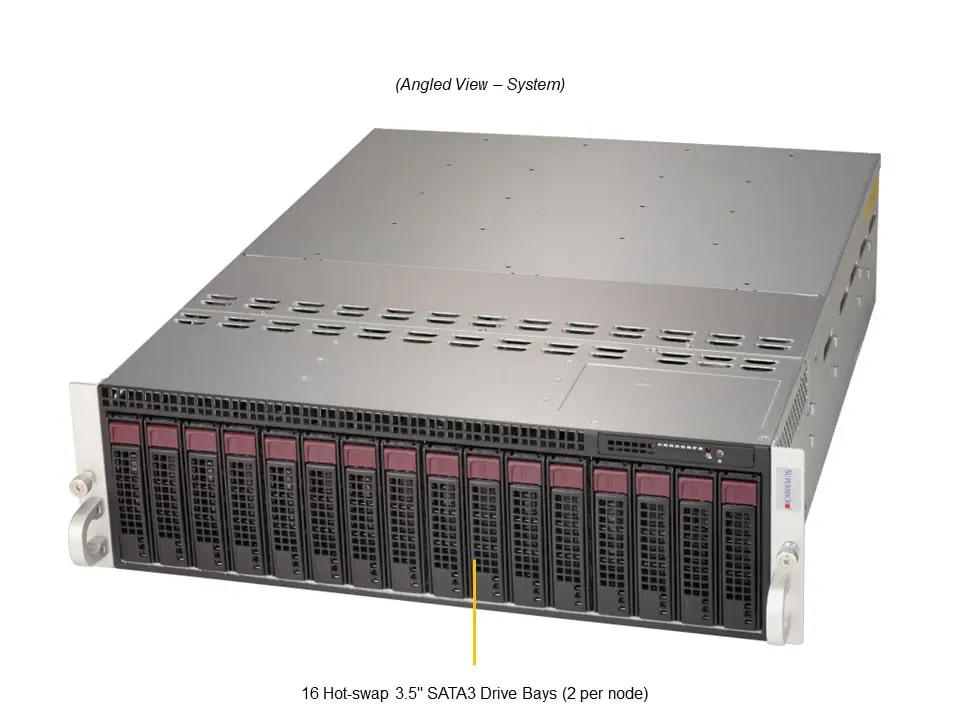

Drive Bays / Storage (per Node)
Hot-swap	2x 3.5" hot-swap NVMe/SAS/SATA drive bays 2 U.2 NVMe drive supportNative
M.2	1 M.2 NVMe

System Cooling
Fans	4x 8cm heavy duty fans with optimal fan speed control
Air Shroud	8 Air Shroud(s)

Power Supply
2200W Redundant Titanium Level power supplies
Dimension (W x H x L)	76 x 40 x 336 mm
AC Input	1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only) 1980W: 220-230Vac / 50-60Hz 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 100A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only) Max: 174.17A / Min: 0A (230Vac-240Vac) Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only) Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)
5V SB	Max: 1A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]

Operating Environment
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)
