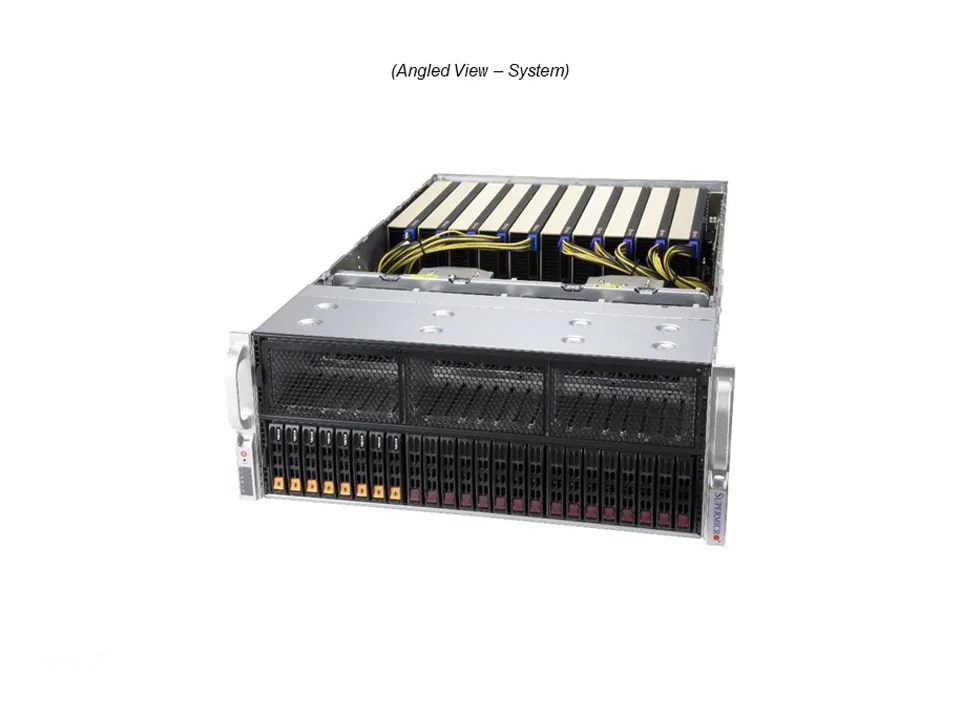

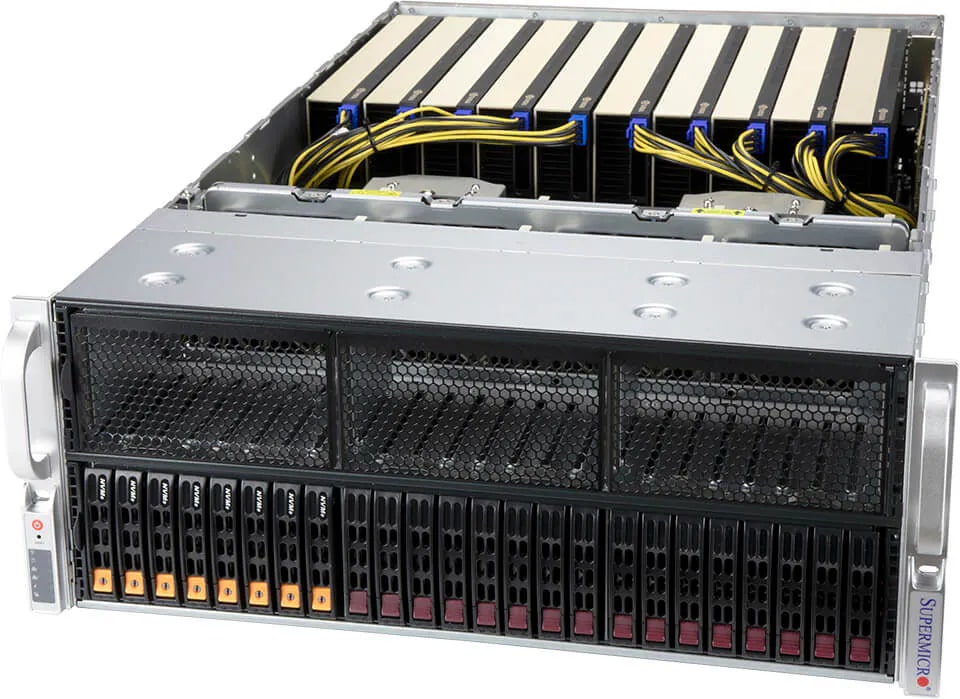

Supermicro SuperServer 420GP-TNR

SYS-420GP-TNR

Call our Solutions Specialists - 01283 576162

Great news, this product is available for special order. Please call us for availability.

To learn more about this product complete the form below and one of our team will get right back to you.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs
SuperServer SYS-420GP-TNR (Black Front & Silver Body)

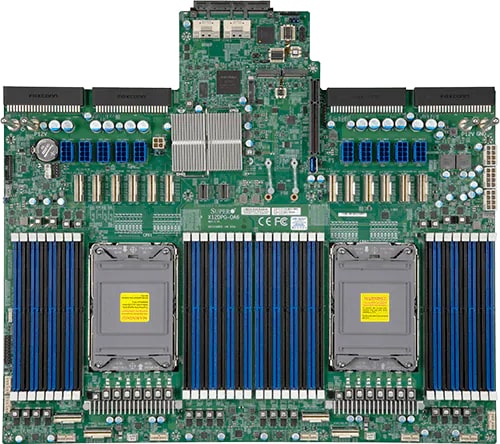

Motherboard
Super X12DPG-OA6

Processor
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 40C/80T; Up to 60MB Cache per CPU
Note	Supports up to 270W TDP CPUs (Air Cooled)

GPU

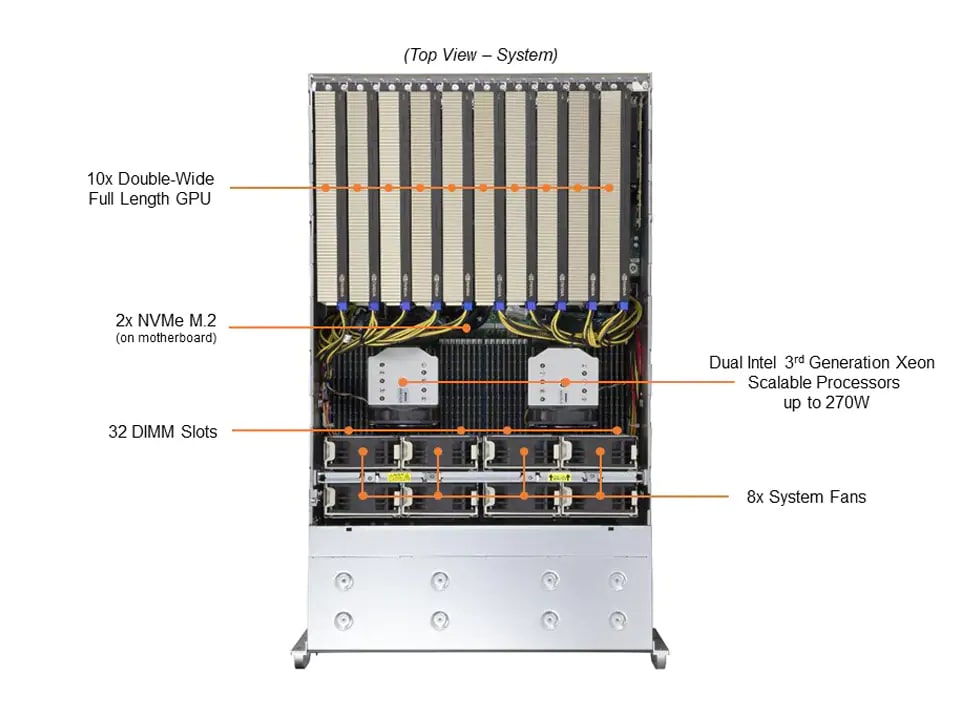

Max GPU Count	Up to 10 double-width or 10 single-width GPU(s)
Supported GPU	Intel: Intel Data Center GPU Flex 170 NVIDIA PCIe: A40, A100, A16, A40, RTX A5000, A10, A2, A30, RTX A4000, RTX A6000 View Complete List
CPU-GPU Interconnect	PCIe 4.0 x16 Switch Dual-Root
GPU-GPU Interconnect	NVIDIA® NVLink® Bridge (optional)

System Memory
Memory	Memory Capacity: 32 DIMM slots Up to 8TB: 32x 256 GB DRAM Up to 12TB: 16x 512 GB PMem Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM Intel® Optane™ persistent memory 200 series
Memory Voltage	1.2 V
Error Detection	ECC

On-Board Devices
SATA	SATA3 (6Gbps); RAID 0/1/5/10 support
Chipset	Intel® C621A
Network Connectivity	2x 1GbE BaseT with Intel® I350
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Software	IPMI 2.0 KVM with dedicated LAN Super Diagnostics Offline SuperDoctor® 5 Supermicro Update Manager (SUM) Supermicro Power Manager (SPM) Supermicro Server Manager (SSM) Redfish API
Power Configurations	ACPI Power Management Power-on mode for AC power recovery

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	7 +1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	4U Rackmount
Model	CSE-418G2TS-R4016BP

Dimensions and Weight
Height	7" (178mm)
Width	17.2" (437mm)
Depth	29" (737mm)
Package	26.57" (H) x 27" (W) x 41" (D)
Weight	Net Weight: 65.5 lbs (29.7 kg) Gross Weight: 100 lbs (45.3 kg)
Available Color	Black Front & Silver Body

Expansion Slots

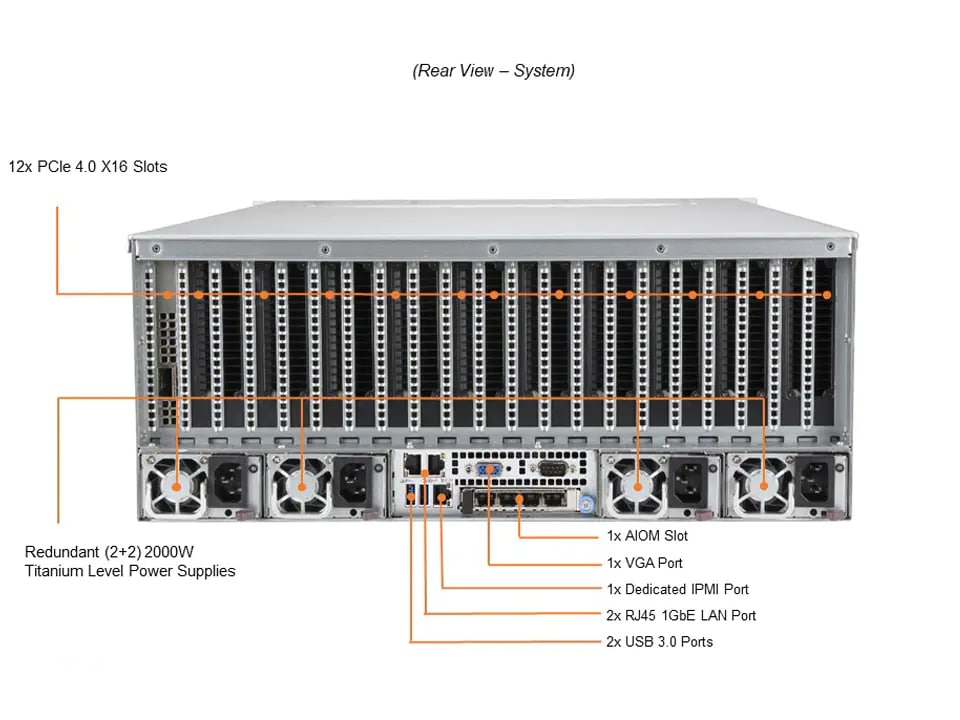

PCI-Express (PCIe)	12 PCIe 4.0 x16 FHFL slot(s)

Drive Bays / Storage
Hot-swap	24x 2.5" hot-swap NVMe/SATA/SAS drive bays (8x 2.5" NVMe dedicated)
M.2	2 M.2 NVMe OR 2 M.2 SATA3

System Cooling
Fans	8 heavy duty fans with optimal fan speed control

Power Supply
4000W Redundant Titanium Level power supplies
Dimension (W x H x L)	73.5 x 40 x 203 mm
AC Input	1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only) 2000W: 230-240Vac / 50-60Hz 2000W: 230-240Vdc / 50-60Hz (for China only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166A / Min: 0A (230Vac-240Vac)
12V SB	Max: 3.5A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]

Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
