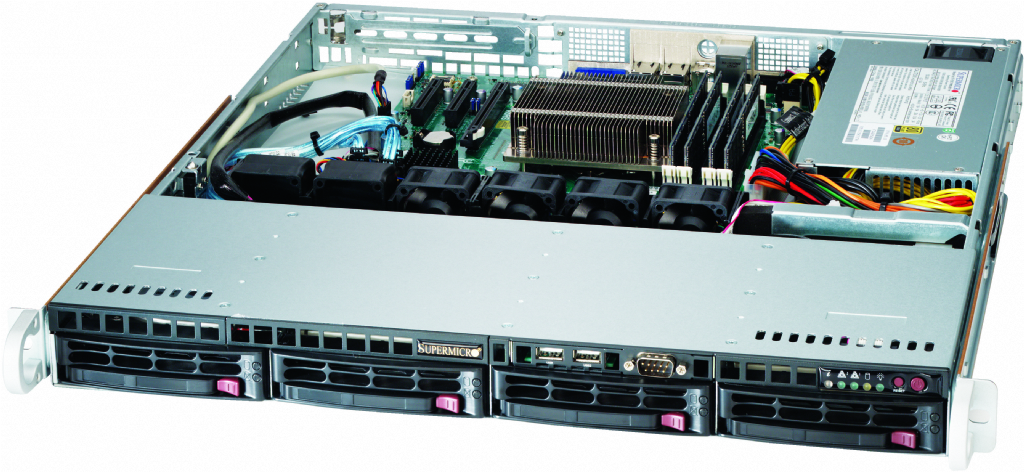

Supermicro SuperServer 5018D-MTF

SYS-5018D-MTF
Supermicro SuperServer 5018D-MTF
£564.38
ex. VAT
(£677.26
inc. VAT)
This product is currently out of stock. We are expecting stock in Ordered On Request
Quantity


Email me when in stock
Looking for Compatible Products?
Product SKUs
SYS-5018D-MTF
  • SuperServer 5018D-MTF (Black)

Motherboard

Super X10SLM-F

Processor/Cache
CPU
  • Intel® Xeon® processor E3-1200 v3/v4 family, 4th Gen Core i3, Pentium, Celeron processors
  • Socket H3 (LGA 1150)

System Memory
Memory Capacity
  • 4x 240-pin DDR3 DIMM slots
  • Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type
  • 1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 8GB, 4GB, 2GB, 1GB
Memory Voltage
  • 1.5 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C224 Express PCH
SATA
  • SATA3 (6Gbps) w/ RAID 0, 1, 10, 5
  • SATA2 (3Gbps) w/ RAID 0, 1
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC with 10/100/1000Mbps
Network Controllers
  • Intel® i217LM + Intel® i210AT Controllers
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
VGA
  • ASPEED AST2400 BMC

Input / Output
Serial ATA
  • 4x SATA3 (6Gbps) ports
  • 2x SATA2 (3Gbps) ports
  • SATA DOM Power Connector
LAN
  • 2x RJ45 LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 4x USB 3.0 ports (1 Type-A, 2+1 via header)
  • 6x USB 2.0 ports (4 rear, 2 via header)
VGA
  • 1x VGA port
Serial Port / Header
  • 1x Fast UART 16550 serial port
  • 1x internal header

PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
  • 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN
  • Total of five 4-pin fan headers supporting up to 5 fans
  • 5x fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Support 3-pin fans (w/o speed control)
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • FC temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • CPU / System Overheat LED
  • +5V Standby alert LED
Other Features
  • Chassis intrusion detection
  • Chassis intrusion header
Chassis
Form Factor
  • 1U Rackmount
Model

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 19.8" (503mm)
Weight
  • Gross Weight: 30.4 lbs (13.8 kg)
  • Net Weight: 17.6 lbs (8 kg)
Available Colors
  • Black

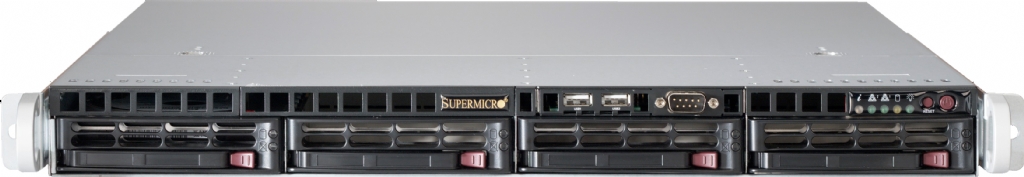

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED
Ports
  • 2x USB ports
  • 1x Serial COM Port

Expansion Slots
PCI-Express
  • 1x PCI-E 3.0 x8 (in x16) Full-height slot*

Drive Bays
Hot-swap
  • 4x 3.5" Hot-swap SATA3 HDDs w/ RAID
Peripheral Bay
  • Slim optical drive (optional)

Backplane
SAS2/SATA3 HDD Backplane
(SAS support requires optional SAS controller)

System Cooling
Fans
  • 4x 4cm 12,500 RPM PWM fans
  • Optional fans to cool add-on cards

Power Supply
350W AC power supply w/ PFC
AC Voltage
  • 100-240 V, 50-60 Hz, 4.2-1.8 Amp
+5V
  • 18 Amp
+5V standby
  • 3 Amp
+12V
  • 29 Amp
+3.3V
  • 15 Amp
Certification Gold Level Certified
  Gold Certified
  Test Report ]

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3

Management
Software
  • IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
  • SuperDoctor® III
  • Watch Dog
  • NMI
Power Configurations
  • ACPI / ACPM Power Management
  • Main Switch Override Mechanism
  • Power-on mode for AC power recovery
  • Internal/External modem ring-on

Operating Environment / Compliance
RoHS
  • RoHS2 (2011/65/EU) Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10SLM-F

CSE-813MTQ-350CB
1

1
Super X10SLM-F Motherboard

1U Chassis
Air Shroud MCP-310-19007-0N 1 SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB
Backplane BPN-SAS-815TQ 1 4-port 1U TQ backplane (W/ enclosure management), support up to 4x 3.5-inch SAS/SATA HDD
Cable 1 CBL-0186L 1 SATA,INT,ROUND,SET OF 4,ST-RA 56/45.5/35/23CM,26AWG
Cable 2 CBL-0157L 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,RIBBON IN RND TUBE,40CM,28AWG
Manual MNL-1459-QRG 1 5018D-MTF/MTRF, QRG
Riser Card RSC-RR1U-E16 1 RSC-RR1U-E16 with PIC-E x16 output
Heatsink / Retention SNK-P0046P 1 1U PASSIVE CPU HS FOR INTEL LGA1156
Power Supply PWS-351-1H 1 1U 350W MULTI OUTPUT 80PLUS GOLD PWS


Optional Parts List
  Part Number Qty Description
Cable CBL-0288L-01 - IPASS TO 4 SATA 70/60/50/50CM, W/ 70CM SB, RA ,30AWG
