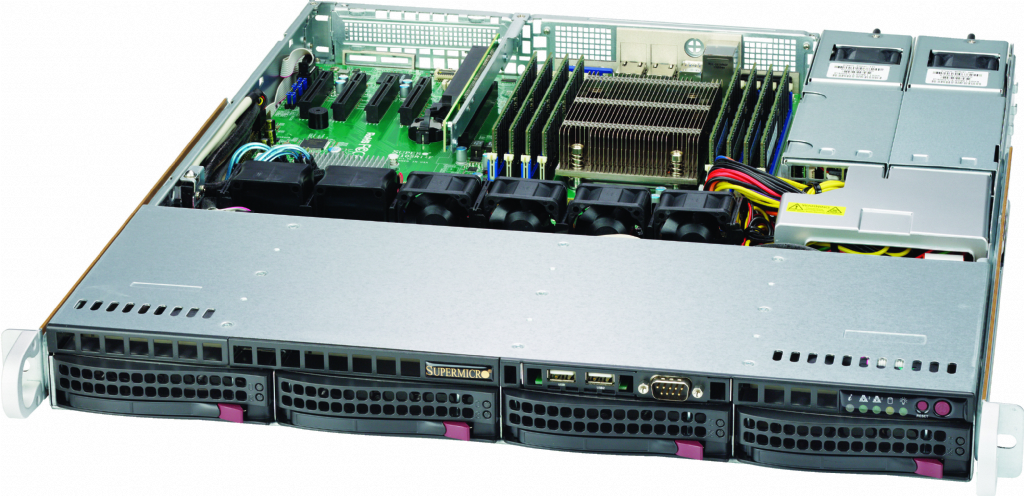

| SYS-5018R-MR |
- SuperServer 5018R-MR (Black)
|
| |
|
| CPU |
- Intel® Xeon® processor E5-2600 v4†/ v3, E5-1600 v4†/ v3 family (up to 145W TDP **)
- Single Socket R3 (LGA 2011)
|
| Core / Cache |
- Up to 22 Cores† / Up to 55MB† Cache
|
| Note |
† BIOS version 2.0 or above is required |
| Note |
** Motherboard supports this maximum TDP. Please verify your system can thermally support |
| |
|
| Memory Capacity |
- 8x 288-pin DDR4 DIMM slots
- Up to 1TB ECC 3DS LRDIMM
- Up to 512GB ECC LRDIMM
- Up to 256GB ECC RDIMM
|
| Memory Type |
- 2400†/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
|
| DIMM Sizes |
- 3DS LRDIMM: 128GB
- LRDIMM: 64GB, 32GB
- RDIMM: 32GB, 16GB, 8GB, 4GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| |
|
| Chipset |
|
| SATA |
- SATA3 (6Gbps) via C612 controller
- RAID 0, 1, 5, 10 support
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
|
| Network Controllers |
- Intel® i350-AM2 Dual Port Gigabit Ethernet
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
- 1x Realtek RTL8201N PHY (dedicated IPMI)
|
| Video |
|
| |
|
| SATA |
|
| LAN |
- 2x RJ45 Gigabit Ethernet LAN ports
- 1x RJ45 Dedicated IPMI LAN port
|
| USB |
- 2x USB 3.0 ports (2 rear)
- 4x USB 2.0 ports (2 rear + 2 front)
|
| Video |
|
| Serial Port / Header |
- 1x Fast UART 16550 serial port
- 1x internal header
|
| DOM |
- 2x SuperDOM (Disk on Module) ports
|
| |
|
| Voltage |
- Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
|
| FAN |
- Total of 6 fan headers supporting up to 6 fans
- 6 fans with tachometer status monitoring
- Status monitor for speed control
- Status monitor for on/off control
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
|
| Temperature |
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- I2C temperature sensing logic
- Thermal Monitor 2 (TM2) support
- PECI
|
| LED |
- CPU / System Overheat LED
- Suspend static indicator LED
- UID/Remote UID
|
| Other Features |
- Chassis intrusion detection
- Chassis intrusion header
- Chipkill support
- RoHS, Halogen Free
|
|
 |
|
|
| Form Factor |
|
| Model |
|
| |
|
| Height |
|
| Width |
|
| Depth |
|
| Package |
- 8" (H) x 24" (W) x 28" (D)
|
| Weight |
- Gross Weight: 31.4 lbs (14.3 kg)
- Net Weight: 18.6 lbs (8.5 kg)
|
| Available Colors |
|
| |
|
| Buttons |
- Power On/Off button
- System Reset button
|
| LEDs |
- Power LED
- Hard drive activity LED
- 2x Network activity LEDs
- System Overheat LED
|
| |
|
| PCI-Express |
|
| |
|
| Hot-swap |
- 4x 3.5" Hot-swap drive bays
|
| |
|
| Optional |
- Optional slim optical device bay,
optional FDD/USB bay
- 2x 2.5" Fixed drives internal
|
| |
|
SAS/SATA HDD Backplane
(SAS support requires optional SAS controller) |
| |
|
| Fans |
- 4x 40x28mm 4-pin PWM Cooling Fans
|
| |
| 400W Redundant Power Supplies w/Power Distributor, PMBus 1.2, I2C, and PFC |
| AC Input |
|
| DC Output |
- +5V standby: 3A
- +12V: 33A
|
DC Output
With Power Distributor |
- +5V: 25A
- +3.3V: 25A
- -12V: 0.6A
|
| Certification |
Gold Certified |
| |
|
| BIOS Type |
- 8MB SPI Flash EEPROM with AMI BIOS
|
| BIOS Features |
- DMI 2.3
- PCI 2.3
- ACPI 1.0 / 2.0
- USB Keyboard support
- SMBIOS 2.3
|
| |
|
| RoHS |
|
| Environmental Spec. |
- Operating Temperature:
10°C to 35°C (50°F to 95°F)
- Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
