Supermicro SuperServer 5018R-WR

SYS-5018R-WR
Supermicro SuperServer 5018R-WR
£949.60
ex. VAT
(£1,139.52
inc. VAT)
This product is currently out of stock. We are expecting stock in Ordered On Request
Quantity


Email me when in stock
Looking for Compatible Products?
Product SKUs
SYS-5018R-WR
  • SuperServer 5018R-WR (Black)

Motherboard

Super X10SRW-F

Processor
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3, E5-1600 v4/ v3 family (up to 145W TDP **)
  • Single Socket R3 (LGA 2011)
Core / Cache
  • Up to 22 Cores / Up to 55MB Cache
Note  BIOS version 2.0 or above is required
Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support

System Memory
Memory Capacity
  • 8x 288-pin DDR4 DIMM slots
  • Up to 1TB ECC 3DS LRDIMM
  • Up to 512GB ECC LRDIMM
  • Up to 256GB ECC RDIMM
Memory Type
  • 2400/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes
  • 3DS LRDIMM: 128GB
  • LRDIMM: 64GB, 32GB
  • RDIMM: 32GB, 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps) via C612 controller
  • RAID 0, 1, 5, 10 support
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® i350-AM2 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Video
  • ASPEED AST2400 BMC

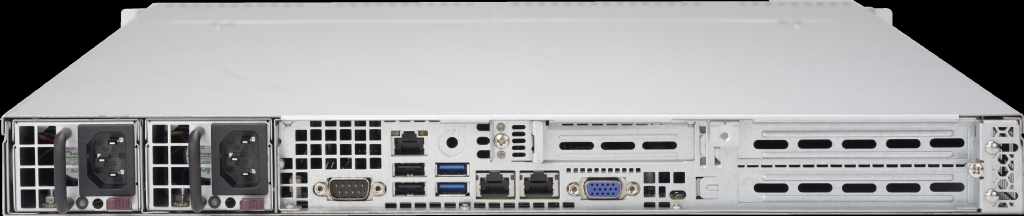

Input / Output
SATA
  • 4x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB 3.0 ports (2 rear)
  • 2x USB 2.0 ports (2 rear)
Video
  • 1x VGA port
Serial Port / Header
  • 1x Fast UART 16550 serial port
  • 1x internal header
DOM
  • 2x SuperDOM (Disk on Module) ports

PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN
  • Total of 6 fan headers supporting up to 6 fans
  • 6 fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • CPU / System Overheat LED
  • Suspend static indicator LED
  • UID/Remote UID
Other Features
  • Chassis intrusion detection
  • Chassis intrusion header
  • Chipkill support
  • RoHS, Halogen Free
Chassis
Form Factor
  • 1U Rackmount
Model

Dimensions
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 25.6" (650mm)
Weight
  • Net Weight: 23.5 lbs (10.7 kg)
  • Gross Weight: 36 lbs (16.3 kg)
Available Colors
  • Black

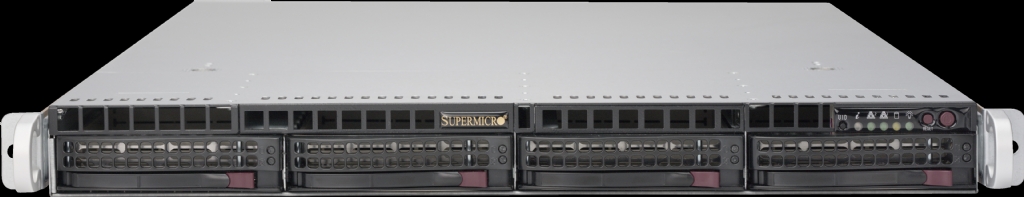

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED

Expansion Slots
PCI-Express
  • Total of 3 Add-on card slots:
  • 2x PCI-E 3.0 x16 (FH, FL) slots
  • 1x PCI-E 3.0 x8 (LP, HL) slot

Drive Bays
Hot-swap
  • 4x 3.5" Hot-swap drive bays

Peripheral Drives
Optional
  • 1x slim DVD-ROM drive bay

Backplane
SAS/SATA HDD Backplane
(SAS support requires optional SAS controller)

System Cooling
Fans
  • 4x 40x28mm 4-pin PWM Cooling Fans

Power Supply
500W Redundant Power Supplies with PMBus
Total Output Power
  • 500W
Dimension
(W x H x L)
  • 54.5 x 40.25 x 320 mm
Input
  • 100-240Vac, 50-60Hz, 6.1-2.6A
+12V
  • Max: 42A / Min: 0.5A
+5Vsb
  • Max: 4A / Min: 0A
Output Type
  • Gold Finger Connector Mating with Molex 45984-4343
With Power Distributor
  • +5V: 25A
  • +3.3V: 12A
  • -12V: 0.6A
Certification Platinum Level Certified
  UL/cUL/CB/CE/BSMI/CCC
  Platinum Certified
  [ Test Report ]

System BIOS
BIOS Type
  • 8MB SPI Flash EEPROM with AMI BIOS
BIOS Features
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10SRW-F

CSE-815TQ-R500WB
1

1
Super X10SRW-F Motherboard

1U Chassis
Backplane BPN-SAS-815TQ 1 4-port 1U TQ backplane (W/ enclosure management), support up to 4x 3.5-inch SAS/SATA HDD
Cable 1 CBL-0180L-01 1 SATA,INT,ROUND,SET OF 4,ST-RA 70/59/48/38CM,26AWG
Cable 2 CBL-CDAT-0662 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual MNL-1771-QRG 1 5018R-WR, QRG,HF,RoHS/REACH
Riser Card RSC-R1UW-2E16 1 1U LHS WIO Riser card with two PCI-E x16 slots
Riser Card RSC-R1UW-E8R 1 1U RHS WIO Riser card with one PCI-E x8 slot
Heatsink / Retention SNK-P0047PS 1 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
Power Supply PWS-504P-1R 2 500W 1U Redundant PWS W/ 54.5MM Wide
Fan FAN-0086L4 4 40x56, 4 Pin PWM
Air Shroud MCP-310-19002-0N 1 SC815/113/116 Intel DP X9, X8 PC air shroud, 12x13MB


Optional Parts List
  Part Number Qty Description
Fan FAN-0086L4 - 40x56 4Pin PWM, Primary for SC815, Secondary for SC818, 825M
Dummy Tray MCP-220-83601-0B - For internal SSD install option part (w/o FDD); Black FDD dummy tray support 1x 2.5" slim HDD
Dummy Tray MCP-290-00036-0B - For internal SSD install option part (w/o Slim DVD); Black DVD dummy tray support 1x2.5 HDD
