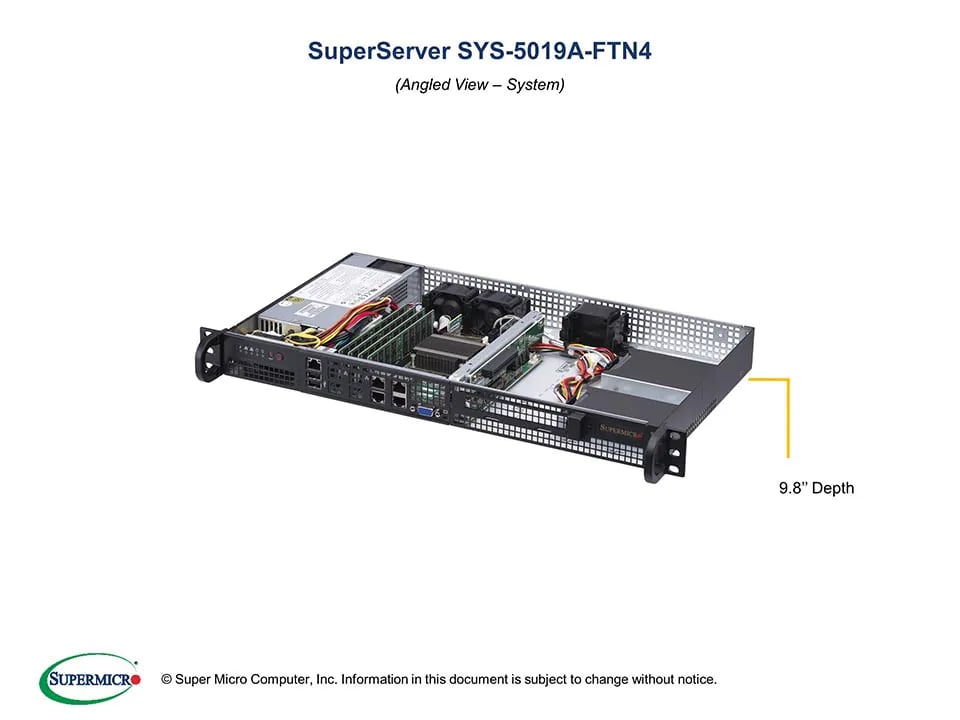

Supermicro SuperServer 5019A-FTN4

SYS-5019A-FTN4

Call our Solutions Specialists - 01283 576162

Great news, this product is available for special order. Please call us for availability.

To learn more about this product complete the form below and one of our team will get right back to you.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs

SYS-5019A-FTN4	SuperServer 5019A-FTN4 (Black)

Motherboard

Super A2SDi-8C-HLN4F

Processor

CPU	Intel® Atom® processor C3758 FCBGA 1310 supported CPU TDP support 25W

System Memory

Memory Capacity	4x DDR4 DIMM sockets Supports up to 256GB DDR4 ECC RDIMM Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type	2400/2133/1866/1600MHz ECC DDR4 SDRAM
DIMM Sizes	64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices

SATA	SoC controller for 4 SATA3 (6Gbps) ports
Network Controllers	Quad Gigabit Ethernet LAN via Intel® C3000 SoC Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1 Realtek RTL8201N PHY (dedicated IPMI)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	BMC integrated ASPEED AST2400

Input / Output

SATA	4 SATA3 (6Gbps) ports
LAN	4 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 2.0 ports (rear)
Serial Port	1 COM port (header)
DOM	1 SATA DOM (Disk on Module) power connector
VGA	1 VGA Port
Others	TPM header


Chassis

Form Factor	1U Rackmount
Model	CSE-505-203B

Dimensions and Weight

Height	1.7" (43mm)
Width	17.2" (437mm)
Depth	9.8" (249mm)
Weight	Net Weight: 8 lbs (3.62 kg) Gross Weight: 12 lbs (5.44 kg)
Available Colors	Black

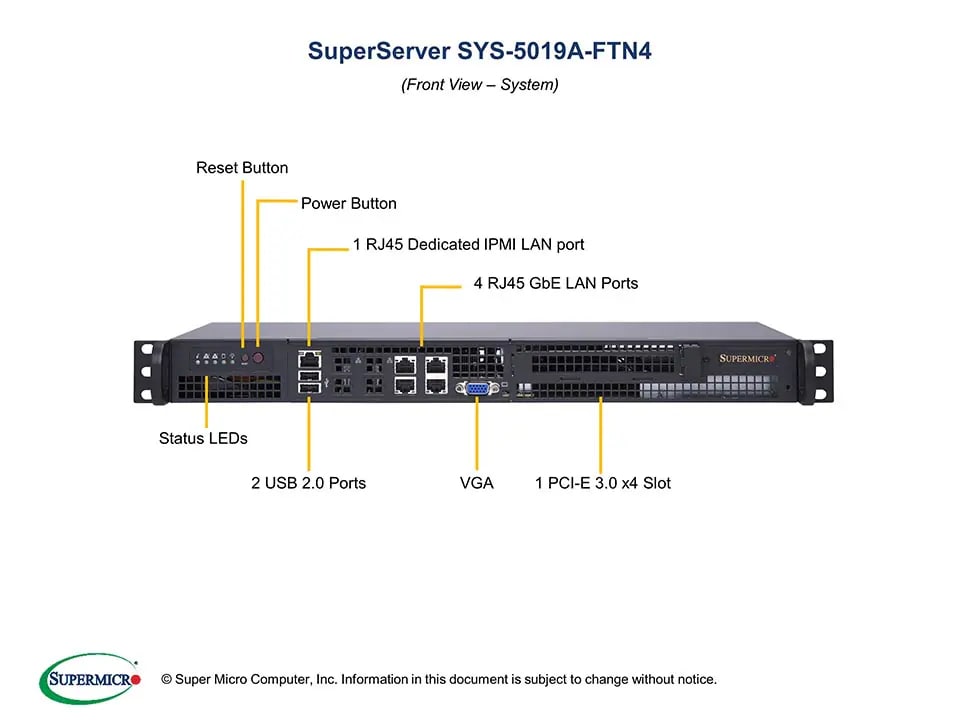

Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED Network activity LEDs System Information LED Information LED (temp., status)

Expansion Slots

PCI-E	1 PCI-E 3.0 x4 slot 1 M.2 PCI-E 3.0 x2, M Key 2242/2280

Drive Bays

HDD	1x 3.5" or 4x 2.5" internal hard drive bays (optional) *

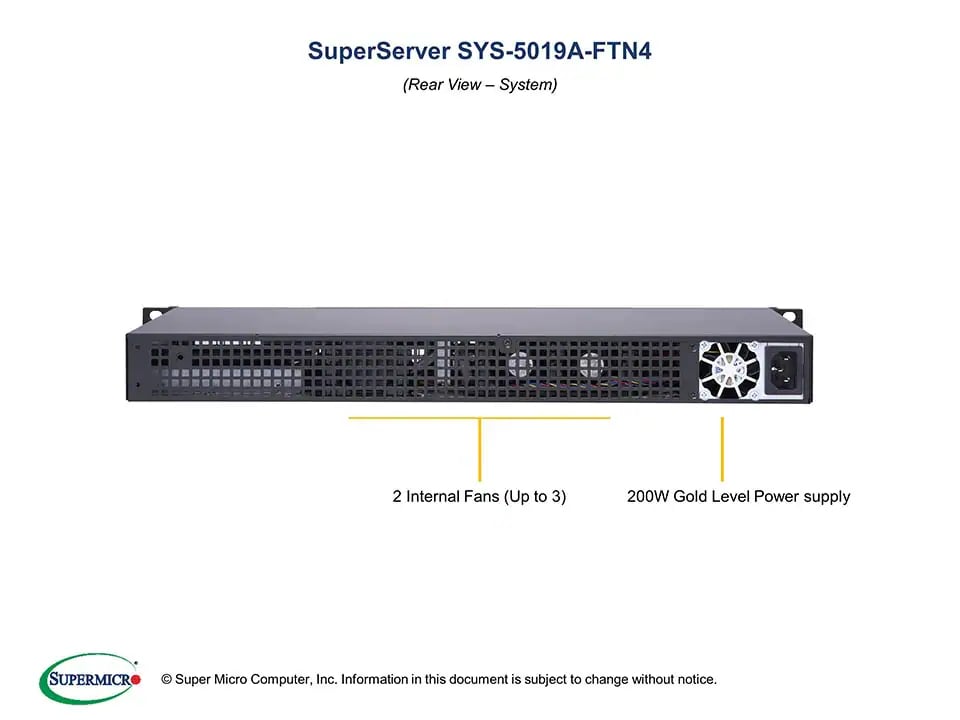

System Cooling

Fans	2x 40x28mm 4-PIN PWM Fan, Optional 1x 40x28mm 4-PIN PWM Fan

Power Supply

200W Low Noise AC-DC power supply with PFC
AC Voltage	100 - 240V, 50-60Hz, 2.6 Amp Max
+5V	8.0 Amp (max.)
+5V standby	2.0 Amp (max.)
+12V	16 Amp (max.)
-12V	0.5 Amp (max.)
+3.3V	8.0 Amp (max.)
Certification	Gold Certified

System BIOS

BIOS Type	AMI UEFI BIOS
BIOS Features	Plug and Play (PnP) DMI 2.3 ACPI 5.0 USB Keyboard support SMBIOS 2.7.1 UEFI

Operating Environment / Compliance

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
