Supermicro Superserver 5019D-FN8TP

SYS-5019D-FN8TP

Call our Solutions Specialists - 01283 576162

Great news, this product is available for special order. Please call us for availability.

To learn more about this product complete the form below and one of our team will get right back to you.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs

SYS-5019D-FN8TP	SuperServer 5019D-FN8TP (Black)

Motherboard

Super X11SDV-8C-TP8F

Processor

CPU	Intel® Xeon® processor D-2146NT, CPU TDP support 80W
Cores / Cache	8 Cores, 16 Threads

System Memory

Memory Capacity	Up to 512GB DDR4 ECC LRDIMM Up to 256GB DDR4 ECC RDIMM 4 DIMM slots
Memory Type	2666/2400/2133MHz ECC DDR4 ECC LRDIMM and ECC RDIMM
DIMM Sizes	128GB, 64GB, 32GB, 16GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices

SATA	SATA3 (6Gbps) ports via SoC controller
Network Controllers	Dual 10G SFP+ via SoC Quad 1GbE with Intel I350-AM4 Dual 10GBase-T with Intel X557
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	Aspeed AST2500 BMC

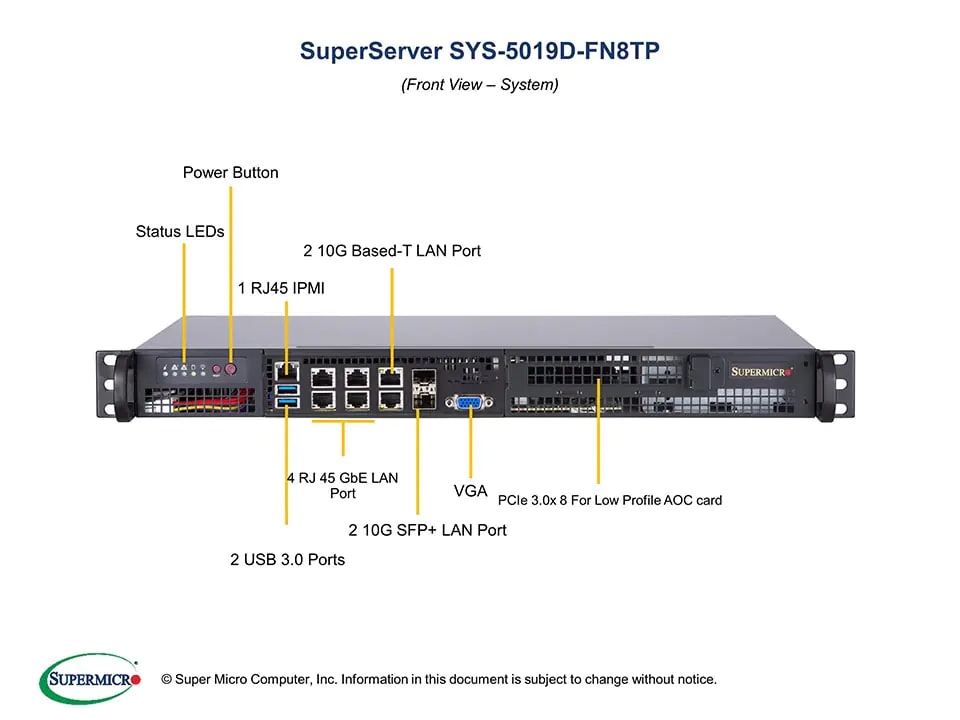

Input / Output

SATA	4 SATA3 (6Gbps) ports (SATA/SAS HDD/SSD)
LAN	2 10G SFP+ ports 4 RJ45 1GbE LAN ports 2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 ports (rear)
VGA	1 VGA port
Others	TPM 2.0 header

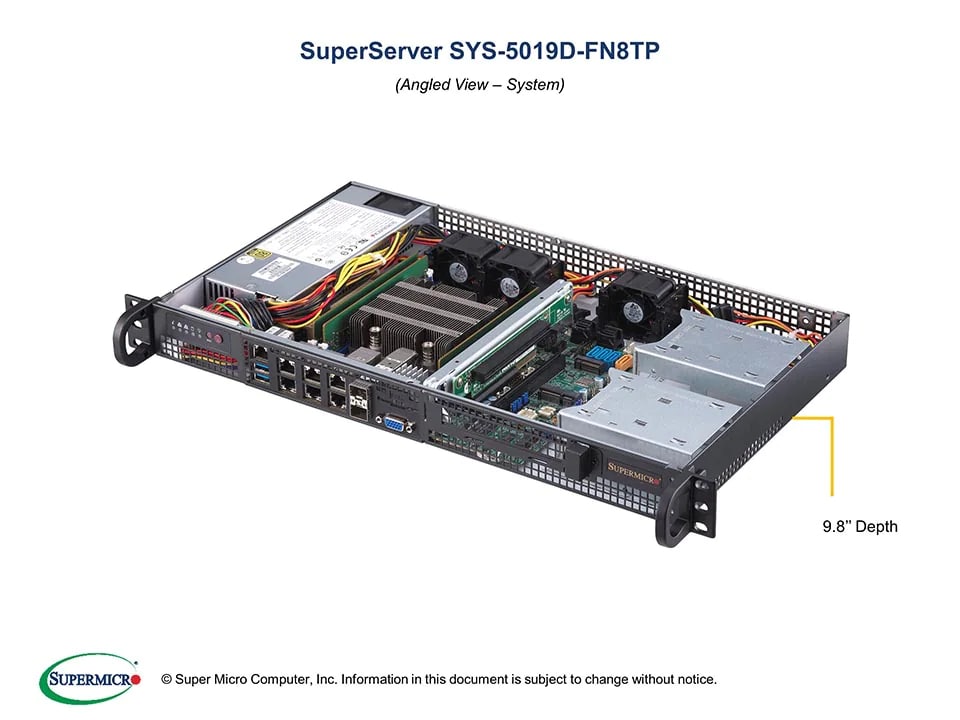

Chassis

Form Factor	1U Rackmount
Model	CSE-505-203B

Dimensions and Weight

Height	1.7" (43mm) / 6.1" (155mm) - pkg.
Width	17.2" (437mm) / 25.8" (655mm) - pkg.
Depth	9.8" (249mm) / 18.3" (465mm) - pkg.
Weight	Net Weight: 8 lbs (3.63 kg) Gross Weight: 12 lbs (5.44 kg)
Available Colors	Black

Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED Network activity LEDs System Information LED Information LED (temp., status)

Expansion Slots

PCI-E	1 PCI-E 3.0 x8 slot 1 Mini-PCI-E with mSATA Support
M.2	1 M.2 slot M key for SSD, 2242/8 1 M.2 B Key for SSD/ WAN card

Drive Bays

Internal	1 Internal 3.5" or 4 Internal 2.5" drive bays

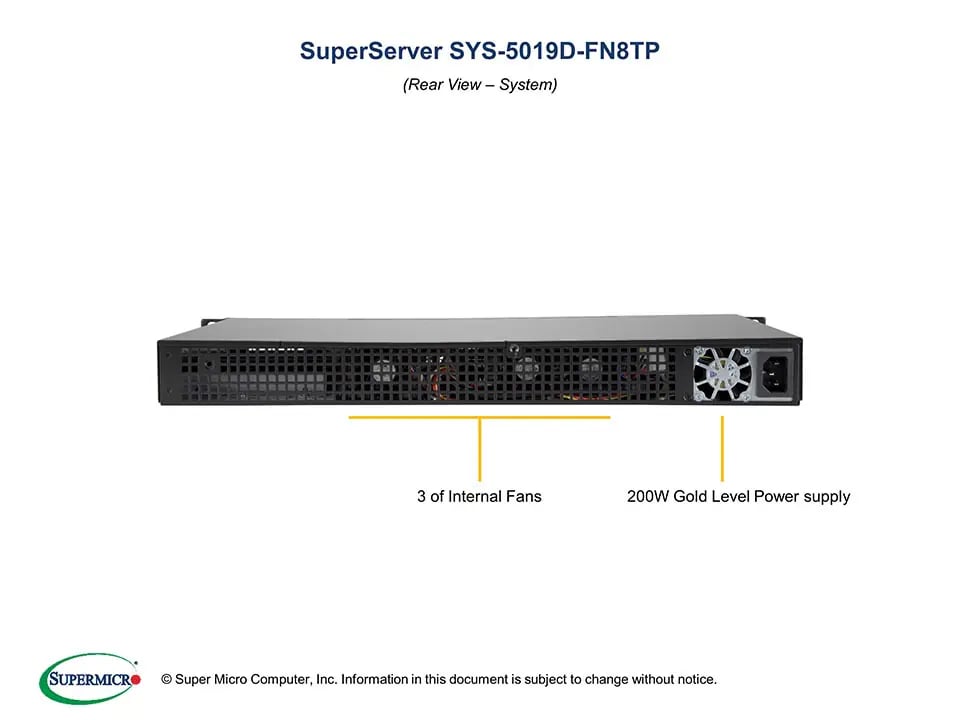

System Cooling

Fans	3x 40x28mm 4-PIN PWM fans

Power Supply

200W Low Noise AC-DC power supply with PFC
AC Voltage	100 - 240V, 50-60Hz, 2.6 Amp Max
+5V	8.0 Amp (max.)
+5V standby	2.0 Amp (max.)
+12V	16 Amp (max.)
-12V	0.5 Amp (max.)
+3.3V	8.0 Amp (max.)
Certification	Gold Certified

System BIOS

BIOS Type	128Mb SPI Flash with AMI BIOS
BIOS Features	PCI 3.0 ACPI 5.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 2.8 UEFI 2.4 RTC (Real Time Clock) Wakeup

Operating Environment / Compliance

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
