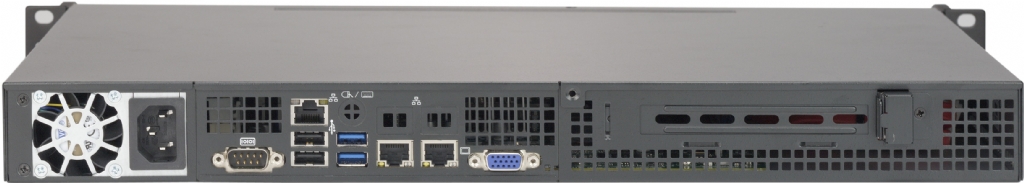

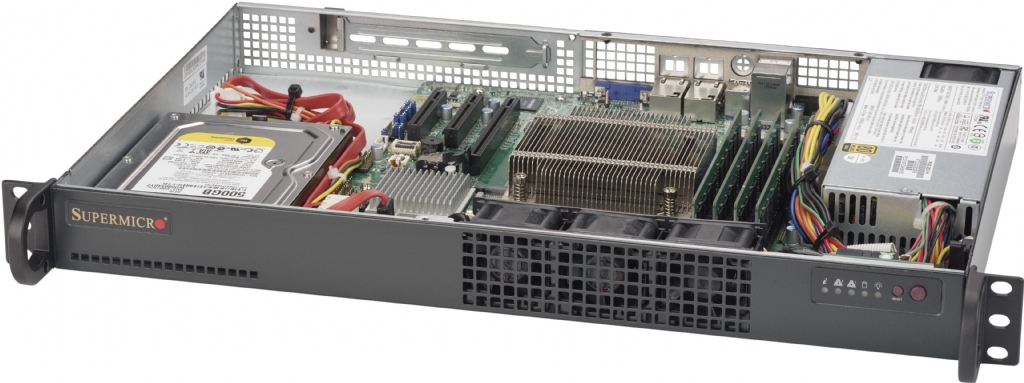

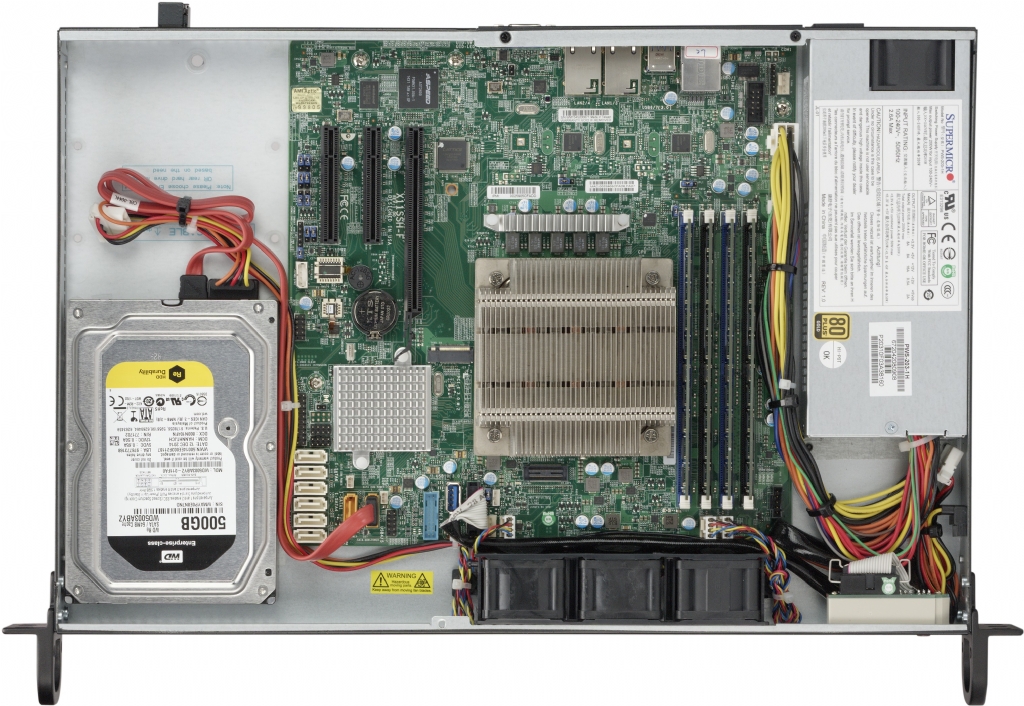

Supermicro SuperServer 5019S-L

SYS-5019S-L

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs

SYS-5019S-L	SuperServer 5019S-L (Black)


Motherboard

Super X11SSL-F


Processor/Cache

CPU	Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen Core™ i3 CPU TDP up to 45W, 80W option fan
Note	BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors


System Memory

Memory Capacity	4x 288-pin DDR4 DIMM slots Up to 64GB DDR4 ECC UDIMM
Memory Type	2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes	16GB, 8GB, 4GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)


On-Board Devices

Chipset	Intel® C232 chipset
SATA	SATA3 (6Gbps) via C232 controller RAID 0, 1, 5, 10 support
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Network Controllers	Dual Intel® I210-AT Gigabit Ethernet LAN ports Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Video	ASPEED AST2400 BMC


Input / Output

SATA	2 SATA3 (6Gbps) ports
LAN	2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 DedicatedIPMI LAN port
USB	2 USB 3.0 ports 2 USB 2.0 ports
Video	1 VGA port
Serial Port / Header	1 COM port (1 rear)
SuperDOM	2 SuperDOM (Disk on Module) ports with built-in power


PC Health Monitoring

Voltage	Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN	Total of 4 fan headers supporting up to 4 fans 4 fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support I²C temperature sensing logic Thermal Monitor 2 (TM2) support PECI
LED	CPU / System Overheat LED Suspend static indicator LED UID/Remote UID
Other Features	Chassis intrusion detection Chassis intrusion header Chipkill support RoHS, Halogen Free


Chassis

Form Factor	1U Rackmount
Model	CSE-510-203B


Dimensions and Weight

Height	1.7" (43mm)
Width	17.2" (437mm)
Depth	11.3" (287mm)
Package	6.1" (H) x 25.4" (W) x 19.8" (D)
Weight	Net Weight: 8.45 lbs (3.83 kg) Gross Weight: 12.55 lbs (5.69 kg)
Available Colors	Black

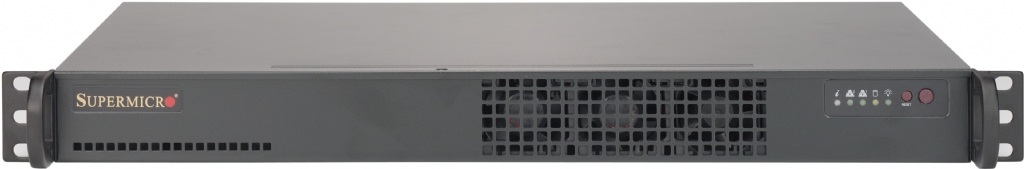

Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED 2 Network activity LEDs System Overheat LED Information LED (temp., status)


Expansion Slots

PCI-Express	1 PCI-E 3.0 x8 AOC slot


Drive Bays

Optional	1 3.5" or 2x 2.5" internal drive bays (fixed)


System Cooling

Fans	2x 40x28mm 4-pin PWM Cooling Fans 1x FAN-0147L4 option for 80W CPU


Power Supply

200W Low Noise AC-DC power supply with PFC
AC Voltage	100 - 240V, 50-60Hz, 2.6 Amp Max
+5V	8.0 Amp (max.)
+5V standby	2.0 Amp (max.)
+12V	16 Amp (max.)
-12V	0.5 Amp (max.)
+3.3V	8.0 Amp (max.)
Certification	Gold Certified


System BIOS

BIOS Type	8MB SPI Flash EEPROM with AMI BIOS
BIOS Features	DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3


Operating Environment / Compliance

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

See Parts List


Parts List - (Items Included)

	Part Number	Qty	Description
Motherboard / Chassis	MBD-X11SSL-F CSE-510-203B	1 1	Super X11SSL-F Motherboard 1U Chassis
Cable 1	CBL-0061L	1	SATA,INT,FLAT,31.5CM,26AWG
Manual	MNL-1796-QRG	1	5019S-L,QRG,HF,RoHS/REACH
Heatsink / Retention	SNK-P0046P	1	1U PASSIVE CPU HS FOR INTEL LGA1156
Power Supply	PWS-203-1H	1	1U 200W Multi-output 80Plus Gold PWS
FAN 1	FAN-0106L4	2	High current (0.14A) version of Fan-0100L4 (40x28mm PWM)


Optional Parts List

	Part Number	Qty	Description
Fan	FAN-0147L4	-	40x40x28 mm, 17.5K RPM, SC813MTS Middle Cooling Fan,RoHS/REACH,PBF
Riser Card	RSC-RR1U-E16	-	RSC-RR1U-E16 with PCI-E x16 output
