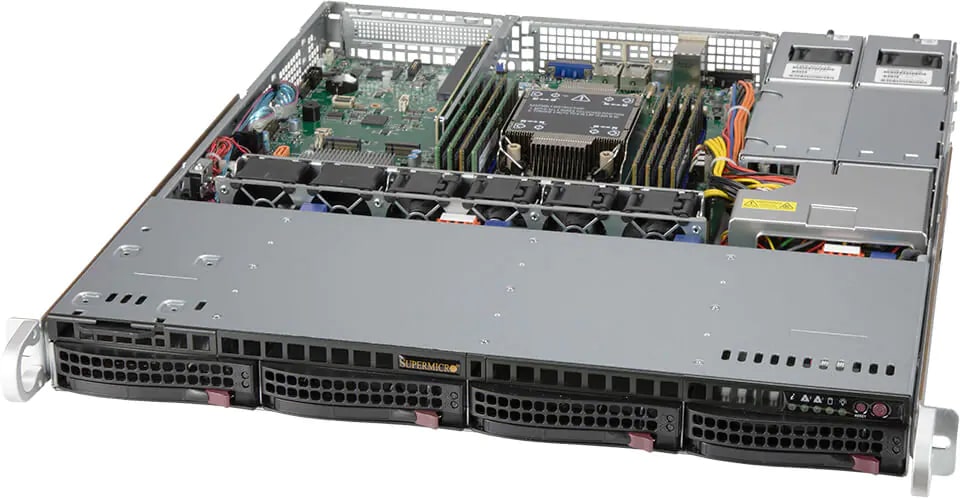

Supermicro SuperServer 510P-MR

SYS-510P-MR

Call our Solutions Specialists - 01283 576162

Great news, this product is available for special order. Please call us for availability.

To learn more about this product complete the form below and one of our team will get right back to you.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs
SuperServer SYS-510P-MR (Black)

Motherboard

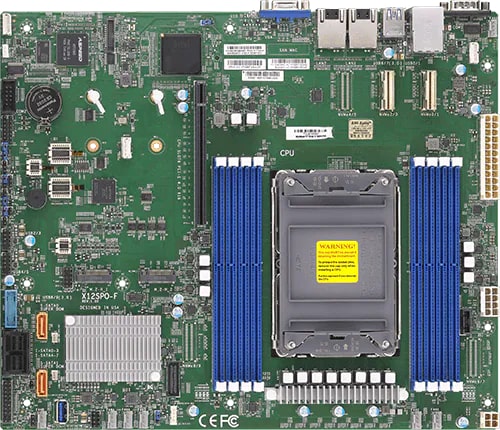

Super X12SPO-F

Processor
CPU	Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 36C/72T; Up to 54MB Cache per CPU
Note	Supports up to 220W TDP CPUs (Air Cooled)

System Memory
Memory	Memory Capacity: 8 DIMM slots Up to 2TB: 8x 256 GB DRAM Up to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM Intel® Optane™ persistent memory 200 series
Memory Voltage	1.2 V
Error Detection	Yes

On-Board Devices
SATA	SATA3 (6Gbps); RAID 0/1/5/10 support
NVMe	NVMe; RAID 0/1/5/10 support (*VROC HW key is required)
Chipset	Intel® C621A
Network Connectivity	2x 1GbE BaseT with Intel® i350
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

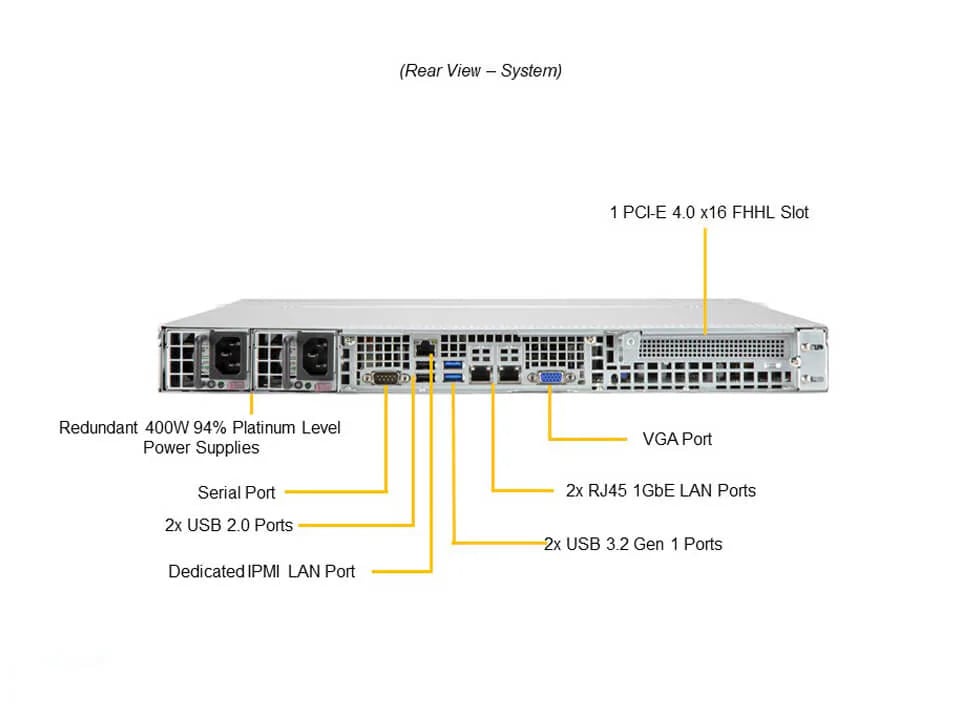

Input / Output
SATA	10 SATA (6Gbps) port(s)
LAN	1 RJ45 Dedicated IPMI LAN port 2 RJ45 1GbE LAN ports
USB	5 USB 3.2 Gen 1 port(s) (2 headers; 2 rear; 1 Type A) 6 USB 2.0 port(s) (4 headers; 2 rear)
Video	1 VGA port(s)
Serial Port	2 COM Port(s) (1 header; 1 rear)
DOM	2 SuperDOM (Disk on Module) port with built-in power

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Software	IPMI 2.0 KVM with dedicated LAN Super Diagnostics Offline SuperDoctor® 5 Supermicro Update Manager (SUM) Supermicro Power Manager (SPM) Supermicro Server Manager (SSM) Redfish API
Power Configurations	ACPI/APM Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	7+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	1U Rackmount
Model	CSE-813MF2TS-R407CBP2

Dimensions and Weight
Height	1.7" (43mm)
Width	17.2" (437mm)
Depth	19.98" (507mm)
Package	8.5" (H) x 24" (W) x 29.5" (D)
Weight	Net Weight: 17.6 lbs (8 kg) Gross Weight: 30.4 lbs (13.8 kg)
Available Color	Black

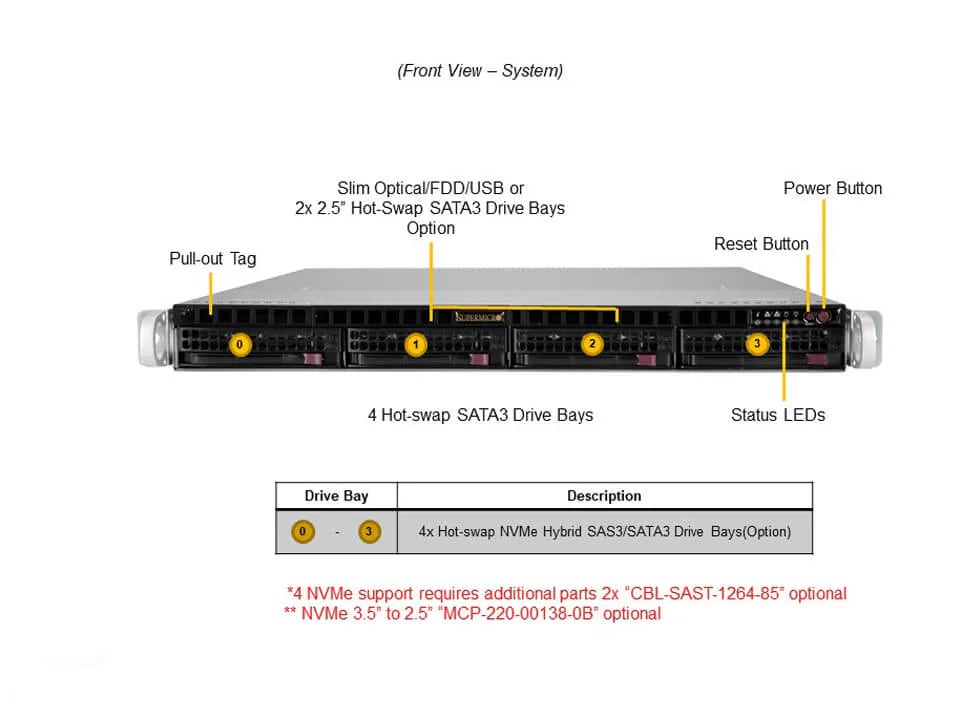

Front Panel
Buttons	Power On/Off System Reset
LEDs	Device Activity LAN 1 Activity LAN 2 Activity Power status System information

Expansion Slots
PCI-Express (PCIe)	1 PCIe 4.0 x16 FHHL slot(s)

Drive Bays / Storage

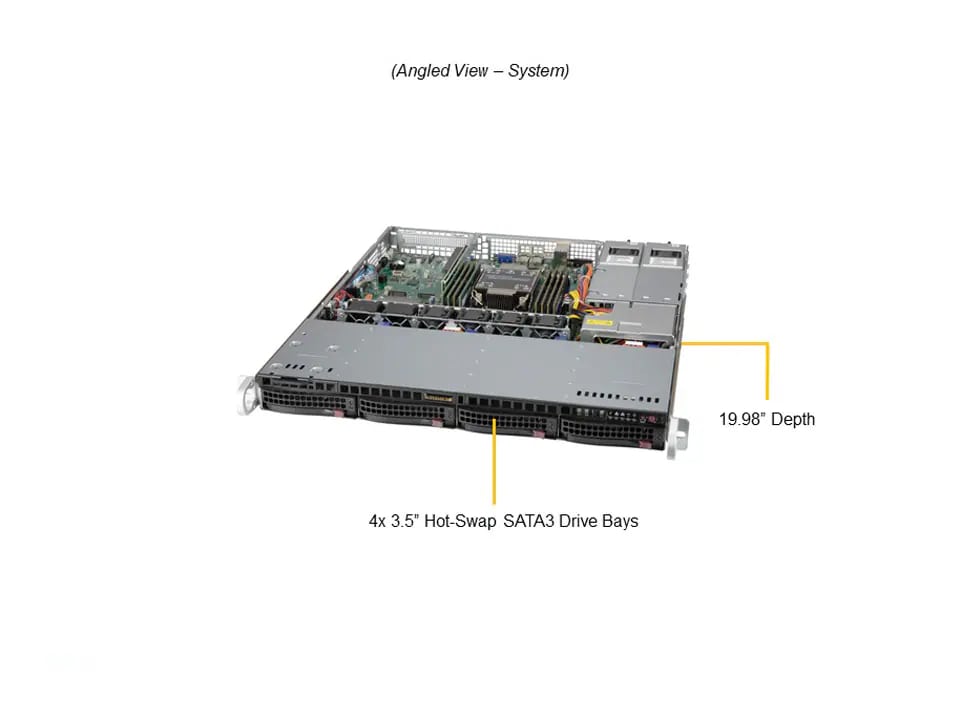

Drive Bays	4x 3.5" NVMe/SATA drive bays (4x 3.5" NVMe hybrid)
M.2	2x PCIe 3.0 x 4 and SATA M-key, 2280, 22110
Peripheral Bays	2x 2.5" drive bays

System Cooling
Fans	2 AOC cooling Fan(s) (optional) 4 middle cooling PWM 40x40x28mm Fan(s)

Power Supply
400W Redundant Platinum Level power supplies
Dimension (W x H x L)	54.5 x 40.25 x 220 mm
AC Input	400W: 100-240Vac / 50-60Hz 400W: 200-240Vdc / 50-60Hz
+12V	Max: 33A / Min: 0A (100Vac-240Vac)
5V SB	Max: 3A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Platinum Level [ Test Report ]

Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
