Product Description
Product SKUs
SuperServer SYS-510P-WTR (Black)

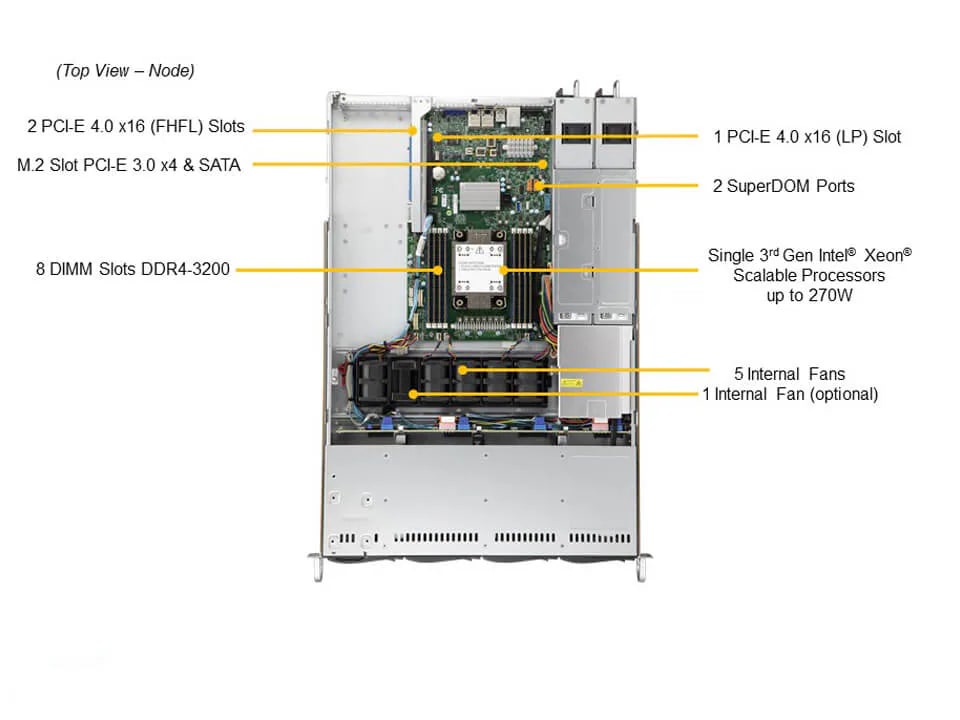

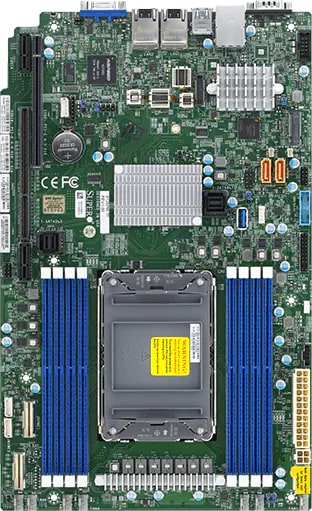

Motherboard
Super X12SPW-TF
Processor
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Memory Capacity: 8 DIMM slots
  • Up to 2TB: 8x 256 GB DRAM
  • Up to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem
  • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM
  • Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2 V
Error Detection
  • Yes
On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
NVMe
  • NVMe; RAID 0/1/5/10 support (*VROC HW key is required)
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 10GbE BaseT with Intel® X550
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

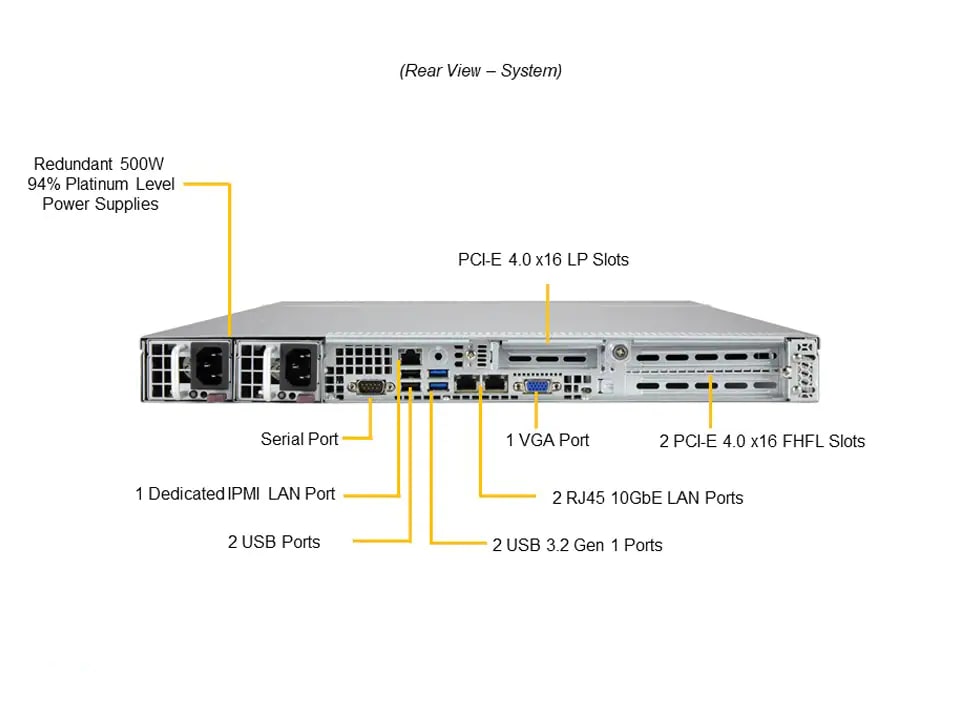

Input / Output
SATA
  • 10 SATA (6Gbps) port(s)
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ45 10GBase-T LAN ports
USB
  • 3 USB port(s) (2 headers; 1 Type A)
  • 4 USB 3.2 Gen 1 port(s) (2 headers; 2 rear)
  • 2 USB 2.0 port(s) (2 rear)
Video
  • 1 VGA 2 port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
DOM
  • 2 SuperDOM (Disk on Module) port with built-in power
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors

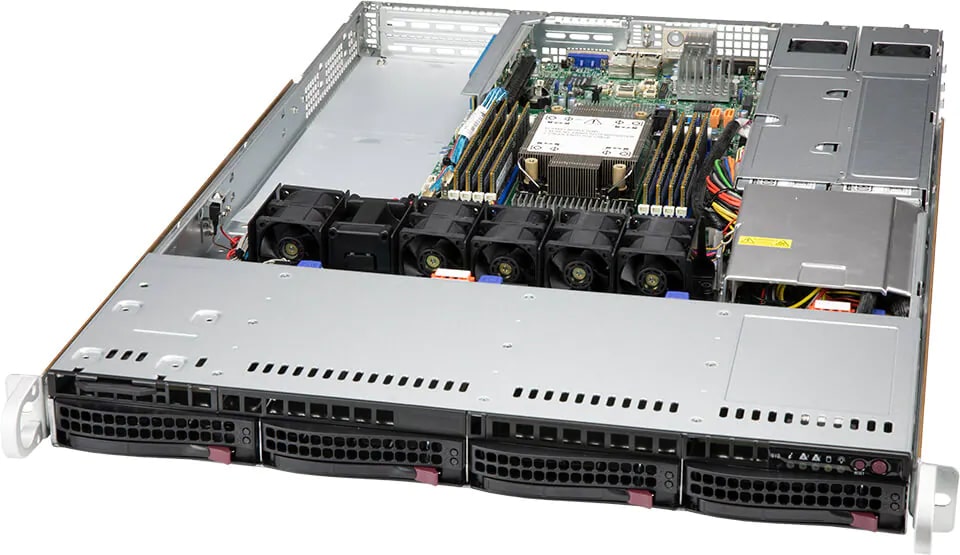

Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-815TS-R504WBP6
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 25.6" (650mm)
Package
  • 8.5" (H) x 23.5" (W) x 33.7" (D)
Weight
  • Net Weight: 24 lbs (10.89 kg)
  • Gross Weight: 48 lbs (21.77 kg)
Available Color
  • Black

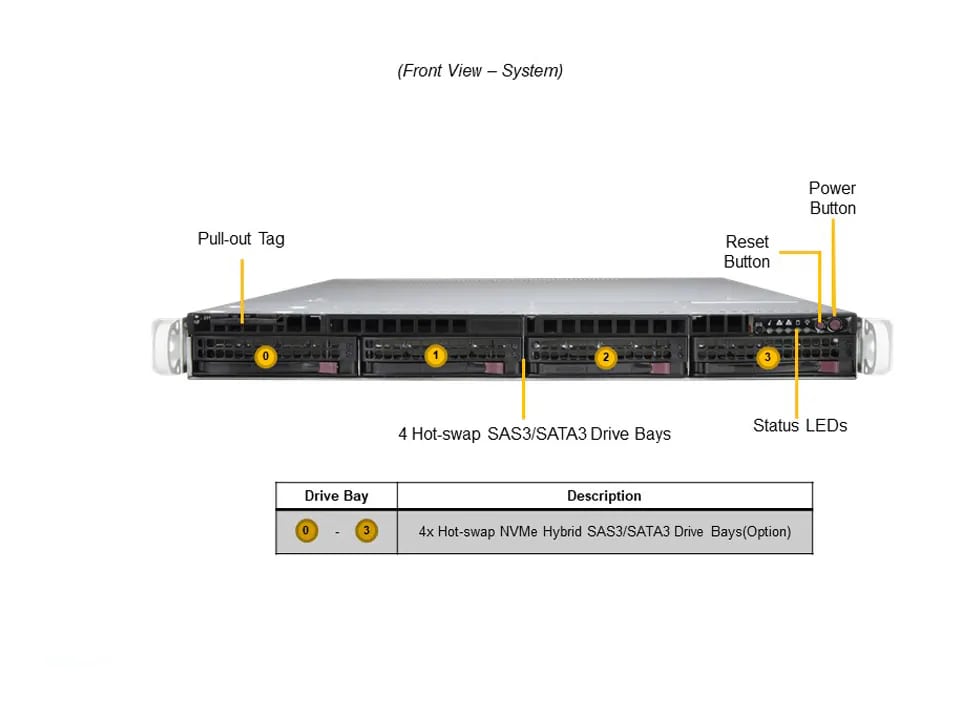

Front Panel
Buttons
  • Power On/Off
  • System Reset
  • UID button
LEDs
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power status
  • System information
Expansion Slots
PCI-Express (PCIe)
  • 2 PCIe 4.0 x16 FHFL slot(s)
  • 1 PCIe 4.0 x16 LP slot(s)

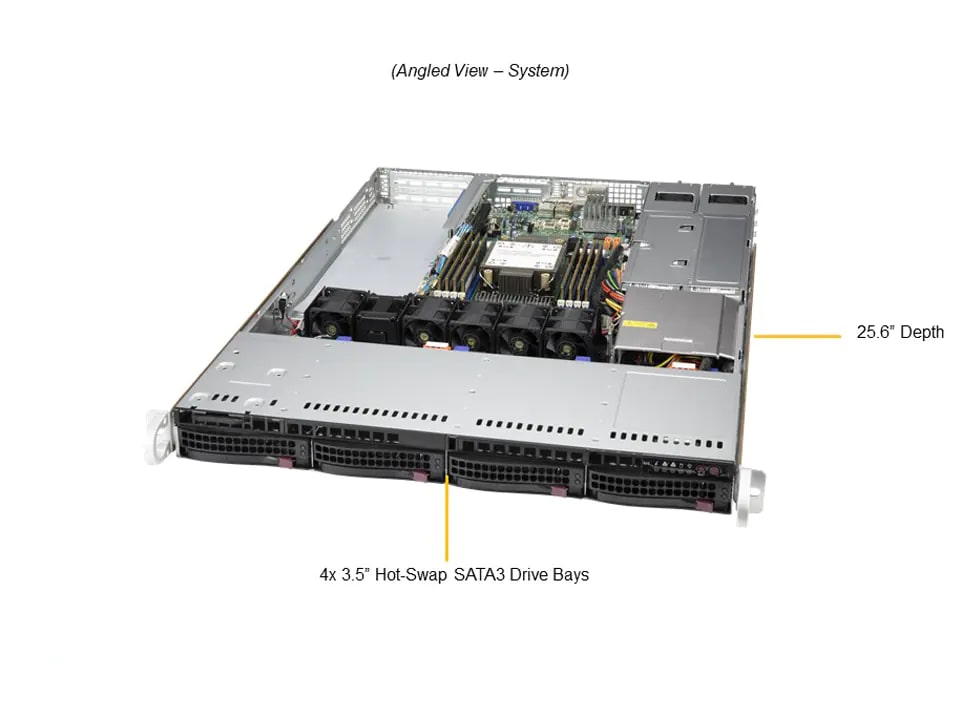

Drive Bays / Storage
Drive Bays
  • 4x 3.5" NVMe/SATA drive bays (4x 3.5" NVMe hybrid)
M.2
  • 1x PCIe 3.0 x 4 and SATA
  • M-key, 2280, 22110
Peripheral Bays
  • 2x 2.5" drive bays
System Cooling
Fans
  • 1 AOC cooling Fan(s) (optional)
  • 5 counter-rotation PWM 40x40x56mm Fan(s)
Power Supply
500W Redundant Platinum Level power supplies
Dimension

(W x H x L)
  • 54.5 x 40.25 x 320 mm
AC Input
  • 500W: 100-240Vac / 50-60Hz
+12V
  • Max: 42A / Min: 0.5A (100Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification Platinum Level Certified94%+  Platinum Level




  Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
