Supermicro SuperServer 530MT-H8TNR

SYS-530MT-H8TNR
Supermicro SuperServer 530MT-H8TNR
Call our Solutions Specialists - 01283 576162
Great news, this product is available for special order. Please call us for availability.

To learn more about this product complete the form below and one of our team will get right back to you.

I want to receive the latest offers and updates about new technology releases for Server Case via email.
Submit
Looking for Compatible Products?
Product Description
Product SKUs
SuperServer SYS-530MT-H8TNR (Black)

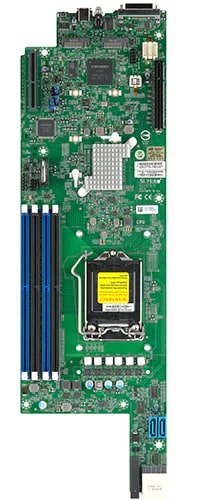

Motherboard
Super X12STD-F

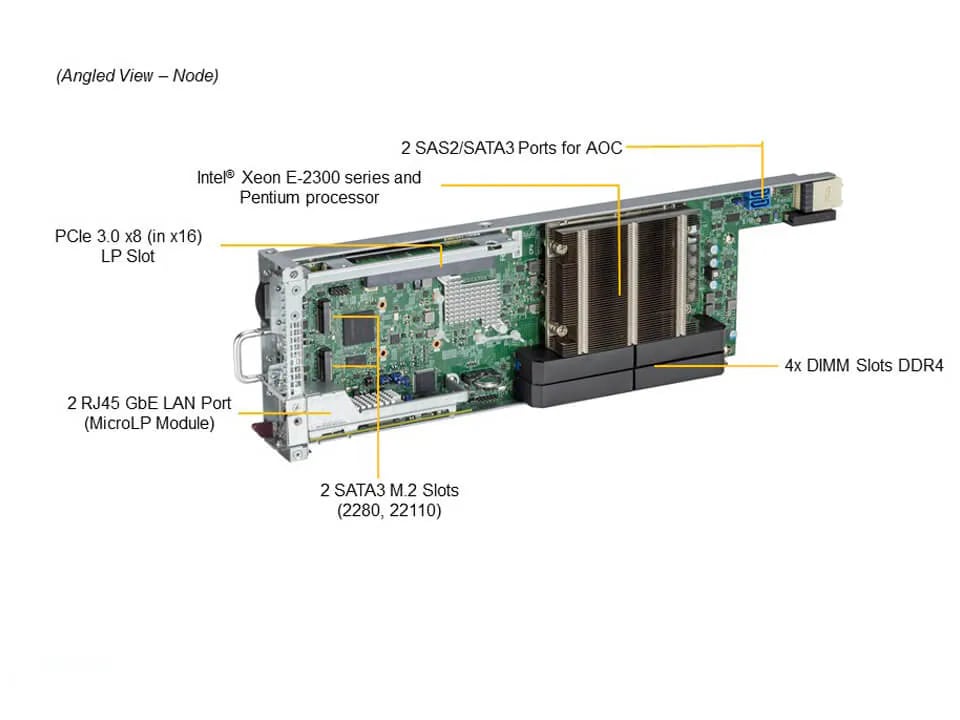

Processor (per Node)
CPU
  • Single Socket H5 (LGA-1200)
  • Intel® Xeon® processor E-2300 series and 10th Gen. Pentium® Processors
Core Count
  • Up to 8C/16T; Up to 16MB Cache per CPU
Note
  • Supports 80W - 95W TDP CPUs (Air Cooled)
GPU (per Node)
Max GPU Count
  • Up to 1 single-width GPU(s)
Supported GPU
System Memory (per Node)
Memory
  • Memory Capacity: 4 DIMM slots
  • Up to 128: 4x 32 GB DRAM
  • Memory Type: 3200MHz ECC DDR4 UDIMM
On-Board Devices (per Node)
SATA
  • SATA (6Gbps) via Intel® C256; RAID 0, 1, 5, 10 support
Chipset
  • Intel® C256
Network Connectivity
  • No NIC option supported
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output (per Node)
SATA
  • 2 SATA3 (6Gbps) port(s)
LAN
  • 2
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 KVM)
System BIOS
BIOS Type
  • AMI 128MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI 6.0 Power Management
  • Power-on mode for AC power recovery
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
FAN
  • Cooling zone
Temperature
  • Monitoring for CPU and chassis environment

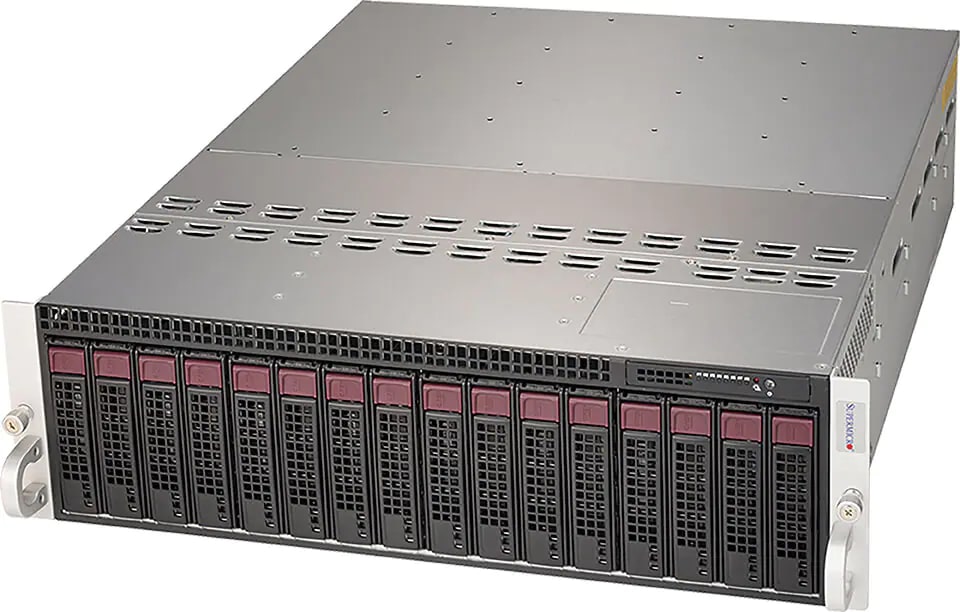

Chassis
Form Factor
  • 3U Rackmount
Model
  • CSE-938NH-R2K04BP2
Dimensions and Weight
Height
  • 5.21" (132mm)
Width
  • 17.26" (438mm)
Depth
  • 23.2" (589mm)
Package
  • 11.65" (H) x 26.26" (W) x 34" (D)
Weight
  • Net Weight: 62.2 lbs (28.21 kg)
  • Gross Weight: 88 lbs (39.92 kg)
Available Color
  • Black

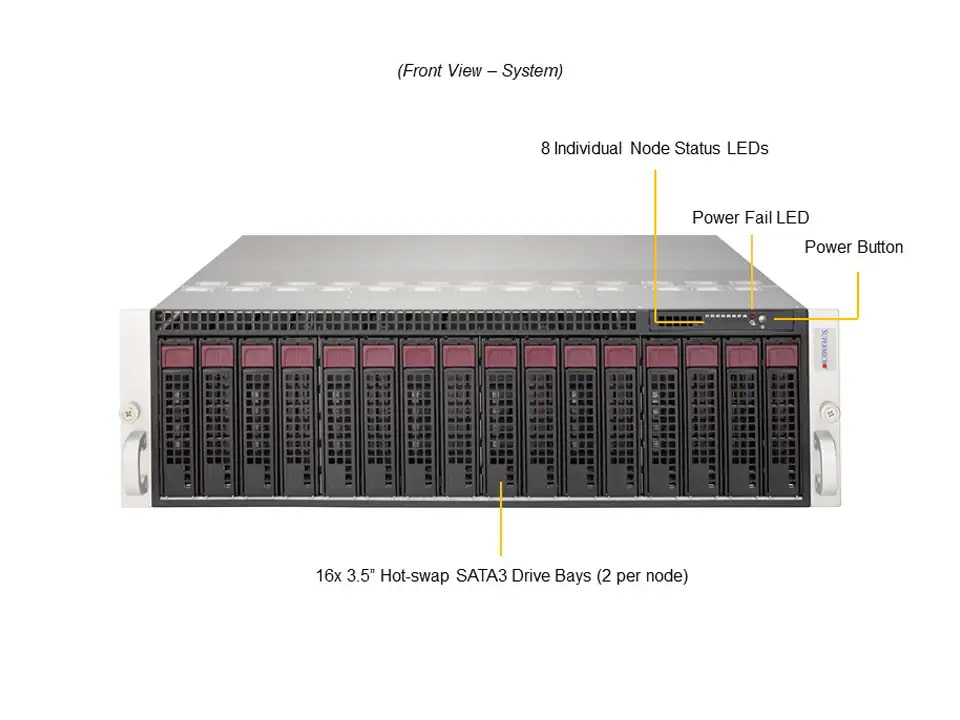

Front Panel
Buttons
  • Power On/Off
LEDs
  • 8 Individual Node Status Indicators
  • Power Failure
Expansion Slots (per Node)
PCI-Express (PCIe)
  • 1 PCIe 4.0 x16 LP slot(s)
  • 1 PCIe 4.0 x8 MLP slot(s)

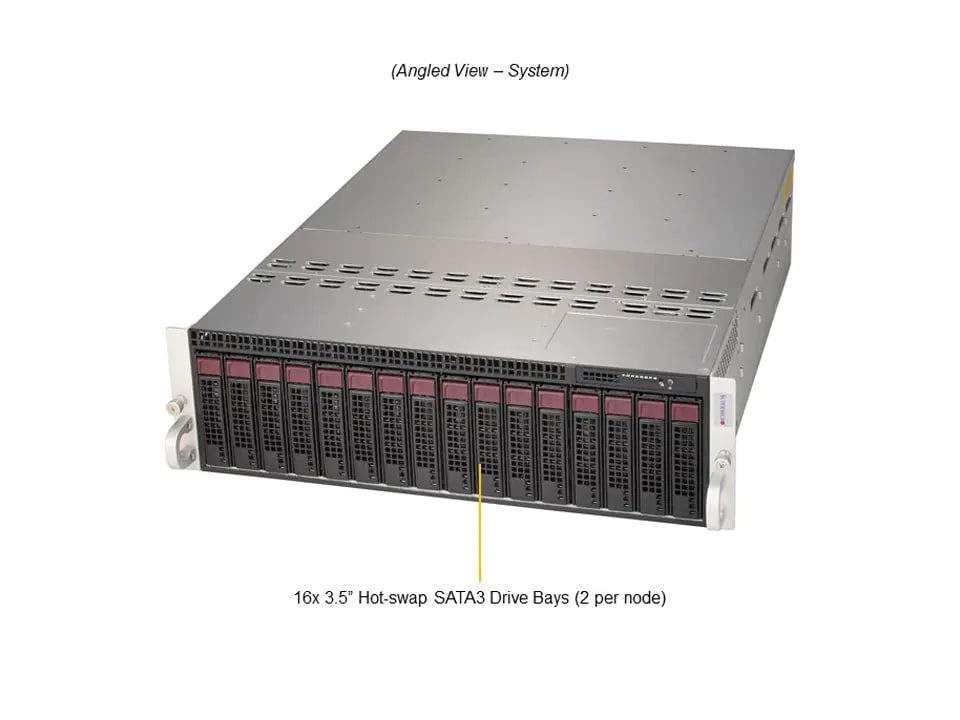

Drive Bays / Storage (per Node)
Hot-swap
  • 2x 3.5" hot-swap NVMe/SATA/SAS drive bays
M.2
  • 2 M.2 NVMe OR 2 M.2 SATA3
System Cooling
Fans
  • 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud
  • 8 Air Shroud(s)

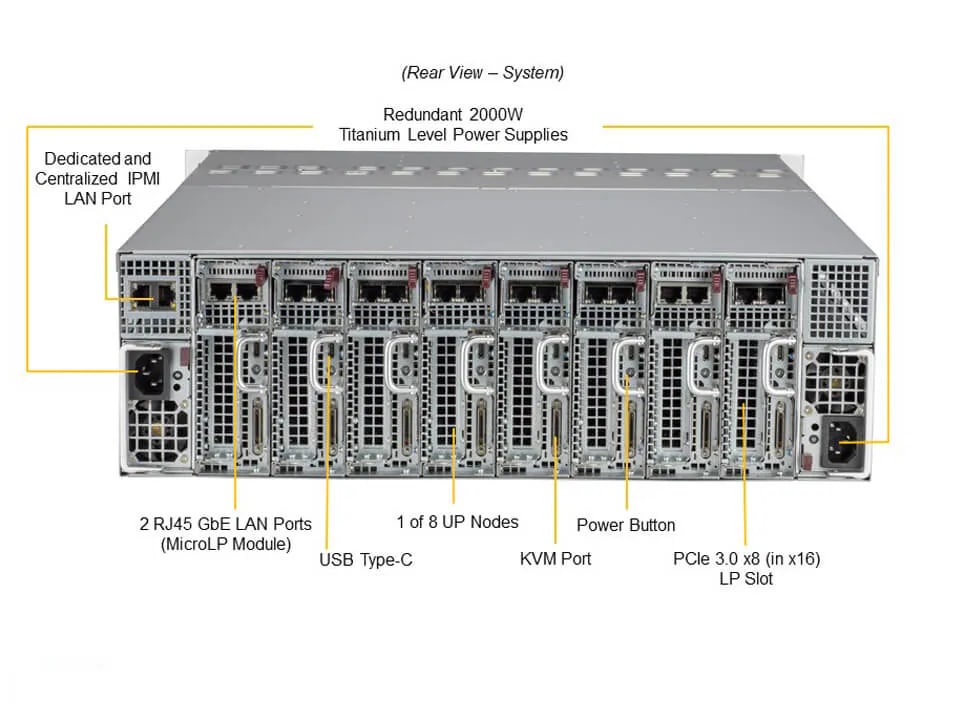

Power Supply
2000W Redundant Titanium Level power supplies
Dimension

(W x H x L)
  • 76 x 40 x 336 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
  • 1800W: 200-220Vac / 50-60Hz
  • 2000W: 200-240Vac / 50-60Hz (for UL/cUL only)
  • 1980W: 220-230Vac / 50-60Hz
  • 2000W: 230-240Vac / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100Vac-127Vac)
  • Max: 150A / Min: 0A (200Vac-220Vac)
  • Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only)
  • Max: 165A / Min: 0A (220Vac-230Vac)
  • Max: 166.7A / Min: 0A (230Vac-240Vac)
5V SB
  • Max: 1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification Titanium Level94%+  Titanium Level




  Test Report ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
