| SYS-6018R-MT |

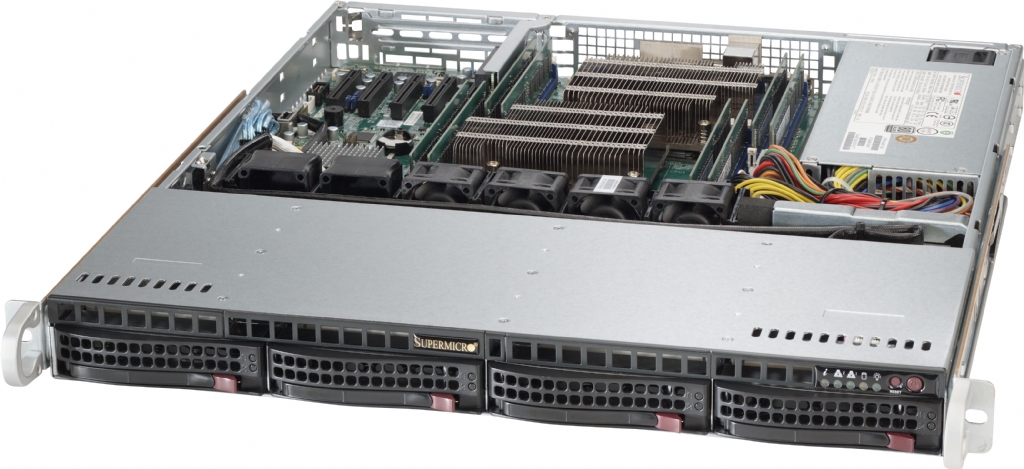

- SuperServer 6018R-MT (Black)
|
| |
|
| CPU |
- Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 135W TDP) *
- Dual Socket R3 (LGA 2011)
|
| Cores / Cache |
- Up to 22 Cores† / Up to 55MB† Cache
|
| System Bus |
|
| Note |
† BIOS version 2.0 or above is required |
| Note |
* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
| |
|
| Memory Capacity |
- 8x 288-pin DDR4 DIMM slots
- Up to 1TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
|
| Memory Type |
- 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
|
| DIMM Sizes |
- RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
- LRDIMM: 64GB, 32GB
- 3DS LRDIMM: 128GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
|
| |
|
| Chipset |
|
| SATA |
- SATA3 (6Gbps); RAID 0, 1, 5, 10
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
|
| Network Controllers |
- Intel® i210 Gigabit Ethernet controller
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
- 1x Realtek RTL8211E PHY (dedicated IPMI)
|
| Video |
|
| |
|
| SATA |
- 4x SATA3 (6Gbps) ports
- I-SATA 4 & I-SATA 5 support SATA DOM
|
| LAN |
- 2x RJ45 Gigabit Ethernet LAN ports
- 1x RJ45 Dedicated IPMI LAN port
|
| USB |
- 4x USB 3.0 ports (2 rear, 2 headers)
- 5x USB 2.0 ports
(2 rear, 2 headers, 1 Type A)
|
| Video |
|
| Serial Port / Header |
- 2x COM ports (1 rear, 1 header)
|
| DOM |
- 2x SuperDOM (Disk on Module) ports
|
| |
|
| Software |
|
| Power Configurations |
- ACPI Power Management
- Power-on mode for AC power recovery
|
|
 |
|
|
| Form Factor |
|
| Model |
|
| |
|
| Width |
|
| Height |
|
| Depth |
|
| Package |
- 23.4" (W) x 8.5" (H) x 29.7" (L)
|
| Gross Weight |
|
| Available Colors |
|
| |
|
| Buttons |
- Power On/Off button
- System Reset button
|
| LEDs |
- Power status LED
- HDD activity LED
- 2x Network activity LEDs
- Universal Information (UID) LED
|
| |
|
| PCI-Express |
- 1x PCI-E 3.0 x8 (FHHL) slot
|
| |
|
| Hot-swap |
- 4x 3.5" Hot-swap SATA3 Drive Bays
|
| |
|
| SAS2/SATA3 Backplane |
| |
|
| Fans |
- 4x 4cm fans with optimal fan speed control
|
| |
|
| 440W/480W High-Efficiency Power Supply w/PMBus 1.2, I2C, and PFC |
| AC Input |
- 100-140V, 50-60Hz, 5.5-4A
- 180-240V, 50-60Hz, 3.5-2.5A
|
| DC Output |
- +3.3V: 15A
- +5V: 18A
- +5V standby: 3A
- +12V:
35.8A at 100-140Vac
39.1A at 180-240Vac
|
| Certification |
  Platinum Certified
[ Test Report ] |
| |
|
| BIOS Type |
- 128Mb SPI Flash EEPROM with AMI BIOS
|
| BIOS Features |
- Plug and Play (PnP)
- APM 1.2
- PCI 2.3
- ACPI 3.0 / 4.0
- USB Keyboard support
- SMBIOS 2.7.1
- UEFI 2.3.1
|
| |
|
| RoHS |
|
| Environmental Spec. |
- Operating Temperature:
10°C to 35°C (50°F to 95°F)
- Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
|
|
|
 |
|
See Parts List
|
|
|
|
|
Part Number
|
Qty
|
Description
|
| Motherboard / Chassis |
MBD-X10DRL-i
CSE-813MFTQ-441CB |
1
1 |
Super X10DRL-i Motherboard
1U Chassis |
| Backplane |
BPN-SAS-815TQ |
1 |
4-port 1U TQ backplane (W/ enclosure management), support up to 4x 3.5-inch SAS/SATA HDD |
| Cable 1 |
CBL-0186L |
1 |
SATA,INT,ROUND,SET OF 4,ST-RA 56/45.5/35/23CM,26AWG |
| Cable 2 |
CBL-CDAT-0661 |
1 |
CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG |
| Air Shroud |
MCP-310-19015-0N |
1 |
SC813M,SC113M, DP X9DRL-EF/ X9DRL-7F/ X10DRL-i, X9/X10 mylar air shroud, 12 |
| Manual |
MNL-1591-QRG |
1 |
SYS-6018R-MT/MTR, QRG,HF,RoHS/REACH |
| Riser Card |
RSC-RR1U-E8 |
1 |
RSC-RR1U-E8 |
| Heatsink / Retention |
SNK-P0047PD |
2 |
1U Passive Custom CPU Heat Sink for X9DRL, X10DRL Related Systems |
| Power Supply |
PWS-441P-1H |
1 |
440W/480W Platinum Power Supply |
| FAN 1 |
FAN-0147L4 |
4 |
40x40x28 mm, 17.5K RPM, SC813MTS Middle Cooling Fan,RoHS/REACH,PBF |
|
|
|
|
|
| |
Part Number |
Qty |
Description |
| Network Card(s) |
AOC-SGP-i2
AOC-SGP-i4
AOC-SG-i2
AOC-SG-i4
AOC-STG-b4S
AOC-STGN-i2S
AOC-STGN-i1S
AOC-STG-i2T
AOC-STG-i2 |
-
-
-
-
-
-
-
-
- |
Standard LP, 2x GbE RJ45, PCI-E x4, Intel® i350AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel® i350
Standard LP, 2x GbE RJ45, PCI-E x4, Intel® 82575EB
Standard LP, 4x GbE RJ45, PCI-E x4, Intel® 82576EB
Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom® BCM57840S
Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel® 82599ES
Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel® 82599ES
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel® X540
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel® 82598EB |
| DVD-ROM / DVD-RW |
DVM-PNSC-DVD-SBT3
DVM-TEAC-DVD-SBT3
DVM-PLDS-DVDRW-SBT4
DVM-TEAC-DVDRW-SBT2 |
-
-
-
- |
BLACK PANASONIC SLIM DVD ROM SATA DRIVE
BLACK TEAC SLIM DVD ROM SATA DRIVE
PHILIPS SLIM BLACK DVD-RW SATA DRIVE
BLACK TEAC SLIM DVD-RW SATA DRIVE |
| DVD-ROM Accessory |
MCP-220-81502-0N |
- |
Slim SATA DVD kit for SC213,219,813,815,818,819,825,828,829,836,842 |
| Global Services & Support |
OS4HR3/2/1
OSNBD3/2/1 |
-
- |
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service |
| Software |
SFT-OOB-LIC |
1 |
OOB Management Package (per node license) |
| Software |
SFT-DCMS-Single |
1 |
DataCenter Management Package (per node license) |
|
|
|
