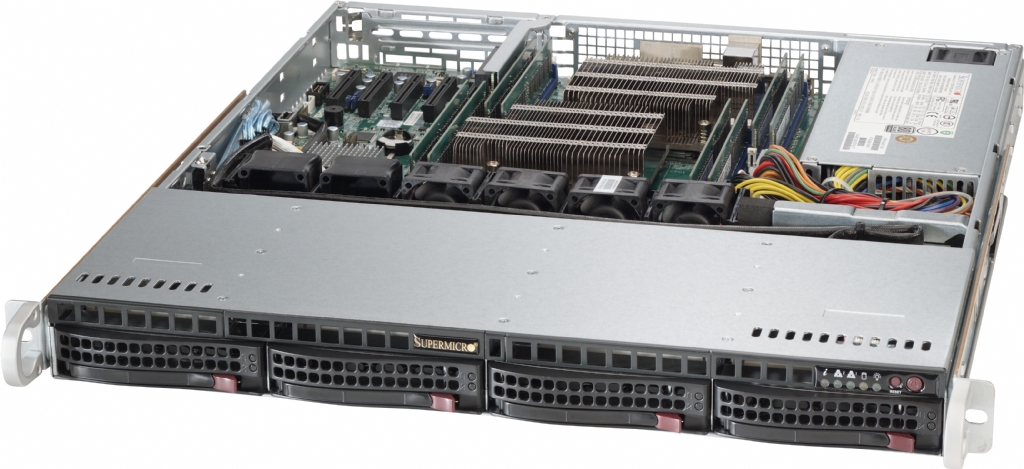

Supermicro SuperServer 6018R-MTR

SYS-6018R-MTR

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

Frequently bought together

Supermicro 4GB 288-Pin DDR4 2133 (PC4 17000) Server Memory

£26.40 ex VAT

(£31.68 inc VAT)

Product info

Product Description Compatible Products Downloads Reviews

Product SKUs

SYS-6018R-MTR	SuperServer 6018R-MTR (Black)


Motherboard

Super X10DRL-i


Processor/Cache

CPU	Intel® Xeon® processor E5-2600 v4^†/ v3 family (up to 135W TDP) * Dual Socket R3 (LGA 2011)
Cores / Cache	Up to 22 Cores^† / Up to 55MB^† Cache
System Bus	QPI up to 9.6 GT/s
Note	^† BIOS version 2.0 or above is required
Note	* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.


System Memory

Memory Capacity	8x 288-pin DDR4 DIMM slots Up to 1TB^† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type	2400^†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors


On-Board Devices

Chipset	Intel® C612 chipset
SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Network Controllers	Intel® i210 Gigabit Ethernet controller Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8211E PHY (dedicated IPMI)
Video	ASPEED AST2400 BMC

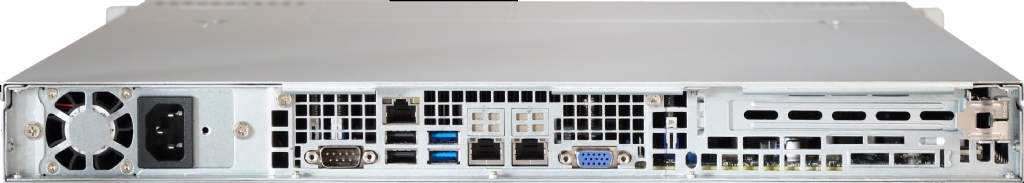

Input / Output

SATA	4x SATA3 (6Gbps) ports I-SATA 4 & I-SATA 5 support SATA DOM
LAN	2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	4x USB 3.0 ports (2 rear, 2 headers) 5x USB 2.0 ports (2 rear, 2 headers, 1 Type A)
Video	1x VGA port
Serial Port / Header	1x COM port (header)
DOM	2x SuperDOM (Disk on Module) ports


Management

Software	IPMI 2.0 Intel® Node Manager SuperDoctor® 5 SSM SPM SUM Watch Dog
Power Configurations	ACPI Power Management Power-on mode for AC power recovery


Chassis

Form Factor	1U Rackmount
Model	CSE-813MFTQ-R400CB


Dimensions and Weight

Width	17.2" (437mm)
Height	1.7" (43mm)
Depth	19.8" (503mm)
Package	23.4" (W) x 8.5" (H) x 29.7" (L)
Gross Weight	38 lbs (17.24 kg)
Available Colors	Black

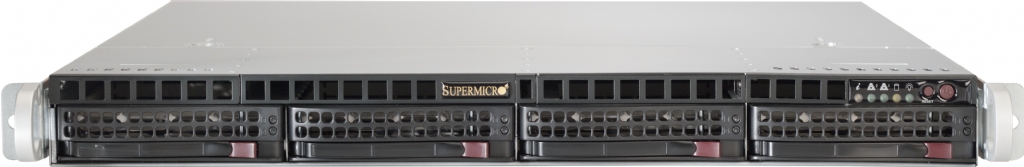

Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power status LED HDD activity LED 2x Network activity LEDs Universal Information (UID) LED


Expansion Slots

PCI-Express	1x PCI-E 3.0 x8 (FHHL) slot


Drive Bays

Hot-swap	4x 3.5" Hot-swap SATA3 Drive Bays


Backplane

SAS2/SATA3 Backplane


System Cooling

Fans	4x 4cm fans with optimal fan speed control


Power Supply
400W Redundant Power Supplies w/Power Distributor, PMBus 1.2, I²C, and PFC
AC Input	100-240V, 50-60Hz, 6-3A
DC Output	+5V standby: 3A +12V: 33A
DC Output With Power Distributor	+5V: 25A +3.3V: 25A -12V: 0.6A
Certification	Gold Certified


System BIOS

BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 PCI 2.3 ACPI 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1


Operating Environment / Compliance

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

See Parts List


Parts List - (Items Included)

	Part Number	Qty	Description
Motherboard / Chassis	MBD-X10DRL-i CSE-813MFTQ-R400CB	1 1	Super X10DRL-i Motherboard 1U Chassis
Backplane	BPN-SAS-815TQ	1	4-port 1U TQ backplane (W/ enclosure management), support up to 4x 3.5-inch SAS/SATA HDD
Cable 1	CBL-0186L	1	SATA,INT,ROUND,SET OF 4,ST-RA 56/45.5/35/23CM,26AWG
Cable 2	CBL-CDAT-0661	1	CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG
Air Shroud	MCP-310-19015-0N	1	SC813M,SC113M, DP X9DRL-EF/ X9DRL-7F/ X10DRL-i, X9/X10 mylar air shroud, 12
Manual	MNL-1591-QRG	1	SYS-6018R-MT/MTR, QRG,HF,RoHS/REACH
Riser Card	RSC-RR1U-E8	1	RSC-RR1U-E8
Heatsink / Retention	SNK-P0047PD	2	1U Passive Custom CPU Heat Sink for X9DRL, X10DRL Related Systems
Power Supply	PWS-406P-1R	2	1U 400W Redundant Short Depth Power Supply
FAN 1	FAN-0147L4	4	40x40x28 mm, 17.5K RPM, SC813MTS Middle Cooling Fan,RoHS/REACH,PBF


Optional Parts List

	Part Number	Qty	Description
Network Card(s)	AOC-SGP-i2 AOC-SGP-i4 AOC-SG-i2 AOC-SG-i4 AOC-STG-b4S AOC-STGN-i2S AOC-STGN-i1S AOC-STG-i2T AOC-STG-i2	- - - - - - - - -	Standard LP, 2x GbE RJ45, PCI-E x4, Intel® i350AM2 Standard LP, 4x GbE RJ45, PCI-E x4, Intel® i350 Standard LP, 2x GbE RJ45, PCI-E x4, Intel® 82575EB Standard LP, 4x GbE RJ45, PCI-E x4, Intel® 82576EB Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom® BCM57840S Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel® 82599ES Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel® 82599ES Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel® X540 Standard LP, 2x 10GbE CX4, PCI-E x8, Intel® 82598EB
DVD-ROM / DVD-RW	DVM-PNSC-DVD-SBT3 DVM-TEAC-DVD-SBT3 DVM-PLDS-DVDRW-SBT4 DVM-TEAC-DVDRW-SBT2	- - - -	BLACK PANASONIC SLIM DVD ROM SATA DRIVE BLACK TEAC SLIM DVD ROM SATA DRIVE PHILIPS SLIM BLACK DVD-RW SATA DRIVE BLACK TEAC SLIM DVD-RW SATA DRIVE
DVD-ROM Accessory	MCP-220-81502-0N	-	Slim SATA DVD kit for SC213,219,813,815,818,819,825,828,829,836,842
Global Services & Support	OS4HR3/2/1 OSNBD3/2/1	- -	3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service
Software	SFT-OOB-LIC	1	OOB Management Package (per node license)
Software	SFT-DCMS-Single	1	DataCenter Management Package (per node license)
