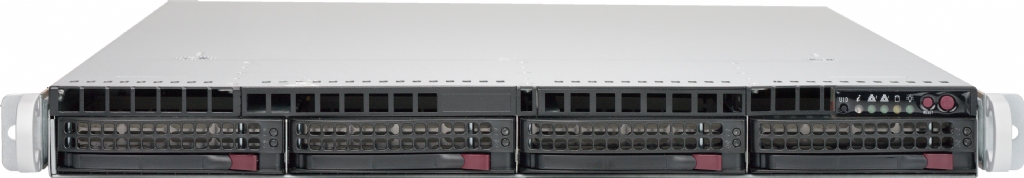

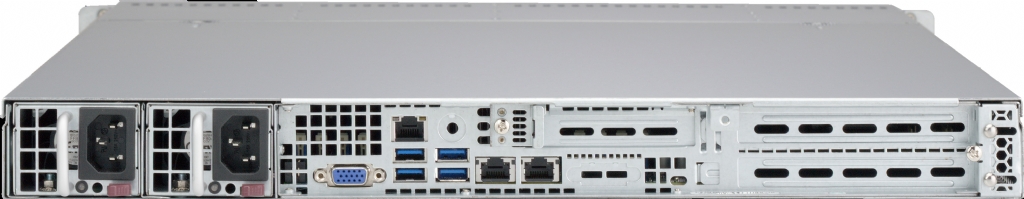

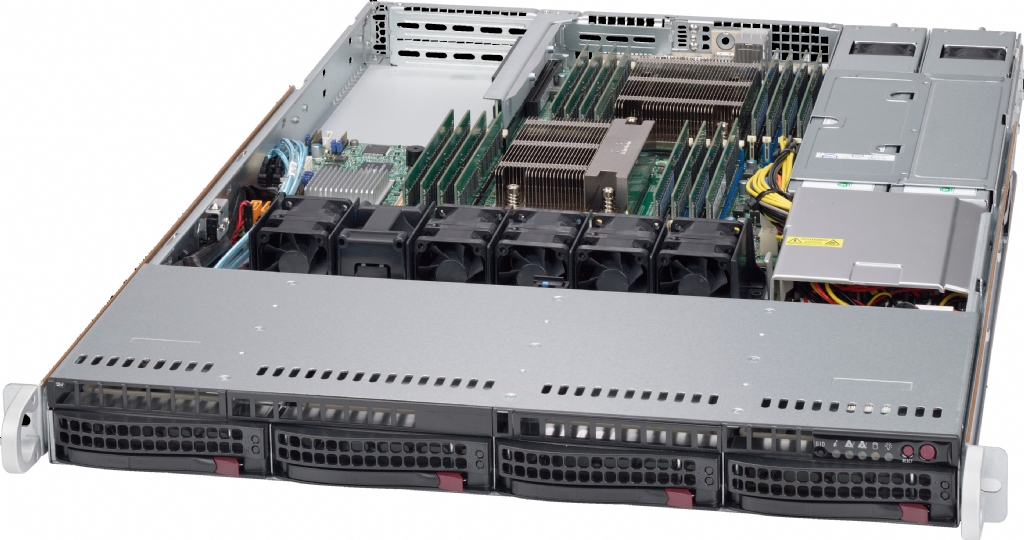

Supermicro SuperServer 6018R-WTR

SYS-6018R-WTR

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs

SYS-6018R-WTR	SuperServer 6018R-WTR (Black)


Motherboard

Super X10DRW-i


Processor/Cache

CPU	Intel® Xeon® processor E5-2600 v4^†/ v3 family (up to 145W TDP) * Dual Socket R3 (LGA 2011)
Cores / Cache	Up to 22 Cores^† / Up to 55MB^† Cache
System Bus	QPI up to 9.6 GT/s
Note	^† BIOS version 2.0 or above is required
Note	* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.


System Memory

Memory Capacity	16x 288-pin DDR4 DIMM slots Up to 2TB^† ECC 3DS LRDIMM/RDIMM
Memory Type	2400^†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors


On-Board Devices

Chipset	Intel® C612 chipset
SATA	SATA3 via Intel® C612; RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Network Controllers	Intel® i350 Dual Port Gigabit Ethernet Controller Virtual Machine Device Queues reduce I/O overhead Supports 1GBASE-T, RJ45 output 1x Realtek RTL8211E PHY (dedicated IPMI)
Graphics	ASPEED AST2400 BMC


Input / Output

SATA/SAS	10x SATA3 (6Gbps) ports
LAN	2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	6x USB 3.0 ports (4 rear + 2 via header)
Video	1x VGA port
Serial Port / Header	1x Header
DOM	2x SuperDOM (Disk on Module) ports


Management

Software	SuperDoctor® 5 Watch Dog NMI IPMI 2.0 Intel Node Manager
Power Configurations	ACPI / APM Power Management Power-on mode for AC power recovery


Chassis

Form Factor	1U Rackmount
Model	CSE-815TQ-R706WB


Dimensions and Weight

Width	17.2" (437mm)
Height	1.7" (43mm)
Depth	25.6" (650mm)
Weight	Net Weight: 25.5 lbs (11.6 kg) Gross Weight: 39 lbs (17.7 kg)
Available Colors	Black


Front Panel

Buttons	Power On/Off button System Reset button UID button
LEDs	Power status LED HDD activity LED 2x Network activity LEDs Universal Information (UID) LED


Expansion Slots

PCI-Express	2 PCI-E 3.0 x16 full-height, Half-length slots 1x PCI-E 3.0 x8 Mezzanine for HBA cards UIO AOC Compatibility Matrix (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)


Drive Bays

Hot-swap	4x 3.5" Hot-swap SAS / SATA HDD trays (ready for PCI-E storage controller card)


Peripheral Drives

DVD-ROM	Slim DVD-ROM drive (optional)


Backplane

SAS/SATA HDD Backplane (SAS support requires optional SAS controller)


System Cooling

Fans	5x 4cm Counter-rotating PWM fans


AC/DC240V Input Redundant Power Supply

700W/750W Redundant Power Supplies with PMBus
Total Output Power	700W/750W
Dimension (W x H x L)	54.5 x 40.25 x 320 mm
Input	100 - 140Vac / 8 - 6A / 50-60Hz 200 - 240Vac / 4.5 - 3.8A / 50-60Hz 200 - 240Vdc / 4.5 - 3.8A (CCC Only)
+12V	Max: 58A / Min: 0.5A (100 - 140Vac) Max: 62A / Min: 0.5A (200 - 240Vac) Max: 62A / Min: 0.5A (200 - 240Vdc) (CB/CCC Only)
+5V sb	Max: 3A / Min: 0A
Output Type	Gold Finger Connector Mating with Molex 45984-4343
Certification	UL/cUL/CB/BSMI/CE/CCC Platinum Certified [ Test Report ]


System BIOS

BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 PCI 2.2 ACPI 1.0 / 2.0 / 3.0 / 4.0 BIOS resuce hot keys USB Keyboard support SMBIOS 2.3 UEFI


Operating Environment / Compliance

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

See Parts List


Parts List - (Items Included)

	Part Number	Qty	Description
Motherboard / Chassis	MBD-X10DRW-i CSE-815TQ-R706WB	1 1	Super X10DRW-i Motherboard 1U Chassis
Backplane	BPN-SAS-815TQ	1	4-port 1U TQ backplane (W/ enclosure management), support up to 4x 3.5-inch SAS/SATA HDD
Cable 1	CBL-0186L	1	SATA,INT,ROUND,SET OF 4,ST-RA 56/45.5/35/23CM,26AWG
Cable 2	CBL-CDAT-0661	1	CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG
FAN 1	FAN-0086L4	1	40x56 4Pin PWM, Primary for SC815, Secondary for SC818, 825M
Manual	MNL-1635-QRG	1	6018R-WTR(T) QRG,HF
Riser Card	RSC-R1UW-2E16	1	1U LHS WIO Riser card with two PCI-E x16 slots
Heatsink / Retention	SNK-P0047PSC	1	1U Passive Front CPU Heat Sink w/ a Side Air Channel for X9, X10 Systems Equipped with a Narrow ILM MB
Heatsink / Retention	SNK-P0057PS	1	1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
Power Supply	PWS-706P-1R	2	1U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF


Optional Parts List

	Part Number	Qty	Description
2.5" to 3.5" Converter Tray	MCP-220-00043-0N	-	Black Hot-swap Gen-4 2.5" to 3.5" HDD tray
DVD-ROM / DVD-RW	DVM-TEAC-DVD-SBT4 DVM-TEAC-DVDRW-SBT4 DVM-PLDS-DVDRW-SBT5	1 1 1	TEAC SLIM DVD ROM SATA DRIVE, HF, RoHS/REACH TEAC SLIM DVD-RW SATA DRIVE, RoHS PHILIPS SLIM BLACK DVD-RW SATA DRIVE, HF, RoHS/REACH
DVD-ROM Accessory	MCP-220-81502-0N	1	Slim SATA DVD mounting kit
Internal 2.5" HDD Tray (FDD Slot)	MCP-220-83601-0B	1	Black FDD dummy tray support 1x 2.5" slim HDD
Internal 2.5" HDD Tray (DVD Slot)	MCP-290-00036-0B	1	Black DVD dummy tray support 1x 2.5" slim HDD
USB/COM Port Tray (DVD Slot)	MCP-220-00114-0N	1	Black 2x USB 3.0/COM port tray in slim DVD bay
Cable for internal HDD	CBL-0489L CBL-0082L	2 1	SATA,INT,ROUND,ST-RA,70CM,30AWG Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
CachVault(s)	BTR-CV3108-1U1 BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05 BTR-TFM8G-LSICVM02 & MCP-240-00127-0N	1 - -	CacheVault for Broadcom 3108 with SuperCap mounting in 1U 40x56 fan tray CacheVault for Broadcom 3108; SuperCap mounting bracket for PCI-E location CacheVault for Broadcom 3108; SuperCap mounting bracket for 2.5" HDD location
SuperCap for AOC-S2208L-H8IR	BTR-0024LH-LSI00297 & BKT-BBU-BRACKET-05 BTR-0024LH-LSI00297 & MCP-240-00127-0N	- -	SuperCap TFM to be used w/ Supermicro AOC-S2208L-H8IR; SuperCap mounting bracket for PCI-E location SuperCap TFM to be used w/ Supermicro AOC-S2208L-H8IR; SuperCap mounting bracket for 2.5" HDD location
Storage Controller Card(s) & Cables(s)	AOM-S3108M-H8 & 1x CBL-SAST-0556 AOC-S3108L-H8IR-16DD & 1x CBL-SAST-0556 AOC-S3008L-L8i & 1x CBL-SAST-0556 AOC-S3008L-L8e & 1x CBL-SAST-0556 AOC-S2308L-L8e & 1x CBL-SAST-0388L-02 AOC-S2308L-L8i & 1x CBL-SAST-0388L-02 AOC-S2208L-H8iR & 1x CBL-SAST-0388L-02	-	Supermicro Low Profile 12Gb/s Eight-Port SAS Internal Mezzanine RAID Adapter; RAID 0, 1, 5, 6, 10, 50, 60 Standard LP, 8 internal ports (12Gb/s) Gen-3, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60 Standard LP, 8 internal ports (12Gb/s) Gen-3, 63HDD; RAID 0, 1, 10 Standard LP, 8 internal ports (12Gb/s) Gen-3, 122HDD; HBA Standard LP, 8 internal ports (6Gb/s) Gen-3, 122HDD; HBA Standard LP, 8 internal ports (6Gb/s) Gen-3, 63HDD; RAID 0, 1, 10 Standard LP, 8 internal ports (6Gb/s) Gen-3, 240HDD; RAID 0, 1, 5, 6, 10, 50, 60
Network Card(s)	AOC-SGP-i2 AOC-SGP-i4 AOC-SG-i2 AOC-SG-i4 AOC-STG-b4S AOC-STGN-i2S AOC-STG-i2T AOC-STG-i2	-	Standard LP, 2x GbE RJ45, PCI-E x4, Intel® i350AM2 Standard LP, 4x GbE RJ45, PCI-E x4, Intel® i350 Standard LP, 2x GbE RJ45, PCI-E x4, Intel® 82575EB Standard LP, 4x GbE RJ45, PCI-E x8, Intel® 82576EB Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom® BCM57840S Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel® 82599ES Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel® X540 Standard LP, 2x 10GbE CX4, PCI-E x8, Intel® 82598EB
Front Bezel	CSE-PTFB-813-02 CSE-PTFB-813-02B	1 1	Front Bezel w/ Round Venting Holes Black Front Bezel w/ Round Venting Holes
Global Services & Support	OS4HR3/2/1 OSNBD3/2/1	- -	3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service
Software	SFT-OOB-LIC	1	OOB Management Package (per node license)
Software	SFT-DCMS-Single	1	DataCenter Management Package (per node license)
