| SYS-6028R-WTRT |

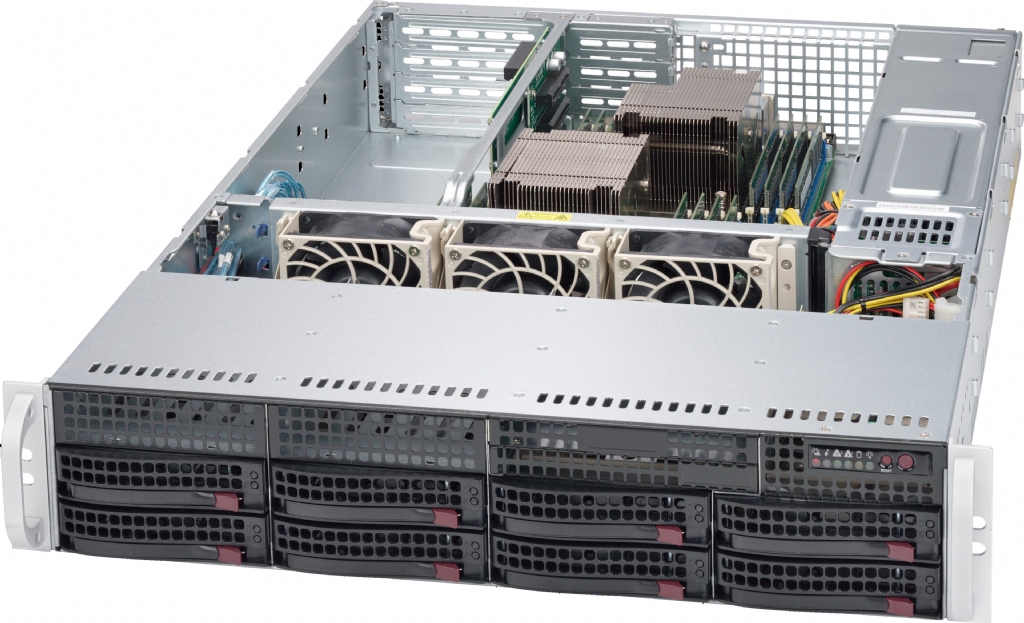

- SuperServer 6028R-WTRT (Black)
|
| |
|
| CPU |
- Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
- Dual Socket R3 (LGA 2011)
|
| Cores / Cache |
- Up to 22 Cores† / Up to 55MB† Cache
|
| System Bus |
|
| Note |
† BIOS version 2.0 or above is required |
| Note |
* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
| |
|
| Memory Capacity |
- 16x 288-pin DDR4 DIMM slots
- Up to 2TB† ECC 3DS LRDIMM/RDIMM
|
| Memory Type |
- 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
|
| DIMM Sizes |
- RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
- LRDIMM: 64GB, 32GB
- 3DS LRDIMM: 128GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
|
| |
|
| Chipset |
|
| SATA |
- SATA3 (6Gbps); RAID 0, 1, 5, 10
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
|
| Network Controllers |
- Intel® X540 Dual Port 10GBase-T
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
- 1x Realtek RTL8211E PHY (dedicated IPMI)
|
| Video |
|
| |
|
| SAS/SATA |
|
| LAN |
- 2x RJ45 10GBase-T ports
- 1x RJ45 Dedicated IPMI LAN port
|
| USB |
- 6x USB 3.0 ports (4 rear + 2 via header)
|
| Video |
|
| Serial Port / Header |
- 1x Fast UART 16550 port / 1 Header
|
| DOM |
- 2x SuperDOM (Disk on Module) ports
|
|
 |
|
|
| Form Factor |
|
| Model |
|
| |
|
| Width |
|
| Height |
|
| Depth |
|
| Weight |
- Net Weight: 35 lbs (15.9 kg)
- Gross Weight: 62 lbs (28.1 kg)
|
| Available Colors |
|
| |
|
| Buttons |
- Power On/Off button
- System Reset button
- UID button
|
| LEDs |
- Power status LED
- HDD activity LED
- 2x Network activity LEDs
- Universal Information (UID) LED
|
| |
|
| PCI-Express |
- 4x PCI-E 3.0 x8 slots (2x Full-height Full-length, 2x Full-height Half-length)
- 2x PCI-E 3.0 slots (Low-profile)
- UIO AOC Compatibility Matrix
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.) |
| |
|
| Hot-swap |
- 8x 3.5" Hot-swap SAS / SATA HDD trays (ready for PCI-E storage controller card)
|
| |
|
1x 2U SAS backplane w/ Enclosure Management
(SAS support requires optional SAS controller) |
| |
|
| DVD-ROM |
- Slim DVD-ROM drive (optional)
|
| |
|
| Fans |
- 3x 80mm 7,000 RPM 4-pin PWM fans
|
| |
|
| 740W (1+1) Redundant high-efficiency power supply with PMBus |
| AC Input |
- 100-240 V, 50-60 Hz, 9-3.5 Amp
|
| DC Output |
- 4 Amp @ +5V standby
- 61.7 Amp @ +12V
|
| Certification |
Platinum Certified
[ Test Report ] |
| |
|
| BIOS Type |
- 128Mb SPI Flash EEPROM with AMI BIOS
|
| BIOS Features |
- Plug and Play (PnP)
- APM 1.2
- PCI 2.2
- ACPI 1.0 / 2.0 / 3.0 / 4.0
- BIOS resuce hot keys
- USB Keyboard support
- SMBIOS 2.3
- UEFI
|
| |
|
| RoHS |
|
| Environmental Spec. |
- Operating Temperature:
10°C to 35°C (50°F to 95°F)
- Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
|
|
|
 |
|
See Parts List
|
|
|
|
|
Part Number
|
Qty
|
Description
|
| Motherboard / Chassis |
MBD-X10DRW-iT
CSE-825TQ-R740WB |
1
1 |
Super X10DRW-iT Motherboard
2U Chassis |
| Backplane |
BPN-SAS-825TQ |
1 |
8-port 2U TQ (W/ AMI 9072) backplane, support up to 8x 3.5-inch SAS/SATA HDD |
| Cable 1 |
CBL-CDAT-0661 |
2 |
CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG |
| Cable 2 |
CBL-0186L |
2 |
SATA,INT,ROUND,SET OF 4,ST-RA 56/45.5/35/23CM,26AWG |
| Label |
LBL-0108 |
1 |
CAUTION LABEL FOR REDUNDANT PWR SYSTEMS |
| Manual |
MNL-1636-QRG |
1 |
6028R-WTR(T) QRG,HF |
| Parts |
MCP-160-81504-0B |
1 |
Add-on Card (AOC) Mylar Sheet for SC815 |
| Riser Card |
RSC-R2UW-4E8 |
1 |
2U LHS WIO Riser card with four PCI-E x4 slots |
| Riser Card |
RSC-R2UW-2E8R |
1 |
2U RHS WIO Riser card with two PCI-E x8 slots |
| Heatsink / Retention |
SNK-P0048PSC |
1 |
2U Passive CPU Heat Sink for X9, X10 2U WIO/WIO+ Series Servers |
| Heatsink / Retention |
SNK-P0048PS |
1 |
2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB |
| Power Supply |
PWS-741P-1R |
2 |
1U740W Platinum Redundant Single Output |
| Rail Set |
MCP-290-00053-0N |
1 set |
Rail set, quick/quick, default for 2,3U 17.2"W |
|
|
| |
|
|
| |
Part Number |
Qty |
Description |
| 2.5" to 3.5" Converter Tray |
MCP-220-00043-0N |
- |
Black Hot-swap Gen-4 2.5" to 3.5" HDD tray |
| DVD-ROM / DVD-RW |
DVM-TEAC-DVD-SBT4
DVM-TEAC-DVDRW-SBT4
DVM-PLDS-DVDRW-SBT5 |
1
1
1
|
TEAC SLIM DVD ROM SATA DRIVE, HF, RoHS/REACH
TEAC SLIM DVD-RW SATA DRIVE, RoHS
PHILIPS SLIM BLACK DVD-RW SATA DRIVE, HF, RoHS/REACH
|
| DVD-ROM Accessory |
MCP-220-81502-0N |
1 |
Slim SATA DVD mounting kit |
Internal 2.5" HDD Tray
(COM slot) Included |
MCP-220-00023-01 |
1 |
Black USB dummy tray support 1x 2.5" slim HDD |
Internal 2.5" HDD Tray
(DVD Slot) |
MCP-290-00036-0B |
1 |
Black DVD dummy tray support 1x 2.5" slim HDD |
USB/COM Port Tray
(DVD Slot) |
MCP-220-00114-0N |
1 |
Black 2x USB 3.0/COM port tray in slim DVD bay |
| Cable for internal HDD |
CBL-0489L
CBL-0082L |
2
1 |
SATA,INT,ROUND,ST-RA,70CM,30AWG
Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG |
| CachVault(s) |
BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05
BTR-TFM8G-LSICVM02 & MCP-240-00127-0N |
-
- |
CacheVault for Broadcom 3108; SuperCap mounting bracket for PCI-E location
CacheVault for Broadcom 3108; SuperCap mounting bracket for 2.5" HDD location |
SuperCap for
AOC-S2208L-H8IR |
BTR-0024LH-LSI00297 & BKT-BBU-BRACKET-05
BTR-0024LH-LSI00297 & MCP-240-00127-0N |
-
- |
SuperCap TFM to be used w/ Supermicro AOC-S2208L-H8IR; SuperCap mounting bracket for PCI-E location
SuperCap TFM to be used w/ Supermicro AOC-S2208L-H8IR; SuperCap mounting bracket for 2.5" HDD location |
Storage Controller
Card(s) & Cables(s) |
AOM-S3108M-H8 &
2x CBL-SAST-0556
AOC-S3108L-H8IR-16DD
& 2x CBL-SAST-0556
AOC-S3008L-L8i &
2x CBL-SAST-0556
AOC-S3008L-L8e &
2x CBL-SAST-0556
AOC-S2308L-L8e &
2x CBL-SAST-0388L-02
AOC-S2308L-L8i &
2x CBL-SAST-0388L-02
AOC-S2208L-H8iR &
2x CBL-SAST-0388L-02 |
- |
Supermicro Low Profile 12Gb/s Eight-Port SAS Internal Mezzanine RAID Adapter; RAID 0, 1, 5, 6, 10, 50, 60
Standard LP, 8 internal ports (12Gb/s) Gen-3, 16HDD;
RAID 0, 1, 5, 6, 10, 50, 60
Standard LP, 8 internal ports (12Gb/s) Gen-3, 63HDD;
RAID 0, 1, 10
Standard LP, 8 internal ports (12Gb/s) Gen-3, 122HDD;
HBA
Standard LP, 8 internal ports (6Gb/s) Gen-3, 122HDD;
HBA
Standard LP, 8 internal ports (6Gb/s) Gen-3, 63HDD;
RAID 0, 1, 10
Standard LP, 8 internal ports (6Gb/s) Gen-3, 240HDD;
RAID 0, 1, 5, 6, 10, 50, 60 |
| Network Card(s) |
AOC-SGP-i2
AOC-SGP-i4
AOC-SG-i2
AOC-SG-i4
AOC-STG-b4S
AOC-STGN-i2S
AOC-STG-i2T
AOC-STG-i2 |
- |
Standard LP, 2x GbE RJ45, PCI-E x4, Intel® i350AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel® i350
Standard LP, 2x GbE RJ45, PCI-E x4, Intel® 82575EB
Standard LP, 4x GbE RJ45, PCI-E x8, Intel® 82576EB
Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom® BCM57840S
Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel® 82599ES
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel® X540
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel® 82598EB |
| Front Bezel |
MCP-210-82503-0B |
1 |
Black SC825 front bezel |
| Global Services & Support |
OS4HR3/2/1
OSNBD3/2/1 |
-
- |
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service |
| Software |
SFT-OOB-LIC |
1 |
OOB Management Package (per node license) |
| Software |
SFT-DCMS-Single |
1 |
DataCenter Management Package (per node license) |
|
|
|
