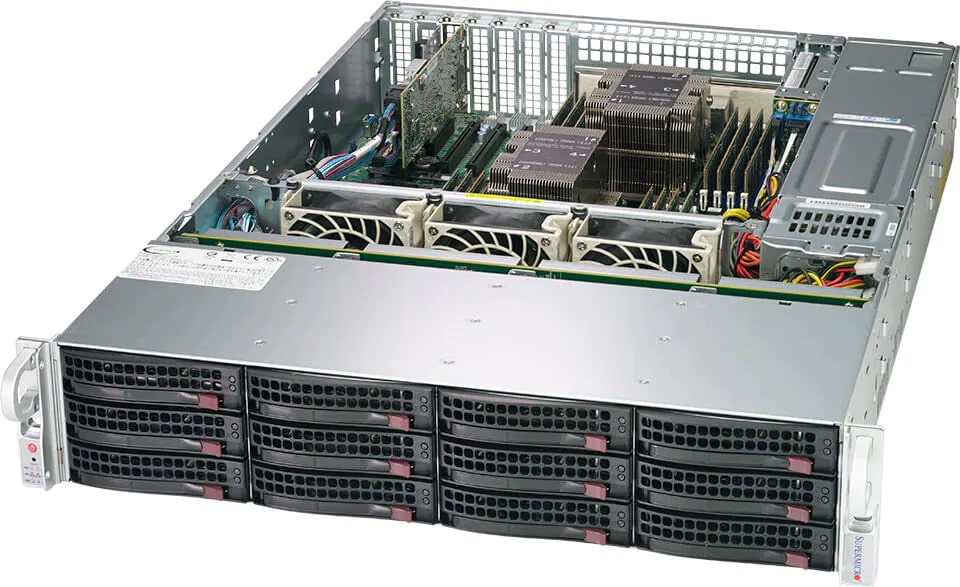

Supermicro SuperServer 620P-ACR12H

SSG-620P-ACR12H

Call our Solutions Specialists - 01283 576162

Great news, this product is available for special order. Please call us for availability.

To learn more about this product complete the form below and one of our team will get right back to you.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs
SuperServer SSG-620P-ACR12H (Black)

Motherboard
Super X12DPi-NT6

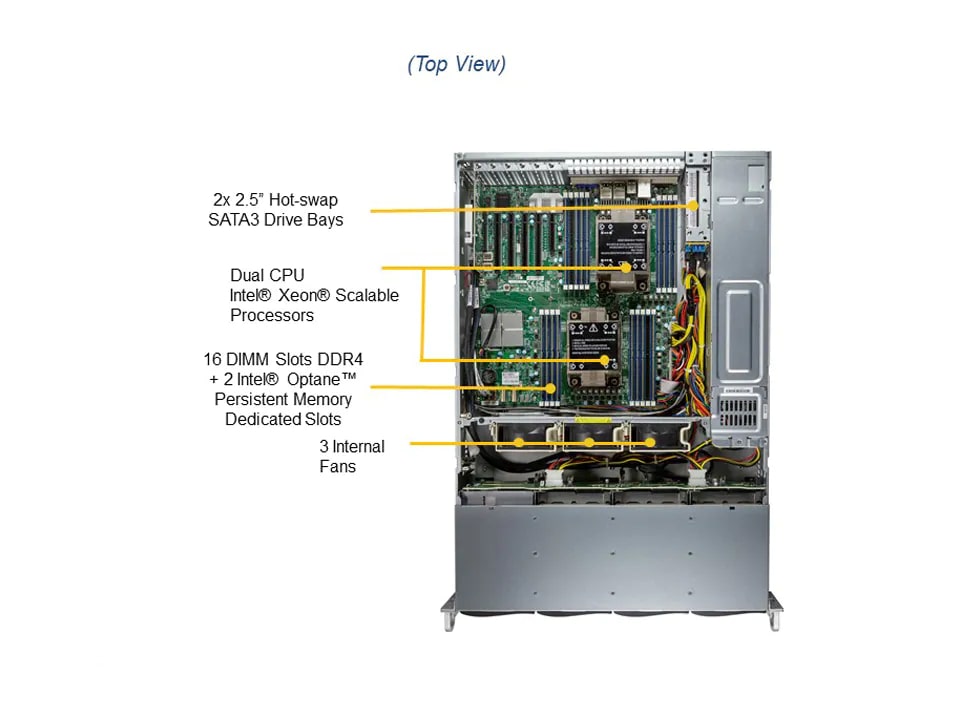

Processor
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 38C/76T; Up to 57MB Cache per CPU
Note	Supports 120W - 270W TDP CPUs (Air Cooled)

System Memory
Memory	Memory Capacity: 16 DIMM slots Up to 4TB: 16x 256 GB DRAM and 8x 512 GB PMem Memory Type: 3200MHz ECC DDR4 RDIMM;LRDIMM;DCPMM Intel® Optane™ persistent memory 200 series
Memory Voltage	1.2 V
Error Detection	ECC

On-Board Devices
Chipset	Intel® C621A
Network Connectivity	2x 10GbE BaseT with Intel® X550
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

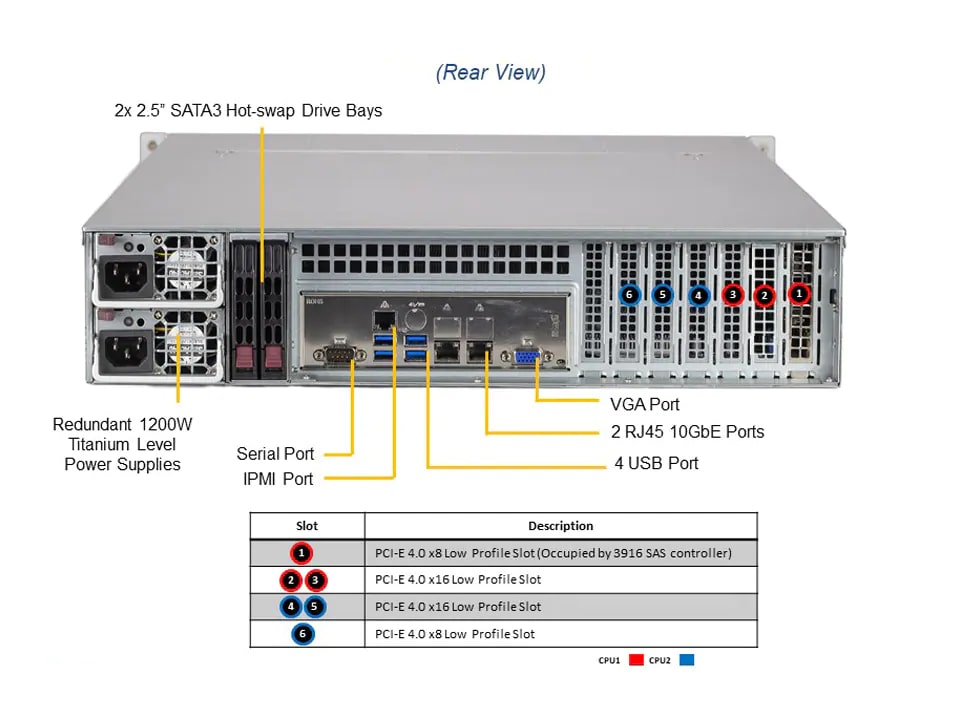

Input / Output
LAN	1 RJ45 Dedicated IPMI LAN port 2 RJ-45 10Gbase-T ports
USB	4 USB 3.0 port(s) (4 Rear_USB)
Video	1 VGA port(s)
Serial Port	1 COM Port(s) (1 rear)
DOM	2 SuperDOM (Disk on Module) port

System BIOS
BIOS Type	AMI 128MB SPI Flash EEPROM

Management
Software	IPMI 2.0 KVM with dedicated LAN Super Diagnostics Offline SuperDoctor® 5 Supermicro Update Manager (SUM) Supermicro Power Manager (SPM) Supermicro Server Manager (SSM) Redfish API
Power Configurations	ACPI Power Management Power-on mode for AC power recovery

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	2U Rackmount
Model	CSV-826BTS-R1K23LPBP2

Dimensions and Weight
Height	3.5"
Width	17.3"
Depth	25.5"
Package	12" (H) x 27" (W) x 35" (D)
Weight	Net Weight: 34 lbs (15.4 kg) Gross Weight: 61 lbs (27.7 kg)
Available Color	Black

Front Panel
Buttons	Power On/Off
LEDs	HDD activity Network activity Power status System information (overheat/UID)

Expansion Slots
PCI-Express (PCIe)	4 PCIe 4.0 x16 LP slot(s) 1 PCIe 4.0 x8 LP slot(s)
Note	PCIe slot 1 is occupied by the Storage Controller

Drive Bays / Storage

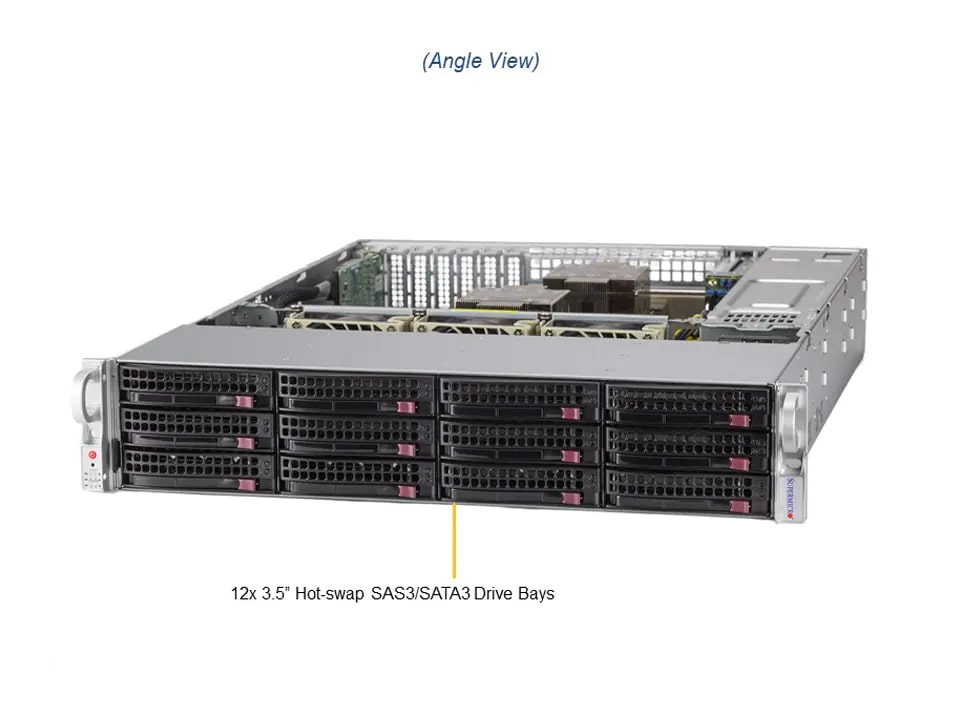

Hot-swap	12x 3.5" hot-swap SATA3/SAS3 drive bays (4x 2.5" NVMe hybrid; 4x 3.5" NVMe hybrid)
M.2	1 M.2 NVMe

System Cooling
Fans	3 Heavy Duty 8cm Fan(s)

Power Supply
1200W Redundant Titanium Level power supplies
Dimension (W x H x L)	76 x 40 x 336 mm
AC Input	1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vdc-240Vdc) Max: 100A / Min: 0A (200Vac-240Vac)
5V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]

Operating Environment
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
