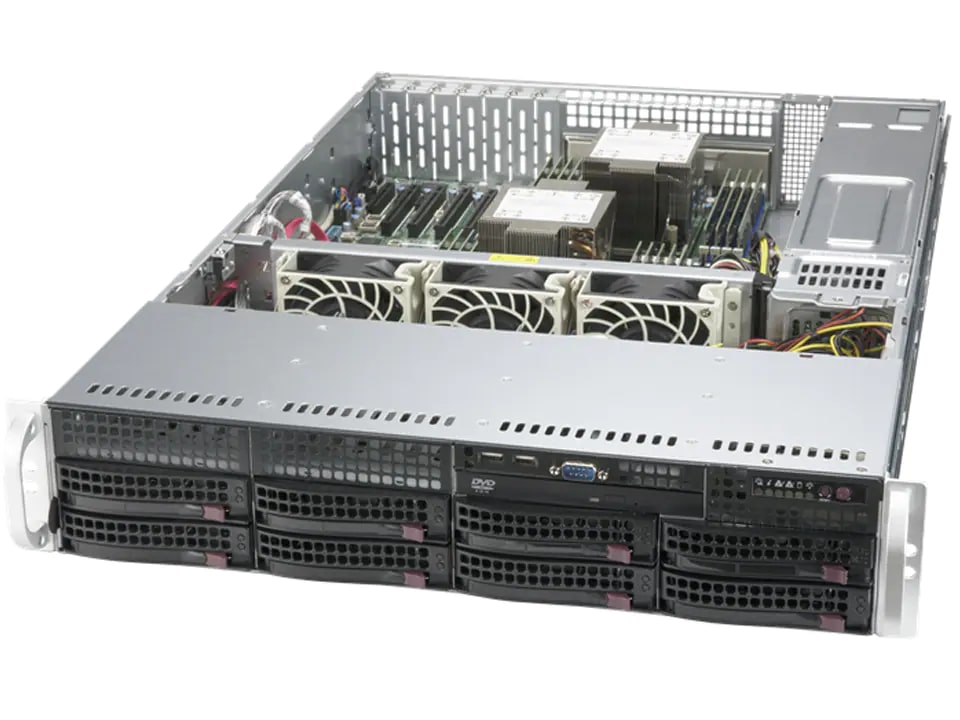

Supermicro SuperServer 620P-TRT

SYS-620P-TRT

Call our Solutions Specialists - 01283 576162

Great news, this product is available for special order. Please call us for availability.

To learn more about this product complete the form below and one of our team will get right back to you.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs
SuperServer SYS-620P-TRT (Black)

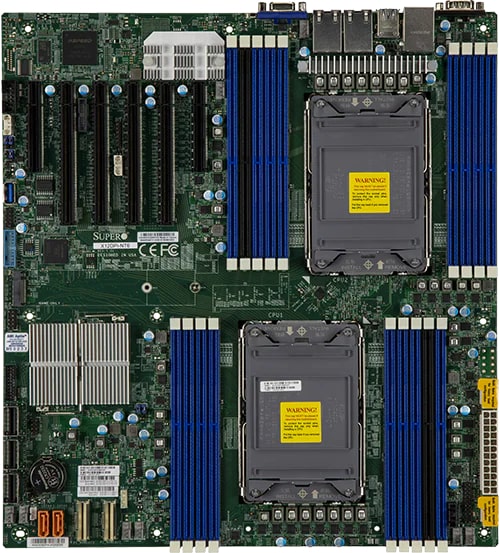

Motherboard
Super X12DPi-NT6

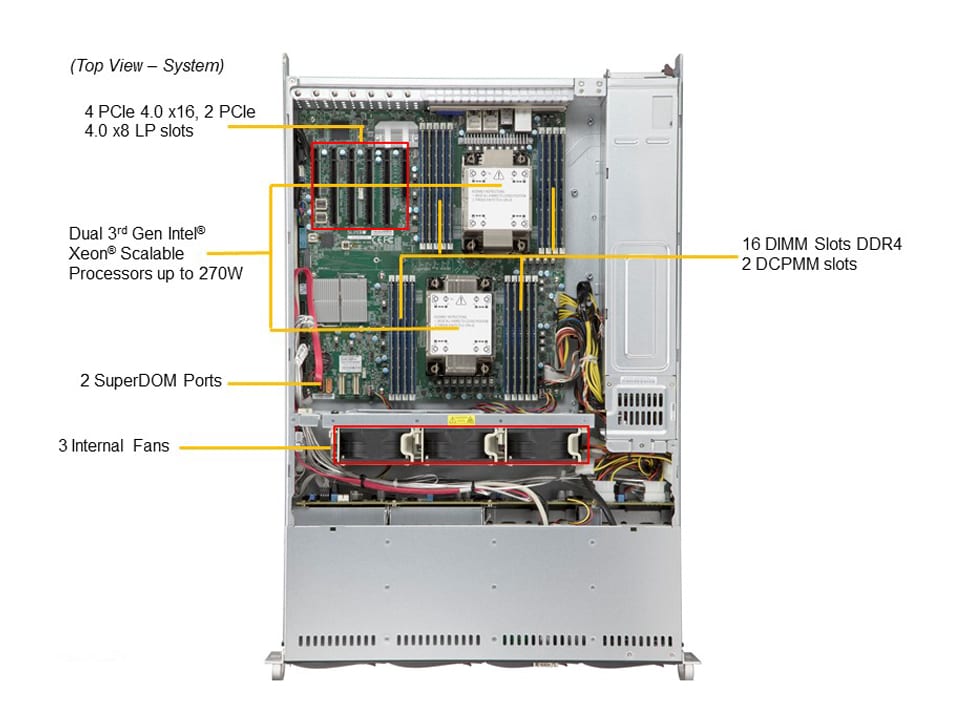

Processor
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 36C/72T; Up to 60MB Cache per CPU
Note	Supports up to 270W TDP CPUs (Air Cooled)

System Memory
Memory	Memory Capacity: 16 DIMM slots Up to 4TB: PMem and DRAM Memory Type: 3200MHz ECC LRDIMM/RDIMM DDR4 Intel® Optane™ persistent memory 200 series

On-Board Devices
Chipset	Intel® C621A
Network Connectivity	2x 10GbE port(s)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

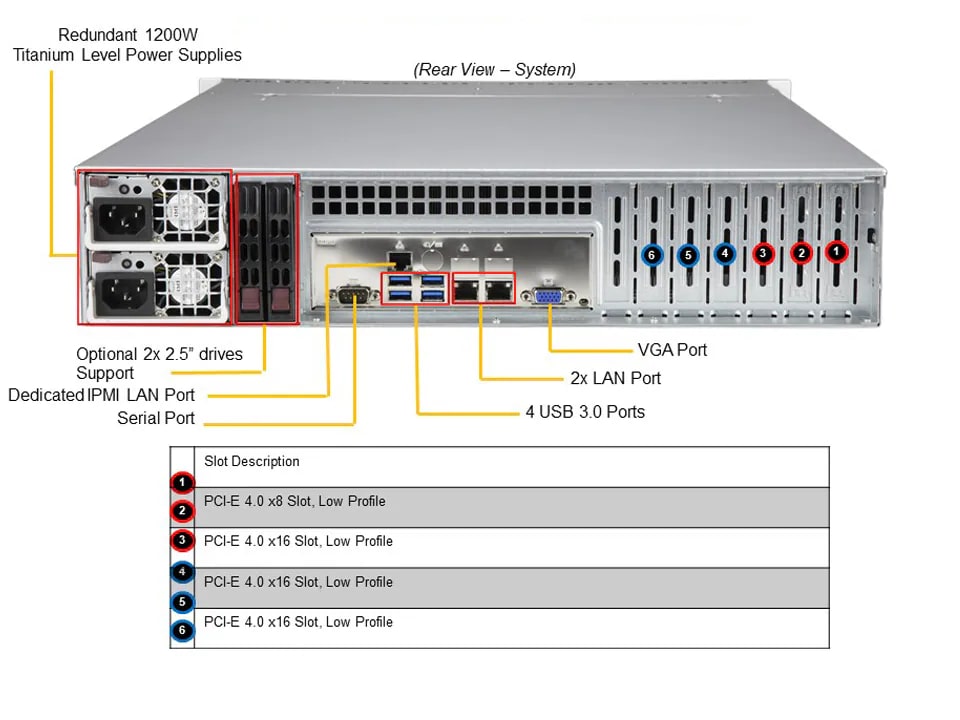

Input / Output
LAN	1 dedicated IPMI LAN port
USB	2 USB 2.0 port(s) (2 front) 4 USB 3.0 port(s) (4 rear)
Video	1 VGA port(s)
Serial Port	2 COM Port(s) (1 front; 1 rear)
DOM	2 SuperDOM (Disk on Module) port

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Software	IPMI 2.0 KVM with dedicated LAN Super Diagnostics Offline SuperDoctor® 5 Supermicro Update Manager (SUM) Supermicro Power Manager (SPM) Supermicro Server Manager (SSM) Redfish API
Power Configurations	ACPI/APM Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	2U Rackmount
Model	CSE-825BTS-R1K23LPP1

Dimensions and Weight
Height	3.5" (89mm)
Width	17.2" (437mm)
Depth	25.5" (647mm)
Package	11.4" (H) x 26.7" (W) x 34.5" (D)
Weight	Net Weight: 36.38 lbs (16.5 kg) Gross Weight: 69 lbs (31.2 kg)
Available Color	Black

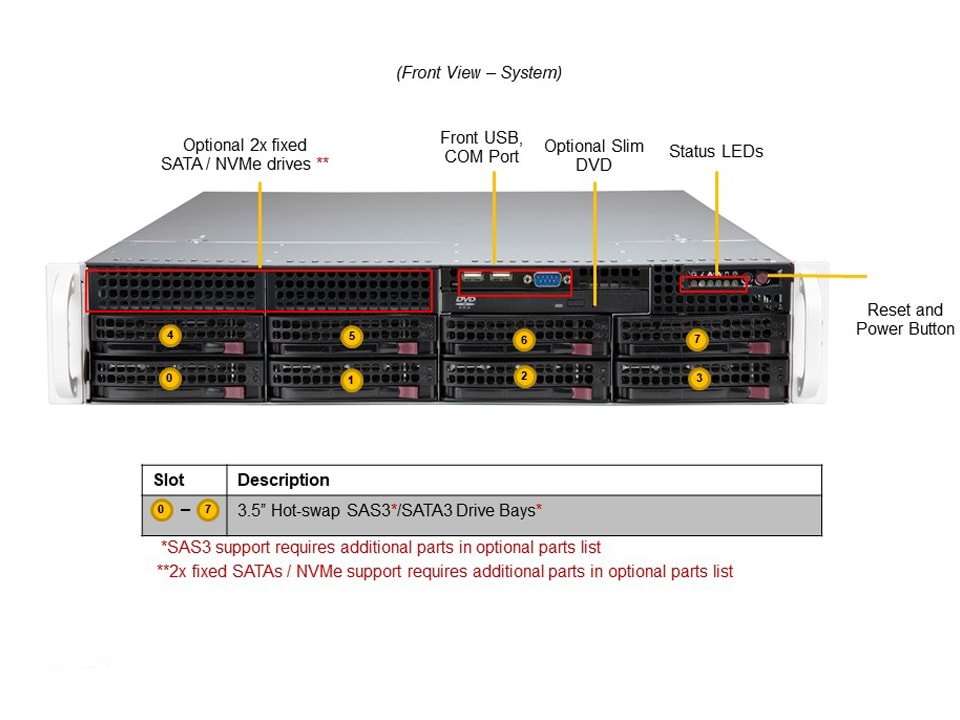

Front Panel
Buttons	Power On/Off System Reset
LEDs	HDD activity Network activity Power status System information (overheat/UID)

Expansion Slots
PCI-Express (PCIe)	2 PCIe 4.0 x8 LP slot(s) 4 PCIe 4.0 x16 LP slot(s)

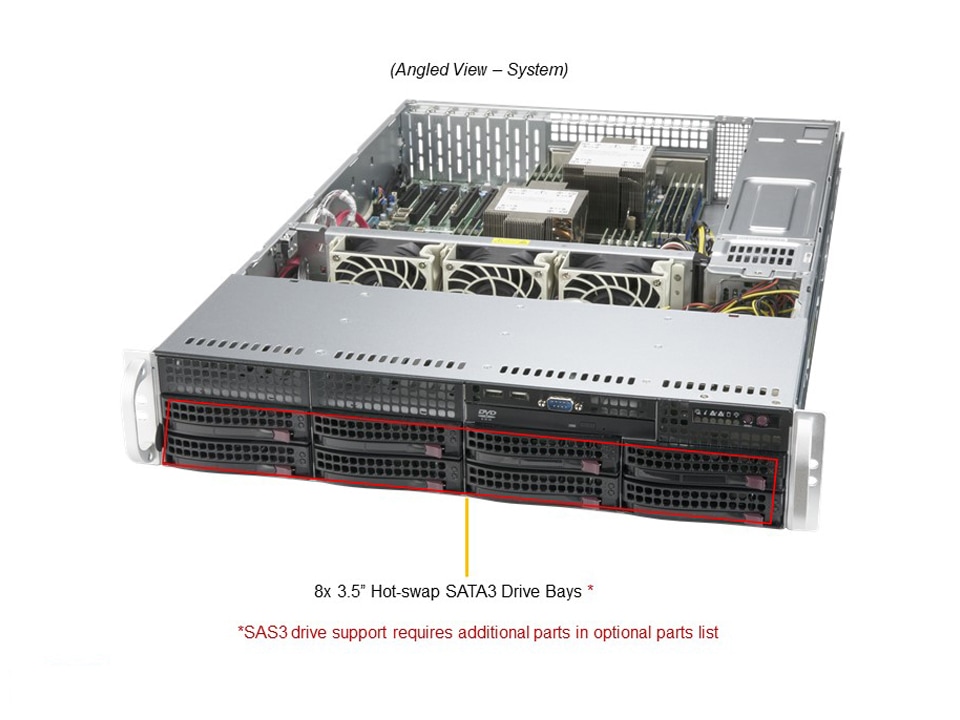

Drive Bays / Storage
Hot-swap	8x 3.5" hot-swap SATA3 drive bays
M.2	1 M.2 NVMe
Peripheral Bays	1x slim DVD drive bays (optional)

System Cooling
Fans	3 heavy duty fans with optimal fan speed control

Power Supply
1200W Redundant Titanium Level power supplies
Dimension (W x H x L)	76 x 40 x 336 mm
AC Input	1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vdc-240Vdc) Max: 100A / Min: 0A (200Vac-240Vac)
5V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]

Operating Environment
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
