Product Description
Product SKUs
SuperServer SSG-640P-E1CR36H (Silver)

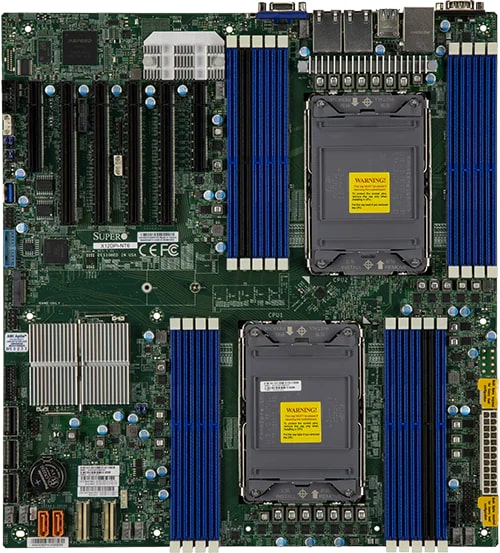

Motherboard
Super X12DPi-NT6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 38C/76T; Up to 57MB Cache per CPU
Note
  • Supports 120W - 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Memory Capacity: 16 DIMM slots
  • Up to 4TB: 16x 256 GB DRAM
  • Memory Type: 3200MHz ECC DDR4 RDIMM;LRDIMM;DCPMM
Memory Voltage
  • 1.2 V
Error Detection
  • ECC
On-Board Devices
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 10GbE BaseT with Intel® X550
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

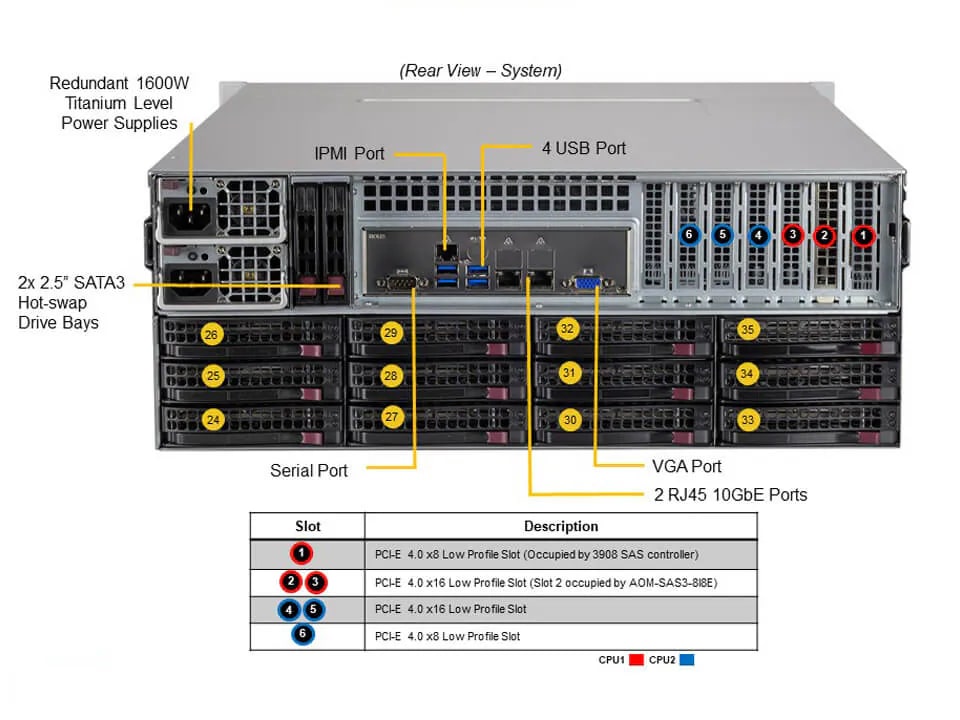

Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 4 USB 3.0 port(s) (4 Rear_USB)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
DOM
  • 2 SuperDOM (Disk on Module) port
System BIOS
BIOS Type
  • AMI 128MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-847BTS-R1K68LPBP4
Dimensions and Weight
Height
  • 7"
Width
  • 17.2"
Depth
  • 27.5"
Package
  • 15" (H) x 27" (W) x 39" (D)
Weight
  • Net Weight: 65.5 lbs (29.7 kg)
  • Gross Weight: 102.5 lbs (46.4 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off
LEDs
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe)
  • 3 PCIe 4.0 x16 LP slot(s)
  • 1 PCIe 4.0 x8 LP slot(s)
Note
  • PCIe slot 1/2 is occupied by the JBOD Expansion/Storage Controller
Drive Bays / Storage
Hot-swap

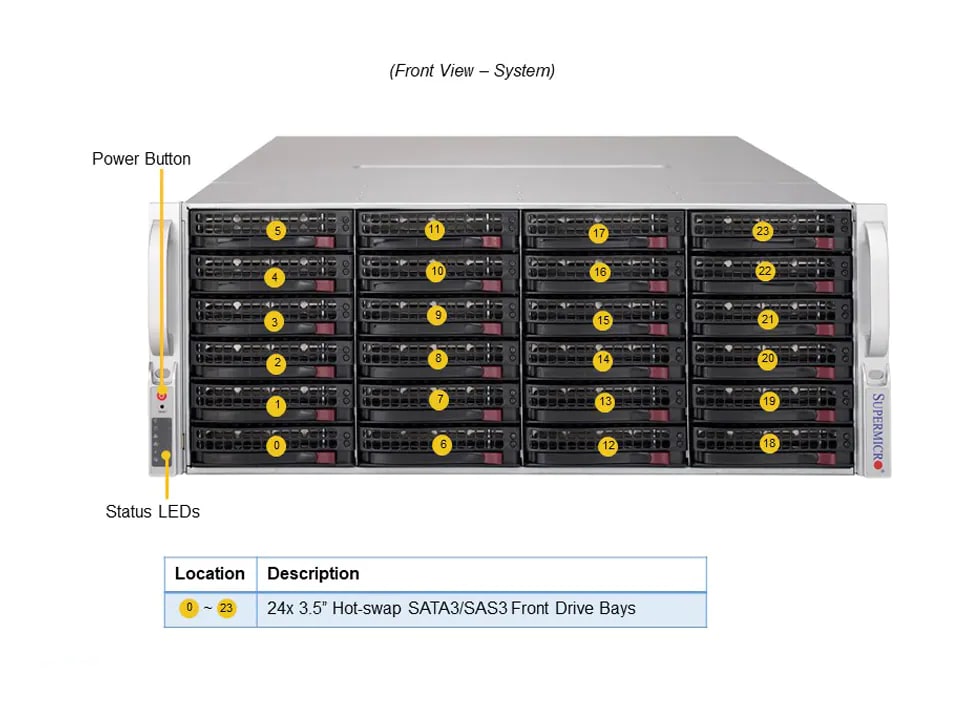

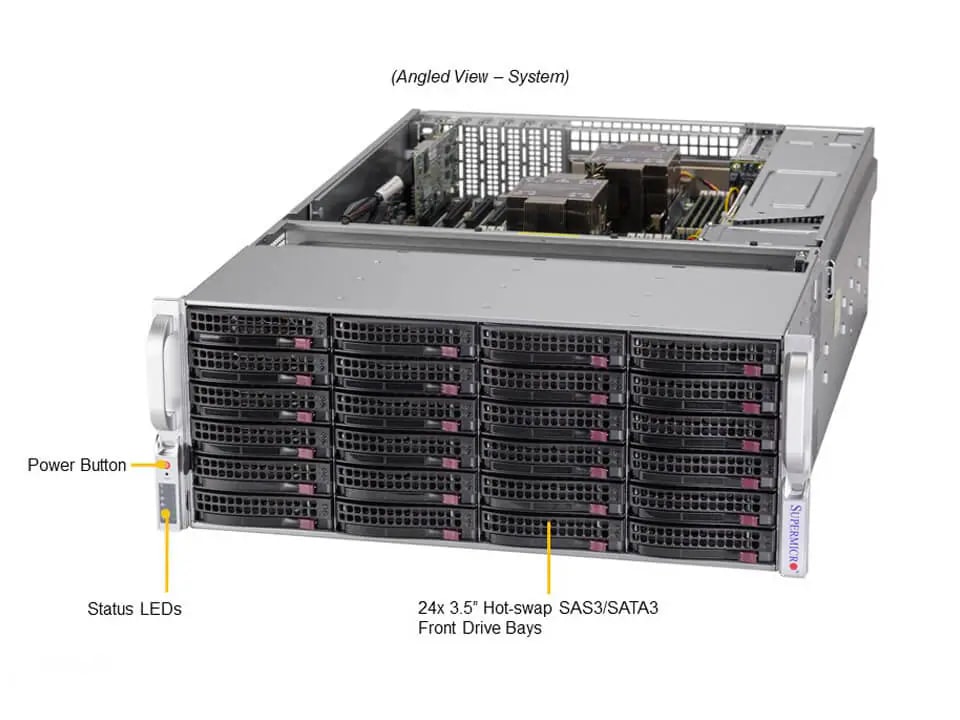

  • 36x 3.5" hot-swap SATA3/SAS3 drive bays (4x 3.5" NVMe hybrid)
M.2
  • 1 M.2 NVMe
System Cooling

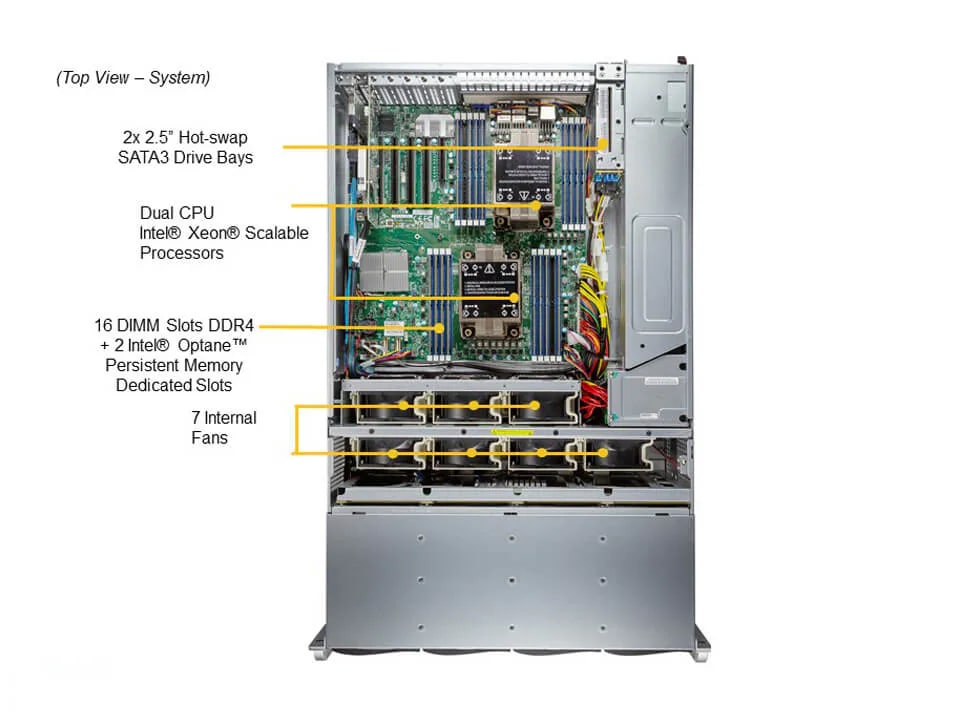

Fans
  • 7 Heavy Duty 8cm Fan(s)
Power Supply
1600W Redundant Titanium Level power supplies
Dimension

(W x H x L)
  • 76 x 40 x 336 mm
AC Input
  • 800W: 100-140Vac / 50-60Hz
  • 1600W: 180-240Vac / 50-60Hz
+12V
  • Max: 66A / Min: 0A (100Vac-140Vac)
  • Max: 133A / Min: 0A (180Vac-240Vac)
5V SB
  • Max: 1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification Titanium Level94%+  Titanium Level




  Test Report ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity:
       5% to 95% (Non-Condensing)
