| SuperWorkstation |
|
| |
|
| CPU |
- Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 160W TDP) *
- Dual Socket R3 (LGA 2011)
|
| Cores / Cache |
- Up to 22 Cores† / Up to 55MB† Cache
|
| System Bus |
|
| Note |
† BIOS version 2.0 or above is required |
| Note |
* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
| |
|
| Memory Capacity |
- 16x 288-pin DDR4 DIMM slots
- Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
|
| Memory Type |
- 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
|
| DIMM Sizes |
- RDIMM: 32GB, 16GB, 8GB, 4GB
- LRDIMM: 64GB, 32GB
- 3DS LRDIMM: 128GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
|
| |
|
| Chipset |
|
| SATA |
- SATA3 (6Gbps); RAID 0, 1, 5, 10
|
| Network Controllers |
- Intel® i210 Dual Port Gigabit Ethernet
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
|
| Audio |
- RealTek ALC888 7.1 High Definition Audio with S/PDIF header
|
| Super I/O |
|
| |
|
| SATA |
|
| LAN |
- 2x RJ45 Gigabit Ethernet LAN ports
|
| USB |
- 6x USB 3.0 ports (4 rear + 2 via header)
- 5x USB 2.0 ports (2 rear + 2 via header + 1 Type A)
|
| Audio |
- 7.1 HD Audio with optical S/PDIF
|
| DOM |
- 2x DOM (Disk on Module) power connectors
|
| TPM |
|
| |
|
| PCI-Express |
- 3x PCI-E 3.0 x16 slots
- 2x PCI-E 3.0 x8 slots
- 1x PCI-E 2.0 x4 (in x8) slot supports Thunderbolt 2.0 AIC
|
| |
|
| BIOS Type |
- 128Mb SPI Flash EEPROM with AMI® BIOS
|
| BIOS Features |
- Plug and Play (PnP)
- APM 1.2
- PCI 2.3
- ACPI 1.0 / 2.0 / 3.0 / 4.0
- USB Keyboard support
- SMBIOS 2.7.1
- UEFI 2.3.1
|
|
 |
|
|
| Form Factor |
|
| Model |
|
| |
|
| Height |
|
| Width |
|
| Depth |
|
| Gross Weight |
|
| Available Colors |
|
| |
|
| Buttons |
|
| LEDs |
- Power LED
- Hard drive activity LED
- Network activity LED
- System Overheat LED
|

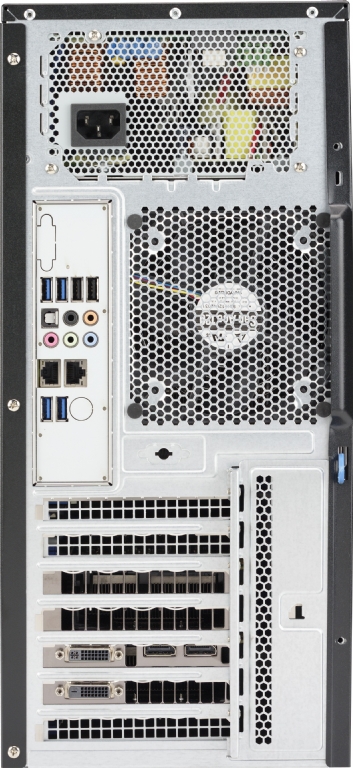

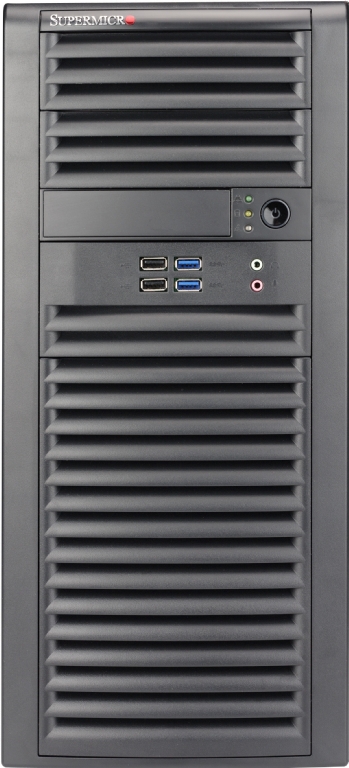

| Ports |
- 2x front USB 3.0 Ports
- 2x front USB 2.0 Ports
- 2x front HD/AC97 Audio Ports
|
| |
|
| Internal |
- 4x 3.5" SATA HDD Bays
(90° rotatable drive cage)
- Enterprise SATA HDD only recommended
|
| Peripheral Bay |
- 2x 5.25" standard drive bays
- 1x 3.5" internal fixed drive bay
|
| |
|
| Fans |
- 2x 12cm (1859rpm) cooling fans
- Optimized cooling technology for Whisper-Quiet Operation
|
| Heatsink |
- Optional 2x Active CPU Heat Sink (SNK-P0050AP4)
|
| |
|
| 900W AC multi output power supply |
| AC Voltage |
- 100-240 V, 50-60 Hz, 10-6 Amp
|
| +5V Standby |
|
| +12V1 |
|
| +12V2 |
|
| +12V3 |
|
| +12V4 |
|
| +5V |
|
| +3.3V |
|
| -12V |
|
| Certification |
 Gold Level |
| Note: |
• Max. continuous combined load on +3.3V and +5V output shall not exceed 155W.
• Max. continuous combined load on +12V1, +12V2, +12V3 and +12V4 output shall not exceed 860W. |
| |
|
| CPU |
- Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
- 6-Phase-switching voltage regulator
|
| FAN |
- 8x 4-pin fan headers (up to 8 fans)
- 8x fans with tachometer monitoring
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
|
| Temperature |
- Monitoring for CPU and chassis environment
- Thermal Control for 8x fan connectors
- PECI
|
| |
|
| RoHS |
|
| Environmental Spec. |
- Operating Temperature:
10°C to 35°C (50°F to 95°F)
- Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
