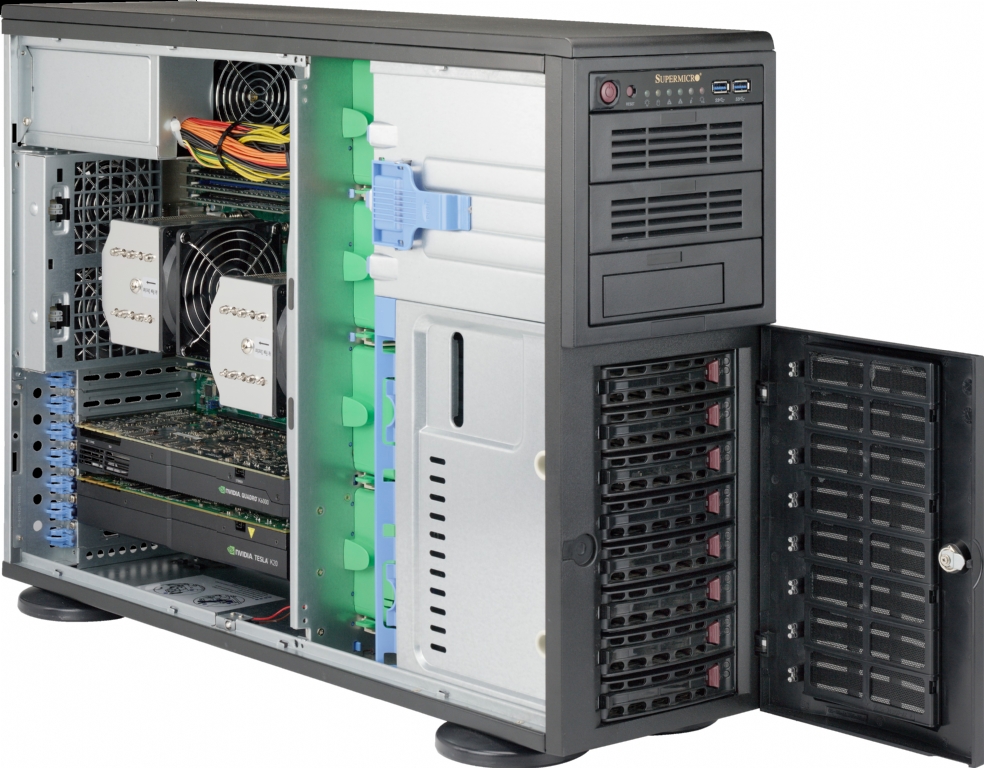

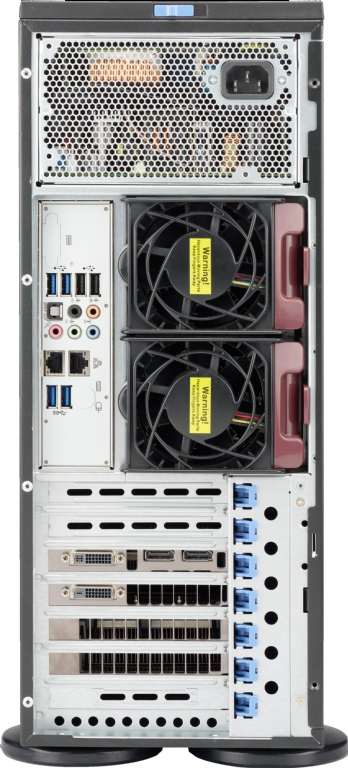

Supermicro SuperServer 7048A-T

SYS-7048A-T
Supermicro SuperServer 7048A-T
£880.30
ex. VAT
(£1,056.36
inc. VAT)
This product is currently out of stock. We are expecting stock in Ordered On Request
Quantity


Email me when in stock
Looking for Compatible Products?
Product SKUs
SuperWorkstation
  • SYS-7048A-T (Black)

Motherboard

Super X10DAi

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 160W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note  BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Intel® i210 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio
  • RealTek ALC888 7.1 High Definition Audio with S/PDIF header

Input / Output
SATA
  • 10 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 6 USB 3.0 ports (4 rear + 2 via header)
  • 5 USB 2.0 ports (2 rear + 2 via header + 1 Type A)
Audio
  • 7.1 HD Audio with optical S/PDIF
DOM
  • 2 DOM (Disk on Module) power connectors
TPM
  • 1 TPM 1.2 20-pin Header

Expansion Slots
PCI-Express
  • 3 PCI-E 3.0 x16 slots
  • 2 PCI-E 3.0 x8 slots
  • 1 PCI-E 2.0 x4 (in x8) slot supports Thunderbolt 2.0 AIC

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1
Chassis
Form Factor
  • 4U Rackmountable / Tower
  • Optional Rackmount Kit
Model

Dimensions and Weight
Height
  • 17.8" (452mm)
Width
  • 7.0" (178mm)
Depth
  • 25.5" (648mm)
Gross Weight
  • 71 lbs (32.2 kg)
Available Colors
  • Black

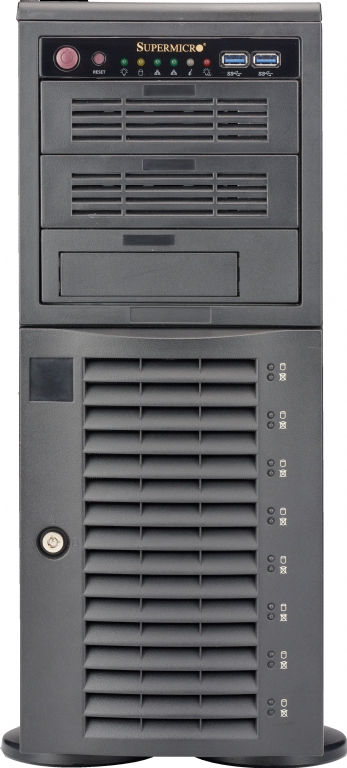

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2 Network activity LEDs
  • System Overheat / Fan Fail LED
Ports
  • 2 front USB 3.0 Ports

Drive Bays
Hot-swap
  • 8x 3.5" Hot-swap SAS/SATA Drive Trays
Peripheral Bay(s) [90oRotatable]
  • 3x 5.25" Drive Bays

SAS / SATA Backplane
SAS / SATA Hard Drive Backplane w/AMI MG9072

System Cooling
Fans
  • 2x 2800 RPM Fans
  • 1x 2700 RPM Fan

Power Supply
1200W high-efficiency power supply w/ PMBus
AC Input
  • 1000W: 100-114.9 V, 50-60 Hz, 12 Amp
  • 1200W: 114.9-240 V, 50-60 Hz, 12-8 Amp
DC Output
1000W max
1200W max
  • +3.3V / +5V / +12V / -12V / +5VSB
  •   20A /  20A /   83A /  0.3A /   3A
  •   20A /  20A /   99A /  0.3A /   3A
Note:
  • Max. continuous combined load on +3.3V and +5V output shall not exceed 120W.
Certification Platinum Level Certified94%+    Platinum Certified


PC Health Monitoring
CPU
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 6-Phase-switching voltage regulator
FAN
  • Total of three fan headers supporting up to 8 fans
  • Three 4-pin fan headers
  • 3 fans with tachometer status monitoring
  • Support 3-pin fans (w/o speed control)
  • Low noise fan speed control (4-pin fan only)
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for 8x fan connectors
  • PECI
Other Features
  • Chassis intrusion detection
  • Chassis intrusion header

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10DAi

CSE-743TQ-1200B-SQ
1

1
Super X10DAi Motherboard

4U Chassis
Backplane CSE-SAS-743TQ 1 743 SAS BACKPLANE W/AMI MG9072
Cable 1 CBL-CDAT-0661 2 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG
Cable 2 CBL-0484L 8 SATA,INT,ROUND,ST-ST,55CM,30AWG
Manual MNL-1615-QRG 1 SYS-7048A-T, QRG,HF,RoHS/REACH
Parts MCP-260-00045-1N 1 STD size I/O Shield for X10DAi with EMI Gasket and front metal,RoHS/REACH
Heatsink / Retention SNK-P0050AP4 2 4U Active CPU Heat Sink for X9, X10 Workstations
Power Supply PWS-1K25P-PQ 1 PS2 1200W Multi Output High Efficiency P


Optional Parts List
  Part Number Qty Description
Mounting Rails CSE-PT26L-B - Chassis Mounting Rails (Black)
Fan FAN-0074L4 - 80x38MM 4-PIN PWM (MIDDLE) FAN W/HUS FOR SC743
Hot-swap 3.5" to 2.5" Hard Disk Drive Tray MCP-220-00080-0B - Black hot-swap 3.5" to 2.5" HDD tray
Add-on Card AOC-TBT-DSL5320 1 Thunderbolt 2,W/Display and GPIO cable,HF,RoHS/REACH
