Supermicro SuperServer 7049A-T

SYS-7049A-T
Supermicro SuperServer 7049A-T
£1,176.30
ex. VAT
(£1,411.55
inc. VAT)
This product is currently out of stock. We are expecting stock in Ordered On Request
Quantity


Email me when in stock
Looking for Compatible Products?
Product SKUs
SuperWorkstation
  • SYS-7049A-T (Black)

Motherboard

Super X11DAi-N

Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • Intel® Xeon® Scalable Processors,
    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores with Intel® HT Technology
GPU Support

System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, up to 2TB ECC 3DS RDIMM, DDR4 up to 2666MHz
Memory Type
  • 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes
  • RDIMM: 64GB
  • LRDIMM: 64GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Dual LAN with GbE from C621
IPMI
  • ASPEED AST2500
Audio
  • RealTek ALC888 7.1 High Definition Audio with S/PDIF header

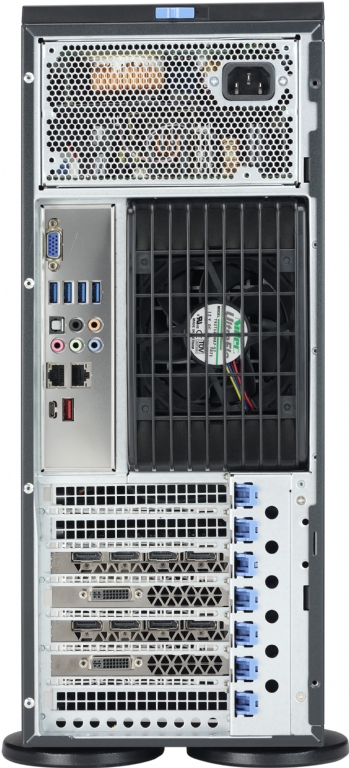

Input / Output
SATA
  • 10 SATA3 (6Gbps) ports
NVMe
  • 2 NVMe support with optional cables
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 6 USB 3.0 ports (4 rear, 2 front)
  • 2 USB 3.1 ports (rear)
Audio
  • 7.1 HD Audio with optical S/PDIF
Video
  • 1 VGA port
Serial Port / Header
  • 1 COM port (header)
DOM
  • 2 SuperDOM (Disk on Module) ports
TPM
  • 1 TPM 2.0 Header

System BIOS
BIOS Type
  • UEFI 128M

Management
Software

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmountable / Tower
  • Optional Rackmount Kit
Model
  • CSE-743TS-1200BP-SQ

Dimensions and Weight
Height
  • 17.8" (452mm)
Width
  • 7.0" (178mm)
Depth
  • 25.5" (648mm)
Gross Weight
  • 71 lbs (32.2 kg)
Available Colors
  • Black

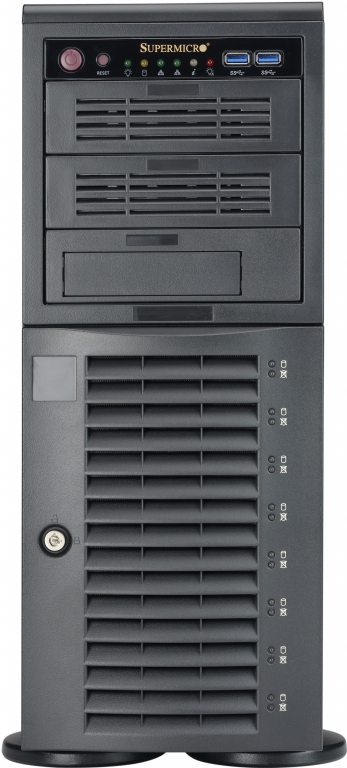

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat / Fan Fail LED
Ports
  • 2 front USB 3.0 Ports

Expansion Slots
PCI-Express
  • 4 PCI-E 3.0 x16 slots
  • 2 PCI-E 3.0 x8 slots
M.2
  • M.2 Interface: PCI-E 3.0 x4
  • Form Factor: 2260, 2280, 22110
  • Key: M-Key

Drive Bays
Hot-swap
  • 8 Hot-swap 3.5" SAS3/SATA3 drive bays (SATA3 default)
Peripheral Bay(s) [90oRotatable]
  • 3x 5.25" drive bays

Backplane
Supports 8 SATA3 or 8 SAS3 HDD

System Cooling
Fans
  • 2 Super quiet PWM chassis fans (support up to 4 fans)
  • 1 Super quiet rear fan with optimal fan speed control

Power Supply
1200W high-efficiency power supply w/ PMBus
AC Input
  • 1000W: 100-114.9 V, 50-60 Hz, 12 Amp
  • 1200W: 114.9-240 V, 50-60 Hz, 12-8 Amp
DC Output
1000W max
1200W max
  • +3.3V / +5V / +12V / -12V / +5VSB
  •   20A /  20A /   83A /  0.3A /   3A
  •   20A /  20A /   99A /  0.3A /   3A
Note:
  • Max. continuous combined load on +3.3V and +5V output shall not exceed 120W.
Certification Platinum Level Certified94%+    Platinum Certified


Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11DAi-N

CSE-743TS-1200BP-SQ
1

1
Super X11DAi-N Motherboard

4U Chassis
Backplane BPN-SAS3-743A-N4 1 8-port 4U/Tower (SC743/745) 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane, 4 of 8 ports support NVMe devices
Cable 1 CBL-SAST-0631 2 MINI SAS HD-4 SATA,6G,INT,RF,Cross Over,55CM,55CM SB,30AWG
Parts MCP-260-00115-0N 1 Standard I/O Shield for X11DAi with EMI Gasket
Manual MNL-1997-QRG 1 7049A-T Quick Reference Guide
Heatsink / Retention SNK-P0070APS4 2 4U Active CPU Heat Sink Supporting Narrow Bolster Plate Mounting Mechanism for X11 Purley Platform
Power Supply PWS-1K25P-PQ 1 PS2 1200W Multi Output High Efficiency P
FAN 1 FAN-0103L4 1 92x25 4Pin PWM Fan assembly for SC743 Super Quiet rear fan
FAN 2 FAN-0104L4 2 80x25,4 Pin PWM fan assem. for SC743 Super Quiet chassis fan


Optional Parts List
  Part Number Qty Description
NVMe support kit MCP-220-00080-0B

CBL-SAST-0818

2x FAN-0074L4
- Black hot-swap 3.5" to 2.5" HDD tray - Add QTY 1 per drive

OCuLink v.91,INT,PCIe NVMe SSD, 55CM - Add QTY 1 per drive

80x38MM 4-PIN PWM (middle) FAN W/HUS FOR SC743
Fan FAN-0104L4 - 80x25,4 Pin PWM fan assem. for SC743 Super Quiet chassis fan
Fan FAN-0074L4 - 80x38MM 4-PIN PWM (MIDDLE) FAN W/HUS FOR SC743 - add QTY 2 when using 160W+ CPU, 180W+ GPU, or M.2
Mounting Rails CSE-PT26L-B - Chassis Mounting Rails (Black)
Hot-swap 3.5" to 2.5" Hard Disk Drive Tray MCP-220-00080-0B - Black hot-swap 3.5" to 2.5" HDD tray - Add QTY 1 per drive
Storage Control Card and Cable(s) AOC-S3008L-L8e
2x CBL-SAST-0593

AOC-S3008L-L8i
2x CBL-SAST-0593

AOC-S3108L-H8iR
2x CBL-SAST-0593

- Std LP, 8 WIO L ports, 12Gb/s per port-gen3, 122HDD, HBA
Internal Mini-SAS HD to Mini-SAS HD 60cm, 30AWG, 12Gb/s

Std LP, 8 WIO L ports, 12Gb/s per port-gen3, 63HDD, RAID 0,1,1E
Internal Mini-SAS HD to Mini-SAS HD 60cm, 30AWG, 12Gb/s

Std LP, 8 WIO L ports, 12Gb/s per port-gen3, 240HDD, RAID 0,1,5,6,10,50,60
Internal Mini-SAS HD to Mini-SAS HD 60cm, 30AWG, 12Gb/s
DVD-ROM DVM-LITE-DVDRW24-HBT

1x CBL-SAST-0624

1x CBL-0082L
- BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF


SATA,INT,ROUND,ST-ST,70CM,30AWG

Y split, big 4 pin to two RA SATA power extension 15cm, 18AWG
