Supermicro SuperServer AS-1014S-WTRT

AS-1014S-WTRT
Supermicro SuperServer AS-1014S-WTRT
Call our Solutions Specialists - 01283 576162
Great news, this product is available for special order. Please call us for availability.

To learn more about this product complete the form below and one of our team will get right back to you.

I want to receive the latest offers and updates about new technology releases for Server Case via email.
Submit
Looking for Compatible Products?
Product Description
Product SKUs

AS -1014S-WTRT
  • A+ Server 1014S-WTRT (Black)
Motherboard


Super H12SSW-NT
Processor/Cache

CPU
  • Single AMD EPYC™ 7003/7002 Series Processor
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
  • Support CPU TDP up to 280W
Cores
  • Up to 64 Cores
System Memory

Memory Capacity
  • 8 DIMM slots
  • Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
On-Board Devices

Chipset
  • System on Chip
SATA
  • SATA3 (6Gbps)
Network Controllers
  • Dual 10GBase-T LAN with via Broadcom BCM57416
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC
Input / Output

NVMe
  • 4 U.2 NVMe Support via optional kit
SATA
  • 4 SATA3 (6 Gbps) ports
LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 5 USB 3.0 ports (4 rear, 1 Type A)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS

BIOS Type
  • AMI 32Mb SPI Flash ROM
Management

Software
Power Configurations
  • ACPI / APM Power Management
PC Health Monitoring

CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors

Chassis

Form Factor
  • 1U Rackmount
Model
  • CSE-815TS-R504WBP4
Dimensions and Weight

Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 25.6" (650mm)
Package
  • 7.63" (H) 23.42" (W) 31.45" (D)
Weight
  • Gross Weight: 46 lbs (20.87kg)
  • Net Weight: 22 lbs (9.98kg)
Available Colors
  • Black

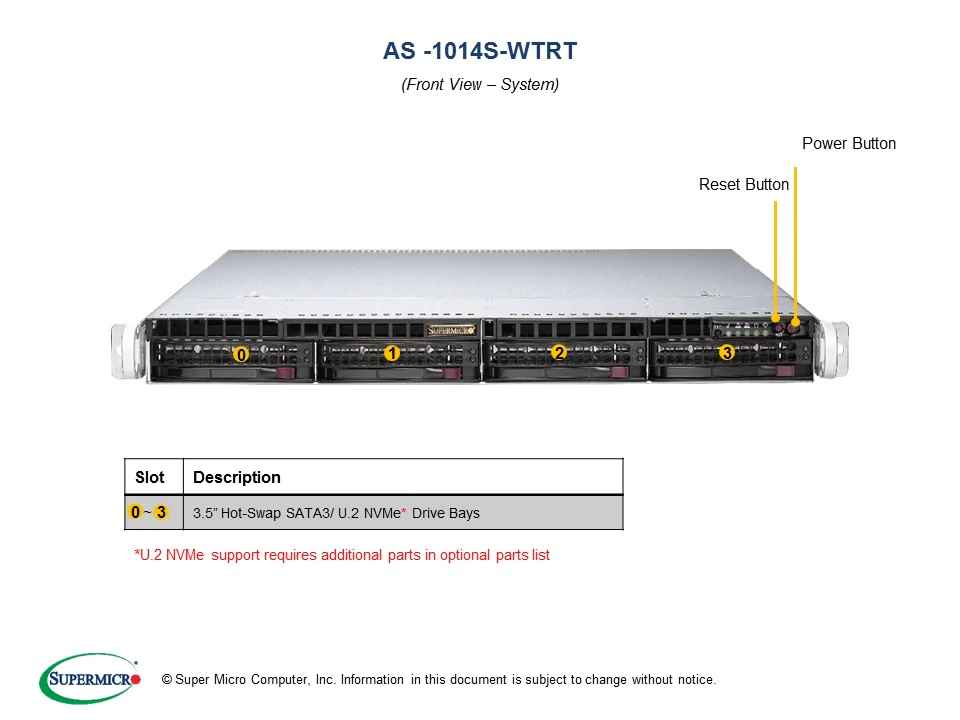

Front Panel

Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED
Expansion Slots

PCI-Express
  • 2 PCI-E 4.0 x16 (FHFL) slots
  • 1 PCI-E 4.0* x16 (LP) slot
  • 2 PCI-E / SATA 3.0 x2 NVMe M.2 slots
  •
    * Limited Support: On some PCI-E 4.0 devices, it will only run at PCI-E 3.0 speed.

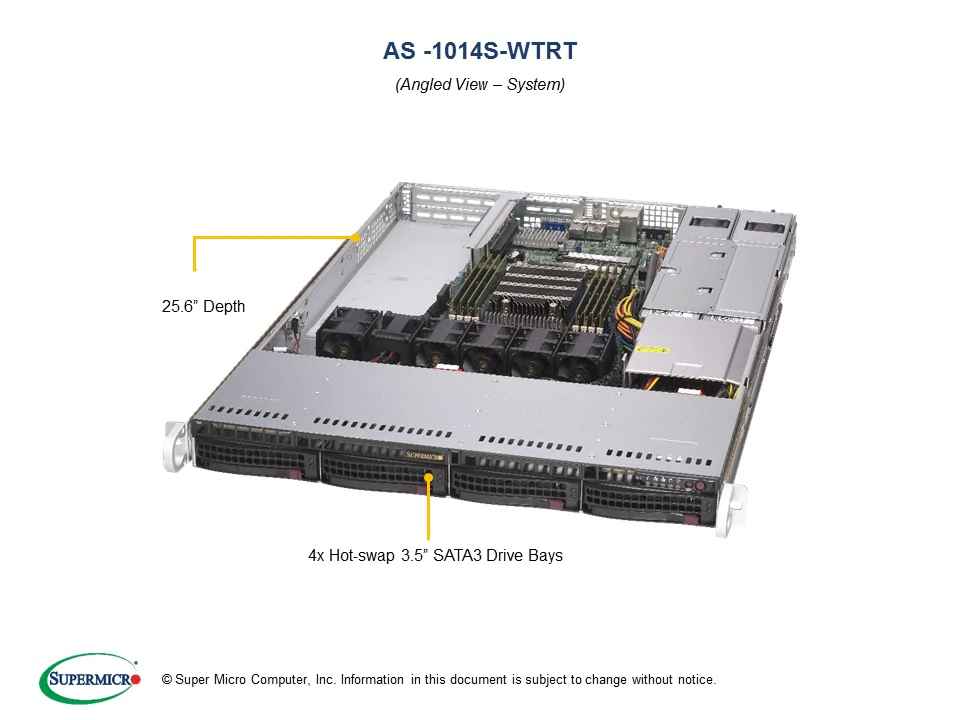

Drive Bays

Hot-swap
  • 4 Hot-swap 3.5" SATA3 drive bays
  • Optional 4 U.2 NVMe (PCI-E 3.0) drive support via additional kit for NVMe devices
Peripheral
  • 1 Slim DVD-ROM drive bay (optional)
Backplane

SAS/SATA/NVMe HDD Backplane

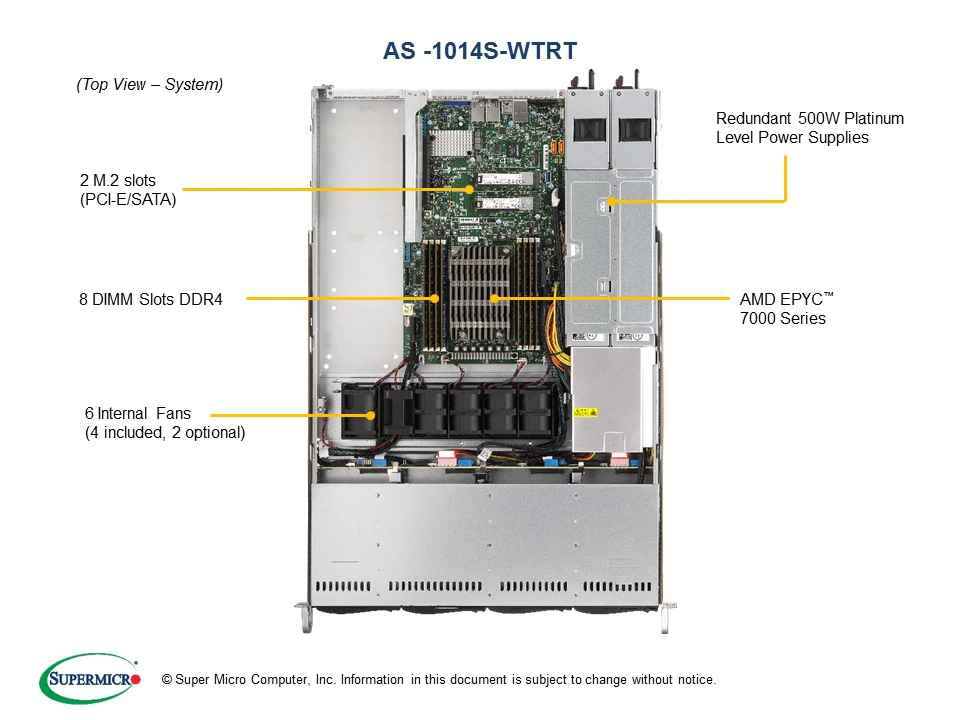

System Cooling

Fans
  • 4 Counter-rotating 4cm PWM fans, 2 fans for cooling AOC
Power Supply
500W Redundant Power Supplies with PMBus
Total Output Power
  • 500W
Dimension
(W x H x L)
  • 54.5 x 40.25 x 320 mm
Input
  • 100-240Vac, 50-60Hz, 6.1-2.6A
+12V
  • Max: 42A / Min: 0.5A
+5Vsb
  • Max: 4A / Min: 0A
Output Type
  • Gold Finger Connector Mating with Molex 45984-4343
With Power Distributor
  • +5V: 25A
  • +3.3V: 12A
  • -12V: 0.6A
Certification Platinum Level Certified  Platinum Certified
  Test Report ]
Operating Environment

RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
