Supermicro SuperServer AS-1114S-WTRT

AS-1114S-WTRT

Call our Solutions Specialists - 01283 576162

Great news, this product is available for special order. Please call us for availability.

To learn more about this product complete the form below and one of our team will get right back to you.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs

AS -1114S-WTRT	A+ Server 1114S-WTRT (Black)

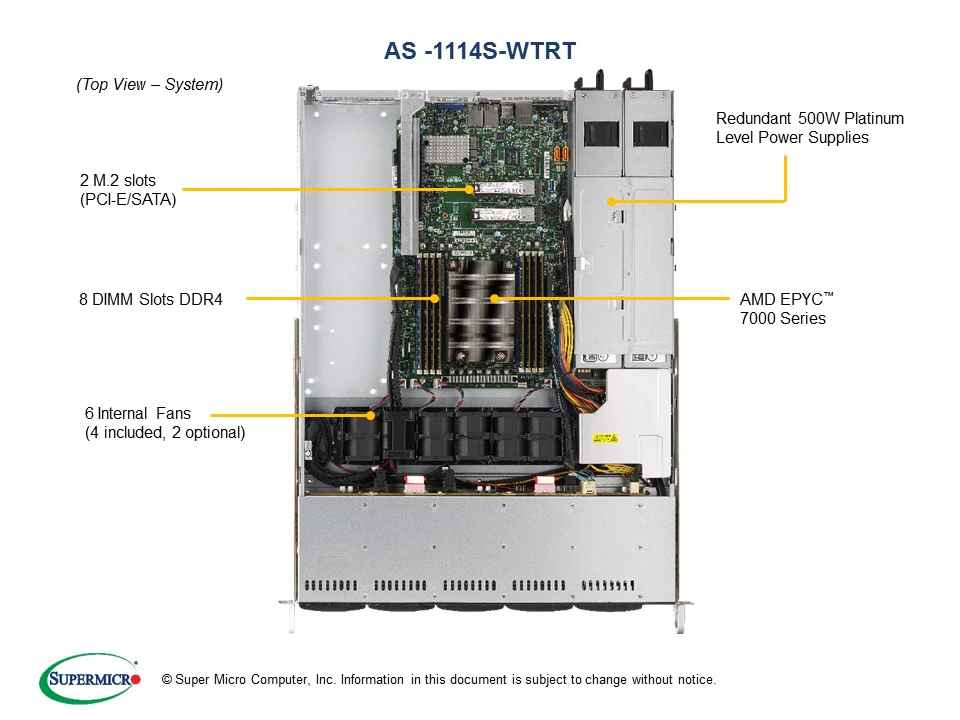

Motherboard

Super H12SSW-NT

Processor/Cache

CPU	Single AMD EPYC™ 7003/7002 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) Socket SP3 Support CPU TDP up to 280W
Cores	Up to 64 Cores

System Memory

Memory Capacity	8 DIMM slots Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Memory Type	DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs

On-Board Devices

Chipset	System on Chip
SATA	SATA3 (6Gbps)
Network Controllers	Dual 10GBase-T LAN with via Broadcom BCM57416
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video	ASPEED AST2500 BMC

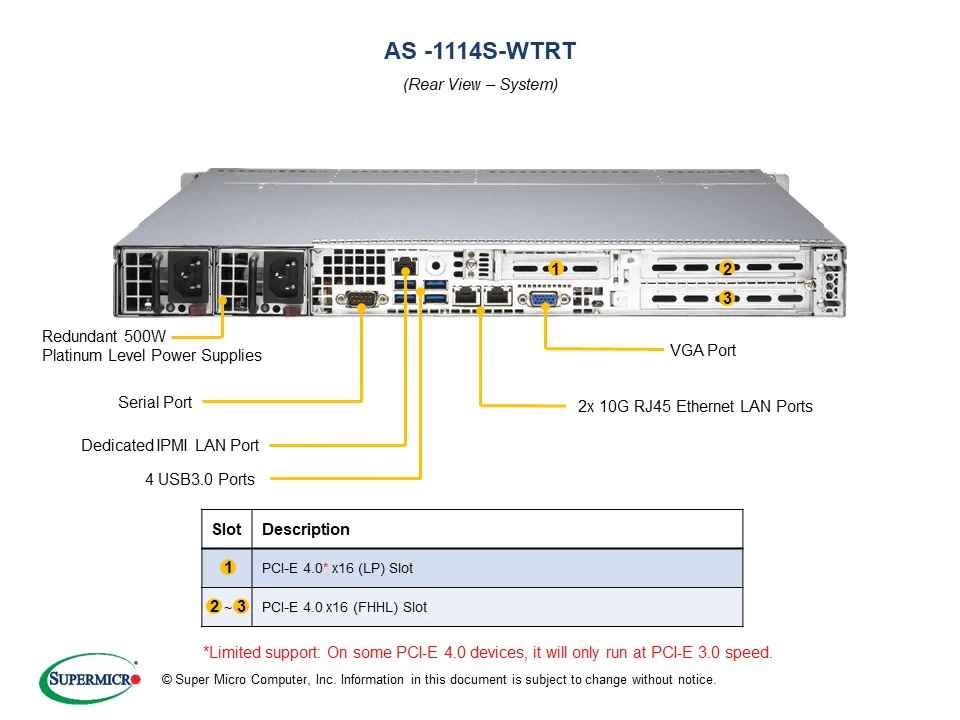

Input / Output

SATA	2 SATA3 (6 Gbps) ports
LAN	2 RJ45 10GBase-T ports 1 RJ45 Dedicated IPMI LAN port
USB	7 USB 3.0 ports (4 rear, 2 front, 1 Type A)
Video	1 VGA port
DOM	2 SuperDOM (Disk on Module) ports

System BIOS

BIOS Type	AMI 32Mb SPI Flash ROM

Management

Software	Super Doctor 5 Watch Dog NMI SUM IPMI 2.0, KVM with dedicated LAN
Power Configurations	ACPI / APM Power Management

PC Health Monitoring

CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors


Chassis

Form Factor	1U Rackmount
Model	CSE-116TS-R504WBP2

Dimensions and Weight

Width	17.2" (437mm)
Height	1.7" (43mm)
Depth	23.5" (597mm)
Package	7.63" (H) 23.42" (W) 31.45" (D)
Gross Weight	46 lbs (20.9kg)
Available Colors	Black

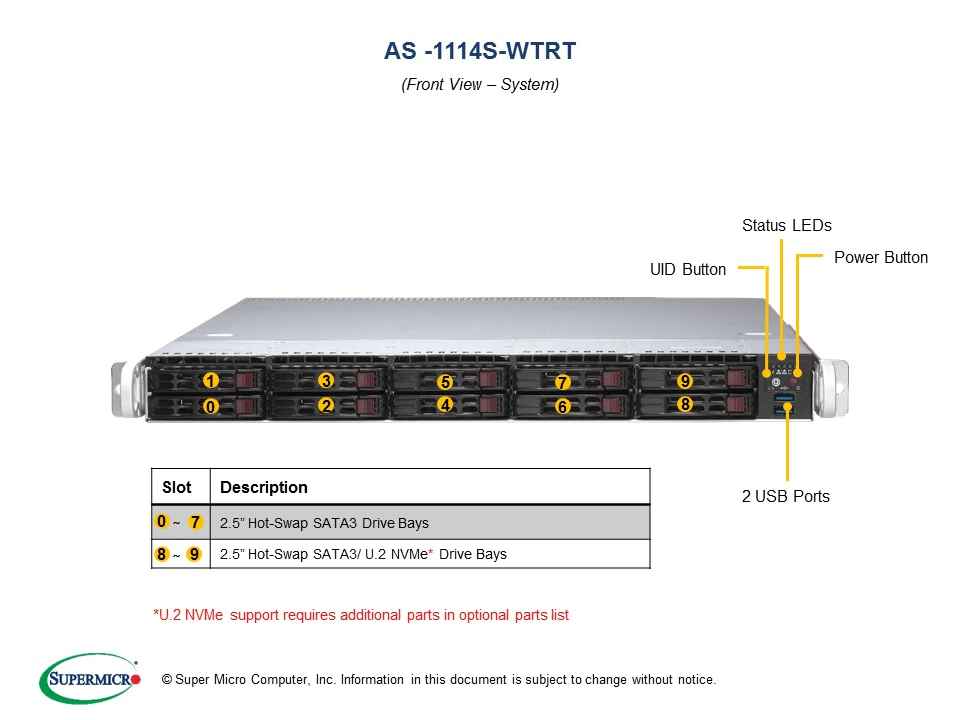

Front Panel

Buttons	Power On/Off button UID button
LEDs	Power status LED HDD activity LED Network activity LEDs Universal Information (UID) LED

Expansion Slots

PCI-Express	2 PCI-E 4.0 x16 (FHFL) slots 1 PCI-E 4.0* x16 (LP) slot 2 PCI-E / SATA 3.0 x2 NVMe M.2 slots * Limited Support: On some PCI-E 4.0 devices, it will only run at PCI-E 3.0 speed.

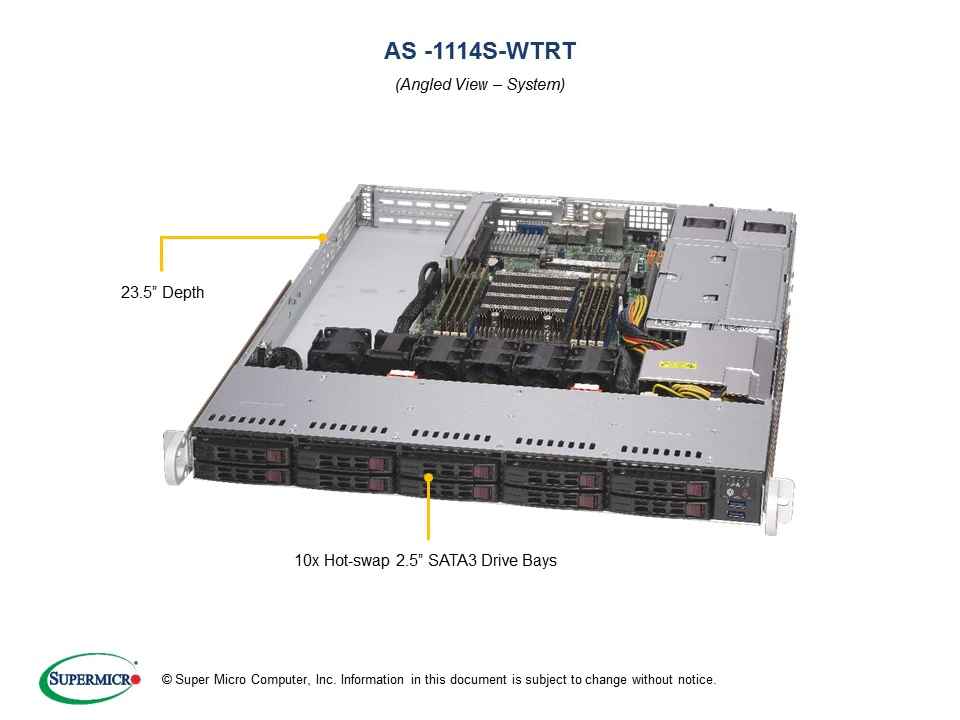

Drive Bays

Hot-swap	10 Hot-swap 2.5" SATA3 drive bays Optional 2 U.2 NVMe (PCI-E 3.0) drive support via additional kit for NVMe devices

Backplane

SAS/SATA HDD Backplane

System Cooling

Fans	4 Counter-rotating 4cm PWM fans, 2 fans for cooling AOC

Power Supply
500W Redundant Power Supplies with PMBus
Total Output Power	500W
Dimension (W x H x L)	54.5 x 40.25 x 320 mm
Input	100-240Vac, 50-60Hz, 6.1-2.6A
+12V	Max: 42A / Min: 0.5A
+5Vsb	Max: 4A / Min: 0A
Output Type	Gold Finger Connector Mating with Molex 45984-4343
With Power Distributor	+5V: 25A +3.3V: 12A -12V: 0.6A
Certification	Platinum Certified [ Test Report ]

Operating Environment

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
