Supermicro SuperServer E100-9W-L

SYS-E100-9W-L

Call our Solutions Specialists - 01283 576162

Great news, this product is available for special order. Please call us for availability.

To learn more about this product complete the form below and one of our team will get right back to you.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs

SYS-E100-9W-L	SuperServer E100-9W-L (Black)

Motherboard

Super X11SWN-L-WOHS

Processor/Cache

CPU	8th Generation Intel® Core™ i3-8145UE Processor Single Socket FCBGA-1528 System-on-Chip CPU TDP support 15W
Note	BIOS version 2.0 or above is required

System Memory

Memory Capacity	Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-2400MHz, in 2 DIMM slots
Memory Type	DDR4 up to 2400MHz
DIMM Sizes	32GB, 16GB, 8GB, 4GB
Memory Voltage	1.2V

On-Board Devices

Chipset	System on Chip
Network Controllers	Single LAN with Intel® I210IT Single LAN with Intel® PHY I219LM
Audio	ALC 888S HD Audio
Video	Intel® UHD Graphics 620

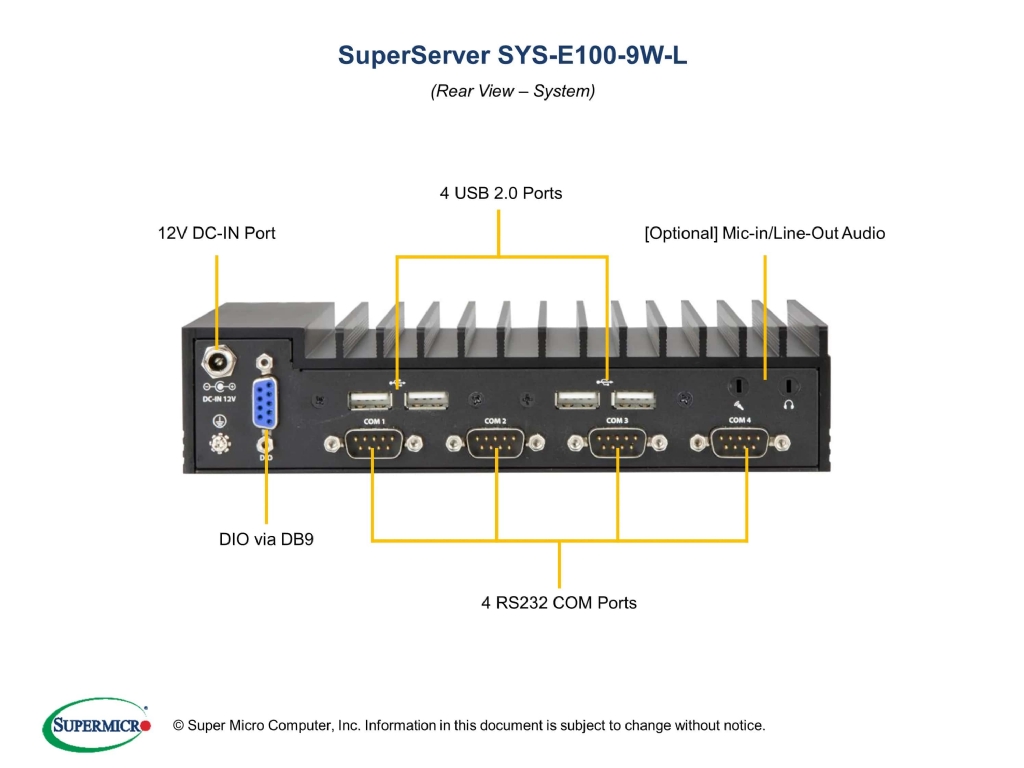

Input / Output

USB	4 USB 3.1 Gen2 ports (Type A), 4 USB 2.0 (Type A)
Video Output	1 HDMI and 1 Display Port
COM Port	4 COM ports: 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control
Audio	1 HD Audio header (Mic-in/Line-Out) (option)
Others	8-bit configurable GPIO via DB9


Chassis

Form Factor	3.5" SBC
Model	CSE-E101-02

Dimensions

Width	7.68" (195mm) / 11.81" (300mm) - pkg.
Height	1.73" (44mm) / 5.12" (130mm) - pkg.
Depth	5.94" (151mm) / 11" (279mm) - pkg.
Weight	Gross Weight: 4.5 lbs (2.04 kg) Net Weight: 2.65 lbs (1.2 kg)
Available Colors	Black

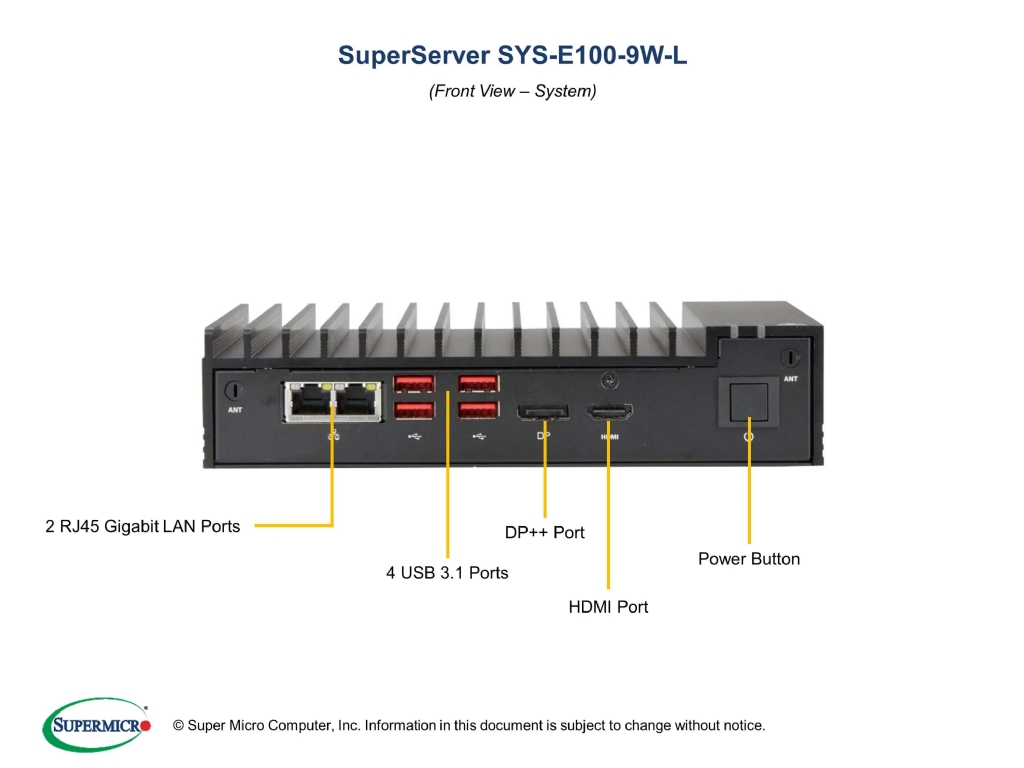

Front Panel

Buttons	Power On/Off button
LEDs	Power LED and Hard drive activity LED

Expansion Slots

M.2	Key: B-Key, M-Key, E-Key M.2 2242/3042/2280 B-Key (1 USB 3.0/2.0, 1 SATA Gen3) with nano SIM holder

System Cooling

Fans	Fan-less design

Power Supply

Lockable 12V DC 60W power adapter

System BIOS

BIOS Type	AMI UEFI

Management

Software	SuperDoctor® 5 Watch Dog
Power Configurations	+12V ~ +24V DC Wide power range input ACPI Power Management Control of power-on for recovery from AC power loss Force Power On by Jumper CPU thermal trip support for processor protection

Operating Environment / Compliance

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) with 0.7 m/s air flow Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) Operational Vibration, IEC 60068-2-64, 5 Grms, random, 5~500 Hz, 1hr/axis Operational Shock, IEC 60068-2-27, 30G, half sine, 11ms The use of industrial grade wide-temperature peripherals is required to meet 50°C operating temperature.
