Supermicro SuperServer E300-9D-8CN8TP

SYS-E300-9D-8CN8TP

Call our Solutions Specialists - 01283 576162

Great news, this product is available for special order. Please call us for availability.

To learn more about this product complete the form below and one of our team will get right back to you.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs

SYS-E300-9D-8CN8TP	SuperServer E300-9D-8CN8TP (Black)

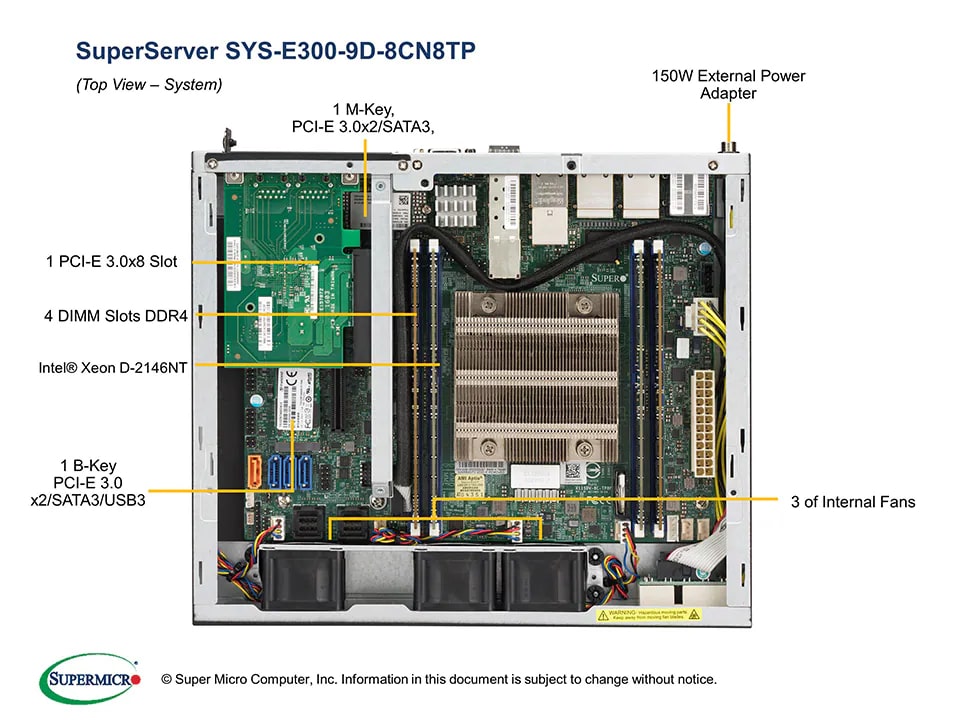

Motherboard

Super X11SDV-8C-TP8F

Processor/Cache

CPU	Intel® Xeon® processor D-2146NT, CPU TDP support 80W
Cores / Cache	8 Cores, 16 Threads

System Memory

Memory Capacity	Up to 512GB DDR4 ECC LRDIMM Up to 256GB DDR4 ECC DIMM 4 DIMM slots
Memory Type	2666/2400/2133MHz ECC LRDIMM and ECC DIMM Operating speed up to 2400MHz
DIMM Sizes	RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB LRDIMM: 16GB, 32GB, 64GB, 128GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset	System on Chip
SATA	SATA3 (6Gbps) ports via SoC controller
Network Controllers	Quad 1GbE with Intel I350-AM4 Dual 10GBase-T with Intel X557 Dual 10G SFP+ via SoC
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	Aspeed AST2500 BMC

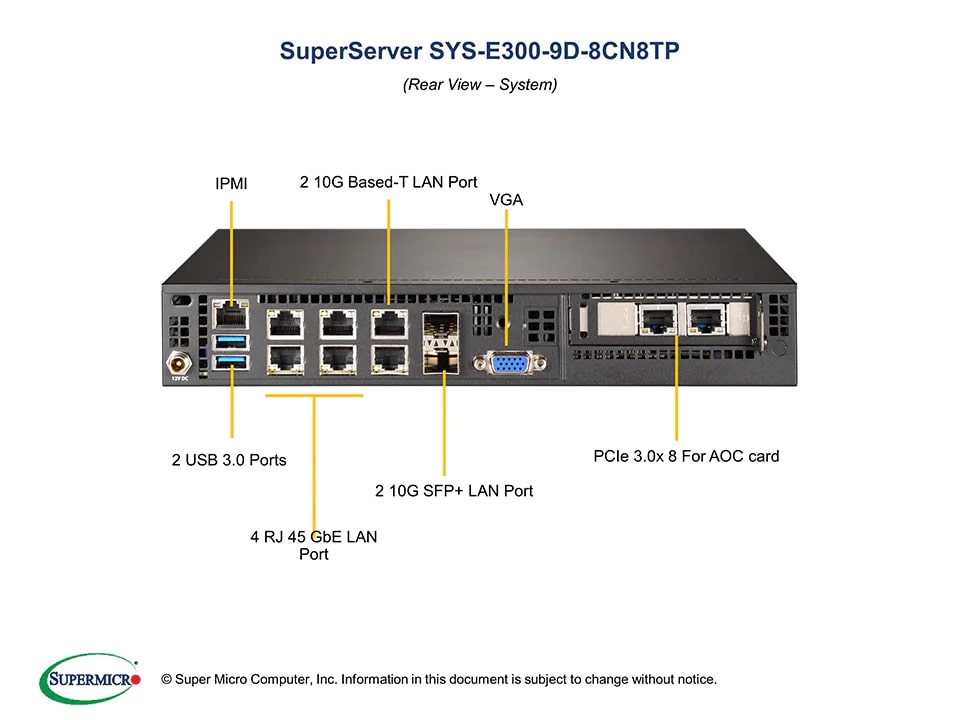

Input / Output

SATA	SoC controller for 4 SATA3 (6Gbps) ports
LAN	2x 10G SFP+ ports 2x 10GBase-T LAN ports 4x 1GbE LAN ports 1 Dedicated IPMI LAN port
USB	2 USB 3.0 ports (rear)
Display	1 VGA port
TPM	1 TPM 2.0 header

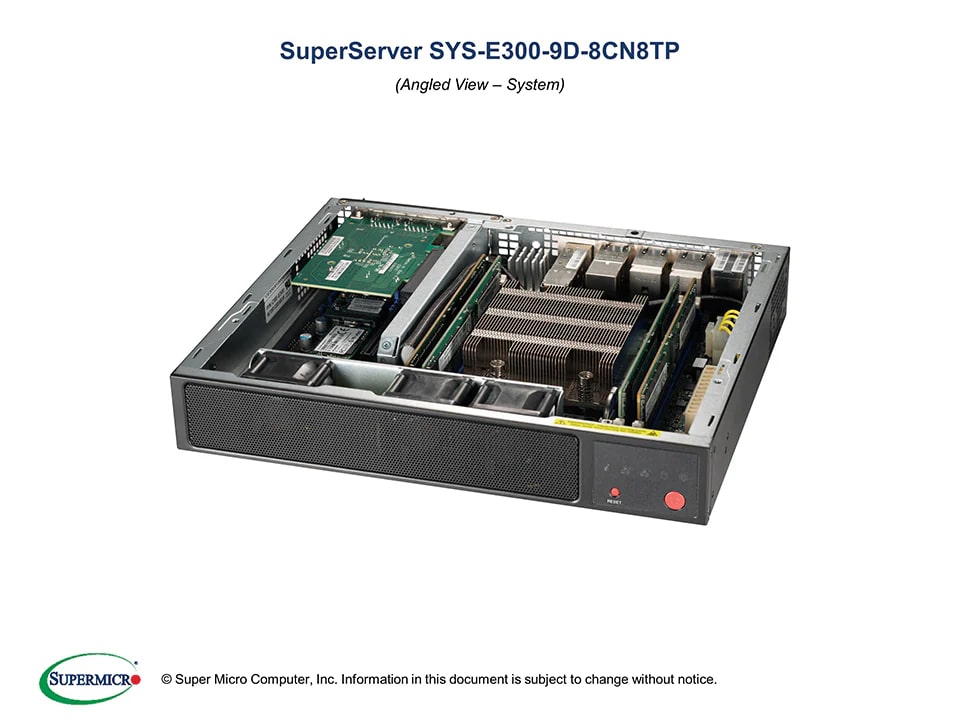

Chassis

Form Factor	Compact
Model	CSE-E300

Dimensions

Width	10.43" (264.8mm) / 15" (381mm) - pkg.
Height	1.7" (43mm) / 10.87" (276mm) - pkg.
Depth	8.9" (226mm) / 5.59" (142mm) - pkg.
Weight	Gross Weight: 7.5 lbs (3.4 kg) Net Weight: 3.45 lbs (1.56 kg)
Available Colors	Black

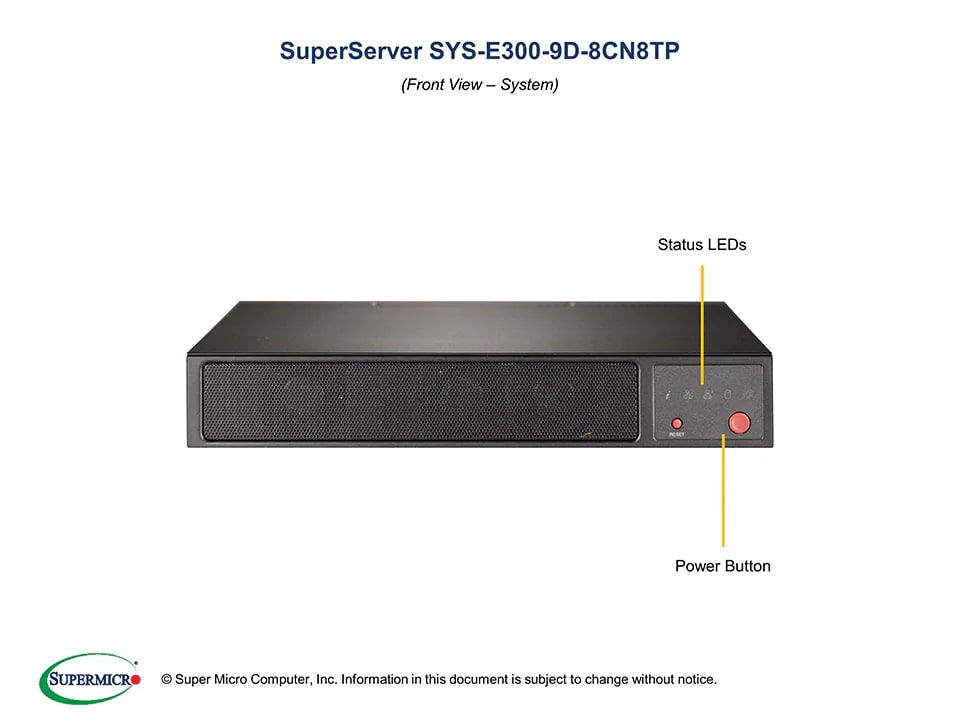

Front Panel

Buttons	Power On/Off button
LEDs	Power LED (Hard drive activity LED)

Expansion Slots

PCI-Express	1 PCI-E 3.0 x8 slot

Drive Bays

Internal	1 Fixed 2.5" drive bay with bracket (when AOC area is not occupied)

System Cooling

Fans	3x 40x28mm 4-PIN PWM Fan

Power Supply

DC Power Adapter with PFC

System BIOS

BIOS Type	128Mb SPI Flash with AMI BIOS
BIOS Features	PCI 3.0 ACPI 5.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 2.8 UEFI 2.4 RTC (Real Time Clock) Wakeup

Management

Software	Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SUM SuperDoctor® 5 Watch Dog
Power Configurations	ACPI Power Management +12V DC Power Input Control of power-on for recovery from AC power loss CPU thermal trip support for processor protection M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL
Fan	Fans with tachometer status monitoring Status monitor for speed control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors

Operating Environment / Compliance

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 0°C to 35°C (32°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
