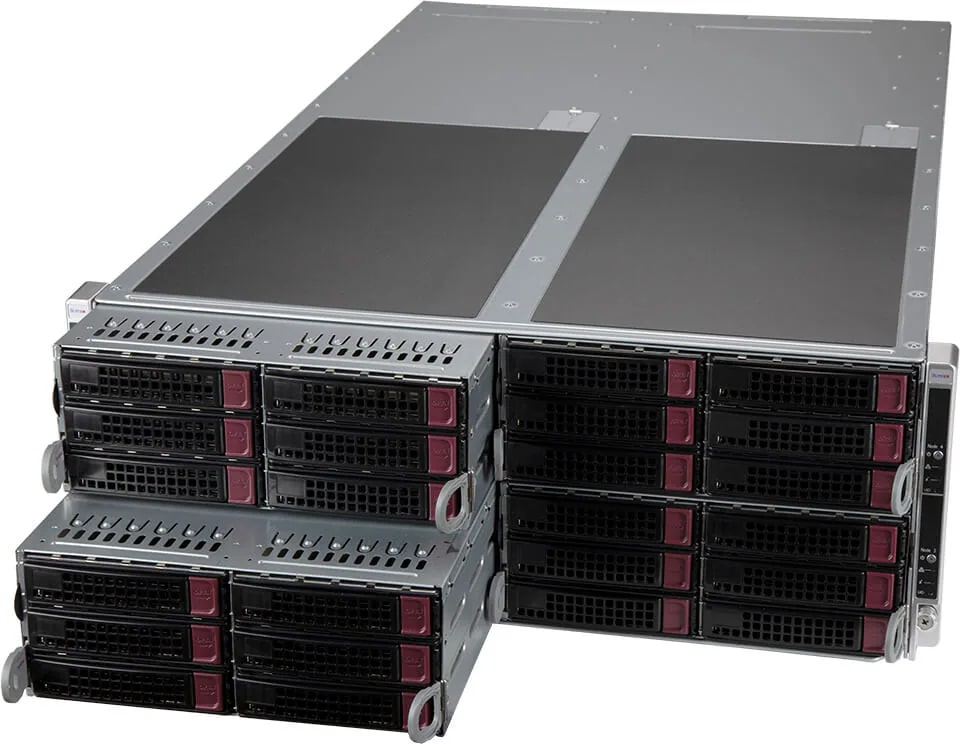

Supermicro SuperServer F620P3-RTBN

SYS-F620P3-RTBN
Supermicro SuperServer F620P3-RTBN
Call our Solutions Specialists - 01283 576162
Great news, this product is available for special order. Please call us for availability.

To learn more about this product complete the form below and one of our team will get right back to you.

I want to receive the latest offers and updates about new technology releases for Server Case via email.
Submit
Looking for Compatible Products?
Product Description
Product SKUs
SuperServer SYS-F620P3-RTBN (Black)

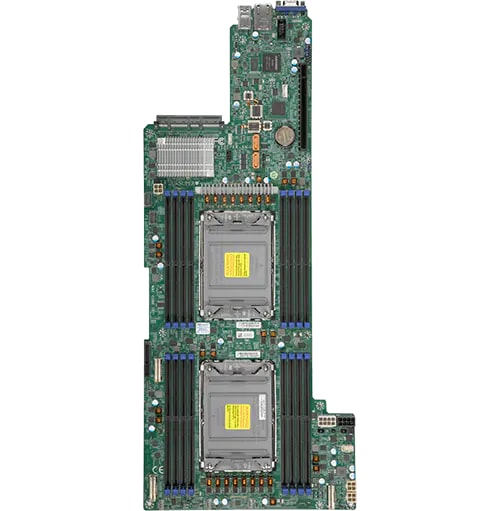

Motherboard
Super X12DPFR-AN6
Processor (per Node)
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 36C/72T; Up to 54MB Cache per CPU
Note
  • Supports up to 205W TDP CPUs (Air Cooled)
GPU (per Node)
Max GPU Count
  • Up to 1 double-width GPU(s)
System Memory (per Node)
Memory
  • Memory Capacity: 16 DIMM slots
  • Up to 4TB: 8x 512 GB PMem and 16x 128 GB DRAM
  • Up to 2TB: 16x 128 GB DRAM
  • Up to : 16x 128 GB
  • Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2 V
On-Board Devices (per Node)
Chipset
  • Intel® C621A
Network Connectivity
  • 1x 1GbE RJ45 (BMC)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output (per Node)
SATA
  • 14 SATA (6Gbps) port(s)
NVMe
  • 6 NVMe U.2 options
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 port(s) (2 rear)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
Management
Software
Power Configurations
  • ACPI / APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
Chassis
Form Factor
  • 4U
Model
  • CSE-F424AS3-R2K20BP
Dimensions and Weight
Height
  • 6.96" (177mm)
Width
  • 17.63" (448mm)
Depth
  • 29" (737mm)
Package
  • 15" (H) x 28.3" (W) x 42.4" (D)
Weight
  • Net Weight: 150 lbs (68.04 kg)
  • Gross Weight: 200 lbs (90.71 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED

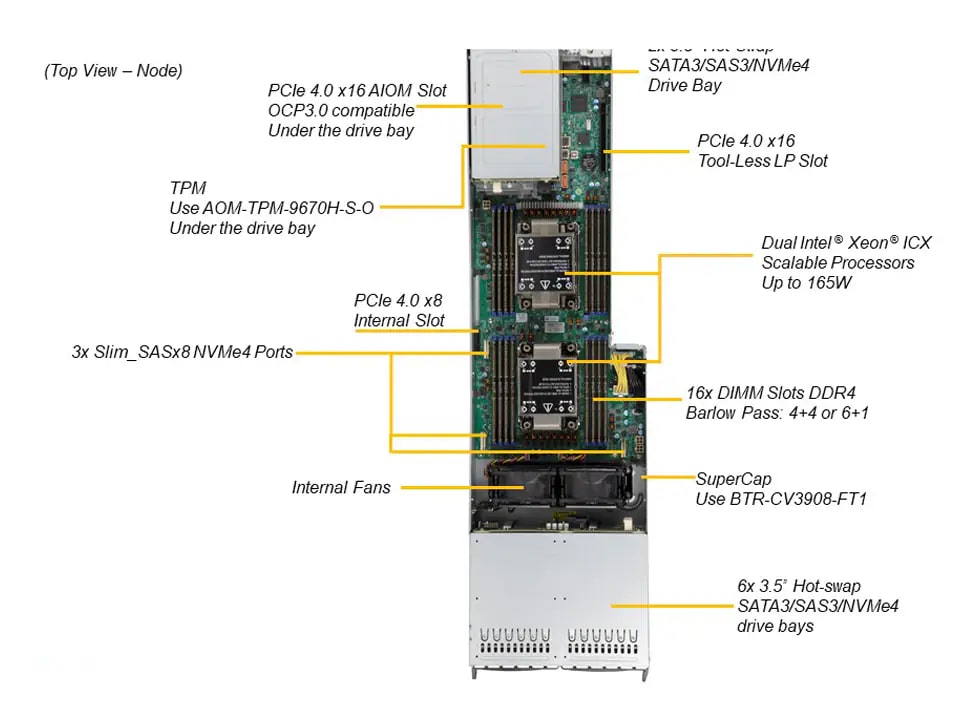

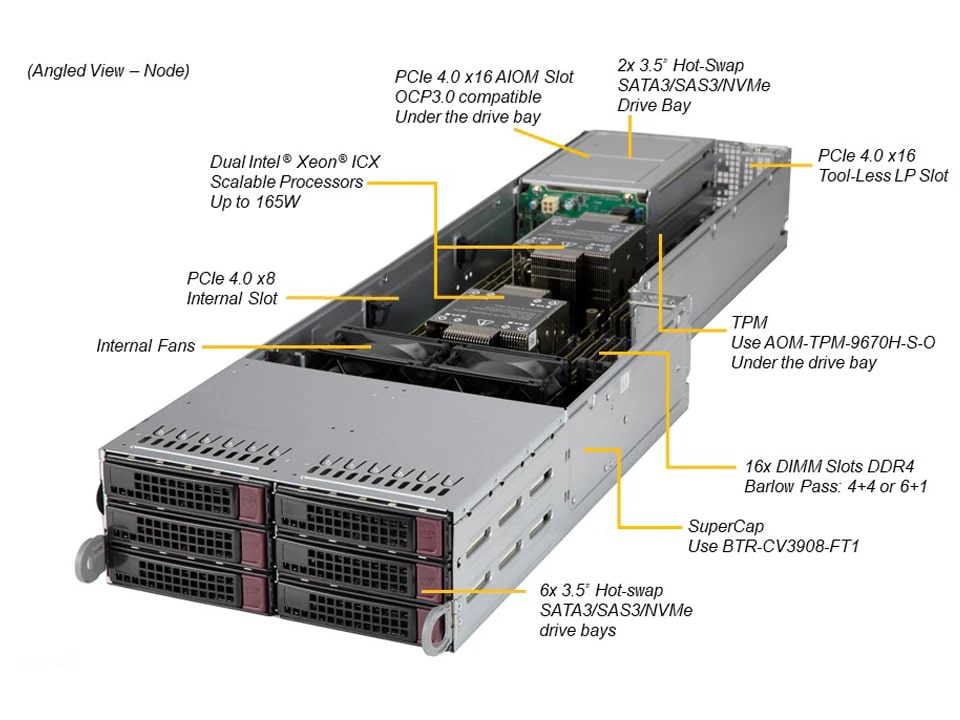

Expansion Slots (per Node)
PCI-Express (PCIe)
  • 1 PCIe 4.0 x16 LP slot(s)
  • 1 AIOM slot(s)
  • 1 HBA slot(s)
Drive Bays / Storage (per Node)
Hot-swap
  • 8x 3.5" hot-swap SATA/SAS drive bays (8x 2.5" NVMe hybrid)
  • 8x 2.5" 7mm drive bays
System Cooling
Fans
  • 2x 8cm Fan(s)
Power Supply
8800W Redundant Titanium Level power supplies
Dimension

(W x H x L)
  • 76 x 40 x 336 mm
AC Input
  • 1200W: 100-127Vac / 50-60Hz
  • 1800W: 200-220Vac / 50-60Hz
  • 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)
  • 1980W: 220-230Vac / 50-60Hz
  • 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
  • 2090W: 230-240Vac / 50-60Hz
  • 2090W: 230-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 100A / Min: 0A (100Vac-127Vac)
  • Max: 150A / Min: 0A (200Vac-220Vac)
  • Max: 165A / Min: 0A (220Vac-230Vac)
  • Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
  • Max: 174.17A / Min: 0A (230Vac-240Vac)
  • Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)
  • Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)
5V SB
  • Max: 1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification Titanium Level94%+  Titanium Level




  Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       5% to 95% (8)
  • Non-operating Relative Humidity:
       90% to 5% (95)
