Supermicro SuperServer SYS-1019P-WTR

SYS-1019P-WTR
Supermicro SuperServer SYS-1019P-WTR
Call our Solutions Specialists - 01283 576162
Great news, this product is available for special order. Please call us for availability.

To learn more about this product complete the form below and one of our team will get right back to you.

I want to receive the latest offers and updates about new technology releases for Server Case via email.
Submit
Looking for Compatible Products?
Product Description
Product SKUs

SYS-1019P-WTR
  • SuperServer 1019P-WTR (Black)
Motherboard


Super X11SPW-TF
Processor/Cache

CPU
  • Single Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
  • Support CPU TDP 70-205W*
Cores
  • Up to 28 Cores
Note * Certain high frequency optimized CPU are not supported, such as Intel Gold 6250 and 6256. Please contact Supermicro Technical Support for additional information.
Note  BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
System Memory

Memory Capacity
  • 6 DIMM slots
  • Up to 1.5TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note  2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.
On-Board Devices

Chipset
  • Intel® C622 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Dual 10GBase-T LAN with Intel® X722 + X557
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC

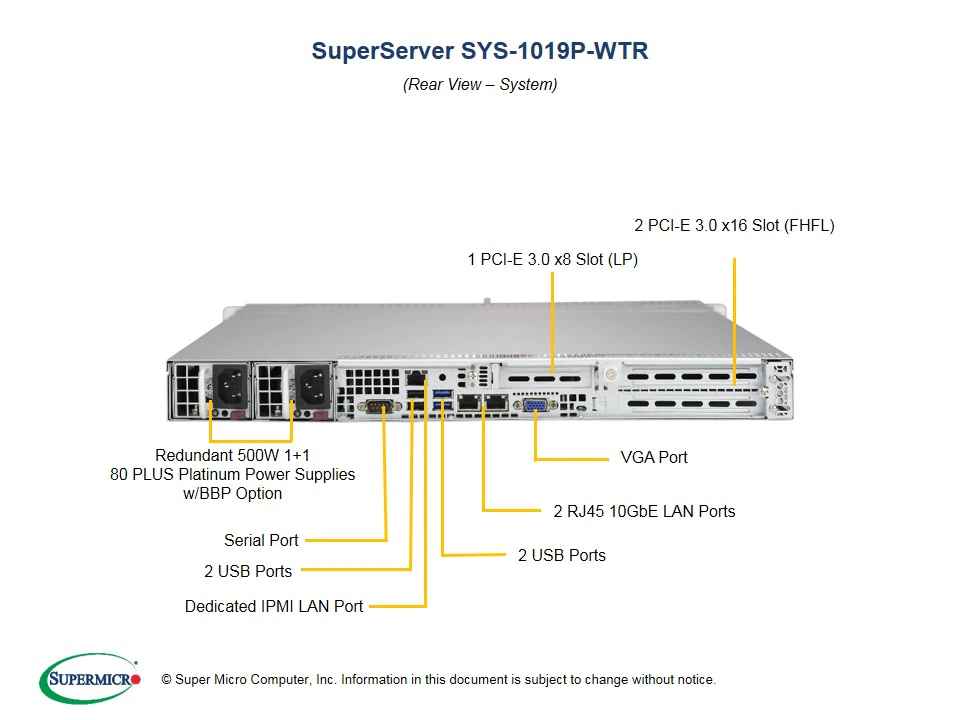

Input / Output

SATA
  • 10 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GBase-T LAN ports
  • 1 RJ45 dedicated IPMI LAN port
USB
  • 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
  • 7 USB 2.0 ports (2 rear + 5 headers)
Video
  • 1 VGA port
Serial Port / Header
  • 2 COM ports (1 rear, 1 header)
SuperDOM
  • Ports default connect to hard drive bays
System BIOS

BIOS Type
  • AMI 32Mb SPI Flash ROM
Management

Software
Power Configurations
  • ACPI / APM Power Management
PC Health Monitoring

CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors

Chassis

Form Factor
  • 1U Rackmount
Model
  • CSE-116AC2-R504WB
Dimensions and Weight

Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 23.5" (597mm)
Package
  • 24" (W) x 8" (H) x 32" (L)
Weight
  • Gross Weight: 27 lbs (12.25 kg)
  • Net Weight: 15.5 lbs (7.03 kg)
Available Colors
  • Black

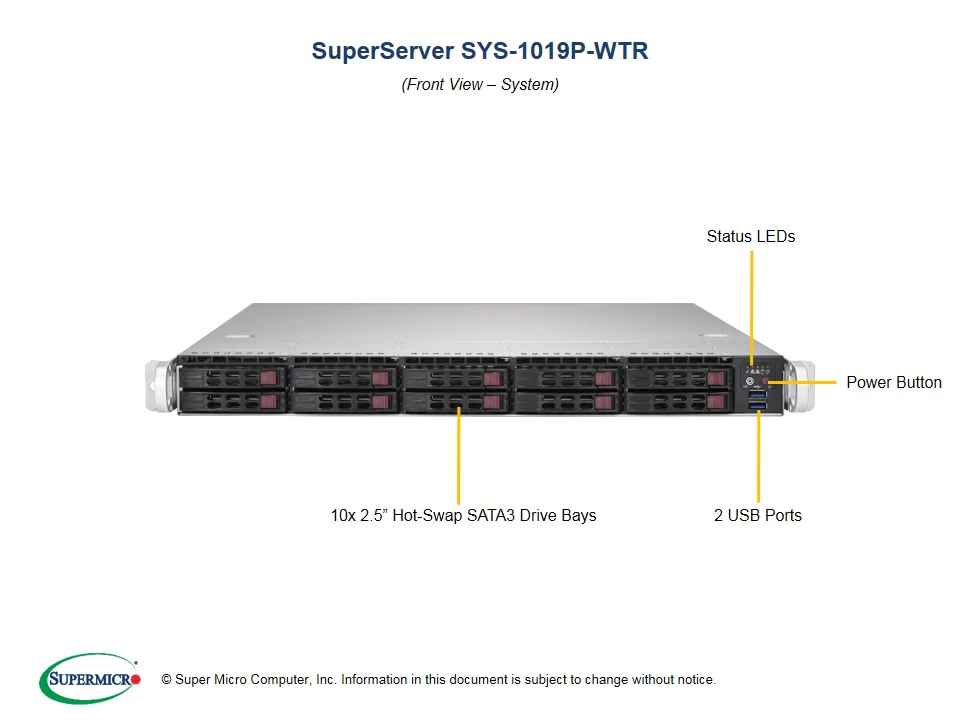

Front Panel

Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Information LED
  • Information LED (temp., status)

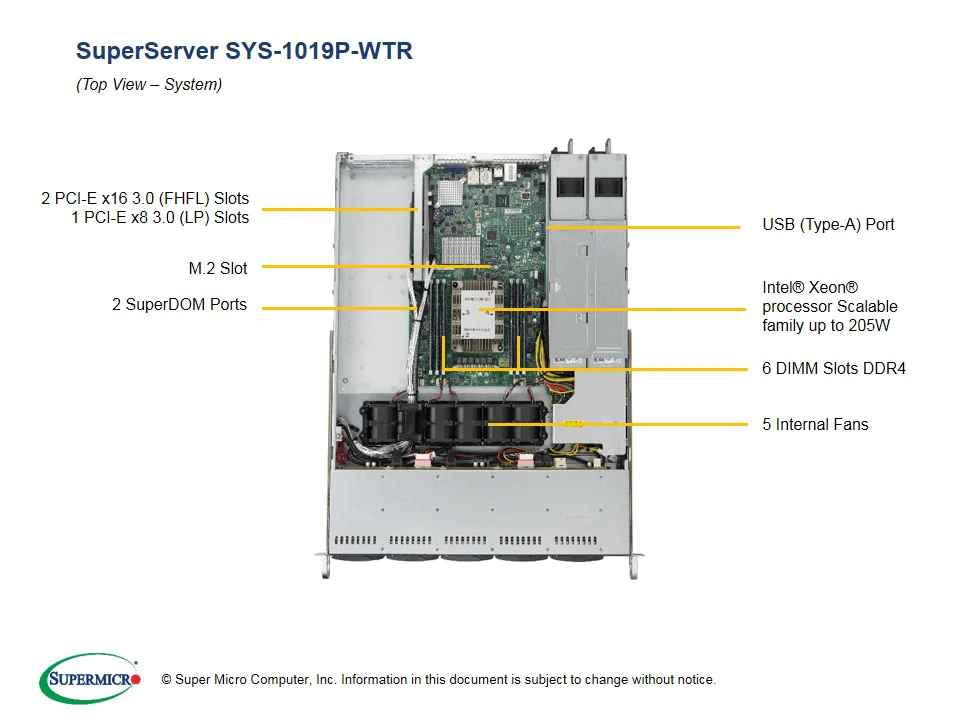

Expansion Slots

PCI-Express
  • 2 PCI-E 3.0 x16 (FHFL) slots
  • 1 PCI-E 3.0 x8 (LP) slot
M.2
  • 1x M.2 Interface: PCI-E 3.0 x4 and SATA
  • Form Factor: 2280, 22110
  • Key: M-Key
  • Double Height Connector

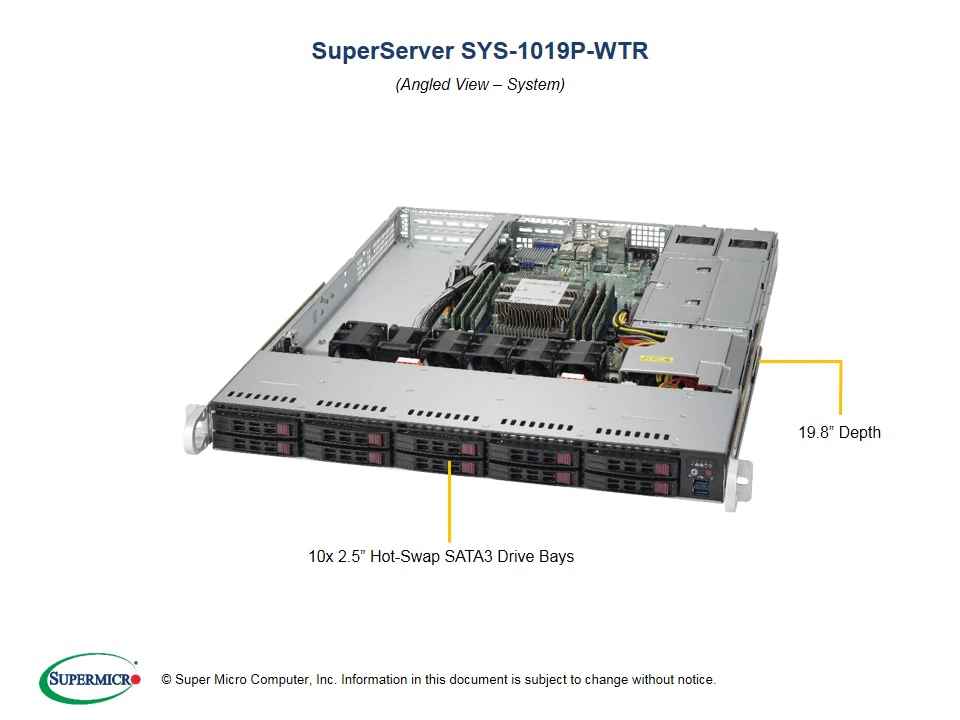

Drive Bays

Hot-swap
  • 10 Hot-swap 2.5" SATA3 drive bays
  • 2 NVMe with AOC (option)
System Cooling

Fans
  • 5 counter-rotation 40x56mm PWM fans
  • 1 fan for AOC cooling (option)
Power Supply
500W Redundant Power Supplies with PMBus
Total Output Power
  • 500W: 100 – 240Vac
Dimension
(W x H x L)
  • 54.5 x 40.25 x 320 mm
Input
  • 100-240Vac, 50-60Hz, 6.1-2.6A
+12V
  • Max: 42A / Min: 0.5A
+5Vsb
  • Max: 3A / Min: 0A
Output Type
  • Gold Finger Connector Mating with Molex 45984-4343
With Power Distributor
  • +5V: 25A
  • +3.3V: 12A
  • -12V: 0.6A
Certification Platinum Level Certified  Platinum Certified
  Test Report ]
Operating Environment

RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
