Supermicro SuperServer SYS-1029P-MTR

SYS-1029P-MTR
Supermicro SuperServer SYS-1029P-MTR
Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.
Looking for Compatible Products?
Product Description
Product SKUs
SYS-1029P-MTR
  • SuperServer 1029P-MTR (Black)

Motherboard

Super X11DPL-i

Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • Intel® Xeon® Scalable Processors,
    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-140W with IVR
Cores
  • Up to 28 Cores with Intel® HT Technology

System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 1TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type
  • 2666/2400/2133MHz ECC DDR4 SDRAM

On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Marvell 88E1512 PHY Gigabit Ethernet controller
  • Supports 1000BASE-T
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC

Input / Output
SATA
  • 8 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 2.0 ports (rear)
Video
  • 1 VGA port
Serial Port / Header
  • 1 COM port (header)
DOM
  • 2 SuperDOM (Disk on Module) ports

System BIOS
BIOS Type
  • 256Mb SPI Flash EEPROM with AMI BIOS

Management
Software
Power Configurations
  • ACPI / APM Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model

Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 1.7" (43mm)
Depth
  • 19.98" (508mm)
Package
  • 23.4" (W) x 8.5" (H) x 29.7" (L)
Weight
  • Gross Weight: 31.1 lbs (14.1 kg)
Available Colors
  • Black

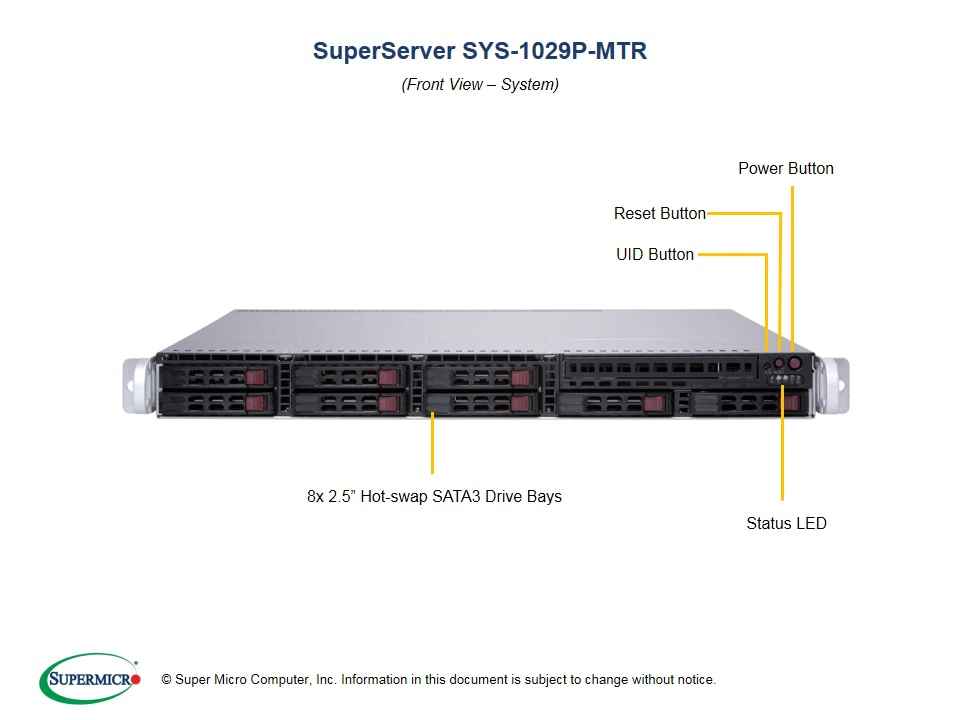

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED

Expansion Slots
PCI-Express
  • 1 PCI-E 3.0 x8 (FHHL) slot

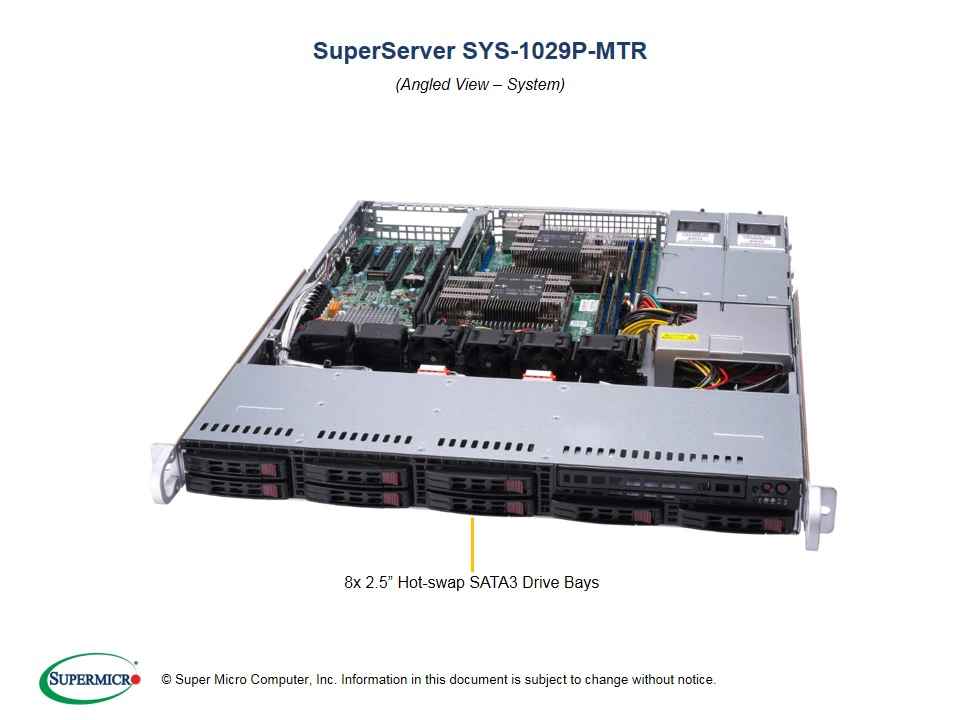

Drive Bays
Hot-swap
  • 8 Hot-swap 2.5" SATA3 drive bays

Peripheral Drives
Optional
  • Slim DVD-ROM drive (optional)
  • PCIe/SATA M.2 drive (optional)

System Cooling
Fans
  • 4x 4cm 22.5K RPM middle cooling fans

Power Supply with Power Distributor
600W Redundant Power Supplies
Dimension
(W x H x L)
  • 54.5 x 40.25 x 220 mm
Input
  • 90-264V, 50-60Hz, 7.5 - 2.5A
+12V
  • Max: 50A / Min: 0.5A
+5Vsb
  • Max: 3A / Min: 0A
Output Type
  •   Input: IEC 320 C-14
  •   Output: Gold Finger
Certification Platinum Level Certified
  UL/cUL/CB/CE/BSMI/CCC
  Platinum Certified


Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-X11DPL-i

CSE-113MFAC2-R608CB		 1

1		 Super X11DPL-i Motherboard

1U Chassis
Backplane BPN-SAS3-113A-N2 1 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
Cable 1 CBL-SAST-0631 2 MINI SAS HD-4 SATA,6G,INT,RF,Cross Over,55CM,55CM SB,30AWG
Parts MCP-260-00111-0N 1 1U I/O Shield for X11DPL-i with EMI Gasket
Air Shroud MCP-310-19015-0N 1 SC813M,SC113M, DP X9DRL-EF/ X9DRL-7F/ X10DRL-i, X9/X10 mylar air shroud, 12
Manual MNL-2012-QRG 1 1029P-MT/MTR Quick Reference Guide
Riser Card RSC-RR1U-E8 1 RSC-RR1U-E8
Heatsink / Retention SNK-P0067PD 2 1U Passive Proprietary CPU Heat Sink for X11DPL Motherboard Equipped with a Square Retention Mechanism
Power Supply PWS-608P-1R 2 AC-DC 600W single output power supply Platinum Level, Redund
FAN 1 FAN-0154L4 4 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH


Optional Parts List
  Part Number Qty Description
M.2 holder kit MCP-450-00003-0N - Plastic M.2 holder kit for X11 MB,HF,RoHS
NVMe AOC card AOC-SLG3-2E4T 1 2 Port NVMe PCI-E x8 Redriver Card
Cable CBL-SAST-0929
CBL-SAST-0531		 2
2		 OcuLink v 1.0 source to MiniSAS HD,INT,PCIe, 57CM,34AWG
MINI SAS HD,12G,INT,80CM,30AWG
Storage Controller
Card(s) & Cables(s)		 AOC-S3108L-H8IR-16DD
& 2x CBL-SAST-0531

AOC-S3008L-L8i &
2x CBL-SAST-0531

AOC-S3008L-L8e &
2x CBL-SAST-0531

AOC-S2308L-L8e &
2x CBL-SAST-0631

AOC-S2308L-L8i &
2x CBL-SAST-0631

AOC-S2208L-H8iR &
2x CBL-SAST-0631		 - Standard LP, 8 internal ports (12Gb/s) Gen-3, 16HDD;
RAID 0, 1, 5, 6, 10, 50, 60

Standard LP, 8 internal ports (12Gb/s) Gen-3, 63HDD;
RAID 0, 1, 10

Standard LP, 8 internal ports (12Gb/s) Gen-3, 122HDD;
HBA

Standard LP, 8 internal ports (6Gb/s) Gen-3, 122HDD;
HBA (Cable included in system)

Standard LP, 8 internal ports (6Gb/s) Gen-3, 63HDD;
RAID 0, 1, 10 (Cable included in system)

Standard LP, 8 internal ports (6Gb/s) Gen-3, 240HDD;
RAID 0, 1, 5, 6, 10, 50, 60 (Cable included in system)
Network Card(s) AOC-SGP-i2

AOC-SGP-i4

AOC-SG-i2

AOC-SG-i4

AOC-STG-b4S

AOC-STGN-i2S

AOC-STGN-i1S

AOC-STG-i2T

AOC-STG-i2		 -

-

-

-

-

-

-

-

-		 Standard LP, 2x GbE RJ45, PCI-E x4, Intel® i350AM2

Standard LP, 4x GbE RJ45, PCI-E x4, Intel® i350

Standard LP, 2x GbE RJ45, PCI-E x4, Intel® 82575EB

Standard LP, 4x GbE RJ45, PCI-E x8, Intel® 82576EB

Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom® BCM57840S

Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel® 82599ES

Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel® 82599ES

Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel® X540

Standard LP, 2x 10GbE CX4, PCI-E x8, Intel® 82598EB
DVD-ROM / DVD-RW DVM-PNSC-DVD-SBT3

DVM-TEAC-DVD-SBT3

DVM-PLDS-DVDRW-SBT4

DVM-TEAC-DVDRW-SBT2		 -

-

-

-		 BLACK PANASONIC SLIM DVD ROM SATA DRIVE

BLACK TEAC SLIM DVD ROM SATA DRIVE

PHILIPS SLIM BLACK DVD-RW SATA DRIVE

BLACK TEAC SLIM DVD-RW SATA DRIVE
DVD-ROM Accessory MCP-220-81502-0N - Slim SATA DVD kit for SC213,219,813,815,818,819,825,828,829,836,842
Global Services & Support OS4HR3/2/1

OSNBD3/2/1		 -

-		 3/2/1-year onsite 24x7x4 service

3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
