Supermicro SuperServer SYS-5019P-WTR

SYS-5019P-WTR

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs

SYS-5019P-WTR	SuperServer 5019P-WTR (Black)


Motherboard

Super X11SPW-TF


Processor/Cache

CPU	Single Socket P (LGA 3647) Intel® Xeon® Scalable Processors Support CPU TDP 70-205W
Cores	Up to 28 Cores with Intel® HT Technology


System Memory

Memory Capacity	6 DIMM slots Up to 768GB ECC 3DS LRDIMM, 192GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type	2666/2400/2133MHz ECC DDR4 SDRAM


On-Board Devices

Chipset	Intel® C622 chipset
SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers	Dual 10GBase-T LAN with Intel® X772 + X557
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video	ASPEED AST2500 BMC


Input / Output

SATA	10 SATA3 (6Gbps) ports

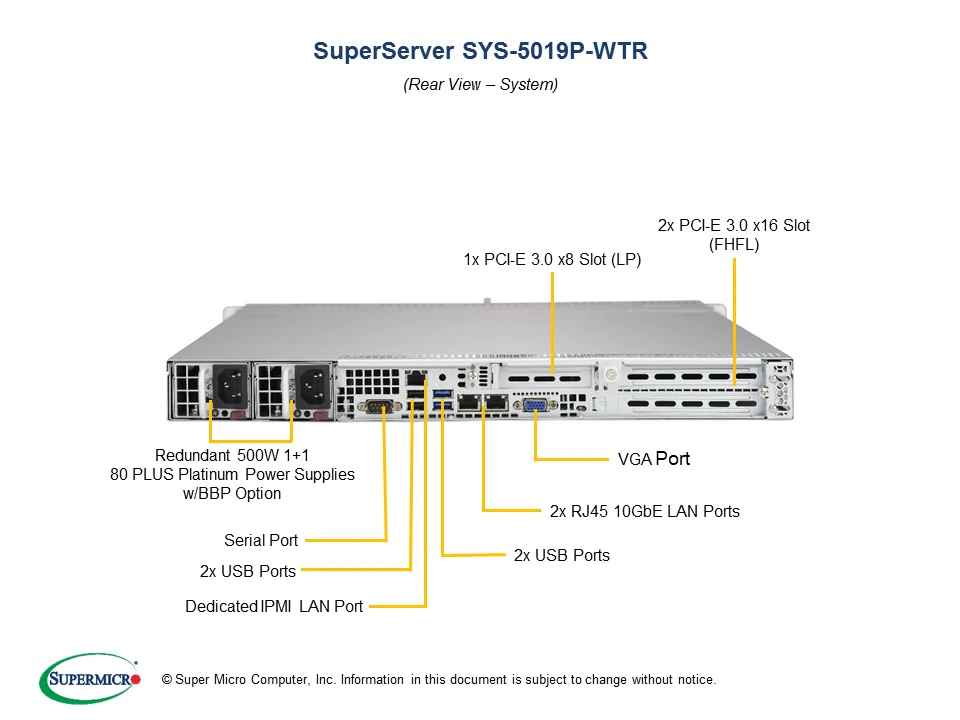

LAN	2 RJ45 10GBase-T LAN ports 1 RJ45 dedicated IPMI LAN port
USB	2 USB 3.0 ports (rear) 2 USB 2.0 ports (rear)
Video	1 VGA port
Serial Port / Header	2 COM ports (1 rear, 1 header)
SuperDOM	2 SuperDOM (Disk on Module) ports with built-in power


System BIOS

BIOS Type	AMI 32Mb SPI Flash ROM


Management

Software	Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SPM, SUM SuperDoctor® 5 Watch Dog
Power Configurations	ACPI / APM Power Management


PC Health Monitoring

CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors


Chassis

Form Factor	1U Rackmount
Model	CSE-815TQC-R504WB2


Dimensions and Weight

Height	1.7" (43mm)
Width	17.2" (437mm)
Depth	25.6" (650mm)
Package	23.5" (W) x 8.5" (H) x 33.7" (L)
Weight	Gross Weight: 48 lbs (21.77 kg) Net Weight: 24 lbs (10.89 kg)
Available Colors	Black


Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED Network activity LEDs System Overheat LED Information LED (temp., status)


Expansion Slots

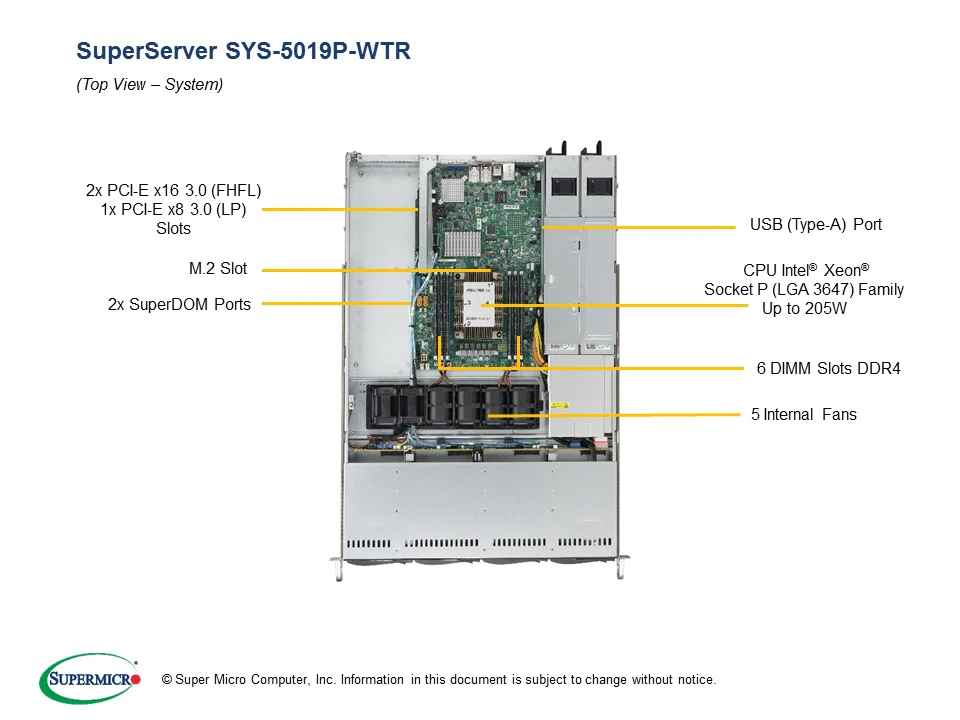

PCI-Express	2 PCI-E 3.0 x16 (FHFL) slots 1 PCI-E 3.0 x8 (LP) slot


Drive Bays

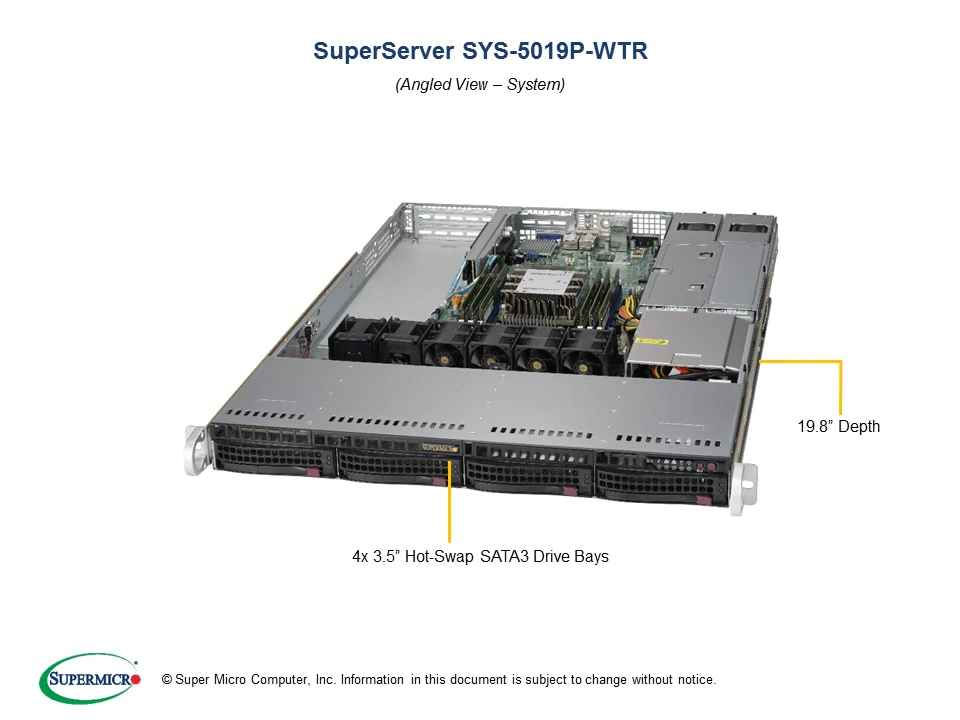

Hot-swap	4 Hot-swap 3.5" SATA3 drive bays
M.2	M.2 Interface: PCI-E 3.0 x4 and SATA Form Factor: 2280, 22110 Key: M-Key Double Height Connector


System Cooling

Fans	5 Counter-rotation 40x56mm PWM fans 1 fan for AOC cooling (option)


Power Supply
500W Redundant Power Supplies with PMBus
Total Output Power	500W
Dimension (W x H x L)	54.5 x 40.25 x 320 mm
Input	100-240Vac, 50-60Hz, 6.1-2.6A
+12V	Max: 42A / Min: 0.5A
+5Vsb	Max: 4A / Min: 0A
Output Type	Gold Finger Connector Mating with Molex 45984-4343
With Power Distributor	+5V: 25A +3.3V: 12A -12V: 0.6A
Certification	UL/cUL/CB/CE/BSMI/CCC Platinum Certified [ Test Report ]


Operating Environment

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

See Parts List


Parts List - (Items Included)

	Part Number	Qty	Description
Motherboard / Chassis	MBD-X11SPW-TF CSE-815TQC-R504WB2	1 1	Super X11SPW-TF Motherboard 1U Chassis
Backplane	BPN-SAS3-815TQ	1	1U 4-Port 12Gbps Backplane Support 4x3.5
Cable 1	CBL-0180L-01	1	SATA,INT,ROUND,SET OF 4,ST-RA 70/59/48/38CM,26AWG
Cable 2	CBL-0296L	1	4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
Cable 3	CBL-CDAT-0660	1	CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,27CM,28AWG
FAN 1	FAN-0156L4	2	40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
Manual	MNL-1921-QRG	1	5019P-WT/WTR, QRG,HF,RoHS/REACH
Riser Card	RSC-R1UW-2E16	1	1U LHS WIO Riser card with two PCI-E x16 slots
Riser Card	RSC-R1UW-E8R	1	1U RHS WIO Riser card with one PCI-E x8 slot
Heatsink / Retention	SNK-P0067PS	1	1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Power Supply	PWS-504P-1R	2	500W 1U Redundant PWS W/ 54.5MM Wide
