| SYS-6019P-MT |
- SuperServer 6019P-MT (Black)
|
| |
|
| CPU |
- Dual Socket P (LGA 3647)
- Intel® Xeon® Scalable Processors,
Dual UPI up to 10.4GT/s
- Support CPU TDP 70-140W
|
| Cores |
- Up to 28 Cores with Intel® HT Technology
|
| |
|
| Memory Capacity |

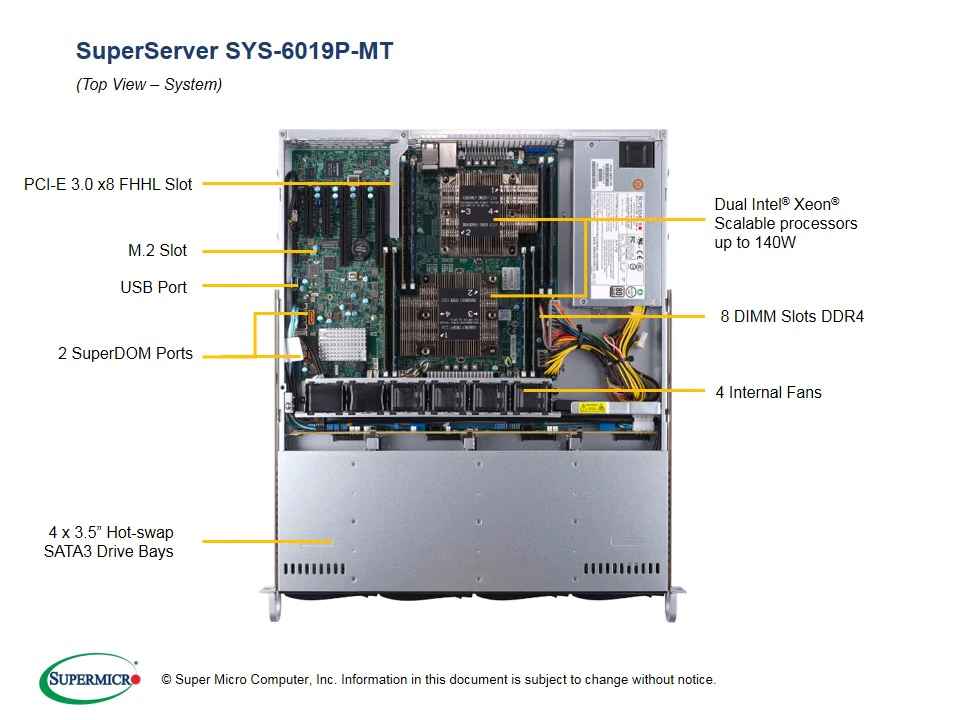

- 8 DIMM slots
- Up to 1TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz
|
| Memory Type |
- 2666/2400/2133MHz ECC DDR4 SDRAM
|
| |
|
| Chipset |
|
| SATA |
- SATA3 (6Gbps); RAID 0, 1, 5, 10
|
| Network Controllers |
- Marvell 88E1512 PHY Gigabit Ethernet controller
- Supports 1000BASE-T
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
|
| Video |
|
| |
|
| SATA |
|
| LAN |

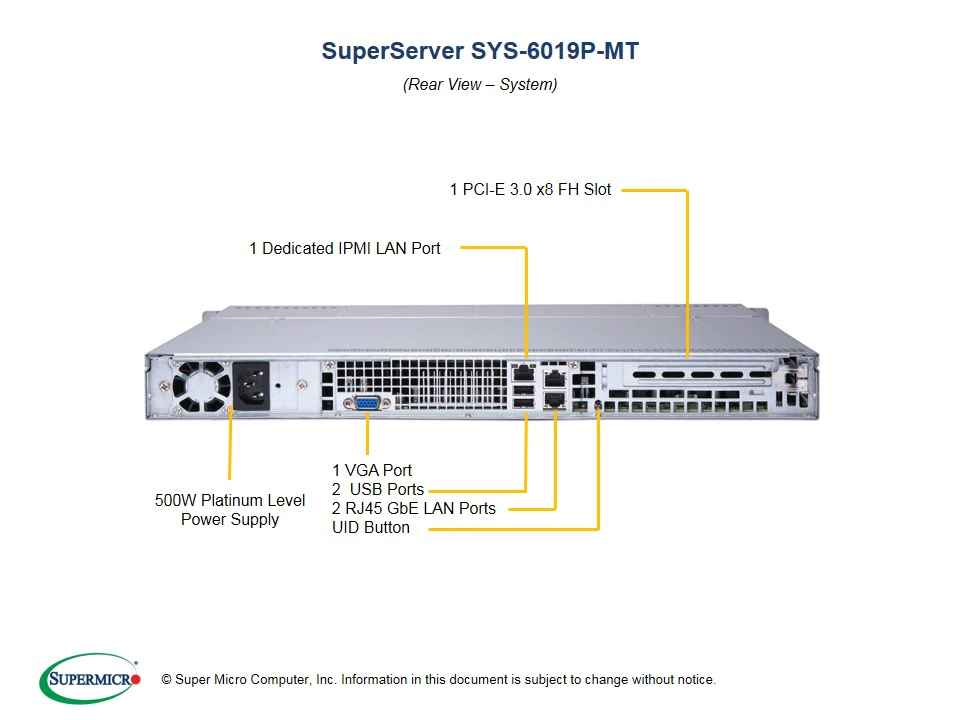

- 2 RJ45 Gigabit Ethernet LAN ports
- 1 RJ45 Dedicated IPMI LAN port
|
| USB |
|
| Video |
|
| Serial Port / Header |
|
| DOM |
- 2 SuperDOM (Disk on Module) ports
|
| |
|
| BIOS Type |
- 256Mb SPI Flash EEPROM with AMI BIOS
|
| |
|
| Software |
|
| Power Configurations |
- ACPI / APM Power Management
|
| |
|
| CPU |
- Monitors for CPU Cores, Chipset Voltages, Memory.
- 4+1 Phase-switching voltage regulator
|
| FAN |
- Fans with tachometer monitoring
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
|
| Temperature |
- Monitoring for CPU and chassis environment
- Thermal Control for fan connectors
|
|
 |
|
|
| Form Factor |
|
| Model |
|
| |
|
| Width |
|
| Height |
|
| Depth |
|
| Package |
- 23.4" (W) x 8.5" (H) x 29.7" (L)
|
| Weight |
- Gross Weight: 28.7 lbs (13.0 kg)
|
| Available Colors |
|
| |
|
| Buttons |
- Power On/Off button
- System Reset button
|
| LEDs |
- Power status LED
- HDD activity LED
- Network activity LEDs
|
| |
|
| PCI-Express |
- 1 PCI-E 3.0 x8 (FHHL) slot
|
| |
|
| Hot-swap |

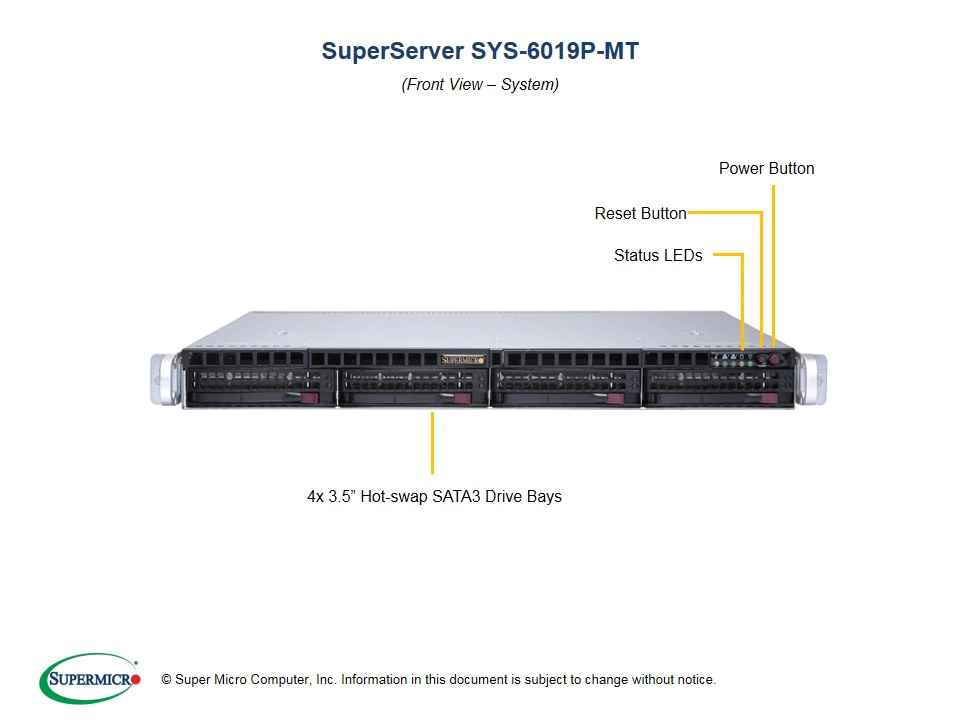

- 4 Hot-swap 3.5" SATA3 drive bays
|
| |
|
| SAS2/SATA3 Backplane |
| |
|
| Fans |
- 4x 4cm 22.5K RPM middle cooling fans
|
| |
|
| 500W High-Efficiency Power Supply w/PMBus 1.2, I2C, and PFC |
| AC Input |
- 100-240V, 50-60Hz, 6.6A max
|
| DC Output |
- +3.3V: 12A
- +5V: 15A
- +5V standby: 3A
- +12V: 41A
- -12V: 0.2A
|
| Certification |
  Platinum Certified
|
| |
|
| RoHS |
|
| Environmental Spec. |
- Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
- Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
|
|
|
 |
|
See Parts List
|
|
|
|
|
Part Number
|
Qty
|
Description
|
| Motherboard / Chassis |
MBD-X11DPL-i
CSE-813MF2TQC-505CB |
1
1 |
Super X11DPL-i Motherboard
1U Chassis |
| Backplane |
BPN-SAS3-815TQ |
1 |
1U 4-Port 12Gbps Backplane Support 4x3.5 |
| Cable 1 |
CBL-0186L |
1 |
SATA,INT,ROUND,SET OF 4,ST-RA 56/45.5/35/23CM,26AWG |
| Cable 2 |
CBL-CDAT-0661 |
1 |
CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG |
| Parts |
MCP-260-00111-0N |
1 |
1U I/O Shield for X11DPL-i with EMI Gasket |
| Air Shroud |
MCP-310-19015-0N |
1 |
SC813M,SC113M, DP X9DRL-EF/ X9DRL-7F/ X10DRL-i, X9/X10 mylar air shroud, 12 |
| Manual |
MNL-2013-QRG |
1 |
6019P-MT/MTR Quick Reference Guide |
| Riser Card |
RSC-RR1U-E8 |
1 |
RSC-RR1U-E8 |
| Heatsink / Retention |
SNK-P0067PD |
2 |
1U Passive Proprietary CPU Heat Sink for X11DPL Motherboard Equipped with a Square Retention Mechanism |
| Power Supply |
PWS-505P-1H |
1 |
1U 500W Multi-output, Platinum level w/ PMbus 24pin, W100xL180xH40mm,RoHS/REACH |
| FAN 1 |
FAN-0154L4 |
4 |
40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH |
|
|
|
|
|
| |
Part Number |
Qty |
Description |
| M.2 holder kit |
MCP-450-00003-0N |
- |
Plastic M.2 holder kit for X11 MB,HF,RoHS |
| Cable |
CBL-SAST-0531 |
1 |
MINI SAS HD-4 SATA,6G,INT,90/90,ST 75/75CM,75CM SB,30AWG |
| Network Card(s) |
AOC-SGP-i2
AOC-SGP-i4
AOC-SG-i2
AOC-SG-i4
AOC-STG-b4S
AOC-STGN-i2S
AOC-STGN-i1S
AOC-STG-i2T
AOC-STG-i2 |
-
-
-
-
-
-
-
-
- |
Standard LP, 2x GbE RJ45, PCI-E x4, Intel® i350AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel® i350
Standard LP, 2x GbE RJ45, PCI-E x4, Intel® 82575EB
Standard LP, 4x GbE RJ45, PCI-E x4, Intel® 82576EB
Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom® BCM57840S
Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel® 82599ES
Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel® 82599ES
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel® X540
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel® 82598EB |
| DVD-ROM / DVD-RW |
DVM-PNSC-DVD-SBT3
DVM-TEAC-DVD-SBT3
DVM-PLDS-DVDRW-SBT4
DVM-TEAC-DVDRW-SBT2 |
-
-
-
- |
BLACK PANASONIC SLIM DVD ROM SATA DRIVE
BLACK TEAC SLIM DVD ROM SATA DRIVE
PHILIPS SLIM BLACK DVD-RW SATA DRIVE
BLACK TEAC SLIM DVD-RW SATA DRIVE |
| DVD-ROM Accessory |
MCP-220-81502-0N |
- |
Slim SATA DVD kit for SC213,219,813,815,818,819,825,828,829,836,842 |
| Global Services & Support |
OS4HR3/2/1
OSNBD3/2/1 |
-
- |
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service |
| Software |
SFT-OOB-LIC |
1 |
OOB Management Package (per node license) |
| Software |
SFT-DCMS-Single |
1 |
DataCenter Management Package (per node license) |
|
|
|
