Supermicro SuperServer SYS-6029P-TR

SYS-6029P-TR

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs

SYS-6029P-TR	SuperServer 6029P-TR (Black)


Motherboard

Super X11DPi-N

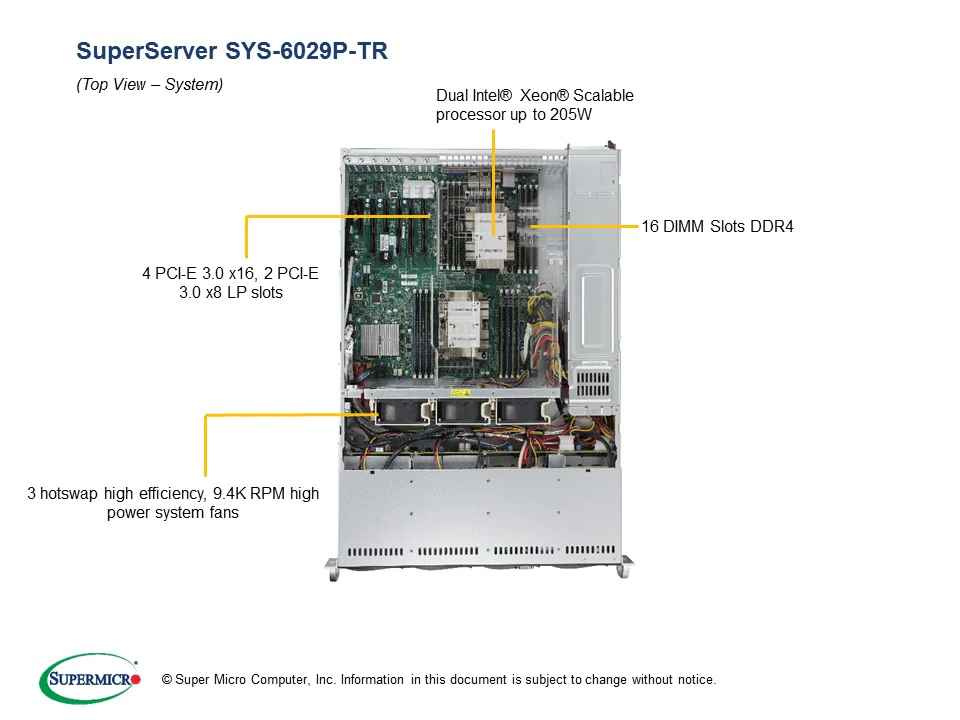

Processor/Cache

CPU	Dual Socket P (LGA 3647) Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s Support CPU TDP 70-205W
Cores	Up to 28 Cores with Intel® HT Technology


System Memory

Memory Capacity	16 DIMM slots Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type	2666/2400/2133MHz ECC DDR4 SDRAM


On-Board Devices

Chipset	Intel® C621 chipset
SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers	Dual 1GbE LAN with Intel® X722
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	ASPEED AST2500 BMC

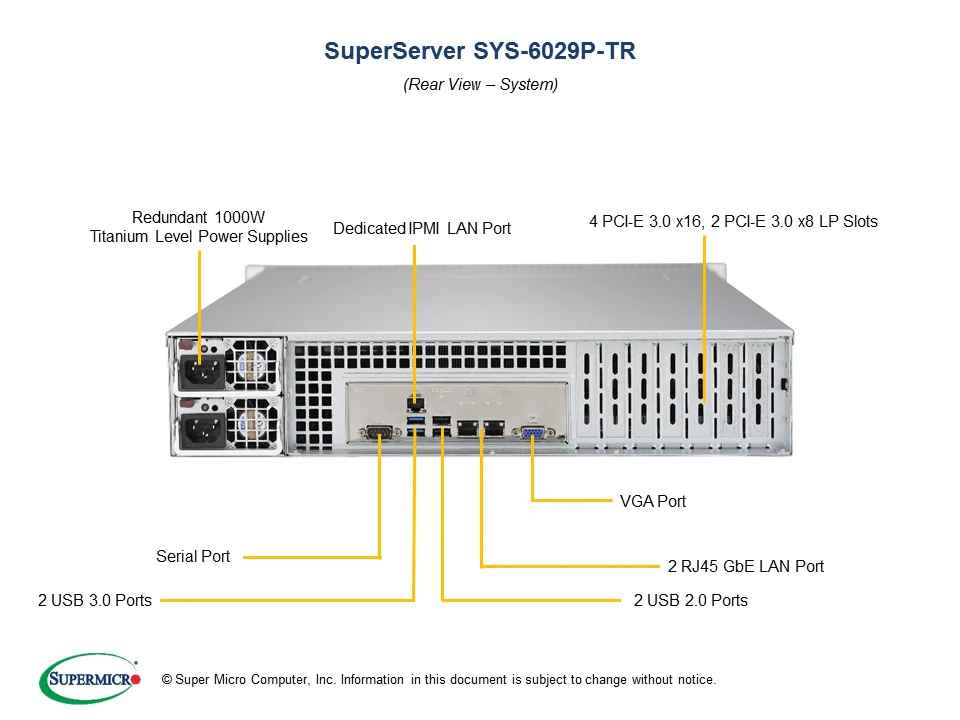

Input / Output

SATA	8 SATA3 (6Gbps) ports
LAN	2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	Rear USB: 2 USB 3.0 + 2 USB 2.0 Front USB: 2 USB 2.0 USB Header: 1 Type A
VGA	1 VGA port
Serial Port / Header	2 Fast UART 16550 serial 2 COM Ports (1 rear, 1 header)
DOM	2 SuperDOM (Disk on Module) ports


System BIOS

BIOS Type	AMI UEFI


Management

Software	Intel® Node Manager IPMI 2.0 KVM with dedicated LAN SSM, SPM, SUM SuperDoctor® 5 Watch Dog
Power Configurations	ACPI / APM Power Management


PC Health Monitoring

CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors


Chassis

Form Factor	2U Rackmount
Model	CSE-825TQC-R1K03LPB


Dimensions and Weight

Width	17.2" (437mm)
Height	3.5" (89mm)
Depth	25.5" (647mm)
Package	26.7" (H) x 11.4" (W) x 34.5" (D)
Weight	Net Weight: 35.5 lbs (16.1 kg) Gross Weight: 69 lbs (31.2 kg)
Available Colors	Black

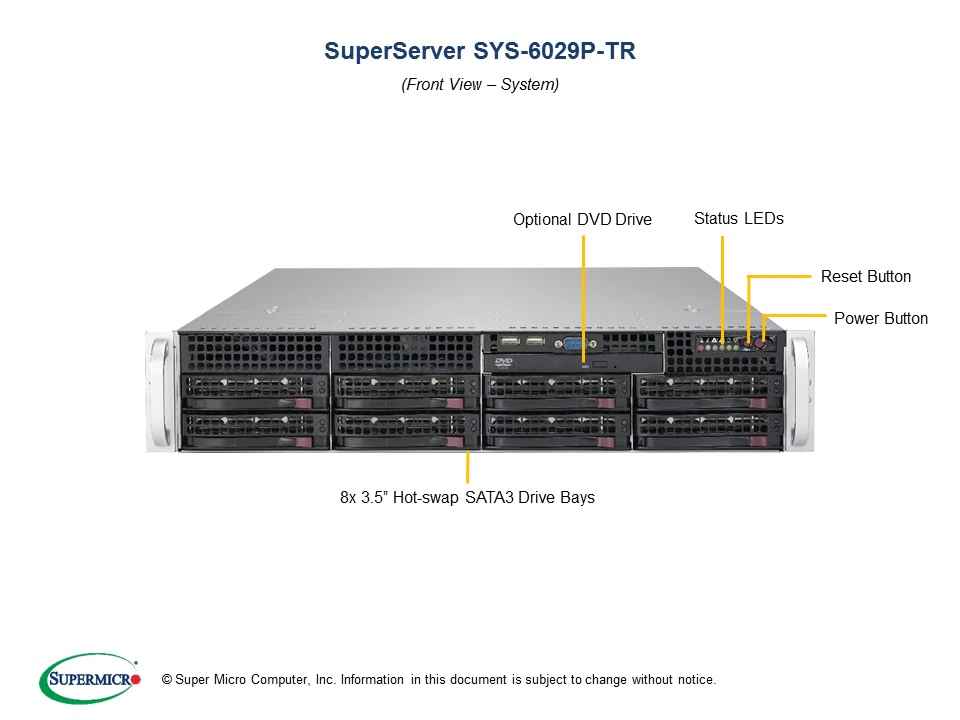

Front Panel

Buttons	Power On/Off button System Reset button UID button
LEDs	Power status LED HDD activity LED Network activity LEDs System information (overheat/UID) LED


Expansion Slots

PCI-Express	4 PCI-E 3.0 x16 (Low-profile) 2 PCI-E 3.0 x8 (Low-profile)

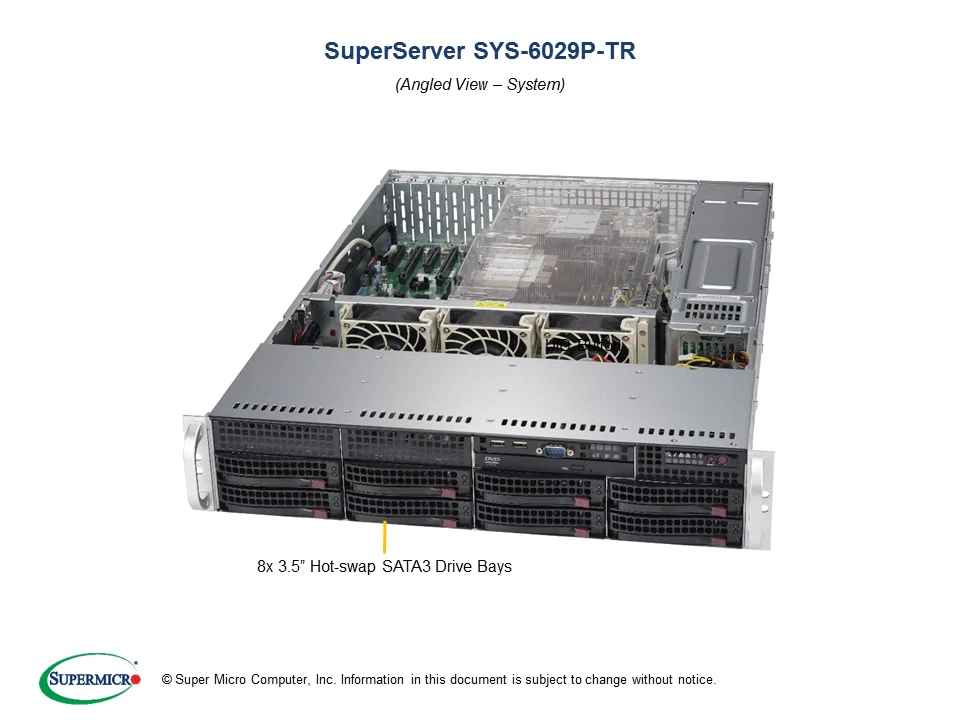

Drive Bays

Hot-swap	8 Hot-swap 3.5" SATA drive bays


Backplane

2U SAS/SATA backplane


System Cooling

Fans	3 Heavy duty 80mm fans with PWM fan speed control


Power Supply (76mm Width)
1000W Redundant Power Supplies with PMBus
Total Output Power	800W/1000W
Dimension (W x H x L)	76 x 40 x 336 mm
Input	100-127Vac / 12-9A / 50-60Hz 200-240Vac / 7.2-6A / 50-60Hz 200-240Vdc / 7.2-6A (for CCC only)
+12V	Max: 66.7A / Min. 0A (100-127Vac) Max: 83A / Min. 0A (200-240Vac) Max: 83A / Min. 0A (200-240Vdc)
5Vsb	Max: 4A / Min: 0A
Output Type	19 Pairs Gold Finger Connector
Certification	UL/cUL/CB/BSMI/CE/CCC Titanium Level [ Test Report ]


Operating Environment

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

See Parts List


Parts List - (Items Included)

	Part Number	Qty	Description
Motherboard / Chassis	MBD-X11DPi-N CSE-825TQC-R1K03LPB	1 1	Super X11DPi-N Motherboard 2U Chassis
Backplane	BPN-SAS3-825TQ	1	8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD
Cable 1	CBL-0343L-01	2	MINI SAS-4 SATA,INT,76/66/54/45CM,66CM SB,30AWG
Drive Tray(s)	MCP-220-00007-01	1	Black USB/COM port tray for SC825, 836
Parts	MCP-260-00042-0N	1	STD I/O shield for X9 socket R server MB with Gasket.
Manual	MNL-1918-QRG	1	6029P-TR/TRT Quick Reference Guide
Heatsink / Retention	SNK-P0068PS	1	2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Heatsink / Retention	SNK-P0068PSC	1	2U Passive CPU Heat Sink with a Side Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Power Supply	PWS-1K03A-1R	2	1U 1000W Redundant Power Supply Titanium W/PMbus 76x365x40mm,RoHS/REACH
FAN 1	FAN-0181L4	3	80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 2U+ Chassis


Optional Parts List

	Part Number	Qty	Description
Cable Management Arm	MCP-290-00073-0N	-	Supermicro Cable Management Arm for 2U, 3U and 4U chassis (Extendable Length: 70mm to 830mm)
Adaptor Bracket	MCP-120-82503-0N	-	Cable arm adapter for SC825LP,213LP (MCP-290-00073-0N required),HF,RoHS/REACH,PBF
SATA DVD Kit	MCP-220-81502-0N	-	Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842
2.5" NVMe fixed drive support	CBL-SAST-0956	-	Oculink to 1 NVMe drive w/ power, each NVMe drive needs 1x cable, system can support total 2x NVMe fixed drives
Global Services & Support	OS4HR3/2/1 OSNBD3/2/1	- -	3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service
Software	SFT-OOB-LIC	1	OOB Management Package (per node license)
Software	SFT-DCMS-Single	1	DataCenter Management Package (per node license)
