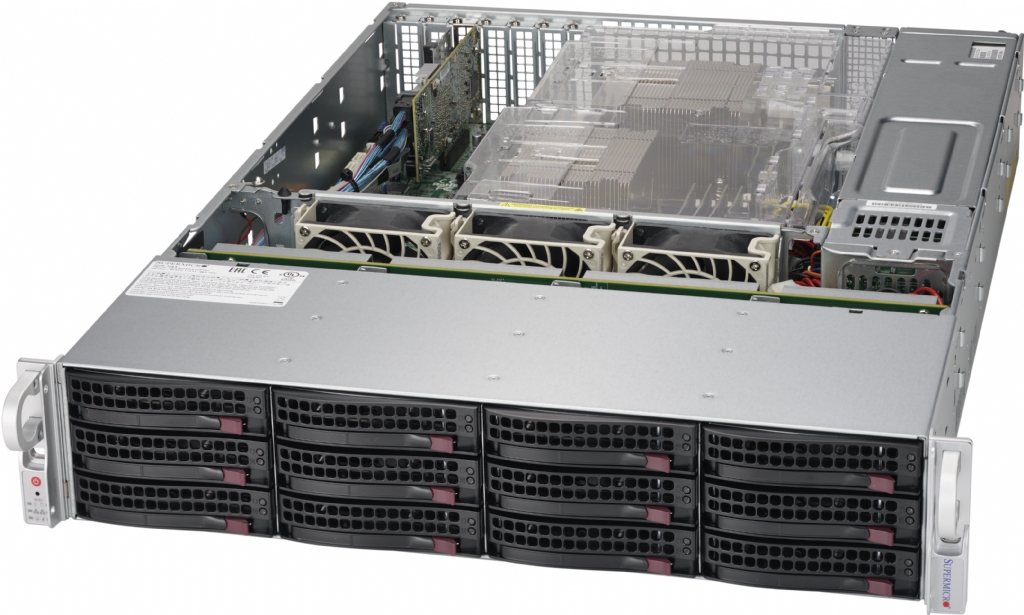

Supermicro SuperStorage Server 6028R-E1CR12H

SSG-6028R-E1CR12H

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs

SSG-6028R-E1CR12H	SuperServer 6028R-E1CR12H (Black)

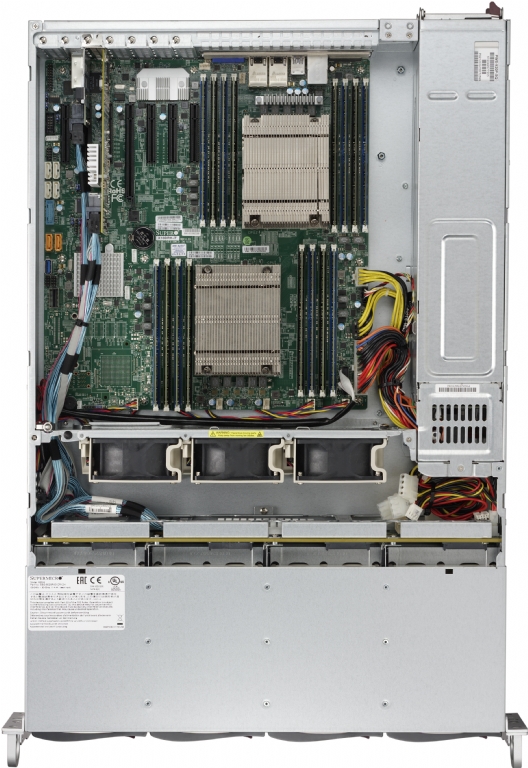

Motherboard

Super X10DRH-iT


Processor/Cache

CPU	Intel® Xeon® processor E5-2600 v4^†/ v3 family (up to 145W TDP) * Dual Socket R3 (LGA 2011)
Cores / Cache	Up to 22 Cores^† / Up to 55MB^† Cache
System Bus	QPI up to 9.6 GT/s
Note	^† BIOS version 2.0 or above is required
Note	* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.


System Memory

Memory Capacity	16x 288-pin DDR4 DIMM slots Up to 2TB^† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type	2400^†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors


On-Board Devices

Chipset	Intel® C612 chipset
SAS	SAS3 (12Gbps) via Broadcom 3108 AOC; HW RAID 0,1,5,6,10,50,60
SATA	SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Network Controllers	Intel® X540 Dual Port 10GbE Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1 Realtek RTL8201N PHY (dedicated IPMI)
Graphics	ASPEED AST2400 BMC

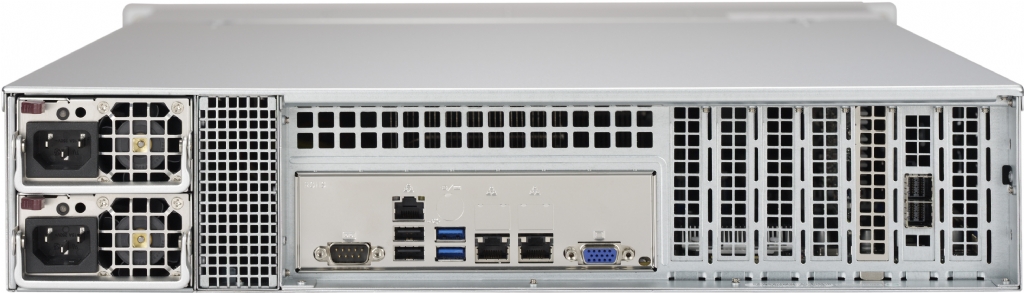

Input / Output

LAN	2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 ports (rear) 2 USB 2.0 ports (rear) 1 Type A
VGA	1 VGA port
Serial Port / Header	1 Fast UART 16550 port / 1 Header


Chassis

Form Factor	2U Rackmount
Model	CSE-826BE1C-R920LPB


Dimensions

Width	17.2" (437mm)
Height	3.5" (89mm)
Depth	25.6" (648mm)
Weight	Gross Weight: 58 lbs (26.3 kg) Net Weight: 34 lbs (15.4 kg)
Available Colors	Black

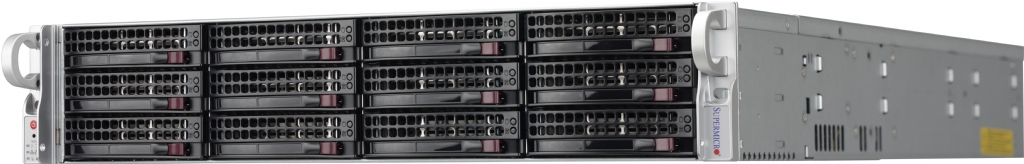

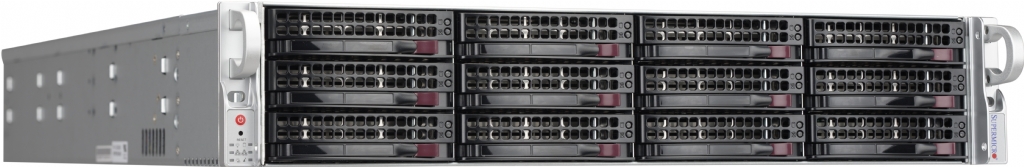

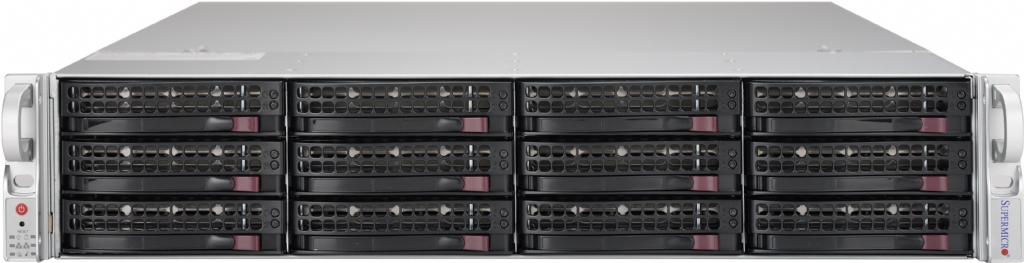

Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power status LED Hard drive activity LED 2 Network activity LEDs System Overheat LED Power fail LED


Expansion Slots

PCI-Express	1 PCI-E 3.0 x16 slot 6 PCI-E 3.0 x8 slots Slot 2 & 3 occupied by controller and JBOD Expansion Port


Drive Bays

Hot-swap	12x 3.5" Hot-swap SAS3/SATA3 drive bays
Optional	2x 2.5" Hot-swap SATA drive bays (rear)


Backplane

SAS3/SATA3 single expander per backplane


System Cooling

Fans	3x 8cm hot-swap redundant PWM cooling fans


Power Supply with Power Distributor

920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C
AC Input	100-240 V, 50-60 Hz, 11-4.5 Amp
DC Output	4 Amp @ +5V standby 75 Amp @ +12V
Certification	Platinum Certified [ Test Report ]


System BIOS

BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 PCI 2.2 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3 UEFI


Operating Environment / Compliance

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

See Parts List


Parts List - (Items Included)

	Part Number	Qty	Description
Motherboard / Chassis	MBD-X10DRH-iT CSE-826BE1C-R920LPB	1 1	Super X10DRH-iT Motherboard 2U Chassis
Add-on Card / Module	AOM-SAS3-8I8E-LP	1	8-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket,HF,RoHS/REACH
Backplane	BPN-SAS3-826EL1-N4	1	12-port 2U SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices
Cable 1	CBL-0160L	2	NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
Cable 2	CBL-SAST-0532	4	MINI SAS HD,12G,INT,50CM,30AWG
FAN 1	FAN-0126L4	3	80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
Drive Tray(s)	MCP-220-00075-0B	12	Black gen 5.5 hot-swap 3.5"; HDD tray
Parts	MCP-260-00042-0N	1	STD I/O shield for X9 socket R server MB with Gasket.
Air Shroud	MCP-310-29001-0N	1	SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
Power Supply	PWS-920P-SQ	2	920W 1U Redundant PWS W/ Quiet Mode
Heatsink / Retention	SNK-P0048PS	2	2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB
Drive Tray(s)	MCP-220-00075-0B	12	Black 3.5" HDD tray
Add On Card	AOC-S3108L-H8IR-O-P	1	SAS-3, GEN-3 RAID card. Supports 12Gb and RAID 0, 1, 5, 6, 10, 50, and 60. Includes 2GB memory
Add On Module	AOM-SAS3-8I8E-LP	1	8-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket


Optional Parts List

	Part Number	Qty	Description
3108 Cache Protection	BTR-TFM8G-LSICVM02 BKT-BBU-BRACKET-05	1 1	SuperCap Module Mounting PCIe Card
Rear Window	MCP-220-82609-0N	-	Rear hot-swap drive bay for 2x 2.5" drives
HDD bracket	MCP-220-82611-0N CBL-0289L CBL-0473L	1 1 2	Dual 2.5" fixed HDD tray HDD Power Cable HDD SATA Cable
4 NVMe Drives Support	AOC-SLG3-2E4R CBL-SAST-0590 MCP-220-00116-0B	2 4 4	NVMe AOC Internal Mini-SAS HD cable for PCIe SSD NVMe, 12Gb/s, 70cm 3.5" to 2.5" NVMe drive tray
Global Services & Support	OS4HR3/2/1 OSNBD3/2/1	- -	3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service
Software	SFT-OOB-LIC	1	OOB Management Package (per node license)
Software	SFT-DCMS-Single	1	DataCenter Management Package (per node license)
