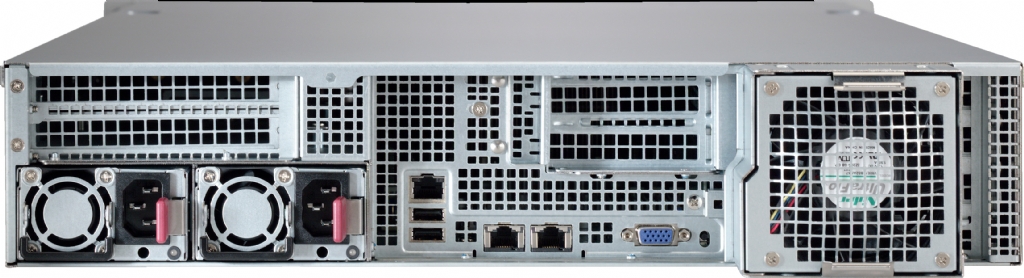

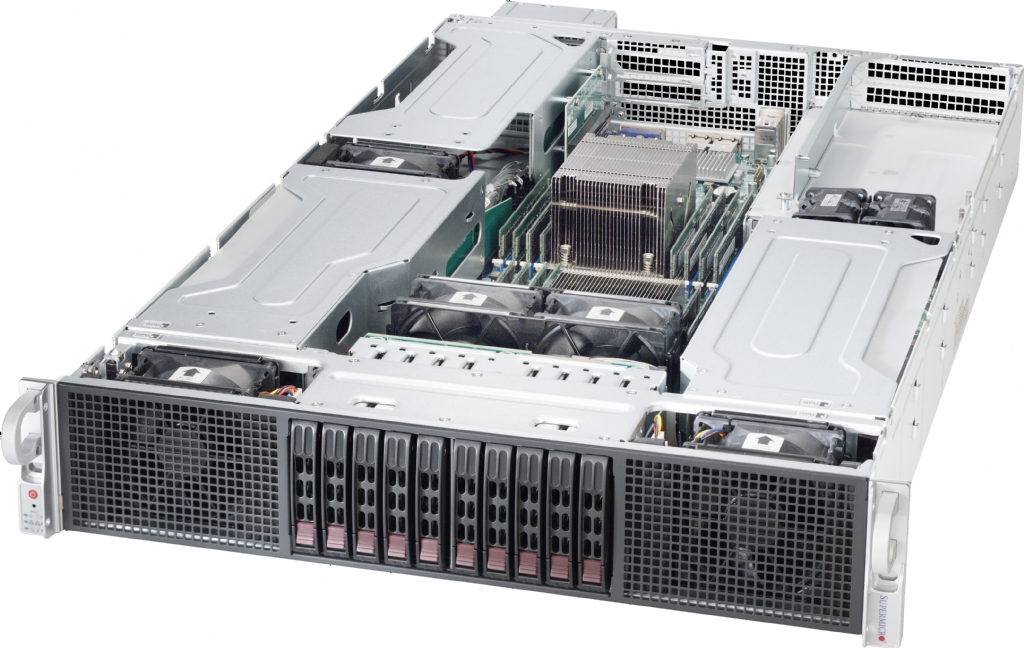

| SYS-2028GR-TR |
- SuperServer 2028GR-TR (Black)
|
| |
|
| CPU |
- Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
- Dual Socket R3 (LGA 2011)
|
| Cores / Cache |
- Up to 22 Cores† / Up to 55MB† Cache
|
| System Bus |
|
| Note |
† BIOS version 2.0 or above is required |
| Note |
* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
| |
|
| Memory Capacity |
- 16x 288-pin DDR4 DIMM slots
- Up to 2TB† ECC 3DS LRDIMM, 1TB ECC RDIMM
|
| Memory Type |
- 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
|
| DIMM Sizes |
- RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
- LRDIMM: 64GB, 32GB
- 3DS LRDIMM: 128GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
|
| |
|
| Chipset |
|
| SATA |
- Intel C612 Controller
- SATA3 (6Gbps) with RAID 0, 1, 5, 10
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
|
| Network Controllers |
- Intel® i350 Dual Port Gigabit Ethernet
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
|
| Graphics |
|
| |
|
| SATA |
|
| LAN |
- 2 RJ45 Gigabit Ethernet LAN ports
- 1 RJ45 Dedicated IPMI LAN port
|
| USB |
- 4 USB 3.0 ports (2 rear, 2 via header)
- 2 USB 2.0 ports (2 via headers)
|
| Video |
|
| Serial Port |
|
| |
|
| BIOS Type |
- 128Mb SPI Flash EEPROM with AMI® BIOS
|
| BIOS Features |
- Plug and Play (PnP)
- APM 1.2
- DMI 2.3
- PCI 2.2
- ACPI 1.0 / 2.0
- USB Keyboard support
- Hardware BIOS Virus protection
- SMBIOS 2.3
- UEFI
- RTC (Real Time Clock) Wakeup
|
|
 |
|
|
| Form Factor |
|
| Model |
|
| |
|
| Height |
|
| Width |
|
| Depth |
|
| Package |
- 26.5" (H) x 11" (W) x 44.5" (D)
|
| Weight |
- Net Weight: 39.5 lbs (17.9 kg)
- Gross Weight: 54 lbs (24.5 kg)
|
| Available Color |
|
| |
|
| Buttons |
- Power On/Off button
- System Reset button
|
| LEDs |
- Power LED
- Hard drive activity LED
- 2 Network activity LEDs
- System Overheat LED / Fan fail LED /
UID LED
|
| |
|
| PCI-Express |
- 4 PCI-E 3.0 x16 slots
(support GPU/Xeon Phi cards, option)
- 1 PCI-E 3.0 x8 (in x16) low-profile slot
|
| |
|
| Hot-swap |

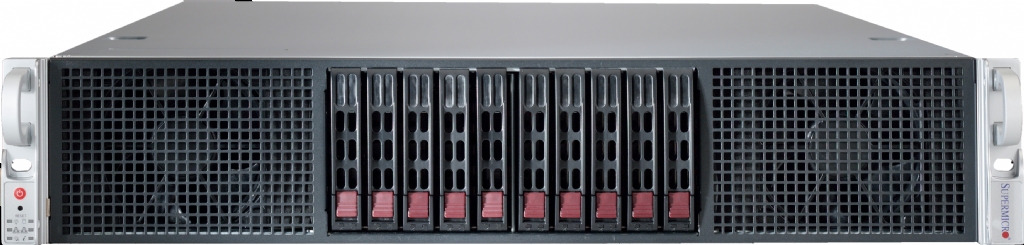

- 10 Hot-swap 2.5" drive bays
|
|
| |
|
| Fans |
- 5 heavy duty 8cm fans with optimal fan speed control
|
| |
|
| 2000W 1U Redundant Power Supplies with PMBus |
| Total Output Power |
|
Dimension
(W x H x L) |
|
| Input |
- 100-120Vac / 12.5-10.5A / 50-60Hz
- 200-220Vac / 10-9.5A / 50-60Hz
- 220-230Vac / 10-9.8A / 50-60Hz
- 230-240Vac / 10-9.8A / 50-60Hz
- 200-240Vac / 10-9.8A (UL/cUL only)
- 200-240Vdc / 10-9.1A (CCC only)
|
| +12V |
- Max: 83.3A / Min: 0.1A (100-120Vac)
- Max: 150A / Min: 0.1A (200-220Vac)
- Max: 165A / Min: 0.1A (220-230Vac)
- Max: 166.7A / Min: 0.1A (230-240Vac)
- Max: 166.7A / Min: 0.1A (200-240Vac) (UL/cUL only)
|
| 12V SB |
|
| Output Type |
- 25 Pairs Gold Finger Connector
|
| Certification |
  Platinum Level
[ Test Report ] |
| |
|
| CPU |
- Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages.
- 5 Phase-switching voltage regulator
|
| FAN |
- Total of five 4-pin PWM fans
- 5 fans with tachometer monitoring
- Status monitor for speed control
- Status monitor for on/off control
- Low noise fan speed control
|
| Temperature |
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- Thermal Control for 10x Fan Connectors
- PSU I2C temperature sensing logic
- Thermal Monitor 2 (TM2) support
- PECI
|
| LED |
- Power Fail / Overheat LED
- Suspend-state Indicator LED
- UID LED
|
| Other Features |
|
| |
|
| RoHS |
|
| Environmental Spec. |
- Operating Temperature:
10°C to 35°C (50°F to 95°F)
- Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
|
|
|
 |
|
See Parts List
|
|
|
|
|
Part Number
|
Qty
|
Description
|
| Motherboard / Chassis |
MBD-X10DRG-H
CSE-218GH-R2K03B |
1
1 |
Super X10DRG-H Motherboard
2U Black SC218G Chassis |
| Backplane |
BPN-SAS-218A |
1 |
10-port 2U (GPU chassis) SAS 6Gbps direct-attached backplane, support up to 10x 2.5-inch SAS/SATA HDD/SSD |
| Cable 1 |
CBL-0484L |
2 |
SATA,INT,ROUND,ST-ST,55CM,30AWG |
| Cable 2 |
CBL-0460L |
1 |
8 Pin to Two 4 Pin Backplane Power Ext. 28/22cm. 18AWG |
| Cable 3 |
CBL-0294L-02 |
2 |
MINI SAS-4 SATA,INT,58CM,58CM SB,REV,30AWG |
| Cable 4 |
CBL-PWEX-0582 |
4 |
8 pin to two 6+2 pin 12V GPU power cable, 30 cm 16/20 AWG, 10A/pin(16AWG), 6A/pin(20AWG), -25~85C, RoHS/REACH |
| Cable 5 |
CBL-0157L |
1 |
CBL,SGPIO,2X4F TO 2X4F,P2.54,RIBBON IN RND TUBE,40CM,28AWG |
| Label |
LBL-0108 |
1 |
CAUTION LABEL FOR REDUNDANT PWR SYSTEMS |
| Manual |
MNL-1626-QRG |
1 |
SYS-2028GR-TR(T)/TRH(T), QRG,HF,RoHS/REACH |
| Riser Card |
RSC-G2FR-A66 |
1 |
RSC-G2FR-A66-O-P |
| Riser Card |
RSC-G2F-A66 |
1 |
RSC-G2F-A66-O-P |
| Riser Card |
RSC-R2UG-E16R-X9 |
1 |
RSC-R2UG-E16R-X9 |
| Heatsink / Retention |
SNK-P0048PS |
1 |
2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB |
| Heatsink / Retention |
SNK-P0047PS |
1 |
1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB |
| Power Supply |
PWS-2K03P-1R |
2 |
1U 2000W Redundant Power Supply Platinum 73.5mm width.,RoHS/REACH |
|
|
|
|
|
|
