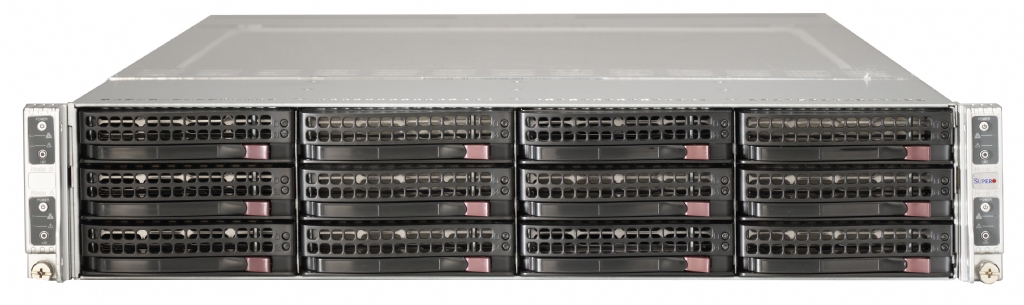

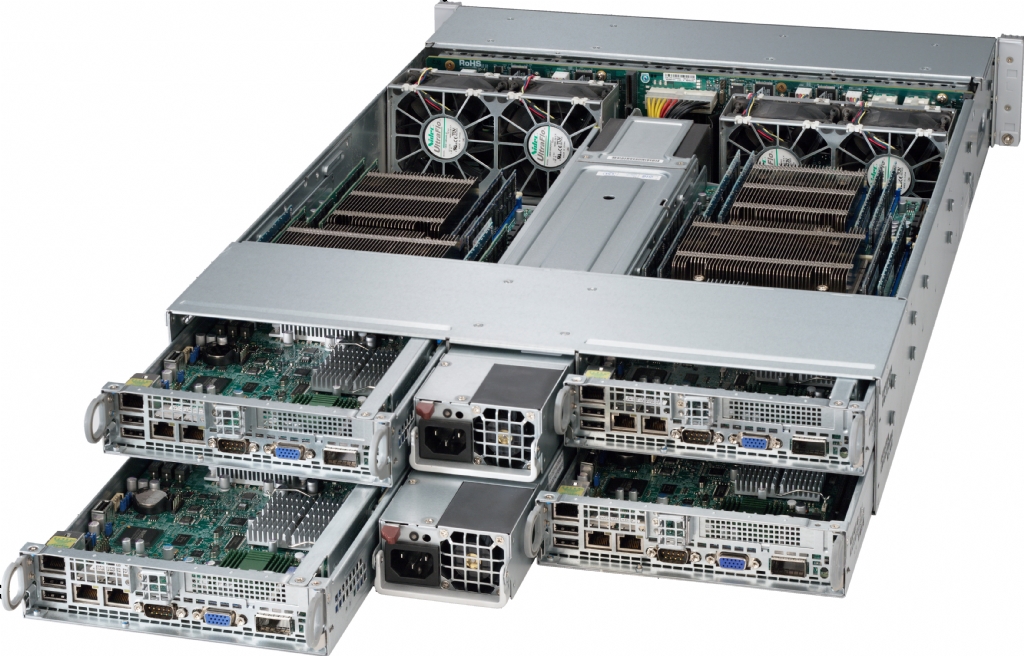

Supermicro SYS-6028TR-HTR

SYS-6028TR-HTR
Supermicro SYS-6028TR-HTR
£2,683.97
ex. VAT
(£3,220.76
inc. VAT)
This product is ordered upon request on a 3 - 5 Days lead-time.
Quantity


Email me when in stock
Looking for Compatible Products?
Product SKUs
SYS-6028TR-HTR
  • SuperServer 6028TR-HTR (Black)

Motherboard (Four per System)

Super X10DRT-H

Processor/Cache (per Node)
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note  BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory (per Node)
Memory Capacity
  • 8x 288-pin DDR4 DIMM slots
  • Up to 1TB ECC 3DS LRDIMM, 256GB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices (per Node)
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® i350 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
Video
  • ASPEED AST2400 BMC

Input / Output (per Node)
Serial ATA
  • 8x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB 3.0 ports (rear)
Video
  • 1x VGA port
Serial Port / Header
  • 1x RS232
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-827HQ-R1K68B

Dimensions and Weight
Width
  • 17.25" (438mm)
Height
  • 3.47" (88mm)
Depth
  • 28.5" (724mm)
Package
  • 26.4" (H) x 11.2" (W) x 39.8" (D)
Weight
  • Gross Weight: 85 lbs (38.6kg)
  • Net Weight: 54.5 lbs (24.7 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • 2x Network activity LEDs
  • Universal Information (UID) LED

Expansion Slots (per Node)
PCI-Express
  • 1x PCI-E 3.0 (x16) Low-profile slot
  • 1x PCI-E 3.0 (x8) connectors for SMCI Add-on Cards

Drive Bays (per Node)
Hot-swap
  • 3x 3.5" Hot-swap SATA3 HDD trays

    Please contact Supermicro Technical Support for additional information about HDD and SSD if mixed. Some restrictions and configuration rules that apply to SSD are different from HDD.

System Cooling
Fans
  • 4x 8cm heavy duty PWM fans with optimal fan speed control

Power Supply (76mm Width)
1600W 1U Redundant Power Supplies with PMBus
Total Output Power
  • 800W/1600W
Dimension
(W x H x L)
  • 76 x 40.4 x 336 mm
Input
  • 100-140Vac / 10-7A / 50-60Hz
  • 180-240Vac / 11-8A / 50-60Hz
+12V
  • Max: 67A / Min: 0A (100-140Vac)
  • Max: 133A / Min: 0A (180-240Vac)
+5Vsb
  • Max: 1A / Min: 0A
Output Type
  • 27 Pairs Gold Finger Connector
Certification Titanium Level Certified96%  UL/cUL/CB/BSMI/CE/CCC
  Titanium Level
  Test Report ]

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10DRT-H

CSE-827HQ-R1K68B
4

1
Super X10DRT-H Motherboard

2U Chassis
Air Shroud MCP-310-82715-0B 4 Plastic air shroud for SC827H/HQ,217HQ, X9 DP
Backplane BPN-SAS-827HQ 1 12-port 2U Twin^2 (3 drives per node) midplane, support up to 12x 3.5-inch SAS/SATA HDD
Backplane BPN-ADPX9-6SATA 4 6-PORT SATA ADAPTER FOR TWIN
Cable 1 CBL-0473L 8 SATA,INT,ROUND,ST-ST,21CM,30AWG
Cable 2 CBL-PWCD-0900 2 PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual MNL-1644-QRG 1 6028TR-HTR/HTFR, QRG
Riser Card RSC-R1UTP-E16R 4 1U RHS TwinPro Riser card with one PCI-E x16 slot
Heatsink / Retention SNK-P0047PW 4 1U Passive Custom Rear CPU Heat Sink for X9, X10 1U Twin, 2U Twin^2 8-DIMM per Node Series Servers
Heatsink / Retention SNK-P0047PS 4 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
Power Supply PWS-1K68A-1R 2 1U 1600W Redundant Titanium Power Supply 76mm width 27Pair,PBF


Optional Parts List
  Part Number Qty Description
SuperDOM - - Supermicro SATA DOM Solutions [Details]
Network Card(s) AOC-S40G-i2Q

AOC-SGP-i2

AOC-SGP-i4

AOC-STG-b4S

AOC-STGN-i2S

AOC-STGN-i1S

AOC-STG-i2T

AOC-STG-i2
-

-

-

-

-

-

-

-
Standard LP 2-port 40GbE controller, based on Intel Fortville XL710

Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2

Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350

Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S

Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES

Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN

Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540

Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
Hot-swap 3.5" to 2.5" Hard Disk Drive Tray MCP-220-00043-0N - Black Hot-swap gen 4 3.5" to 2.5" HDD tray
Global Services & Support OS4HR3/2/1

OSNBD3/2/1
-

-
3/2/1-year onsite 24x7x4 service

3/2/1-year onsite NBD service
Software SFT-OOB-LIC 4 OOB Management Package (per node license)
Software SFT-DCMS-Single 4 DataCenter Management Package (per node license)
