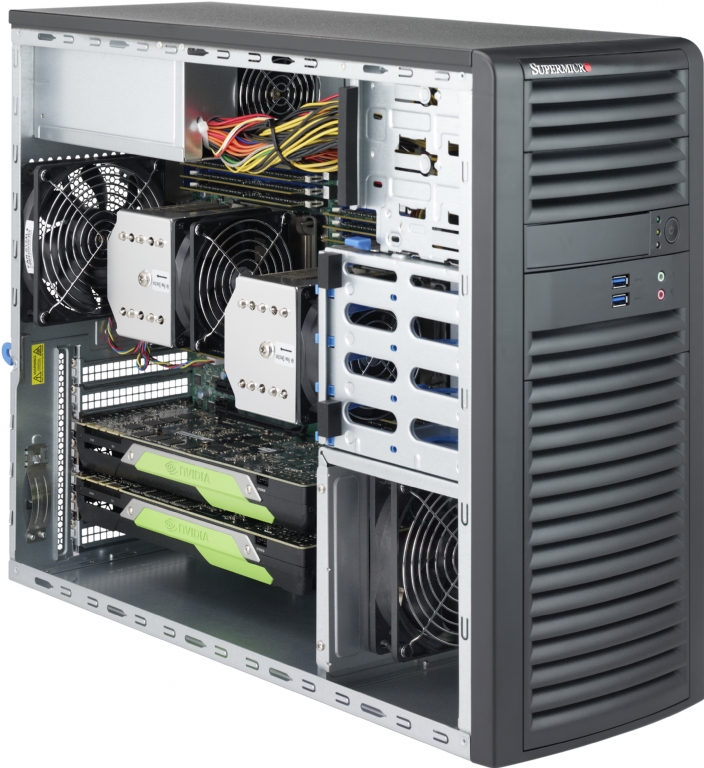

SuperWorkstation |
|
|
 |
CPU |
- Dual Socket P (LGA 3647)
- Intel® Xeon® Scalable Processors,
Dual UPI up to 10.4GT/s
- Support CPU TDP 70-205W
|
Cores |
- Up to 28 Cores with Intel® HT Technology
|
|
 |
Memory Capacity |
- 16 DIMM slots
- Up to 2TB ECC 3DS LRDIMM, up to 2TB ECC 3DS RDIMM, DDR4 up to 2666MHz
|
Memory Type |
- 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
|
DIMM Sizes |
- RDIMM: 64GB
- LRDIMM: 64GB
- 3DS LRDIMM: 128GB
|
Memory Voltage |
|
Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
|
 |
Chipset |
|
SATA |
- SATA3 (6Gbps); RAID 0, 1, 5, 10
|
Network Controllers |
- Dual LAN with GbE from C621
|
IPMI |
|
Audio |
- RealTek ALC888 7.1 High Definition Audio with S/PDIF header
|
|
 |
SATA |
|
NVMe |
- 2 NVMe support with optional cables
|

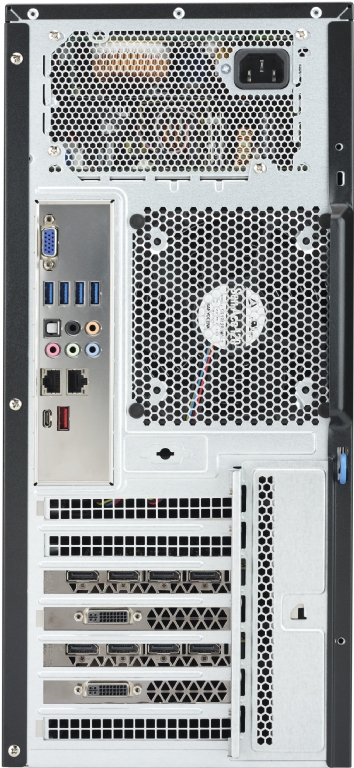

LAN |
- 2 RJ45 Gigabit Ethernet LAN ports
|
USB |
- 6 USB 3.0 ports (4 rear, 2 front)
- 2 USB 3.1 ports (rear)
|
Audio |
- 7.1 HD Audio with optical S/PDIF
|
Video |
|
Serial Port / Header |
|
DOM |
- 2 SuperDOM (Disk on Module) ports
|
TPM |
|
|
 |
BIOS Type |
|
|
 |
Software |
|
|
 |
CPU |
- Monitors for CPU Cores, Chipset Voltages, Memory.
- 4+1 Phase-switching voltage regulator
|
FAN |
- Fans with tachometer monitoring
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
|
Temperature |
- Monitoring for CPU and chassis environment
- Thermal Control for fan connectors
|
|
 |
 |
 |
Form Factor |
|
Model |
|
|
 |
Height |
|
Width |
|
Depth |
|
Gross Weight |
|
Available Colors |
|
|
 |

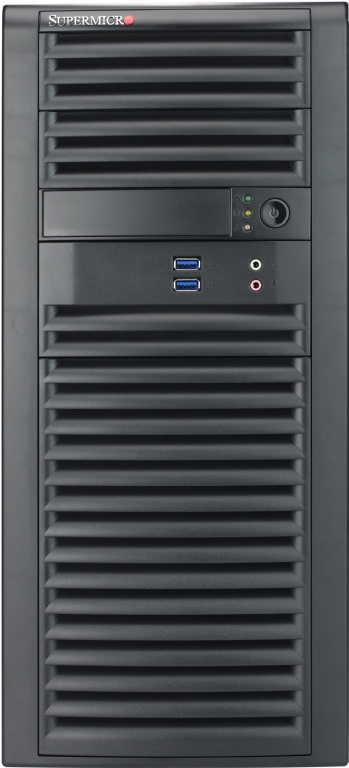

Buttons |
|
LEDs |
- Power LED
- Hard drive activity LED
- Network activity LED
- System Overheat LED
|
Ports |
- 2 front USB 3.0 Ports
- 2 front HD/AC97 Audio Ports
|
|
 |
PCI-Express |
- 4 PCI-E 3.0 x16 slots
- 2 PCI-E 3.0 x8 slots
|
M.2 |
- M.2 Interface: PCI-E 3.0 x4
- Form Factor: 2260, 2280, 22110
- Key: M-Key
|
|
 |

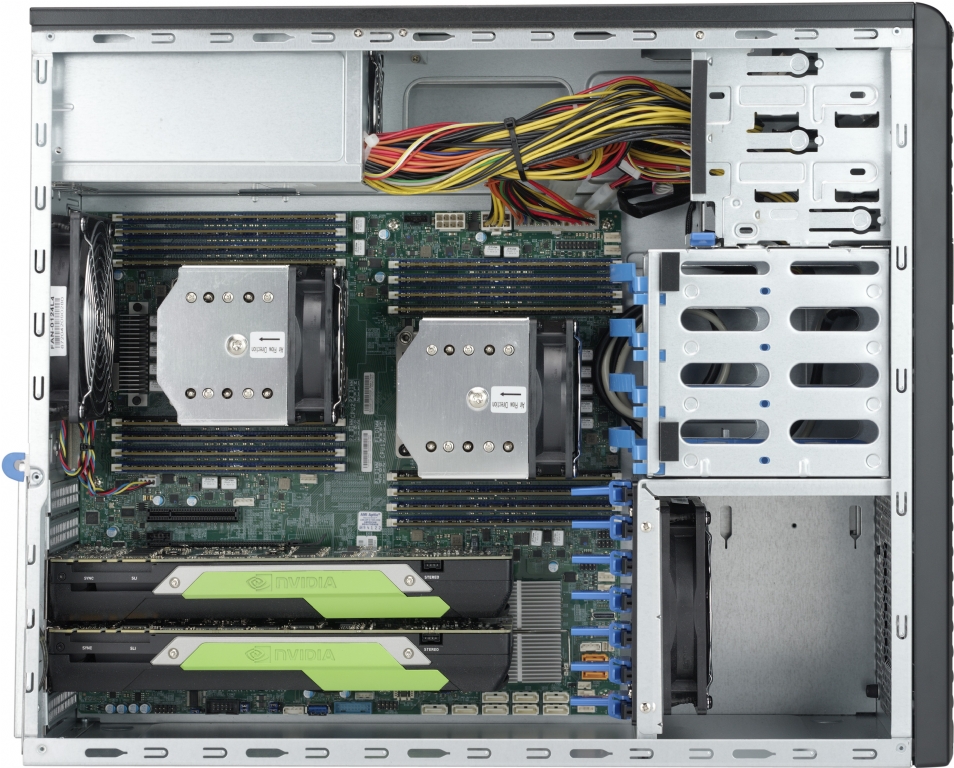

Internal |
- 4 Fixed 3.5" drive bays
(90° rotatable drive cage)
- Enterprise SATA HDD only recommended
|
Peripheral Bay |
- 2x 5.25" standard drive bays
- 4x 2.5" fixed drive bays (optional)
|
|
 |
Fans |
- 1x 12cm rear exhaust fan
- 1x 12cm front cooling fan
- Optimized cooling technology for Whisper-Quiet Operation
|
|
 |
1200W high-efficiency power supply w/ PMBus |
AC Input |
- 1000W: 100-114.9 V, 50-60 Hz, 12 Amp
- 1200W: 114.9-240 V, 50-60 Hz, 12-8 Amp
|
DC Output 1000W max 1200W max |
- +3.3V / +5V / +12V / -12V / +5VSB
- 20A / 20A / 83A / 0.3A / 3A
- 20A / 20A / 99A / 0.3A / 3A
|
Note: |
- Max. continuous combined load on +3.3V and +5V output shall not exceed 120W.
|
Certification |
 Platinum Certified |
|
 |
RoHS |
|
Environmental Spec. |
- Operating Temperature:
10°C to 35°C (50°F to 95°F)
- Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
|
|
 |
 |
 |
See Parts List
|
 |
 |
 |
 |
Part Number
 |
Qty
 |
Description
 |
Motherboard / Chassis |
MBD-X11DAi-N
CSE-732D3-1200B |
1
1 |
Super X11DAi-N Motherboard
3U Mid-Tower Chassis |
Cable 1 |
CBL-0071L |
1 |
CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AWG |
Cable 2 |
CBL-0082L |
2 |
Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG |
Cable 3 |
CBL-0084L |
1 |
CBL,FRONT CNTL,SPLIT,16 PIN,W/CONVERTER HEAD,15CM,26AWG |
Cable 4 |
CBL-0160L |
1 |
NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt) |
Cable 5 |
CBL-0453L |
1 |
USB 3.0,INT,19 PIN/F TO 19PIN/F,60CM,CONNECT TO CBL-0454L |
Cable 6 |
CBL-0455L |
1 |
CBL,AUDIO,HD/AC97,60cm |
Cable 7 |
CBL-SAST-0624 |
4 |
SATA,INT,ROUND,ST-ST,70CM,30AWG |
FAN 1 |
FAN-0124L4 |
1 |
12 CM x12 CM fan |
FAN 2 |
FAN-0124L4 |
1 |
12 CM x12 CM fan |
Drive Tray(s) |
MCP-220-73101-0B |
4 |
SC731 Tool-less Internal 3.5inch HDD Tray |
Parts |
MCP-260-00115-0N |
1 |
Standard I/O Shield for X11DAi with EMI Gasket |
Manual |
MNL-1996-QRG |
1 |
7039A-I Quick Reference Guide |
Power Supply |
PWS-1K25P-PQ |
1 |
PS2 1200W Multi Output High Efficiency P |
|
|
 |
 |
 |
|
Part Number |
Qty |
Description |
NVMe support kit |
MCP-220-73201-0N
CBL-SAST-0956 |
- |
SC732 2.5" HDD Cage (4x Internal 2.5" HDD)
Oculink to PCIe SFF-8639 w/ Power, 55CM - ADD QTY 1 per drive |
HDD Cage for 2.5" drives |
MCP-220-73201-0N |
- |
SC732 2.5" HDD Cage (4x Internal 2.5" HDD) |
Heat Sink |
SNK-P0070APS4 |
- |
4U Active CPU Heat Sink - Add QTY 1 per CPU |
DVD-ROM |
DVM-LITE-DVDRW24-HBT
1x CBL-SAST-0624
1x CBL-0082L |
- |
BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF
SATA,INT,ROUND,ST-ST,70CM,30AWG
Y split, big 4 pin to two RA SATA power extension 15cm, 18AWG |
|
|
|
