Supermicro SYS-F618R2-FT

SYS-F618R2-FT

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs

SYS-F618R2-FT	SuperServer F618R2-FT (Black)

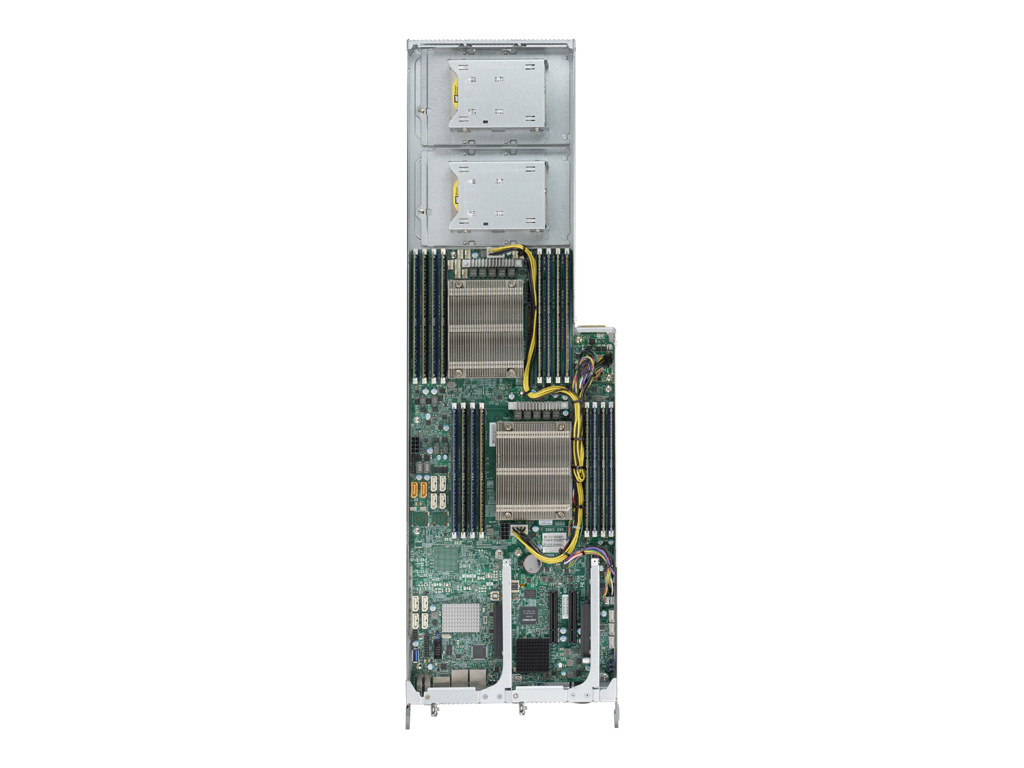

Motherboard

Super X10DRFF


Processor/Cache

CPU	Intel® Xeon® processor E5-2600 v4^†/ v3 family (up to 145W TDP) * Dual Socket R3 (LGA 2011)
Cores / Cache	Up to 22 Cores^† / Up to 55MB^† Cache
System Bus	QPI up to 9.6 GT/s
Note	^† BIOS version 2.0 or above is required
Note	* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.


System Memory

Memory Capacity	8x 288-pin DDR4 DIMM slots Up to 1TB^† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type	2400^†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors


On-Board Devices

Chipset	Intel® C612 chipset
SATA	SATA3 (6Gbps) with RAID 0, 1
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Network Controllers	Dual Intel® i210 Single Port Gigabit Ethernet Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8211E PHY (dedicated IPMI)
Graphics	ASPEED AST2400 BMC

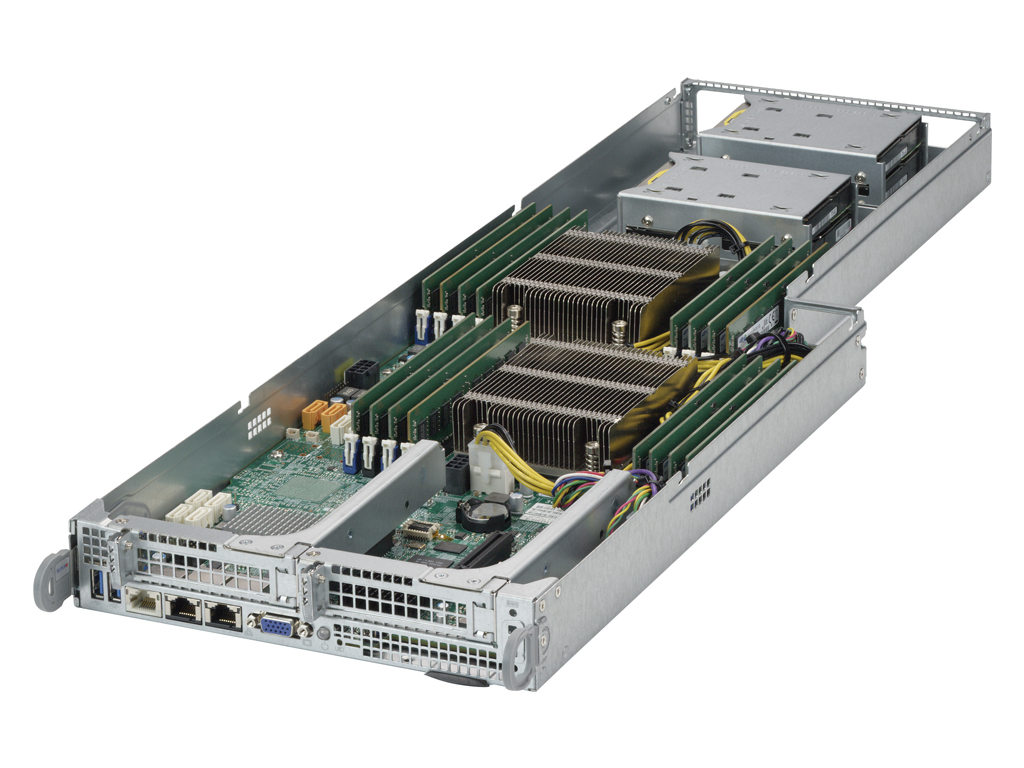

Input / Output (per node)

SATA	2x SATA3 (6Gbps) ports
LAN	2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	2x USB 3.0 ports
VGA	1x VGA port


Chassis

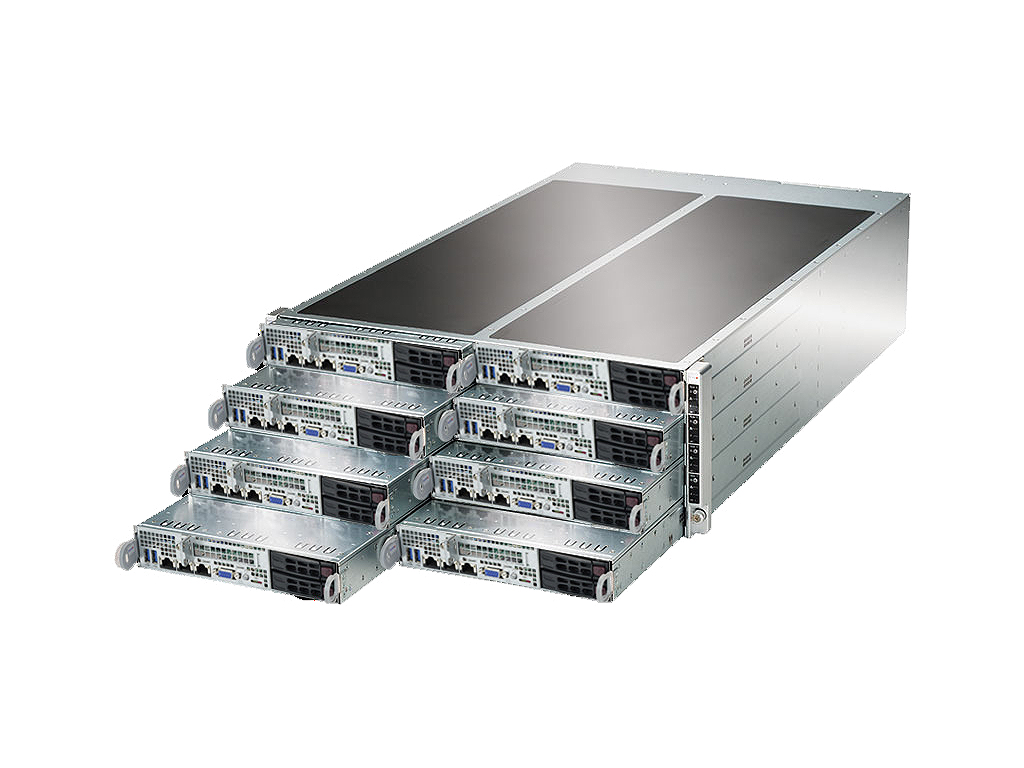

Form Factor	4U Rackmount
Model	CSE-F418IL-R1K62BP


Dimensions and Weight

Width	17.63" (448mm)
Height	6.96" (177mm)
Depth	29" (737mm)
Package	28.3" (W) x 15.0" (H) x 42.4" (D)
Weight	Net Weight: 150 lbs (68.04 kg) Gross Weight: 200 lbs (90.71 kg)
Available Colors	Black


Front Panel

Buttons	Power On/Off button UID button
LEDs	Power status LED 2x Network activity LEDs


Expansion Slots (per node)

PCI-Express	1x PCI-E 3.0 x16 Low-profile via riser card


Drive Bays (per node)

Hot-swap	2x 2.5" Hot-swap SATA HDD trays


System Cooling

Fans	8x 8cm 9.5K RPM Rear Fans


Power Supply
1620W high-efficiency redundant power supply w/ PMBus
AC Input	1000W Output @ 100-120V, 12-10A, 50-60Hz 1200W Output @ 120-140V, 12-10A, 50-60Hz 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output	1000W: +12V/84A; +5Vsb/4A 1200W: +12V/100A; +5Vsb/4A 1620W: +12V/150A; +5Vsb/4A
Certification	Platinum Certified [ Test Report ]


System BIOS

BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1


Operating Environment / Compliance

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

See Parts List


Parts List - (Items Included)

	Part Number	Qty	Description
Motherboard / Chassis	MBD-X10DRFF CSE-F418IL-R1K62BP	8 1	Super X10DRFF Motherboard 4U Chassis
Backplane	BPN-SAS-F418-B2R	8	2-port Fat Twin 6Gbps hot swappable HDD backplane (W/O SGPIO), support up to 2x 2.5-inch SAS/SATA HDD
Cable 1	CBL-0486L	8	2x2 to 2x2 15cm power cable HF. 18AWG
Cable 2	CBL-PWCD-0900	4	PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17
Cable 3	CBL-0473L	16	SATA,INT,ROUND,ST-ST,21CM,30AWG
Label	LBL-0108	1	CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual	MNL-1647-QRG	1	Quick Reference Guide for SYS-F618R2-FT,HF,RoHS/REACH
Riser Card	RSC-R1UFF-E16	8	1U LHS FatTwin Riser Card with PCI-E x16
Heatsink / Retention	SNK-P0047P	8	1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Square ILM MB
Heatsink / Retention	SNK-P0057P	8	1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Square ILM MB
Power Supply	PWS-1K62P-1R	4	1620W REDUNDANT POWER MODULE


Optional Parts List

	Part Number	Qty	Description
Software	SFT-OOB-LIC	8	OOB Management Package (per node license)
Software	SFT-DCMS-Single	8	DataCenter Management Package (per node license)
