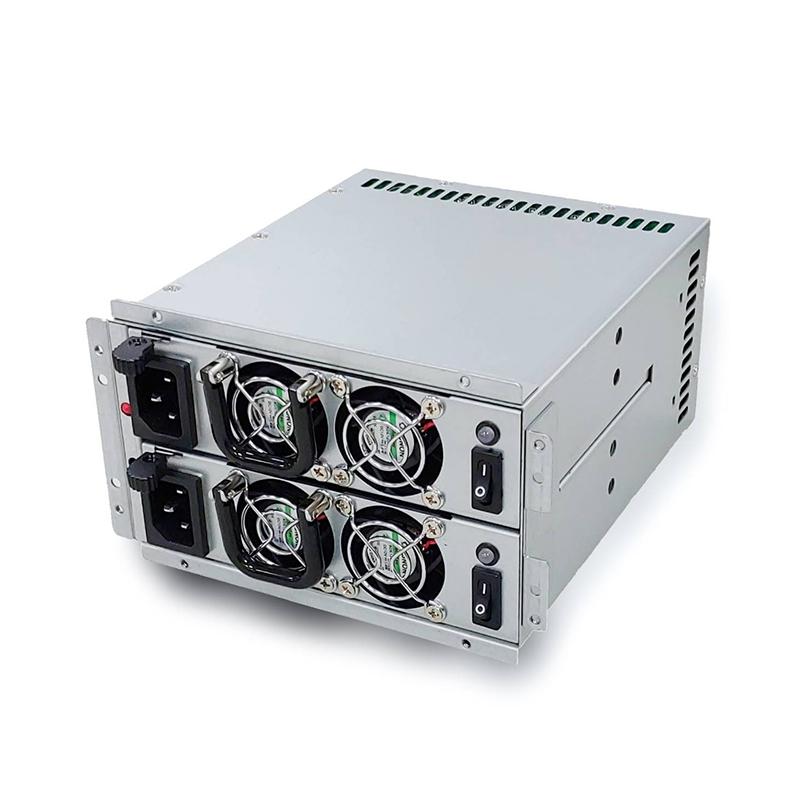

CRS 500W x 2 Mini Redundant PSU 80+ (Short Depth)

PIST2050-EPSH-80
CRS 500W x 2 Mini Redundant PSU 80+ (Short Depth)
£470.40
ex. VAT
(£564.48
inc. VAT)
Great news, we have this product in stock at the moment for next working day delivery.

Want it delivered by 17th Jun 2024? Order within 0 Hours and 23 minutes and get it delivered the next working day as standard.
Quantity


Looking for Compatible Products?
Hour

Min

Sec


Order this product before 4.30pm today and get it delivered for only £9.20* on 17th Jun 2024.

* Shipping price is for UK Mainland. Other destinations are calculated at the checkout.

Frequently bought together

SC-03A 500mm Rail Kit for 2U to 4U Chassis
SC-03A 500mm Rail Kit for 2U to 4U Chassis
£35.68 ex VAT
(£42.82 inc VAT)
Mini Redundant PSU Adapter
Mini Redundant PSU Adapter
£4.99 ex VAT
(£5.99 inc VAT)
4U Short Storage Chassis w/ 8x 3.5
SC-03A 600mm Rail Kit for 2U to 4U Chassis
SC-03A 600mm Rail Kit for 2U to 4U Chassis
£33.98 ex VAT
(£40.78 inc VAT)
Product Description
Key Feature
  • Meet the RoHS COMPLIANT.
  • Meet the WEEE Directive (2002/96/EC)
  • Temperature Range: Operating 0℃ ~ 50℃, Storage -20℃ ~ 70℃
  • Hold up time: 16 ms Minimum at full load & Normal input voltage.
  • Over Voltage Protection
  • Under Voltage Protection
  • Over Current Protection
  • Short Corcuit Protection
  • Thermal Protection
  • Remote On/Off Control.
  • Safety: To meet UL, TUV, CB, CE, FCC, BSMI, CCC. (Class B),IEC/EN/UL62368-1
  • Altitude during operation: Up to 5000m



Watts
500W(1+1)

Input

  • Input voltage: 90 ~ 264VAC Full Range.
  • Frequency: 47 - 63 Hz.
  • Input Current: 8A for 115VAC, 4A for 230VAC.
  • Inrush Current: 25A for 115VAC, 50A for 230VAC.
  • The Minimum efficiency of the power supply is 80% with full load and 1150Vac/60HZ input.
  • The minimum power factor at full load shall be 0.98 / 115V 60 Hz and 0.96 / 230V 50 Hz.

Output

Output Voltage +5V DC +12V DC +3.3V DC -12V DC +5VSB
Output Current(Max) 25A 41A 25A 0.8A 3.5A
Output Current(Min.) 1A 1A 1A 0A 0.5A
Ripple/Noise Max.(P-P): 60mVp-p 120mVp-p 60mVp-p 120mVp-p 50mVp-p
The combined total power from 5V & 3.3V shall not exceed 170W.

FEATURES
Meet the RoHS COMPLIANT.
Meet the WEEE Directive (2002/96/EC)
Temperature Range: Operating 0℃ ~ 50℃, Storage -20℃ ~ 70℃
Hold up time: 16 ms Minimum at full load & Normal input voltage.
Over Voltage Protection
Under Voltage Protection
Over Current Protection
Short Corcuit Protection
Thermal Protection
Remote On/Off Control.
Safety: To meet UL, TUV, CB, CE, FCC, BSMI, CCC. (Class B), IEC/EN/UL 62368-1
Altitude during operation: Up to 5000m

Dimensions
L x W x H: 174 x 150 x 86 (mm) / 6.85 x 5.9 x 3.38 (inches)
