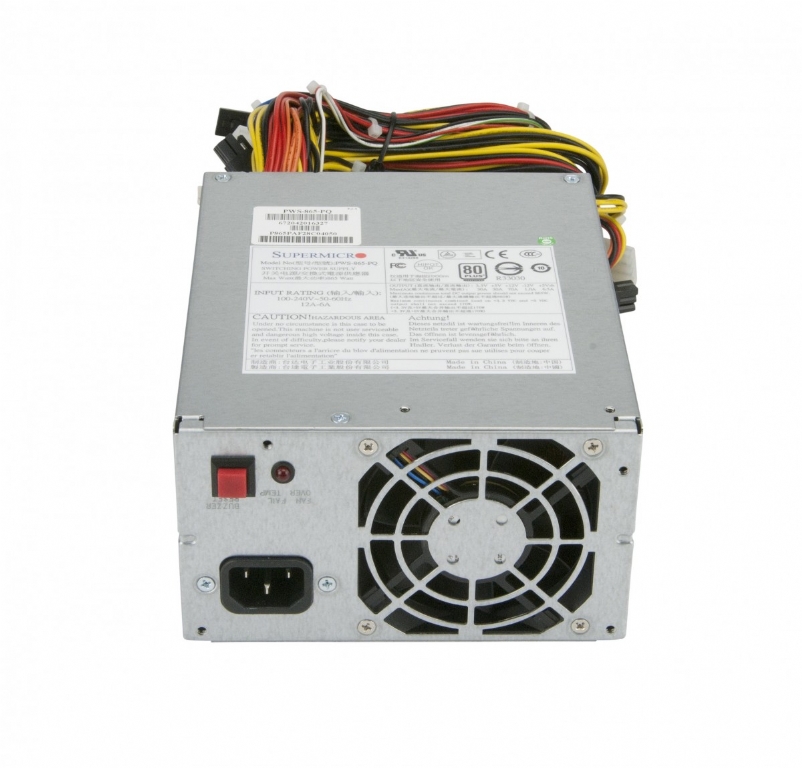

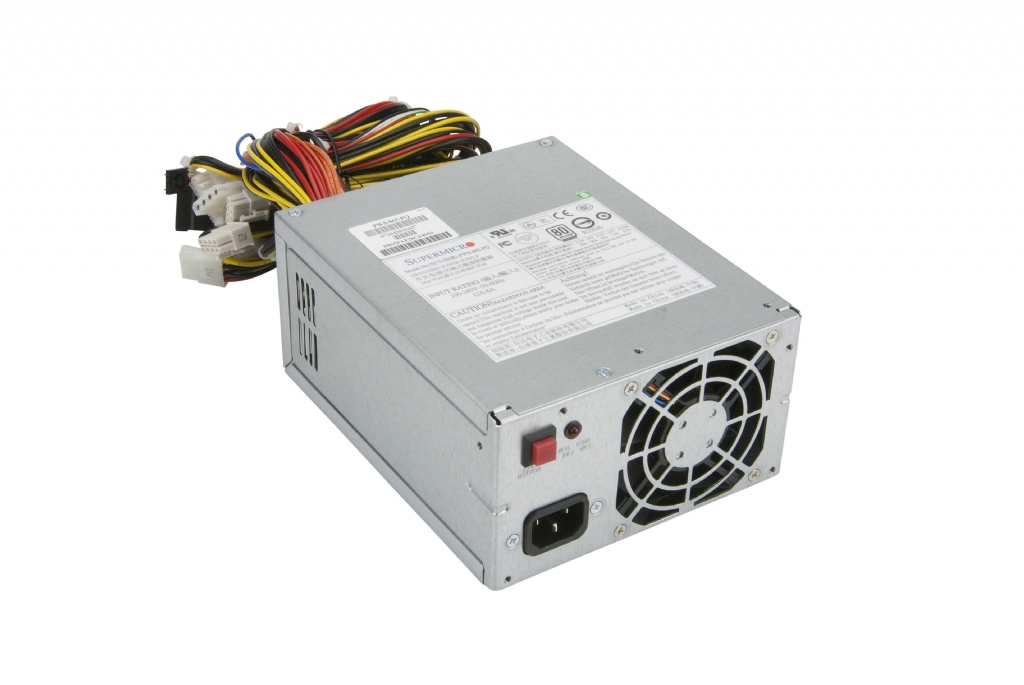

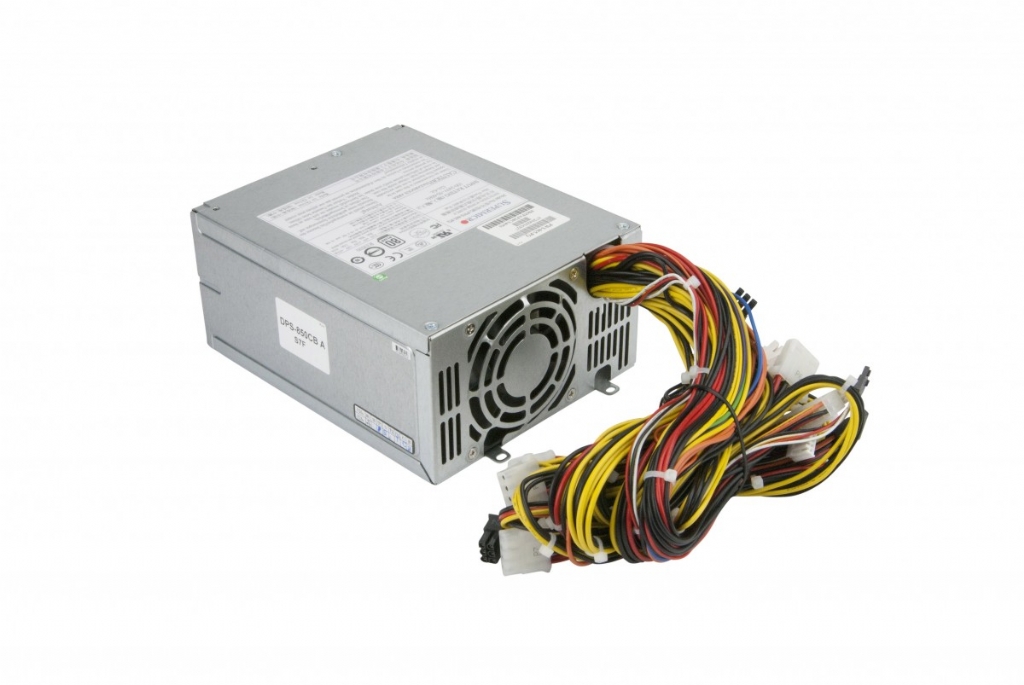

Supermicro 865W Multi-Output PS2/ATX Power Supply

PWS-865-PQ
Supermicro 865W Multi-Output PS2/ATX Power Supply
£139.00
ex. VAT
This product is currently out of stock. We are expecting stock in Ordered On Request
Quantity



The Supermicro PWS-865-PQ is an 80 Plus level power supply capable of continuously supplying 865W output power at 85% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages and a quiet fan to keep it cool under heavy loads. This power supply is designed to not only provide you reliable power to your desktop or workstation but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. All materials contained comply with RoHS requirements and is certified by Supermicro.

Cables Included:

  • 1x 24 Pin ATX (Motherboard)
  • 2x 8 Pin 12V (CPU)
  • 1x 4 Pin 12V (CPU)
  • 2x 6 Pin PCI-E
  • 2x (6+2) 8 Pin PCI-E
  • 6x 4 Pin Legacy HDD
  • 2x 4 Pin Floppy/DVD Drive
  • 2x SATA Power Connectors
  • 1x SMBus



TOTAL POWER OUTPUT 865W
TYPE Single
TYPE OF POWER SUPPLY Power Supply
FORM FACTOR Tower
DIMENSION (W X H X L) 150 x 86 x 185 mm
+5V 30A
+12V 70A
+3.3V 30A
5V STANDBY 6.5A
INPUT VOLTAGE RANGE 100-240Vac
INPUT FREQUENCY RANGE 50-60Hz
INPUT CURRENT RANGE 12-6A
OUTPUT TYPE 24Pin ATX Cable Output
8PIN / 4PIN (12V) CONNECTOR Both
PFC Yes
PMBUS No
ENERGY EFFICIENCY 85% Peak
80 PLUS CERTIFICATION 80 Plus
WARRANTY 1 year warranty
PRODUCT ENVIRONMENTAL COMPLIANCE RoHS and REACH compliant, details available upon request
PRODUCT RESOURCES
TITLE FORMAT DATE
PWS-865-PQ Spec Sheet October 2017
