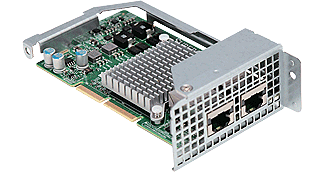

Supermicro AOC-CTG-I2T MicroLP Intel X540

AOC-CTG-I2T

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description

Add-on Card

The Most Advanced Ethernet Adapter for High-Density Server Systems The Supermicro AOC-CTG-i2T is one of the lowest power and most cost effective 10GBase-T adapter solutions in today's data center marketplace. The auto-negotiation feature between 1GbE and 10GbE provided by the AOC-CTG-i2T offers users the backwards compatibility they need for a smooth transition to 10GbE. It reliably addresses the demanding needs of bandwidth intensive applications at a fraction of the cost of traditional 10GbE adapters by utilizing cost-effective RJ-45 connectors at a much longer cabling distance. The Supermicro AOC-CTG-i2T 10GbE adapter is truly a best-in-class solution for advanced data centers.

This product is only available through Supermicro. To order, contact your distributor.



Key Features

• Dual RJ45 Connectors • 2U MicroLP Form Factor • PCI Express 2.1 (2.5GT/s or 5GT/s) • Intel® QuickData Technology • VMDq, Next-Generation VMDq, and PC-SIG SR-IOV for Virtualized Environments • Jumbo Frames Support up to 15.5KB • Load Balancing on Multiple CPUs • iSCSI Remote Boot Support • Fibre Channel over Ethernet (FCoE) • Support the most popular Network Operating Systems (NOSs) • Support RJ-45 Category-6 or 6A • RoHS compliant 6/6


Compliance

RoHS	RoHS Compliant 6/6, Pb Free


Downloads

User's Guide	[ Download ]
Datasheet	[ Download ]
Driver	[ Download ]
Matrices	[ MicroLP Compatibility Matrix ]


Specification

• General - Intel® X540 10GbE controller with integrated 10GBase-T copper PHYs - Compact size 2U MicroLP form factor - PCI-E x8 2.1 (2.5GT/s or 5GT/s) interface - Dual RJ-45 connectors with speed up to 10Gb/port - Load balancing on multiple CPUs - Intel® PROSet Utility for Windows® Device Manager - Maximum power consumption: about 13W • I/O Features - Intel® QuickData Technology: DMA engine that enhances data acceleration and lowers CPU usage - Support jumbo frames of up to 15.5KB - 802.1q VLAN support - Two integrated independent 10GBase-T interfaces operate at 10GBase-T (10Gb/s) and 1000Base-T (1Gb/s) modes - Direct Cache Access (DCA) to avoid cache misses - MSI-X support to minimize interrupt overhead of and allow load-balancing between multiple cores/CPUs - Receive and Transmit Side Scaling for Windows environment and Scalable I/O for Linux environments • Performance Features - TCP/UDP Segmentation Offload - IPv6 Support for IP/TCP and IP/UDP Receive Checksum Offload - Supports Fibre Channel over Ethernet (FCoE) - Low latency interrupts - DCA support • Virtualization Features - Support for Virtual Machine Device Queues (VMDq and Next-generation VMDq) - L2 Ethernet MAC address and VLAN filters - PC-SIG SR-IOV implementation - Advanced Packet Filtering - VLAN support to allow creation of multiple VLAN segments • Manageability Features - Preboot eXecuation Environment (PXE) support - Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) statistics counters - iSCSI remote boot • OS Support - Windows® Server 2012 (x64 edition) - Windows® 8 (x64 edition and 32-bit) - Windows® Server 2008 R2 (x64 edition and 64-bit) - Windows® Server 2008 (x64 edition, 64-bit, and 32-bit) - Windows® 7 (x64 edition and 32-bit) - Windows® Vista (x64 edition and 32-bit) - Windows® Server 2003 (x64 edition, 64-bit, and 32-bit) - VMWare - RedHat EL, SuSe SLES - FreeBSD • Cables Support - RJ-45 Category-6 up to 55m; Category-6A up to 100m • Operating Conditions - Operating temperature: 0°C to 55°C (32°F to 131°F) • Physical Dimensions (L x W) - Card PCB dimensions: 12.3cm (4.8") x 7.0cm (2.75")


Supported Platforms

Servers	Supermicro MicroCloud and Twin Server Systems with microLP expansion slot See MicroLP Compatibility Matrix online


Parts List

	Part Number	Qty	Description
Add-on Card	AOC-CTG-i2T	1	10 Gigabit Ethernet Adapter
Bracket	BKT-0067L BKT-0068L	1 1	MicroLP PCB bracket (pre-installed) I/O bracket (pre-installed)
Driver Disk	CDR-NIC	1	Driver and Software CDROM
