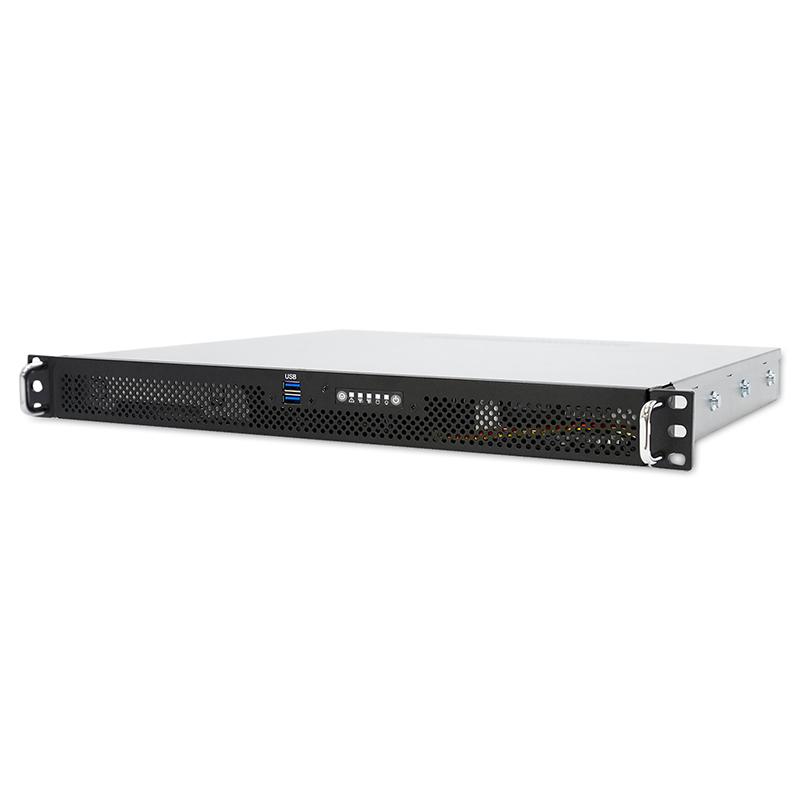

1U Short Rugged Rackmount Chassis 2 x 3.5" ,2x2.5" Internal (250 Watt PSU Inc.)

1U Short Rugged Rackmount Chassis 2 x 3.5" ,2x2.5" Internal (250 Watt PSU Inc.)
ex. VAT
inc. VAT)
Great news, we have this product in stock at the moment for next working day delivery.

Want it delivered by 14th Jun 2024? Order within 4 Hours and 36 minutes and get it delivered the next working day as standard.
Looking for Compatible Products?

Order this product before 4.30pm today and get it delivered for only £9.20* on 14th Jun 2024.

* Shipping price is for UK Mainland. Other destinations are calculated at the checkout.

Product Description
Key Features
  • Rugged design to meet most applications.
  • Front ventilation for superior cooling.
  • Front Access Dual USB 3 Port for software maintenance.
  • 1 x 40x40x28 mm (4P) fan standard, 2x optional
  • Short depth design for space critical applications
  • Equipped with 250watt PSU 80+ Gold
Features & Benefits

The IPC-C1E-BAS25-RH-N1 is an entry-level 1U appliance chassis with 15” depth for space-sensitive applications, such as Network & Security appliance, firewall, VPN, Telephony and military applications. Standard ATX size (9.6” x 12”) motherboard can be populated into this appliance chassis. The IPC-C1E-BAS25-RH-N1 is i a cost-effective appliance chassis that provide lower TCO (total cost of ownership) to IT professionals for higher ROI.

Dimensions (W x D x H) (with chassis ears)
• mm : 482.6 x 381 x 44.4
• inches : 19 x 15 x 1.75

Industry Standard



Heavy-duty preplated SPGC cold-rolled steel


Front Panel : Black


Standard :
• Front : 1 x 40x40x28 mm fan ( 4P)
Options :
• 2 x 40x40x28 mm fans (PCICASE SKU: IPC-SF4028-4P)

Power Supply
Standard :

• 250W single Flex ATX PSU, 80+ Gold


Expansion Slot

1 x Full Height Via Riser Card (Please See Optional Product For Details)

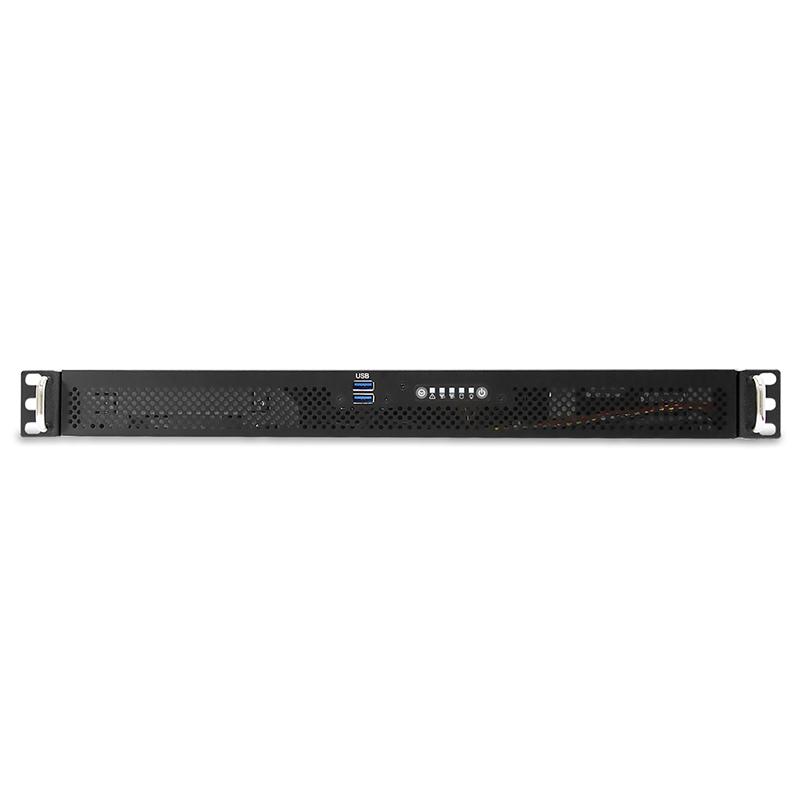

Front Panel

• Power on/off
• System reset
• 2 x USB 3 ports

LED Indicators

• Power
• Drive

System Board

Up to 12”(W) x 9.6”(D) ATX compliant MB

Drive Bays

• Internal : 2x3.5" + 2 x 2.5”

Storage Temperature

0°C(32°F) ~ 50°C(122°F)


5% ~ 95% non-condensing

Gross Weight (w/ PSU; w/o Rail)

• kgs : 7
• lbs : 15.4

Package Dimension (W x D x H)

• mm : 548 x 574 x 173
• inches : 21.6 x 22.6 x 6.8

Cubic Feet


Container Load Quantity

• 20’ : 500
• 40’ : 1025
• 40’ H : 1235


Slider Rails: PCICASE SKU IPC-SY034-1
